Model # WDP3S Official LG laundry pedestal

Here are the diagrams and repair parts for Official LG WDP3S laundry pedestal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |

Laundry Appliance Pedestal Drawer Slide Rail 4276ER0001A
#A110

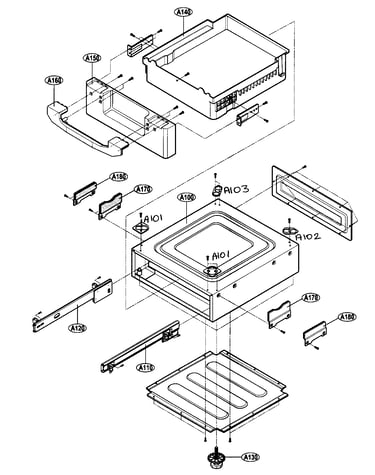

Cabinet parts diagram

Laundry appliance pedestal drawer slide rail

Part #4276ER0001A

BEST SELLER
$87.98
5% OFF Phone Price : $92.98
In Stock
Laundry Appliance Pedestal Drawer Slide Rail 4276ER0002A
#A120

Cabinet parts diagram

Laundry appliance pedestal drawer slide rail

Part #4276ER0002A

$87.98
5% OFF Phone Price : $92.98
In Stock
Connector Assembly 4933ER3002B
#A180

Cabinet parts diagram

Connector assembly

Part #4933ER3002B

In Stock
Handle Assembly 3651ER0002C
#A160

Cabinet parts diagram

Handle assembly

Part #3651ER0002C

In Stock
Laundry Appliance Pedestal Drawer 4870ER0004A
#A140

Cabinet parts diagram

Laundry appliance pedestal drawer

Part #4870ER0004A

$114.94
8% OFF Phone Price : $124.94
In Stock
Washer Leveling Leg 4779ER3002A
#A130

Cabinet parts diagram

Washer leveling leg

Part #4779ER3002A

Replaced by #AFC72755401

?
Manufacturer substitution
This part replaces 4779ER3002A. Substitute parts can look different from the original.
$11.93
14% OFF Phone Price : $13.93
In Stock
Connector Assembly 4933ER3001B
#A170

Cabinet parts diagram

Connector assembly

Part #4933ER3001B

The manufacturer no longer makes this part, and there's no substitute part

Supporter 4980ER4005C
#A102

Cabinet parts diagram

Supporter

Part #4980ER4005C

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly 3551ER0017C
#A150

Cabinet parts diagram

Cover assembly

Part #3551ER0017C

The manufacturer no longer makes this part, and there's no substitute part

Supporter 4980ER4006C
#A103

Cabinet parts diagram

Supporter

Part #4980ER4006C

The manufacturer no longer makes this part, and there's no substitute part
