Model # PH5042AKB3 Official ICP residential & mobile home package heat pump

Here are the diagrams and repair parts for Official ICP PH5042AKB3 residential & mobile home package heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Contactor 1054736
#19

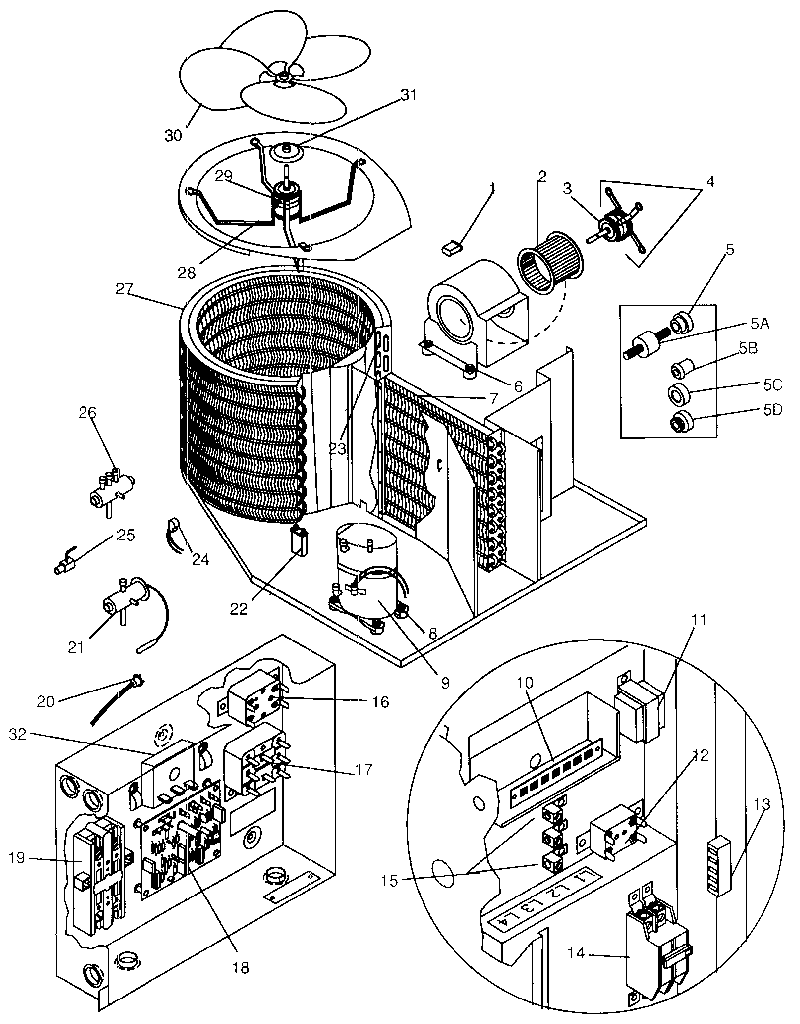

Functional parts diagram

Contactor

Part #1054736

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 1053068
#22

Functional parts diagram

Capacitor

Part #1053068

Replaced by #PAKTRCFD355

?
Manufacturer substitution
This part replaces 1053068. Substitute parts can look different from the original.
$14.47 |
12% OFF Phone Price : $16.47
In Stock
Sequencer 1059432
#12

Functional parts diagram

Sequencer

Part #1059432

$51.89
In Stock
Motor 710890
#3

Functional parts diagram

Motor

Part #710890

Replaced by #522376

?
Manufacturer substitution
This part replaces 710890. Substitute parts can look different from the original.
$790.35
In Stock
Spst Relay 1053004
#16

Functional parts diagram

Spst relay

Part #1053004

The manufacturer no longer makes this part, and there's no substitute part

Motor 1057707
#29

Functional parts diagram

Motor

Part #1057707

Replaced by #WG840465

?
Manufacturer substitution
This part replaces 1057707. Substitute parts can look different from the original.
$150.11
In Stock
Capacitor 1057742
#1

Functional parts diagram

Capacitor

Part #1057742

Replaced by #12908

?
Manufacturer substitution
This part replaces 1057742. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Blower Wheel 706038
#2

Functional parts diagram

Blower wheel

Part #706038

Replaced by #2120143

?
Manufacturer substitution
This part replaces 706038. Substitute parts can look different from the original.
$175.60
In Stock
Outlet Grille 1057353
#30

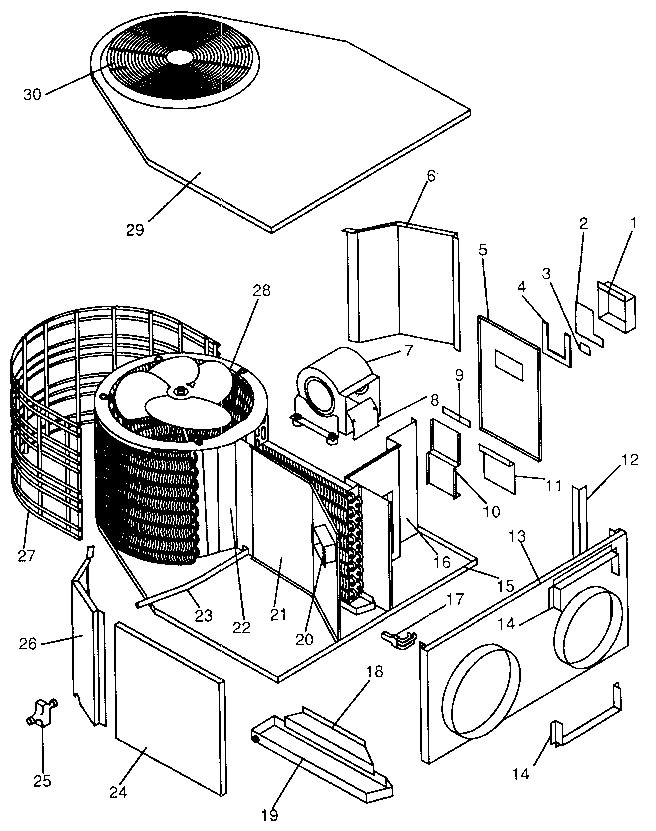

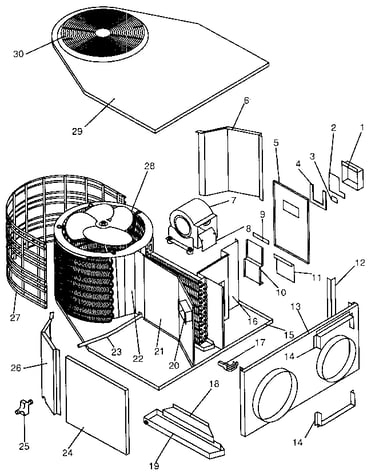

Non functional parts diagram

Outlet grille

Part #1057353

Replaced by #512848

?
Manufacturer substitution
This part replaces 1057353. Substitute parts can look different from the original.
$164.46 |
6% OFF Phone Price : $174.46
In Stock
Coil 707780
#24

Functional parts diagram

Coil

Part #707780

Replaced by #1066549

?
Manufacturer substitution
This part replaces 707780. Substitute parts can look different from the original.
$117.70
In Stock
