Model # 58031671 Official Craftsman alternator

Here are the diagrams and repair parts for Official Craftsman 58031671 alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

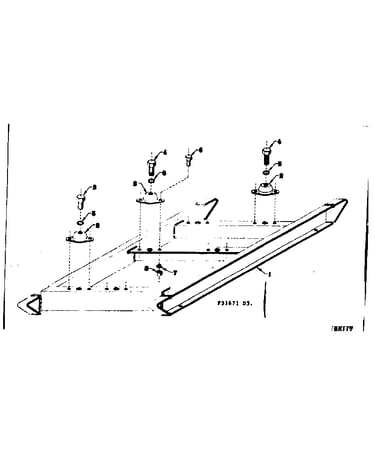

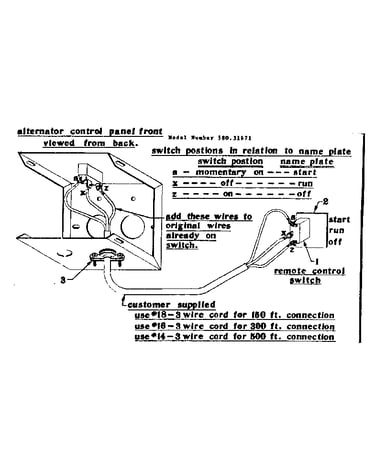

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Lock Washer 22129
Lock washer

Part #22129

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 25585
#8

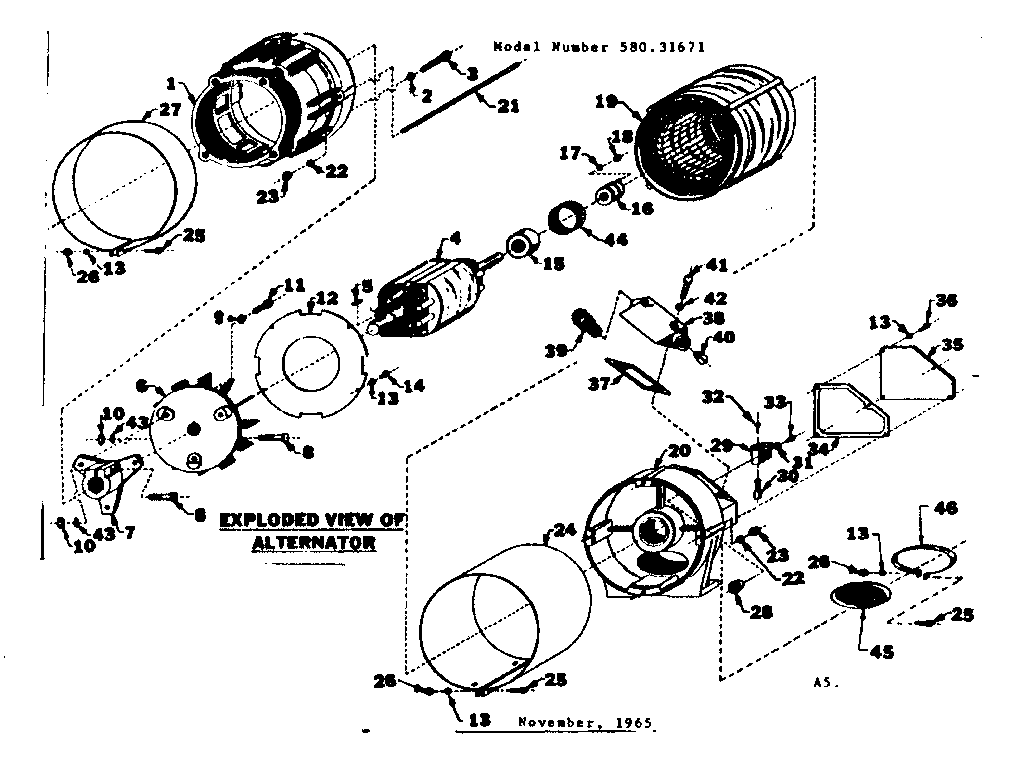

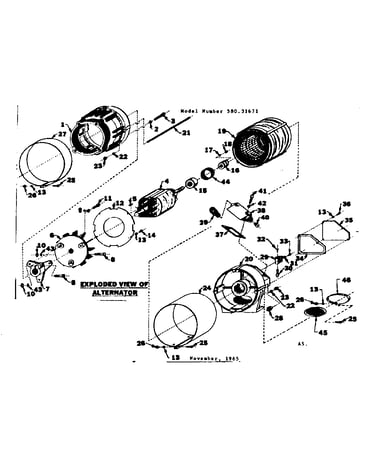

Stator assembly diagram

Cap screw

Part #25585

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22531
#11

Stator assembly diagram

Cap screw

Part #22531

Replaced by #704288

?
Manufacturer substitution
This part replaces 22531. Substitute parts can look different from the original.
$8.26
In Stock
Cap Screw 22287
#3

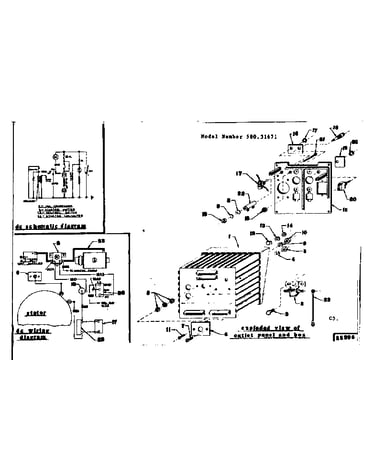

Outlet panel and box diagram

Cap screw

Part #22287

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22238
#7

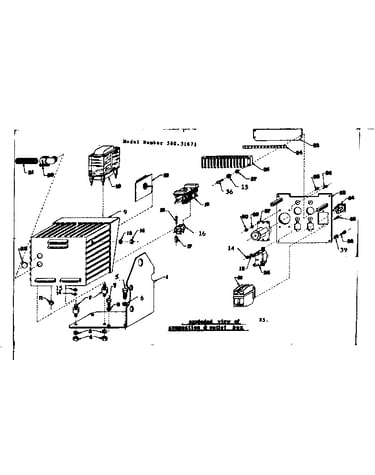

Connection & outlet box diagram

Cap screw

Part #22238

The manufacturer no longer makes this part, and there's no substitute part

Washer 23762
#13

Connection & outlet box diagram

Washer

Part #23762

The manufacturer no longer makes this part, and there's no substitute part

Gasket 24285
#34

Stator assembly diagram

Gasket

Part #24285

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly A-24044-A
#30

Stator assembly diagram

Brush assembly

Part #A-24044-A

The manufacturer no longer makes this part, and there's no substitute part

Stator Assembly A-24307-N
#19B

Stator assembly diagram

Stator assembly

Part #A-24307-N

The manufacturer no longer makes this part, and there's no substitute part

Screw 23896
#33

Stator assembly diagram

Screw

Part #23896

The manufacturer no longer makes this part, and there's no substitute part
