Sony DCR-SR47R camcorder

Sony DCR-SR47R camcorder Parts

Here are the diagrams and repair parts for Sony DCR-SR47R camcorder, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for DCR-SR47R Camcorders

  • Screw(red) for Sony DCR-SR47R - Part 266040101

    Screw(red)

    Part #266040101

    The manufacturer no longer makes this part, and there's no substitute part

  • Cabinet for Sony DCR-SR47R - Part A1643669A

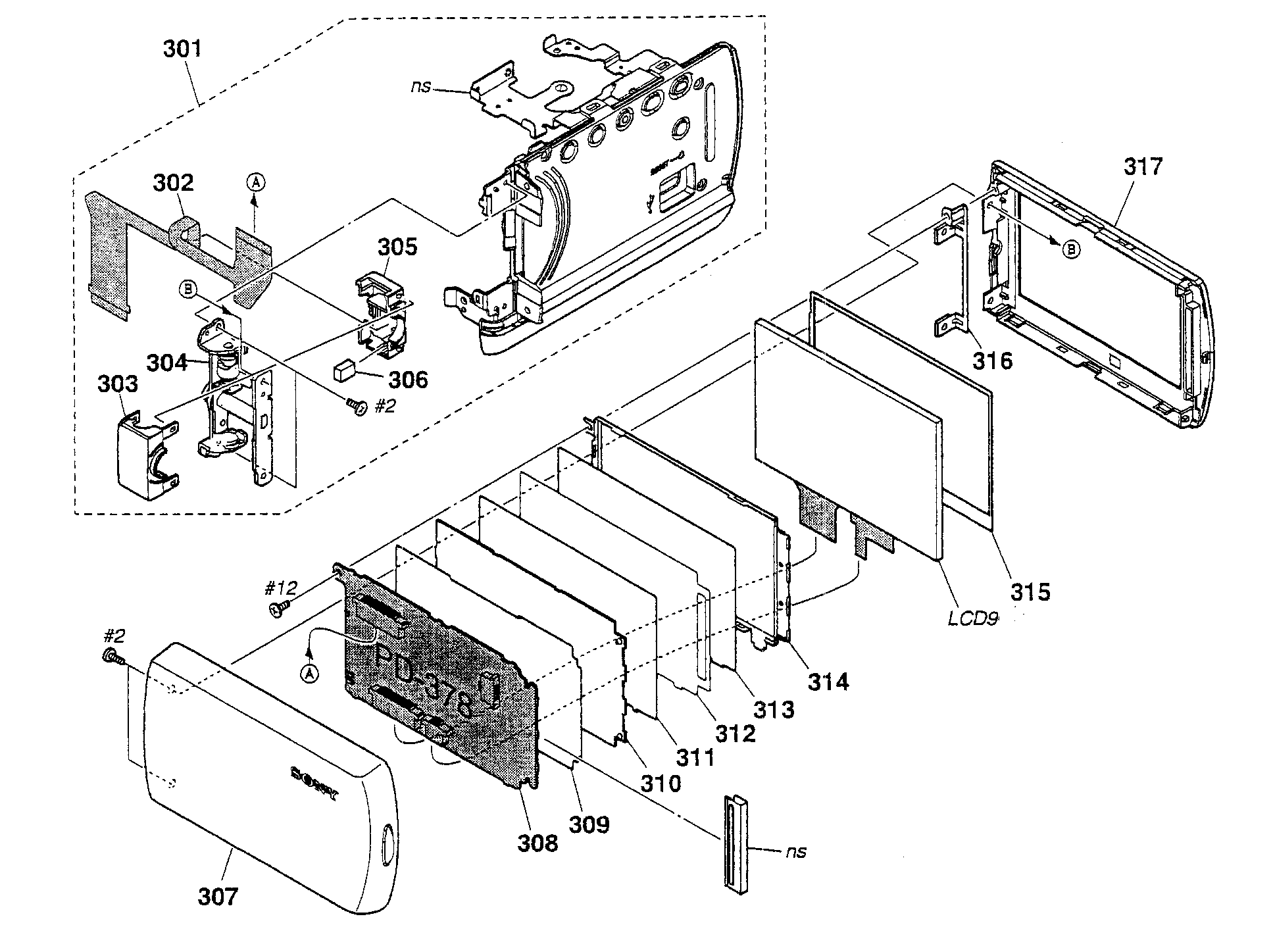

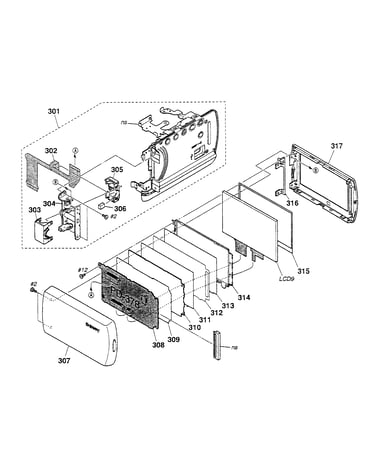

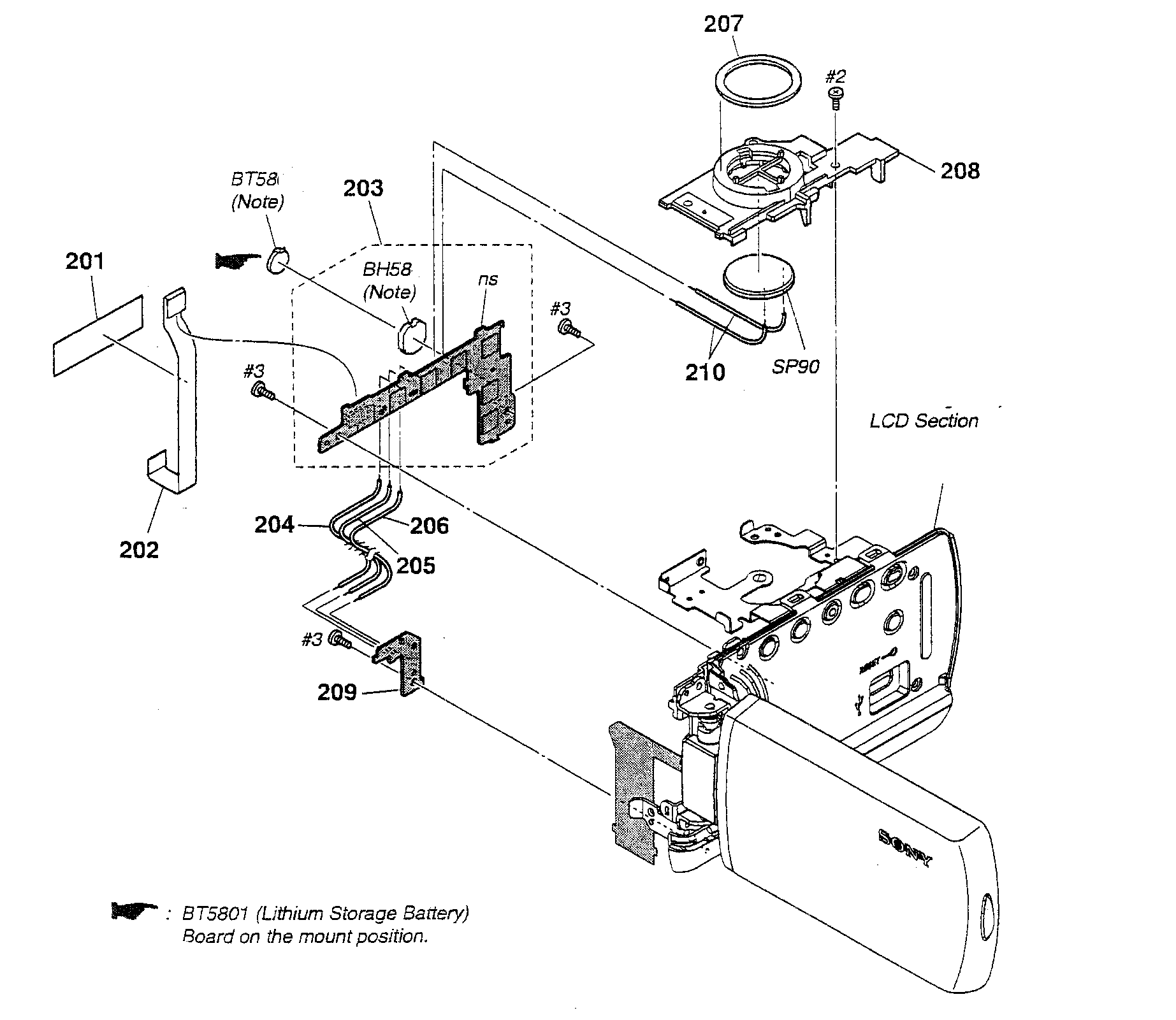

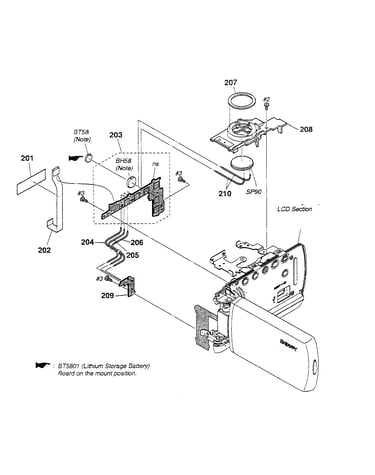

    Lcd assy diagram

    Cabinet

    Part #A1643669A

    The manufacturer no longer makes this part, and there's no substitute part

  • Pcb for Sony DCR-SR47R - Part A1643026A

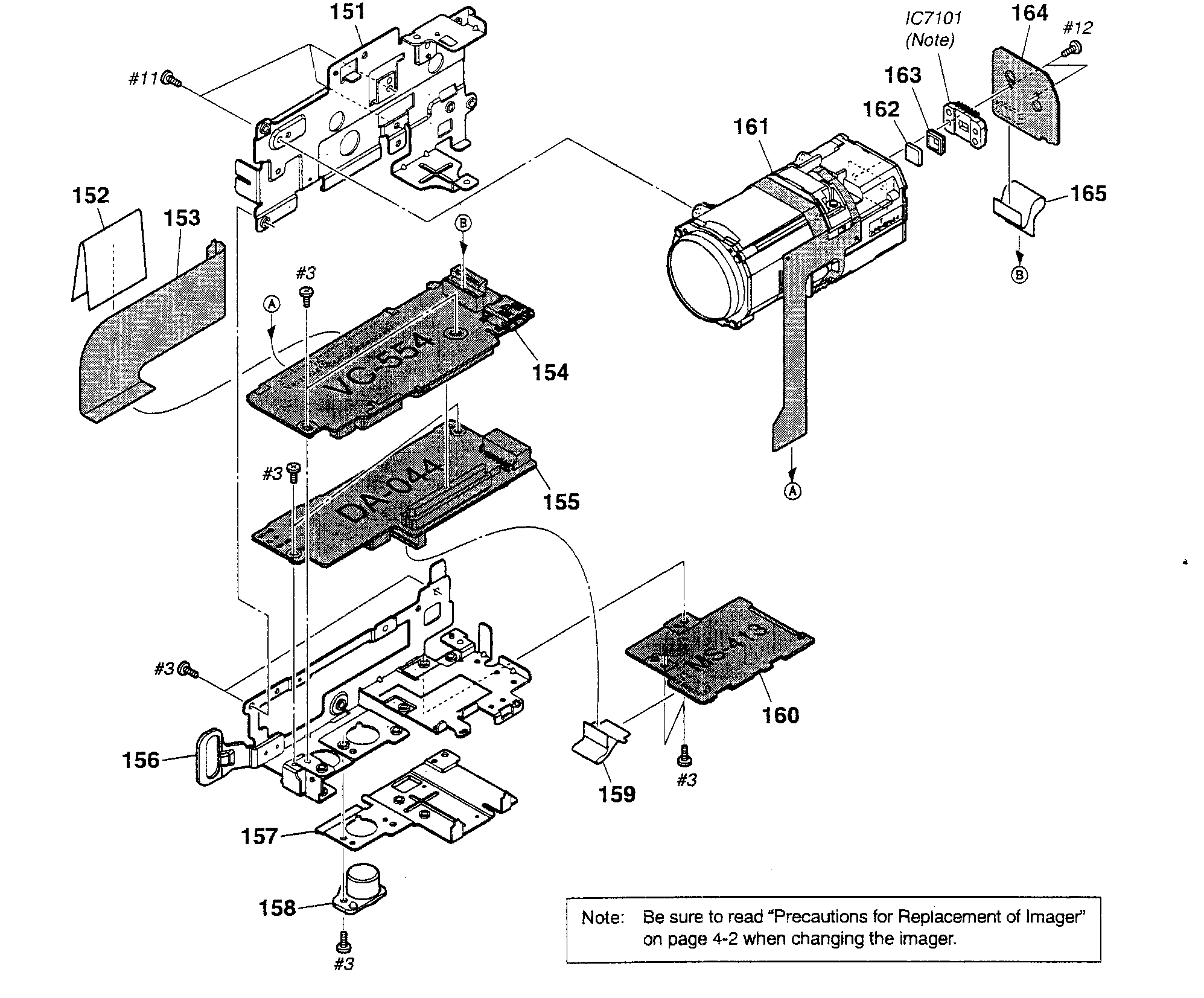

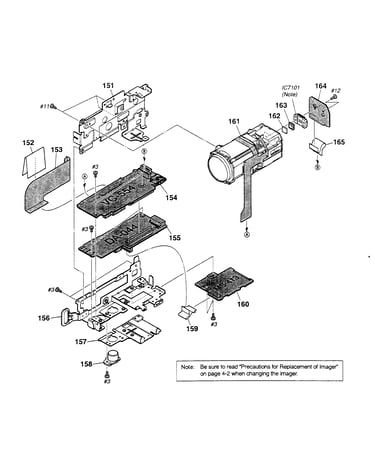

    Lens assy diagram

    Pcb

    Part #A1643026A

    The manufacturer no longer makes this part, and there's no substitute part

  • Microphone for Sony DCR-SR47R - Part 154272321

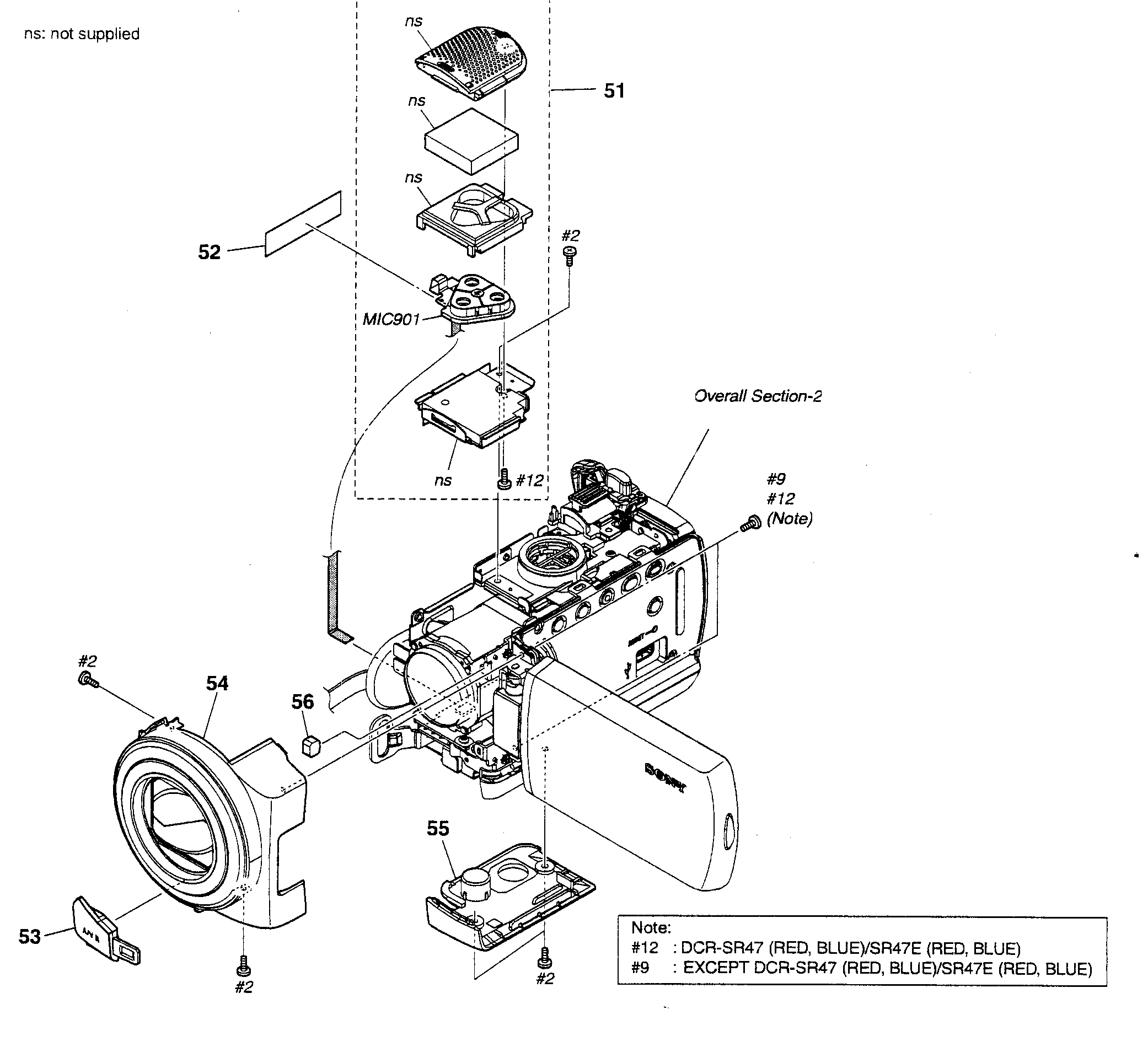

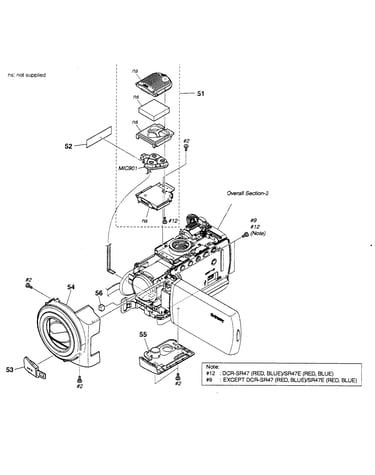

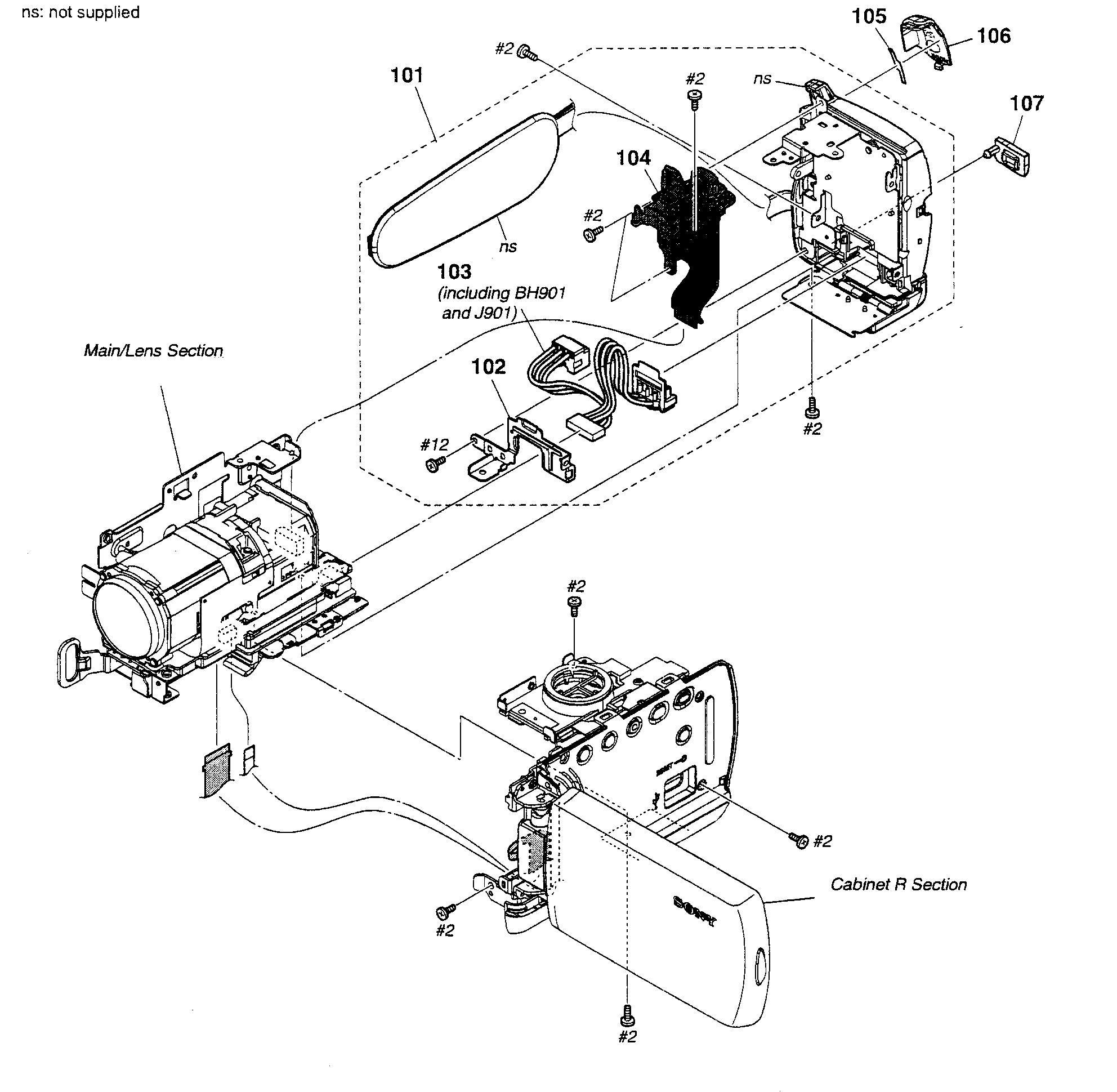

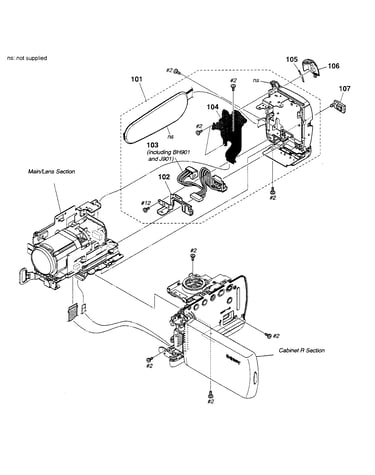

    Section 1 diagram

    Microphone

    Part #154272321

    The manufacturer no longer makes this part, and there's no substitute part

  • Microphone for Sony DCR-SR47R - Part A1643703A

    Section 1 diagram

    Microphone

    Part #A1643703A

    The manufacturer no longer makes this part, and there's no substitute part

  • Connector for Sony DCR-SR47R - Part 181664651

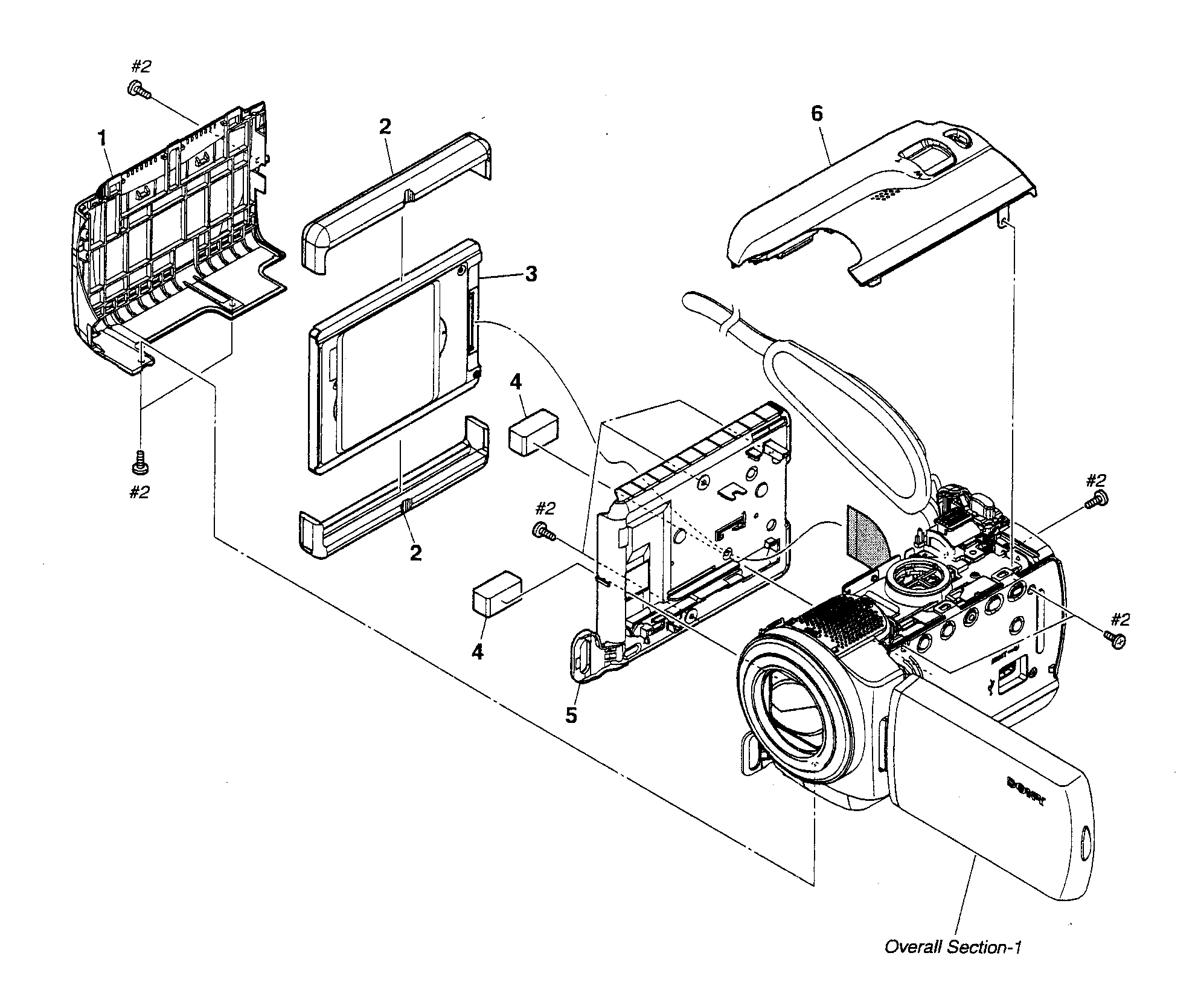

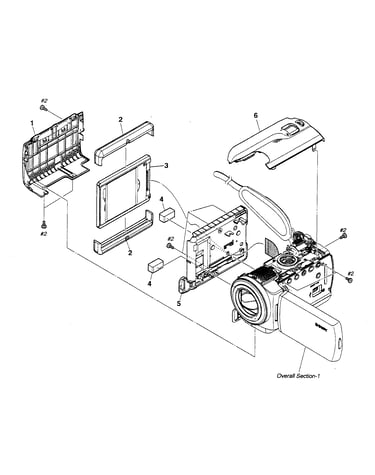

    Hdd assy diagram

    Connector

    Part #181664651

    The manufacturer no longer makes this part, and there's no substitute part

  • Frame for Sony DCR-SR47R - Part 412863401

    Lens assy diagram

    Frame

    Part #412863401

    The manufacturer no longer makes this part, and there's no substitute part

  • Cabinet for Sony DCR-SR47R - Part A1643655A

    Lcd assy diagram

    Cabinet

    Part #A1643655A

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for Sony DCR-SR47R - Part 875328868

    Integrated Circuit

    Part #875328868

    The manufacturer no longer makes this part, and there's no substitute part

  • Lid,hdd for Sony DCR-SR47R - Part 412863511

    Hdd assy diagram

    Lid,hdd

    Part #412863511

    The manufacturer no longer makes this part, and there's no substitute part
