Model # FA4BNF030000AAAA Official Carrier fan coil

Here are the diagrams and repair parts for Official Carrier FA4BNF030000AAAA fan coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

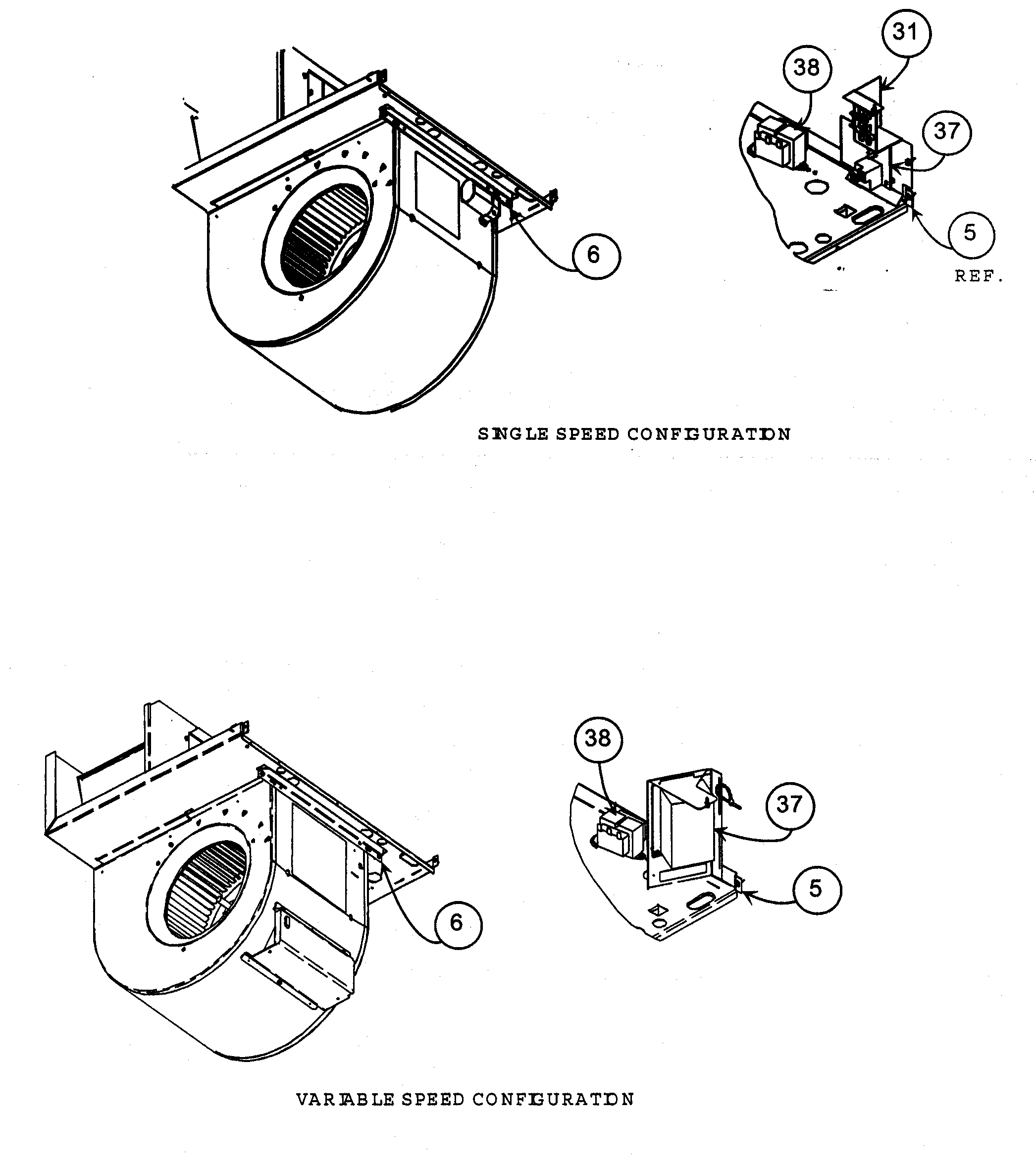

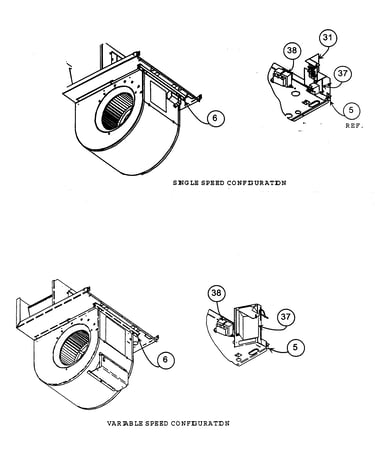

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Capactr Run P291-0753
#45B

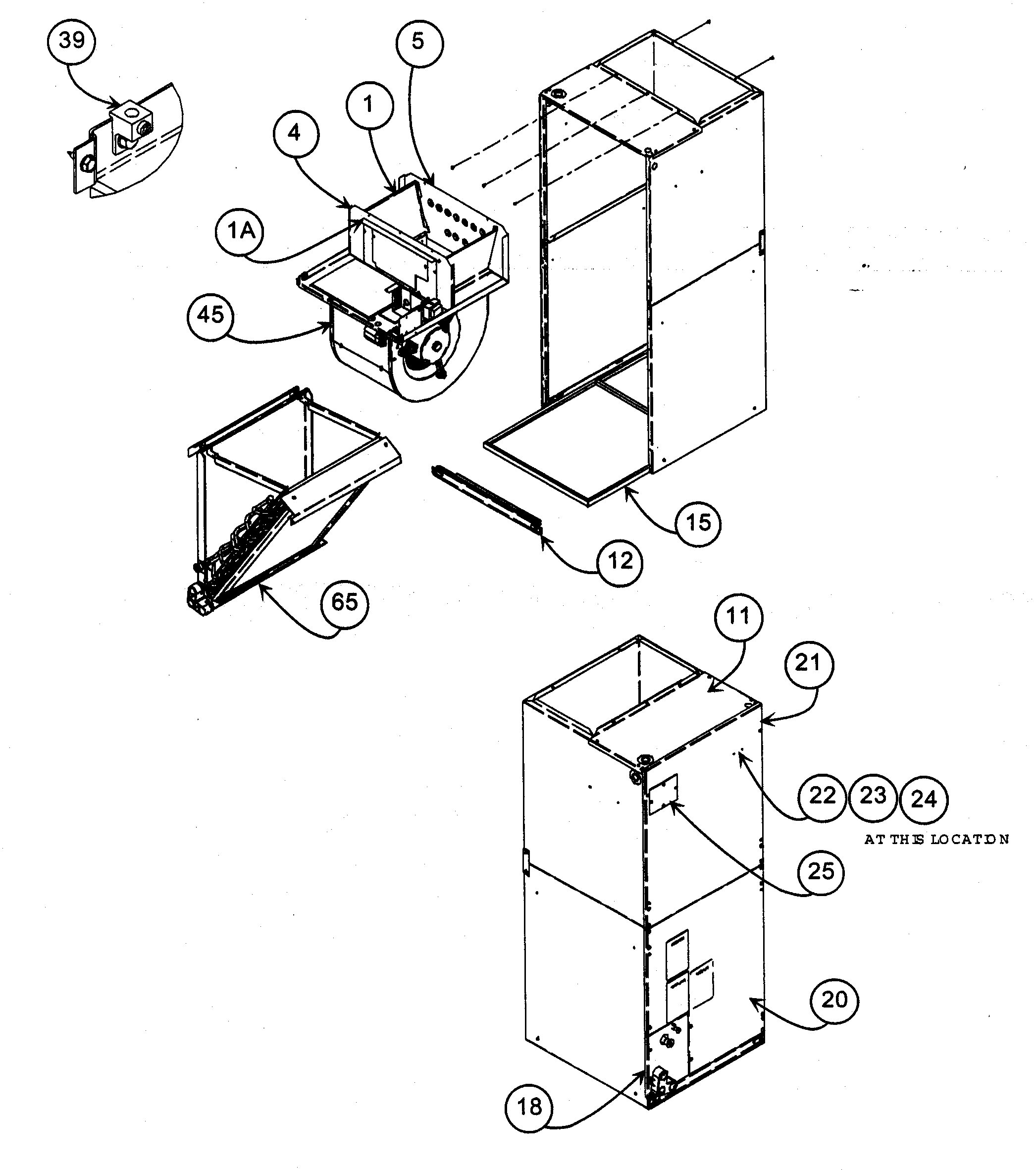

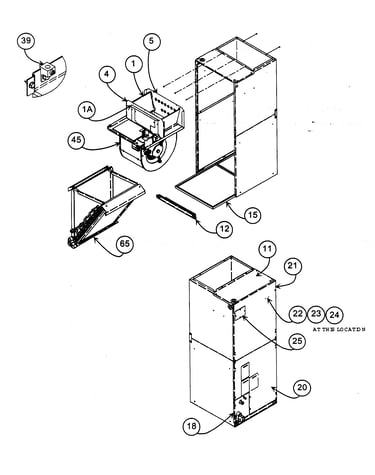

Cabinet assy 2 diagram

Capactr run

Part #P291-0753

Replaced by #12907

?
Manufacturer substitution
This part replaces P291-0753. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Latch 314875-201
#11A

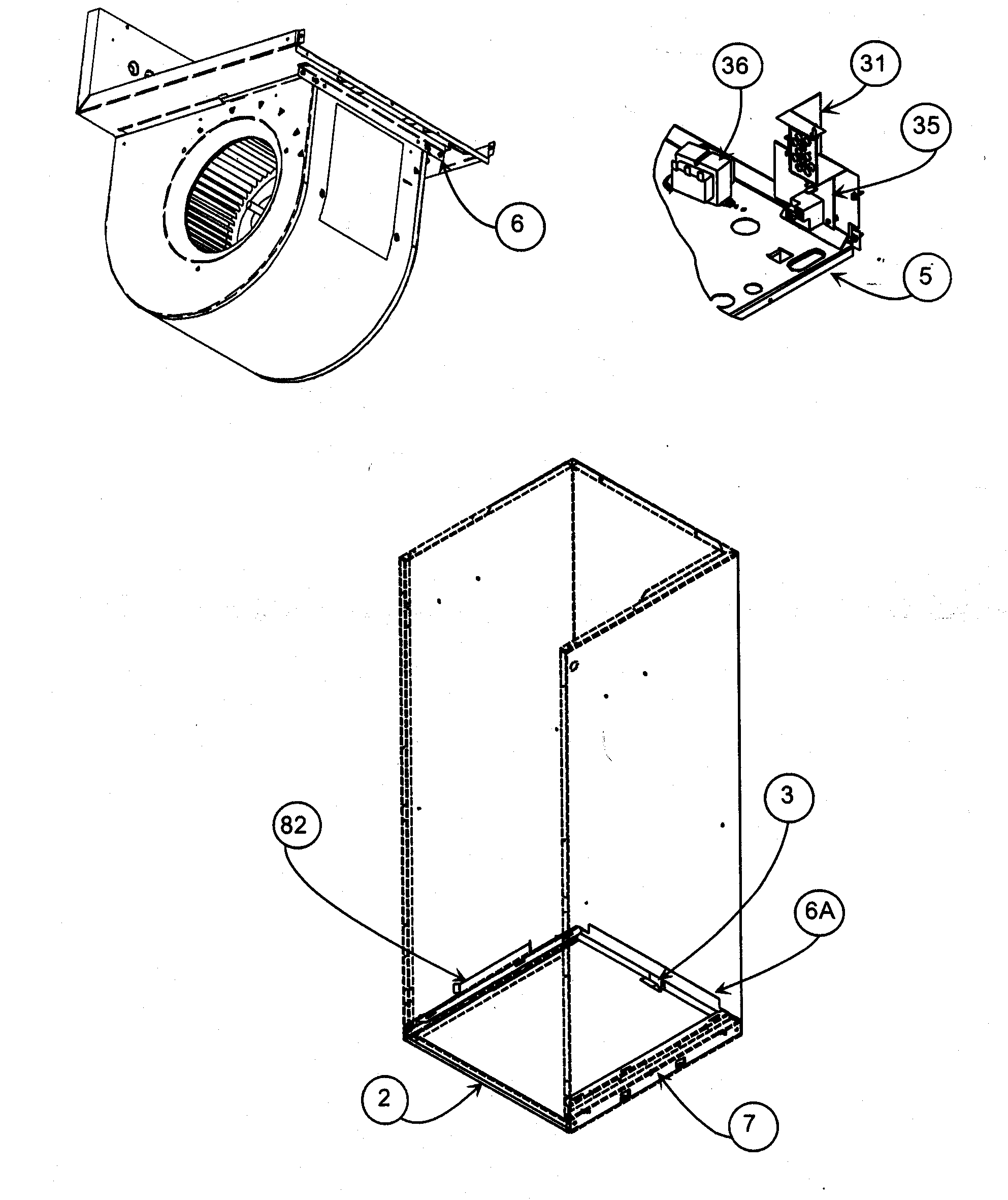

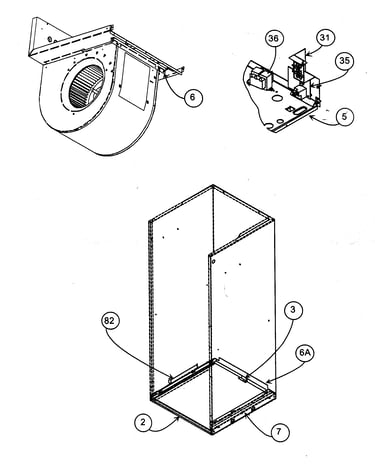

Cabinet assy 1 diagram

Latch

Part #314875-201

This item is not returnable
$2.16
In Stock
Central Air Conditioner Air Handler Transformer (replaces Ht01bd208) HT01CN241
Central air conditioner air handler transformer (replaces ht01bd208)

Part #HT01CN241

$104.52
In Stock
Bracket Housing 314900-202
Bracket housing

Part #314900-202

$7.57
In Stock
Fuse ATC5
#30

Cabinet assy 2 diagram

Fuse

Part #ATC5

The manufacturer no longer makes this part, and there's no substitute part

Sw Temp Act HH19ZA940
#NI

Cabinet assy 1 diagram

Sw temp act

Part #HH19ZA940

$72.44
In Stock
Sw Temp Act HH12HV145
#NI

Cabinet assy 1 diagram

Sw temp act

Part #HH12HV145

$70.16
In Stock
Channel 316808-301
#66

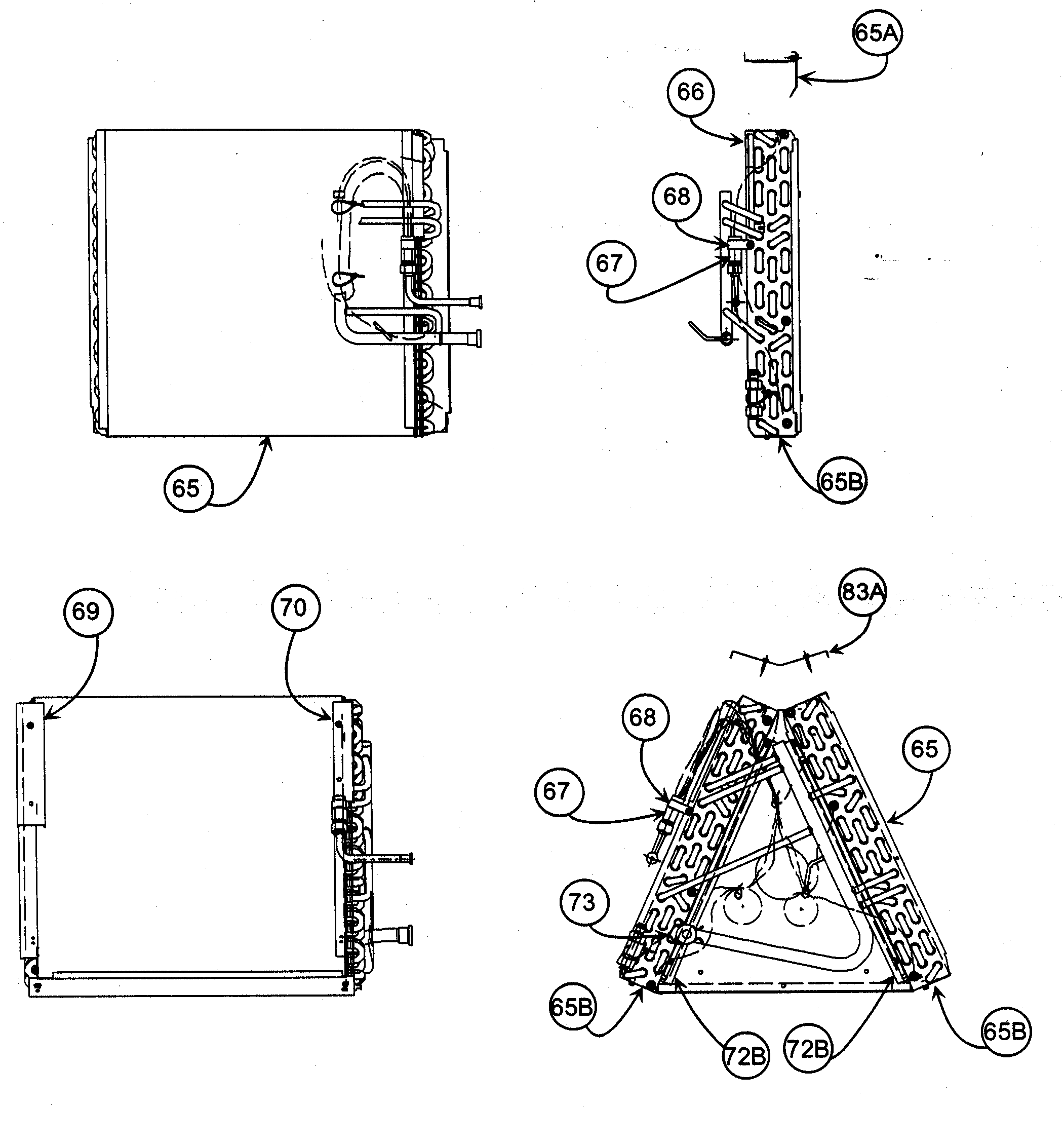

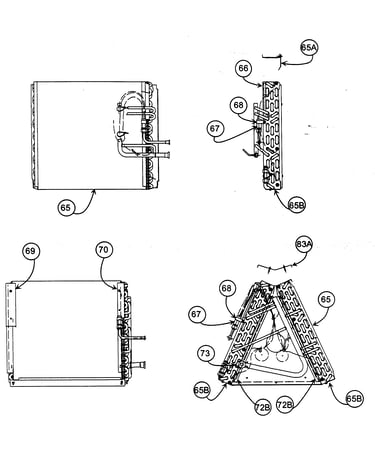

Coil assy diagram

Channel

Part #316808-301

This item is not returnable
$2.16
In Stock
Paint 313974-751
#23

Cabinet assy 2 diagram

Paint

Part #313974-751

$60.89
In Stock
Bracket 318910-302
#12

Cabinet assy 2 diagram

Bracket

Part #318910-302

$22.53
In Stock
