Craftsman
Lathe

Model # 351217080 Official Craftsman mini lathe

Here are the diagrams and repair parts for Official Craftsman 351217080 mini lathe, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Set Screw 01210.00
#55

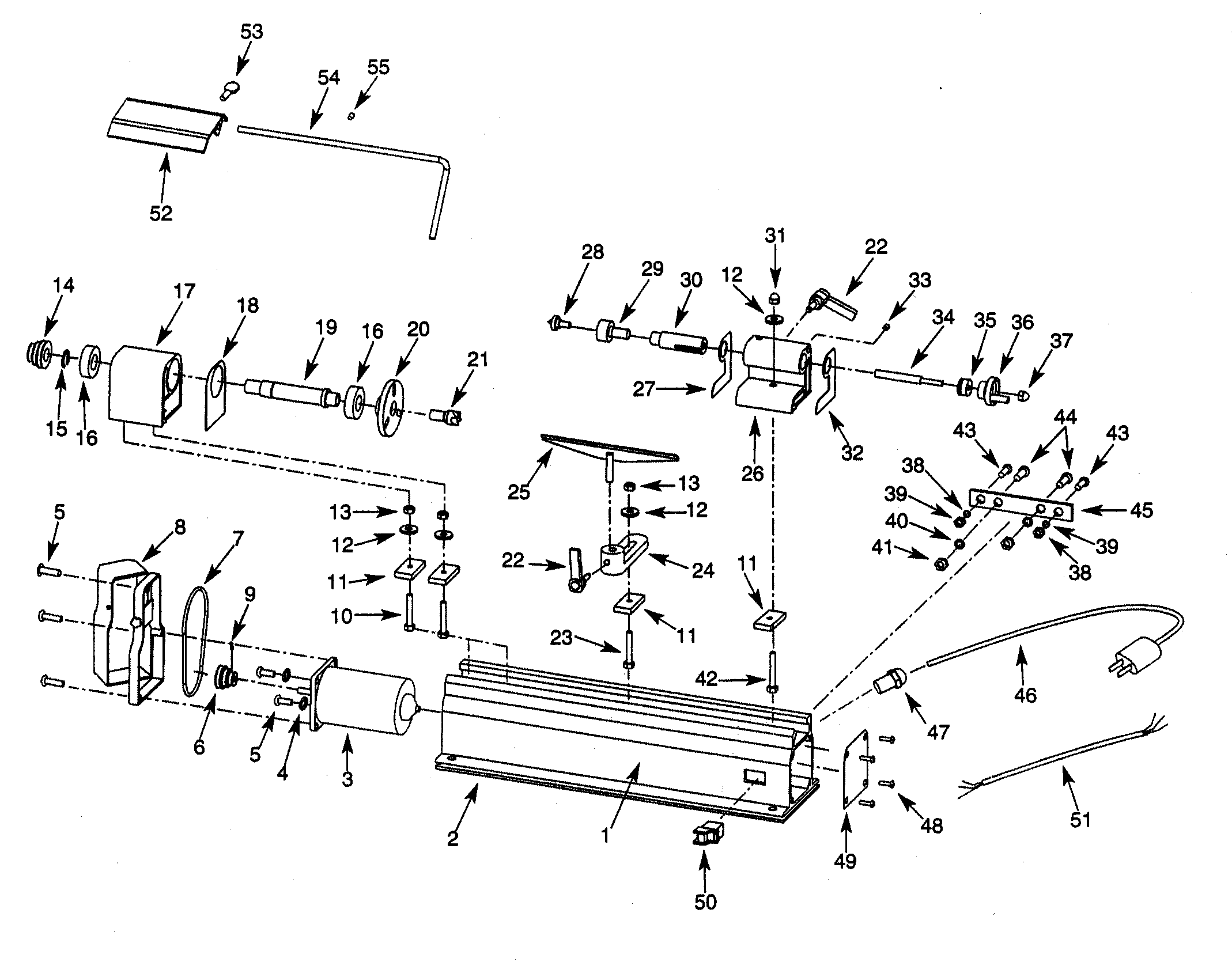

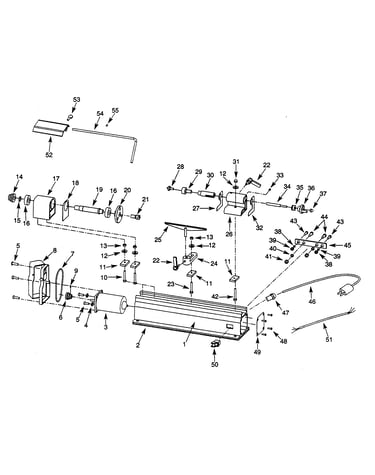

Lathe diagram

Set screw

Part #01210.00

The manufacturer no longer makes this part, and there's no substitute part

Bolt STD833025
#10

Lathe diagram

Bolt

Part #STD833025

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 05474.00
#9

Lathe diagram

Set screw

Part #05474.00

The manufacturer no longer makes this part, and there's no substitute part

Plate 17859.00
#2

Lathe diagram

Plate

Part #17859.00

The manufacturer no longer makes this part, and there's no substitute part

Support 17892.00
#54

Lathe diagram

Support

Part #17892.00

The manufacturer no longer makes this part, and there's no substitute part

Face Plate 17869.00
#20

Lathe diagram

Face plate

Part #17869.00

The manufacturer no longer makes this part, and there's no substitute part

Screw 01784.00
#48

Lathe diagram

Screw

Part #01784.00

The manufacturer no longer makes this part, and there's no substitute part

Line Cord 00067.00
#46

Lathe diagram

Line cord

Part #00067.00

The manufacturer no longer makes this part, and there's no substitute part

Tailstock 17874.00
#26

Lathe diagram

Tailstock

Part #17874.00

The manufacturer no longer makes this part, and there's no substitute part

Grnd Block 17885.00
#45

Lathe diagram

Grnd block

Part #17885.00

The manufacturer no longer makes this part, and there's no substitute part
