Model # 120D Official Citizen printer

Here are the diagrams and repair parts for Official Citizen 120D printer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Shield Plate Y0055-02
#11

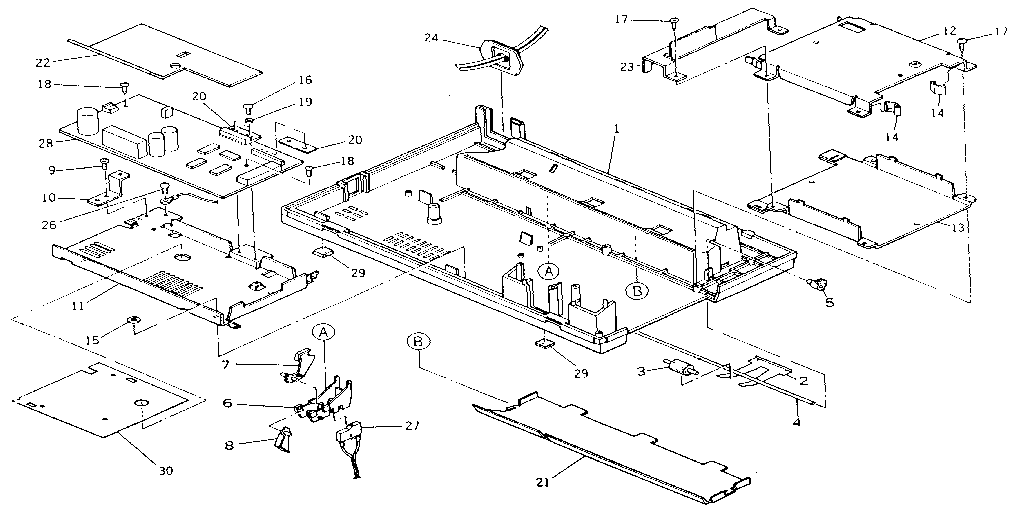

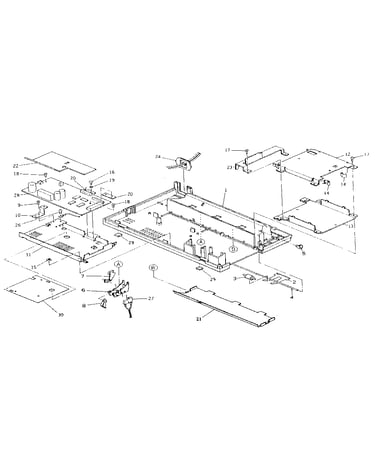

Drawing no. 3 loser case (rev.1) 120d diagram

Shield plate

Part #Y0055-02

The manufacturer no longer makes this part, and there's no substitute part

Case, Upper Y0401-01
#1

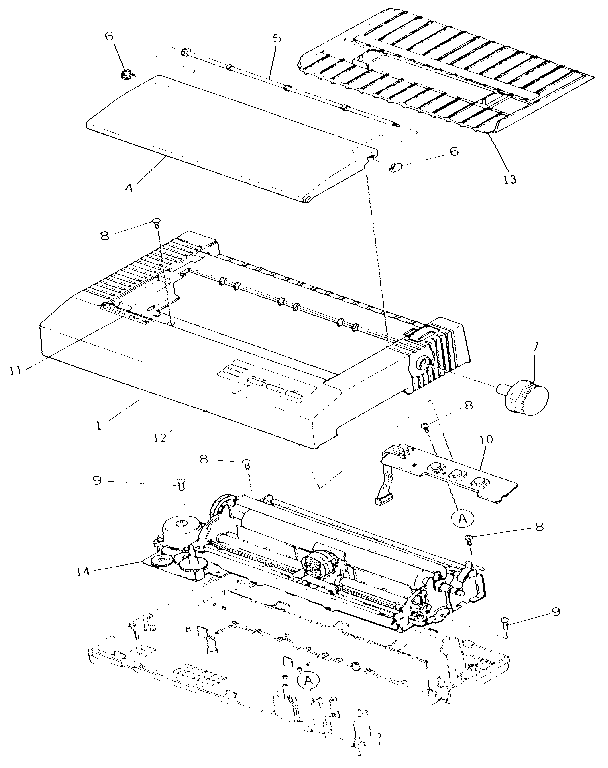

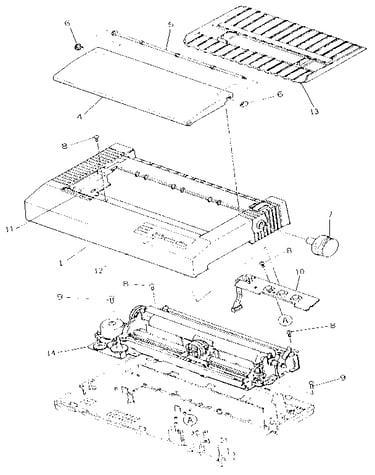

Drawing no. 1 general assembly (rev.1) 120d diagram

Case, upper

Part #Y0401-01

The manufacturer no longer makes this part, and there's no substitute part

Carriage Rail Bushing R Y0034-01
#18

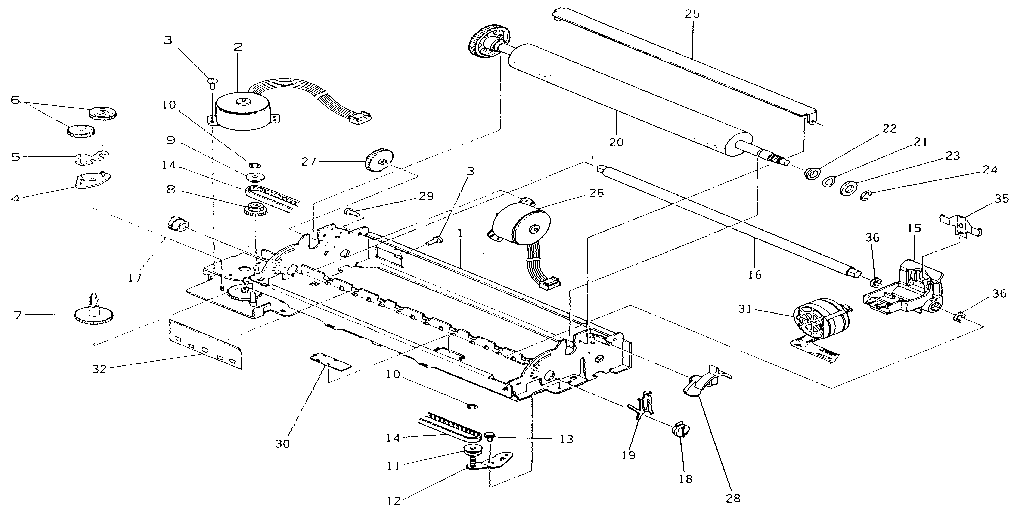

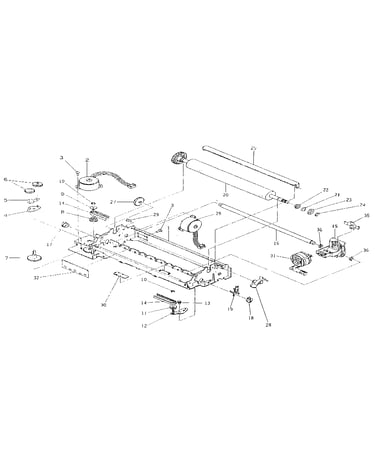

Drawing no. 2 mechanism unit (rev.1) 120d diagram

Carriage rail bushing r

Part #Y0034-01

The manufacturer no longer makes this part, and there's no substitute part

Rom Cassette Guide U Y0056-01
#12

Drawing no. 3 loser case (rev.1) 120d diagram

Rom cassette guide u

Part #Y0056-01

The manufacturer no longer makes this part, and there's no substitute part

Push Nut 3 Y92830-00
#15

Drawing no. 3 loser case (rev.1) 120d diagram

Push nut 3

Part #Y92830-00

The manufacturer no longer makes this part, and there's no substitute part

Ph Screw (sw + Pw) M3x6 (+) Y90530-06
#18

Drawing no. 3 loser case (rev.1) 120d diagram

Ph screw (sw + pw) m3x6 (+)

Part #Y90530-06

The manufacturer no longer makes this part, and there's no substitute part

Pulley Flange Y0022-01
#9

Drawing no. 2 mechanism unit (rev.1) 120d diagram

Pulley flange

Part #Y0022-01

The manufacturer no longer makes this part, and there's no substitute part

Ribbon Gear Y0020-01
#7

Drawing no. 2 mechanism unit (rev.1) 120d diagram

Ribbon gear

Part #Y0020-01

The manufacturer no longer makes this part, and there's no substitute part

Earth Leaf Y0058-01
#14

Drawing no. 3 loser case (rev.1) 120d diagram

Earth leaf

Part #Y0058-01

The manufacturer no longer makes this part, and there's no substitute part

Tractor Frame L Y0454-01
#5

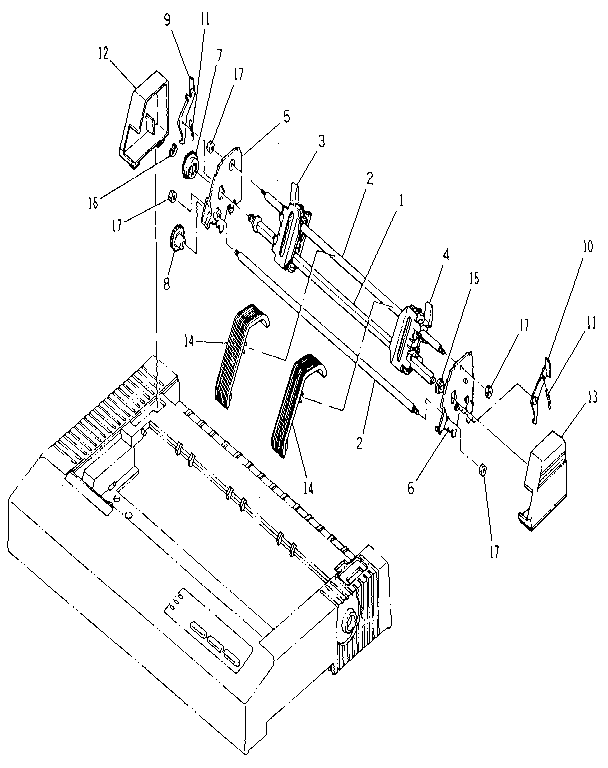

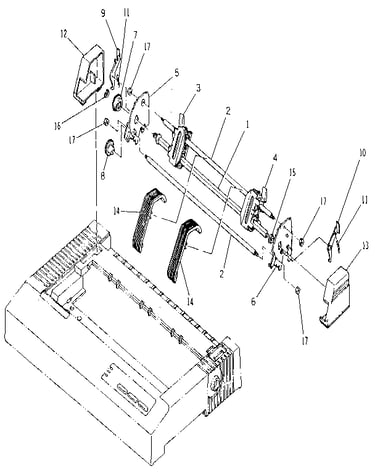

Drawing no. 4 tractor unit (120d) diagram

Tractor frame l

Part #Y0454-01

The manufacturer no longer makes this part, and there's no substitute part
