Model # DW703 TYPE 3 Official DeWalt miter saw

Here are the diagrams and repair parts for Official DeWalt DW703-TYPE-3 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Screw 394589-01
#17

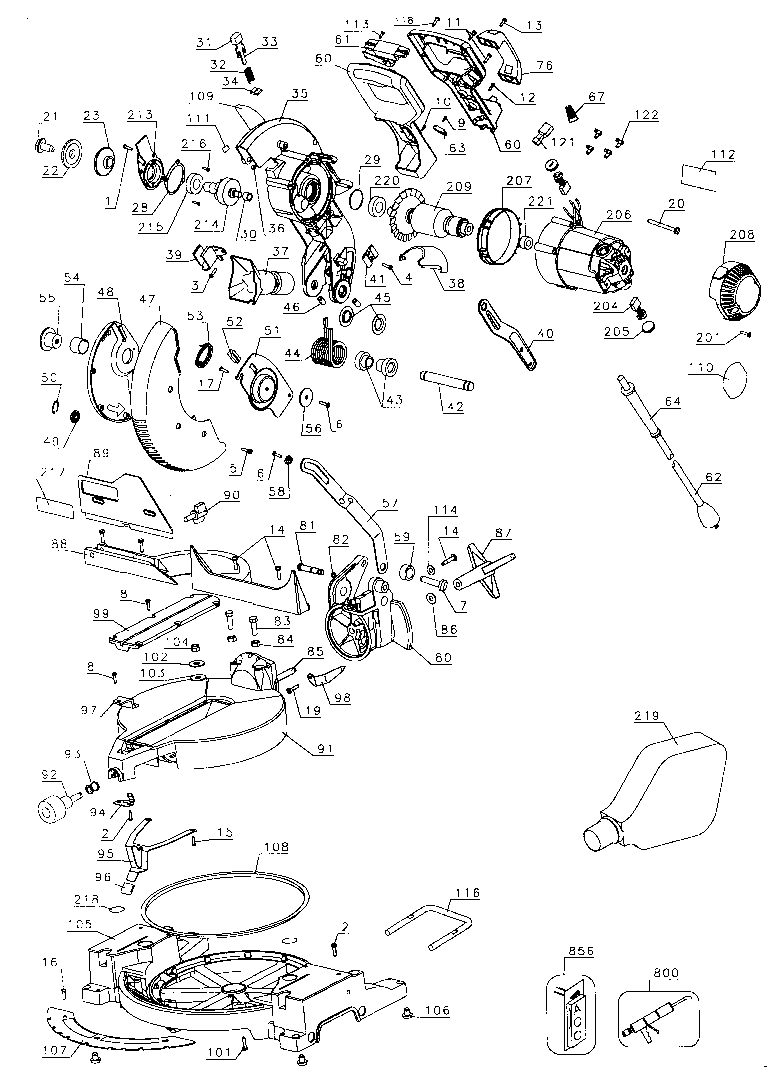

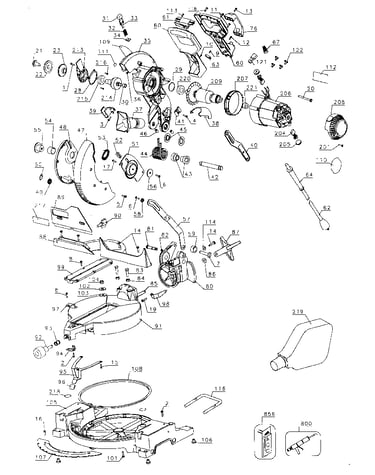

Cabinet parts diagram

Screw

Part #394589-01

The manufacturer no longer makes this part, and there's no substitute part

Handle 396375-00
#76

Cabinet parts diagram

Handle

Part #396375-00

The manufacturer no longer makes this part, and there's no substitute part

Label 395021-00
#109

Cabinet parts diagram

Label

Part #395021-00

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Blade Clamp Screw 145344-01
#21

Cabinet parts diagram

Miter saw blade clamp screw

Part #145344-01

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 603232-00
#50

Cabinet parts diagram

Retaining ring

Part #603232-00

The manufacturer no longer makes this part, and there's no substitute part

Button 145350-03
#31

Cabinet parts diagram

Button

Part #145350-03

The manufacturer no longer makes this part, and there's no substitute part

Ret Plate 146750-01
#55

Cabinet parts diagram

Ret plate

Part #146750-01

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Motor Brush 614367-00
#204

Cabinet parts diagram

Miter saw motor brush

Part #614367-00

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 614087-00
#112

Cabinet parts diagram

Nameplate

Part #614087-00

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Blade Clamp Washer, Outer 151962-01
#22

Cabinet parts diagram

Miter saw blade clamp washer, outer

Part #151962-01

The manufacturer no longer makes this part, and there's no substitute part
