Model #65UF6800 LG lcd television

Here are the diagrams and repair parts for LG 65UF6800 lcd television, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 13 parts

    Television Screw

    #A10

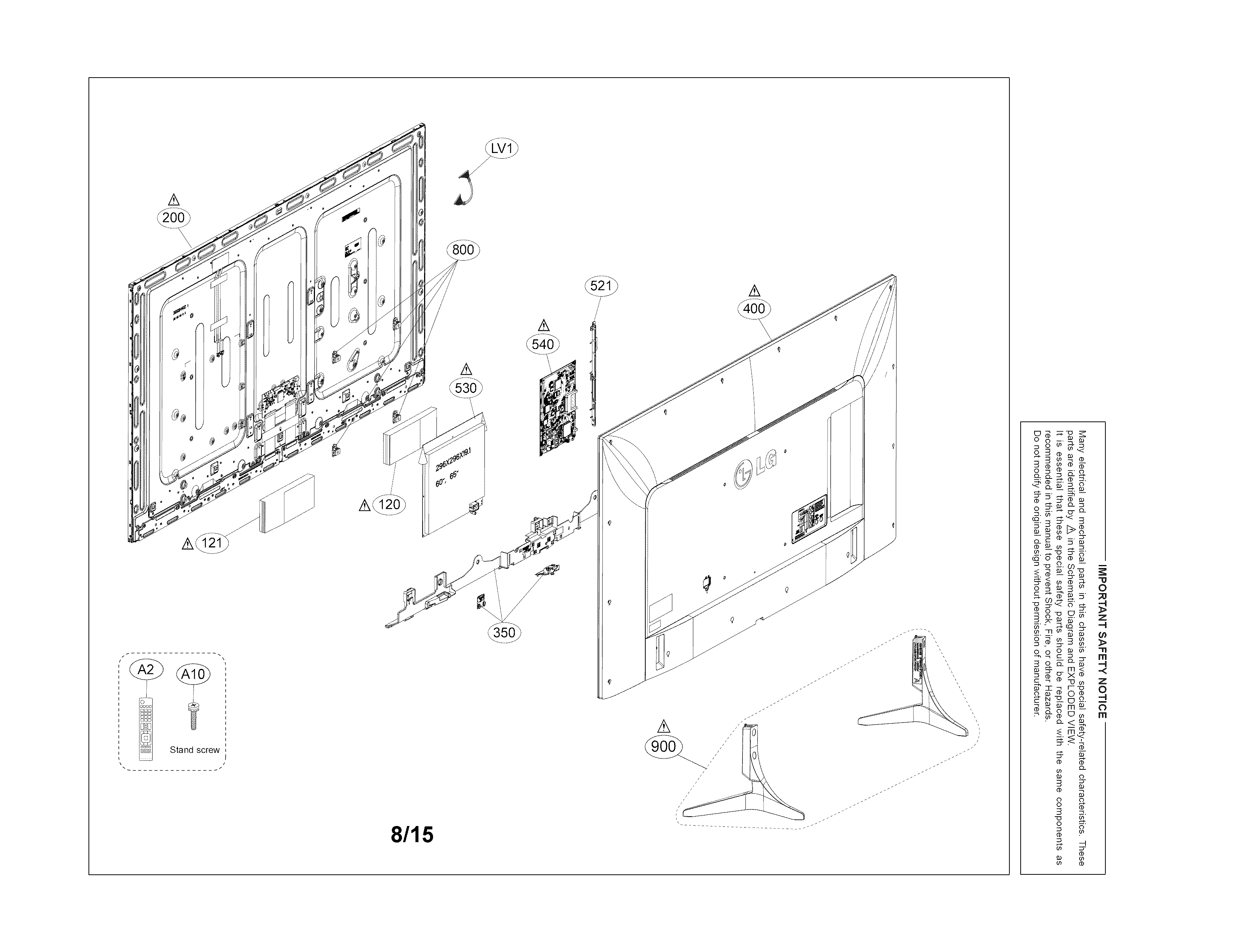

    Exploded view parts Diagram

    Television screw

    Part #FAB30016124
    This item is not returnable
    $2.53

    In Stock

    LCD Module

    #200

    Exploded view parts Diagram

    Lcd module

    Part #EAJ63369701

    The manufacturer no longer makes this part, and there's no substitute part

    Television Speaker Assembly

    #120

    Exploded view parts Diagram

    Television speaker assembly

    Part #EAB63688305
    $22.99

    In Stock

    Cover Assembly

    #400

    Exploded view parts Diagram

    Cover assembly

    Part #ACQ87692849
    $130.99

    In Stock

    Television Remote Control

    #A2

    Exploded view parts Diagram

    Television remote control

    Part #AGF76631042
    $16.33

    In Stock

    LVDS Cable

    #LV1

    Exploded view parts Diagram

    Lvds cable

    Part #EAD63285701
    $12.99

    In Stock

    Television Speaker Assembly

    #121

    Exploded view parts Diagram

    Television speaker assembly

    Part #EAB63688306
    $22.99

    In Stock

    Bracket

    #521

    Exploded view parts Diagram

    Bracket

    Part #MAZ64584432

    The manufacturer no longer makes this part, and there's no substitute part

    Supporter

    #800

    Exploded view parts Diagram

    Supporter

    Part #MJH63133501

    The manufacturer no longer makes this part, and there's no substitute part

    Power Supply Assembly

    #530

    Exploded view parts Diagram

    Power supply assembly

    Part #EAY63989301

    The manufacturer no longer makes this part, and there's no substitute part
