Model # 172417720 Official Craftsman cordless screwdriver

Here are the diagrams and repair parts for Official Craftsman 172417720 cordless screwdriver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 20 parts |

#NI

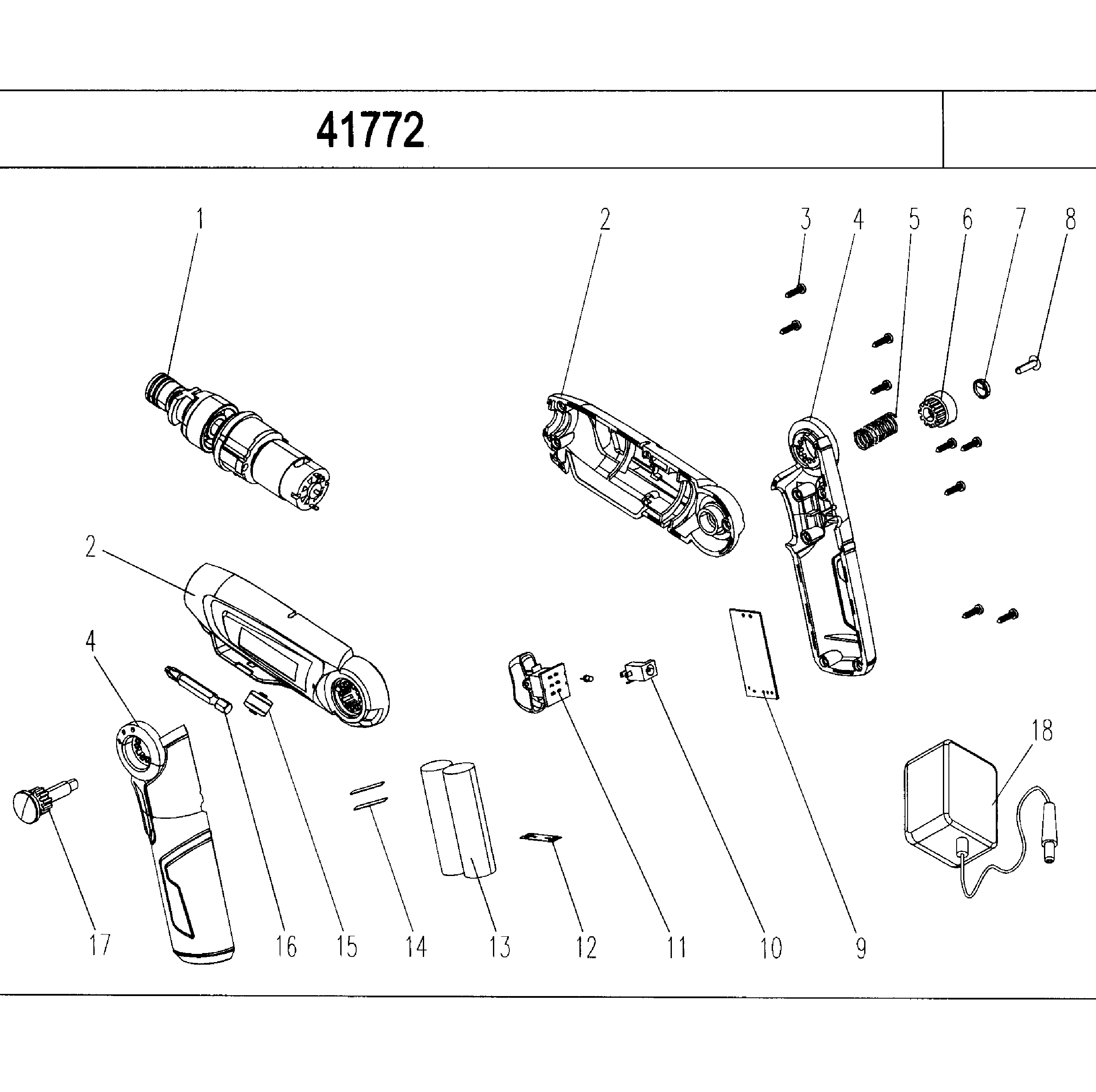

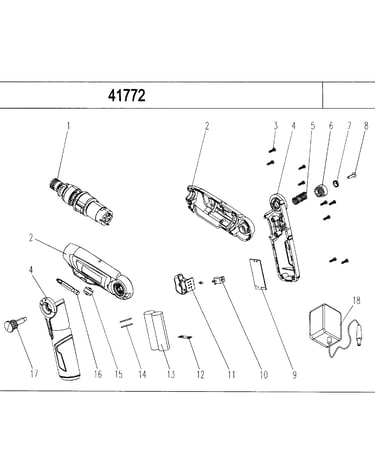

Main asy diagram

Owner's manual

Part #OM-417720SP

The manufacturer no longer makes this part, and there's no substitute part

#11

Main asy diagram

Switch set

Part #CID72SU-11

The manufacturer no longer makes this part, and there's no substitute part

#14

Main asy diagram

Screwdriver battery terminal

Part #CID72SU-14

The manufacturer no longer makes this part, and there's no substitute part

Main asy diagram

Screwdriver self-tapping screw

Part #CID72SU-3

The manufacturer no longer makes this part, and there's no substitute part

Main asy diagram

Screwdriver housing, rear

Part #CID72SU-4

The manufacturer no longer makes this part, and there's no substitute part

Screwdriver Li-ion Battery, 8-volt CID72SU-13

#13

Main asy diagram

Screwdriver li-ion battery, 8-volt

Part #CID72SU-13

The manufacturer no longer makes this part, and there's no substitute part

Screwdriver Handle Adjusting Pin CID72SU-17

#17

Main asy diagram

Screwdriver handle adjusting pin

Part #CID72SU-17

The manufacturer no longer makes this part, and there's no substitute part

Main asy diagram

Screwdriver screw

Part #CID72SU-8

The manufacturer no longer makes this part, and there's no substitute part

#15

Main asy diagram

Screwdriver bit clamp

Part #CID72SU-15

The manufacturer no longer makes this part, and there's no substitute part

#NI

Main asy diagram

Owner's manual

Part #OM-417720EN

The manufacturer no longer makes this part, and there's no substitute part
