Grass Catcher Attachment

Model # 917330721 Official Craftsman grass catcher

Here are the diagrams and repair parts for Official Craftsman 917330721 grass catcher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 8 of 8 parts  |
Nut 63601
#3

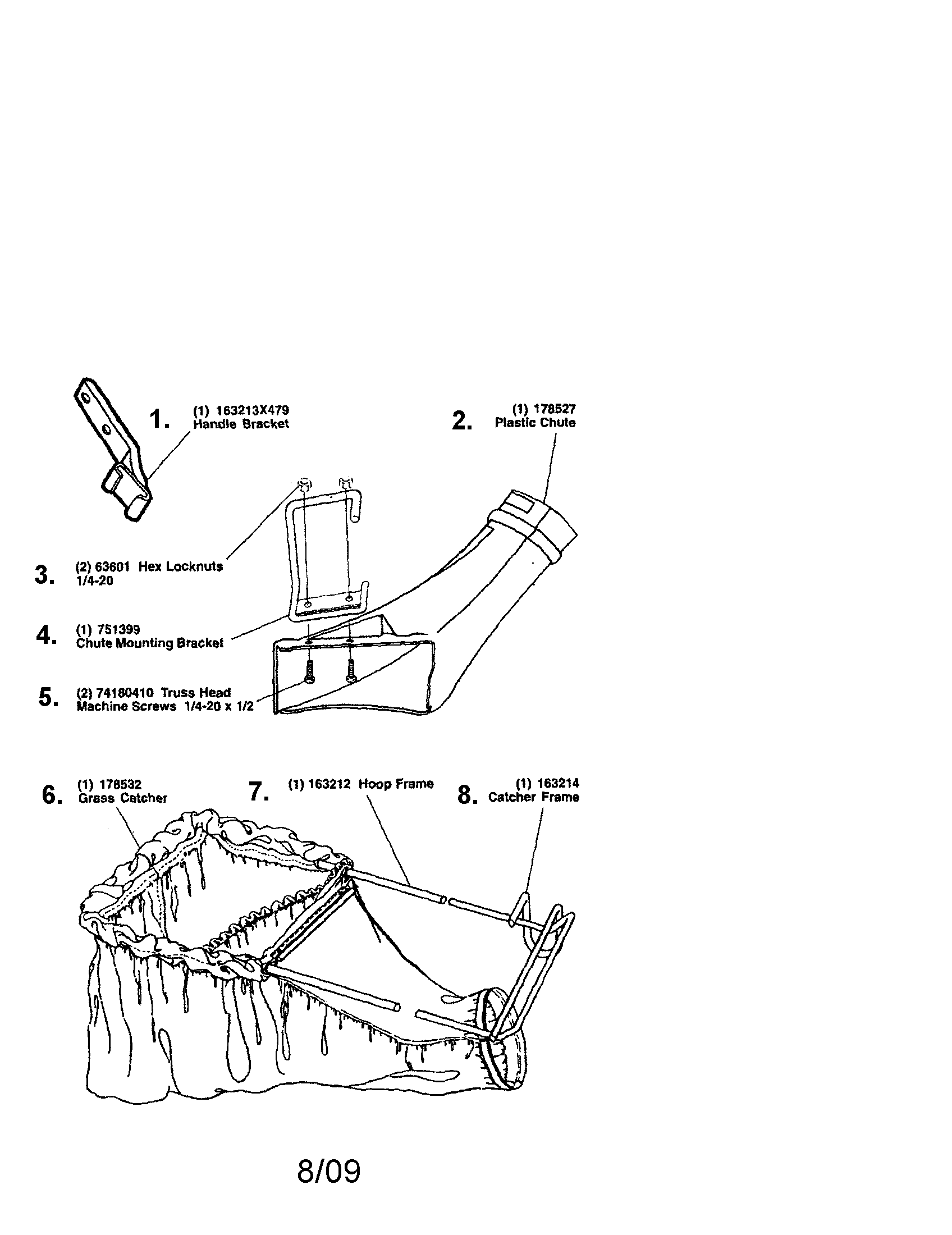

Grass catcher diagram

Nut

Part #63601

The manufacturer no longer makes this part, and there's no substitute part

Chute 178527
#2

Grass catcher diagram

Chute

Part #178527

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Grass Bag Frame 163214
#8

Grass catcher diagram

Lawn mower grass bag frame

Part #163214

The manufacturer no longer makes this part, and there's no substitute part

Part 74180410
#5

Grass catcher diagram

Part

Part #74180410

The manufacturer no longer makes this part, and there's no substitute part

Lawn Tractor Bagger Attachment Grass Bag Hoop 163212
#7

Grass catcher diagram

Lawn tractor bagger attachment grass bag hoop

Part #163212

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Grass Bag Handle Bracket 163213X479
#1

Grass catcher diagram

Lawn mower grass bag handle bracket

Part #163213X479

The manufacturer no longer makes this part, and there's no substitute part

Grass Chute Mounting Bracket 751399
#4

Grass catcher diagram

Grass chute mounting bracket

Part #751399

The manufacturer no longer makes this part, and there's no substitute part

Lawn Tractor Bagger Attachment Grass Bag 178532
#6

Grass catcher diagram

Lawn tractor bagger attachment grass bag

Part #178532

The manufacturer no longer makes this part, and there's no substitute part
