Craftsman
Radial Arm Saw

Model # 11329500 Official Craftsman 12" radial arm saw

Here are the diagrams and repair parts for Official Craftsman 11329500 12" radial arm saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

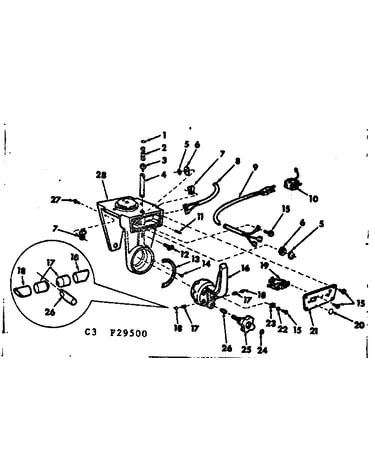

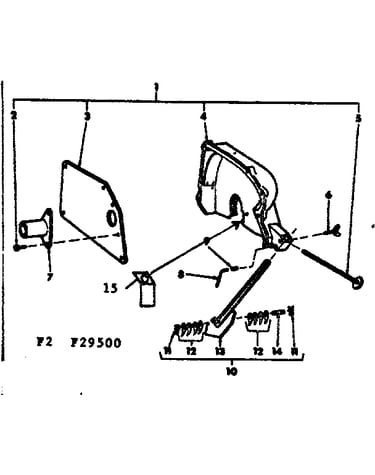

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 200 parts  |
Machine Screw 60033
#42

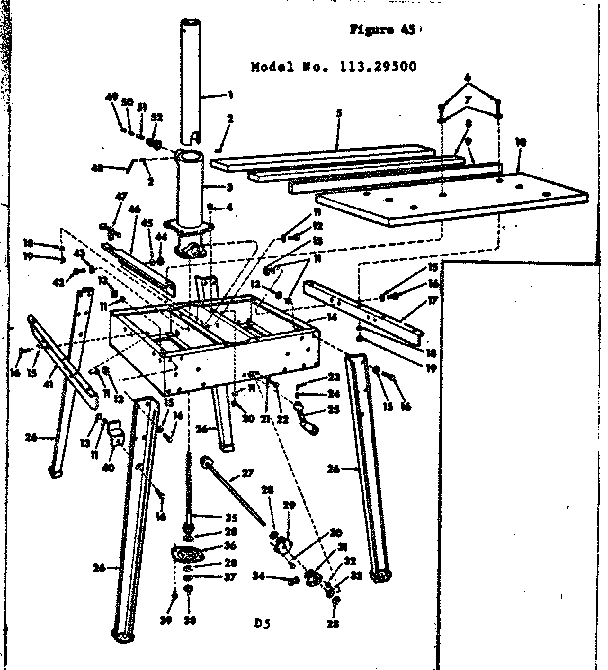

Base and leg assembly diagram

Machine screw

Part #60033

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 120214
#23

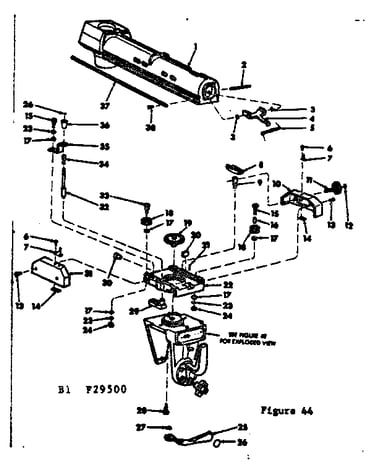

Radial arm assembly diagram

Lock washer

Part #120214

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 116120
#45

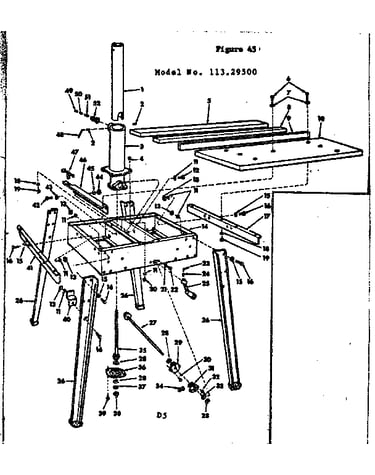

Base and leg assembly diagram

Lock washer

Part #116120

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table Spacer (tan) 63109
#8

Base and leg assembly diagram

Radial arm saw table spacer (tan)

Part #63109

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table, Rear 63108
#5

Base and leg assembly diagram

Radial arm saw table, rear

Part #63108

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table, Front 63107
#10

Base and leg assembly diagram

Radial arm saw table, front

Part #63107

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Arm Lock Lever 37372
#29

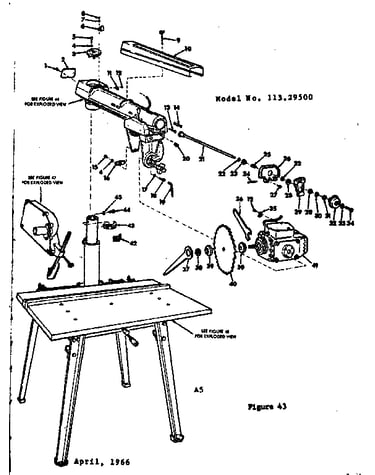

Unit diagram

Radial arm saw arm lock lever

Part #37372

The manufacturer no longer makes this part, and there's no substitute part

Oil Sling Washer 30604
#33

Base and leg assembly diagram

Oil sling washer

Part #30604

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Motor Brake Shoe Lining 63137
#21

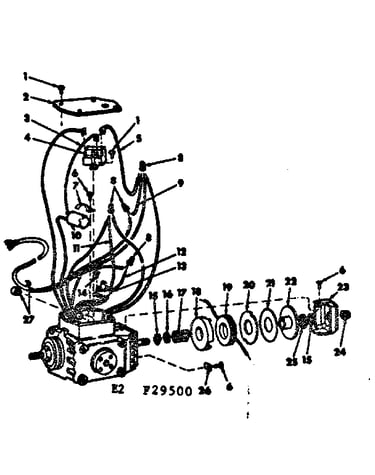

Motor assembly diagram

Radial arm saw motor brake shoe lining

Part #63137

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Spring Washer 37373
#30

Unit diagram

Radial arm saw spring washer

Part #37373

The manufacturer no longer makes this part, and there's no substitute part
