Model # HP1441K2F Official Ryobi 14.4-v center handle drill

Here are the diagrams and repair parts for Official Ryobi HP1441K2F 14.4-v center handle drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Ball, Steel 4.0mm (16) 4750013
#34

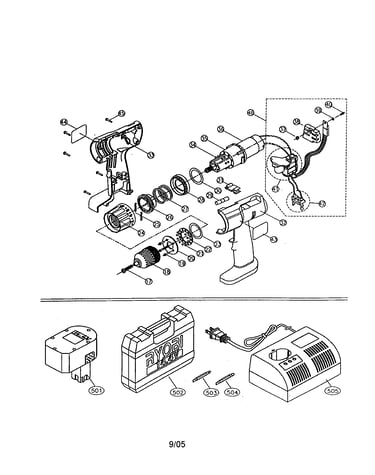

14.4v center handle drill diagram

Ball, steel 4.0mm (16)

Part #4750013

The manufacturer no longer makes this part, and there's no substitute part

Steel Ball 3.0mm (6) 1290021
#21

14.4v center handle drill diagram

Steel ball 3.0mm (6)

Part #1290021

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly (inc. Ref. 37-42) 981473001
#46

14.4v center handle drill diagram

Switch assembly (inc. ref. 37-42)

Part #981473001

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cap 4900096
#24

14.4v center handle drill diagram

Clutch cap

Part #4900096

The manufacturer no longer makes this part, and there's no substitute part

Leveller Assembly 4950024
#29

14.4v center handle drill diagram

Leveller assembly

Part #4950024

The manufacturer no longer makes this part, and there's no substitute part

Rating Label 981472001
#44

14.4v center handle drill diagram

Rating label

Part #981472001

The manufacturer no longer makes this part, and there's no substitute part

Plastic Sleeve 4900097
#26

14.4v center handle drill diagram

Plastic sleeve

Part #4900097

The manufacturer no longer makes this part, and there's no substitute part

Brand Label 981471001
#43

14.4v center handle drill diagram

Brand label

Part #981471001

The manufacturer no longer makes this part, and there's no substitute part

Ball Holder, Plastic 4190002
#22

14.4v center handle drill diagram

Ball holder, plastic

Part #4190002

The manufacturer no longer makes this part, and there's no substitute part

Screw 1130302
#19

14.4v center handle drill diagram

Screw

Part #1130302

The manufacturer no longer makes this part, and there's no substitute part
