Model # 867778610 Official Kenmore induced combustion counterflow gas furnace

Here are the diagrams and repair parts for Official Kenmore 867778610 induced combustion counterflow gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Switch 611872
#38

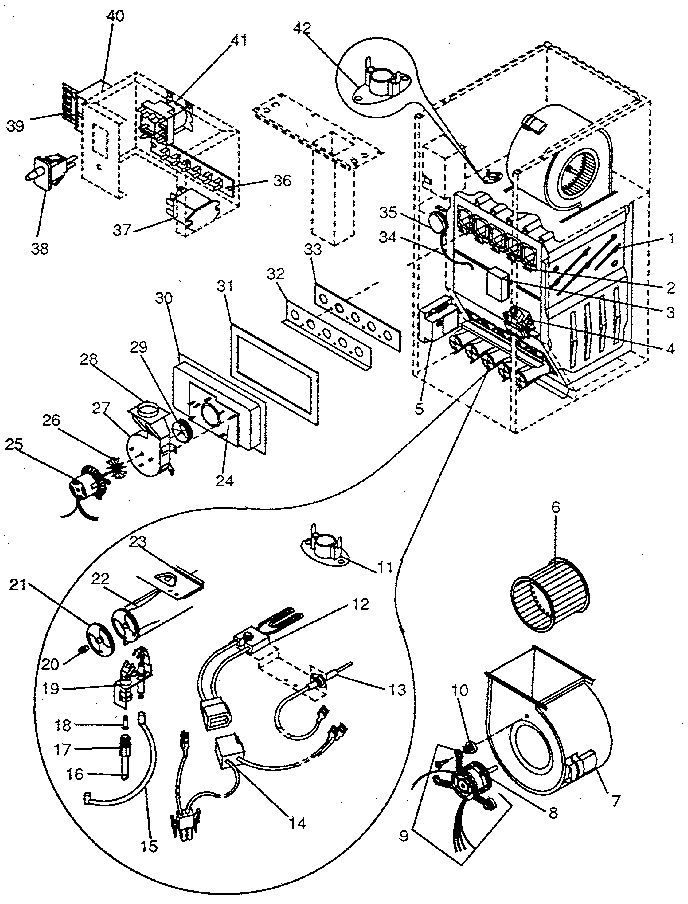

Functional replacement parts diagram

Switch

Part #611872

$25.58
In Stock
Furnace Vent Motor Gasket 607014
#24

Functional replacement parts diagram

Furnace vent motor gasket

Part #607014

This item is not returnable
$44.60
In Stock
Board Termin 612254
#39

Functional replacement parts diagram

Board termin

Part #612254

$20.06
In Stock
Bracket 1003363
#3

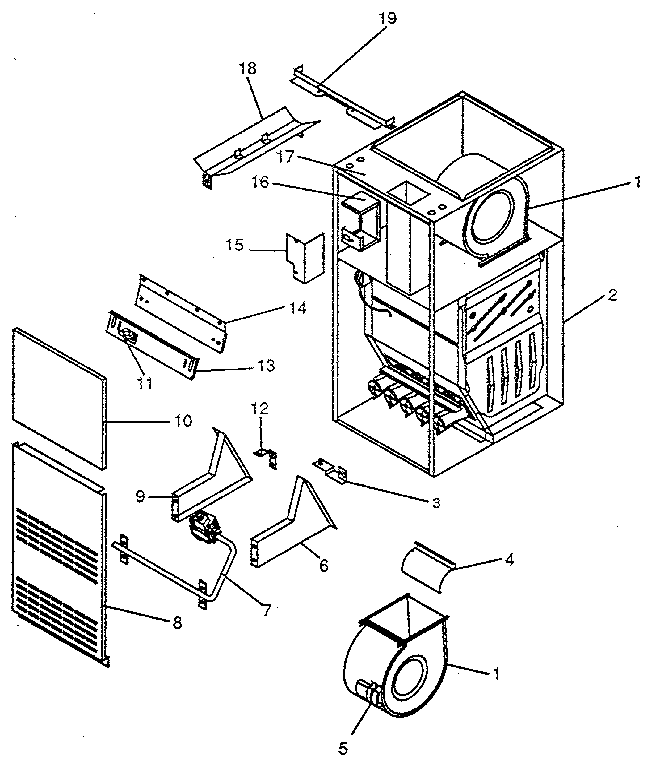

Non-functional replacement parts diagram

Bracket

Part #1003363

$55.24
In Stock
Switch 1005576
#35

Functional replacement parts diagram

Switch

Part #1005576

$110.96 |
8% OFF Phone Price : $120.96
In Stock
Cross Lighte 612443
#23

Functional replacement parts diagram

Cross lighte

Part #612443

$57.53 |
8% OFF Phone Price : $62.53
In Stock
Furnace Inducer Vent Motor Assembly 1006168

#NI

All parts diagram

Furnace inducer vent motor assembly

Part #1006168

$395.09 |
$10.00 OFF Phone Price : $405.09
In Stock
Furnace Fan Control Relay 1000742
#37

Functional replacement parts diagram

Furnace fan control relay

Part #1000742

$35.62 |
12% OFF Phone Price : $40.62
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#9

Functional replacement parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Switch 711410
#42

Functional replacement parts diagram

Switch

Part #711410

$10.20
In Stock
