Model # 11319656 Official Craftsman 1/2-hp capacitor start electric motor

Here are the diagrams and repair parts for Official Craftsman 11319656 1/2-hp capacitor start electric motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

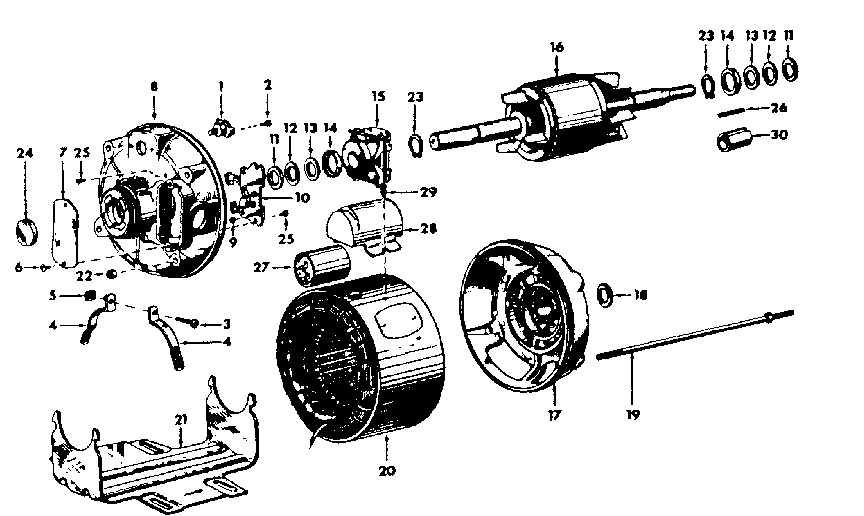

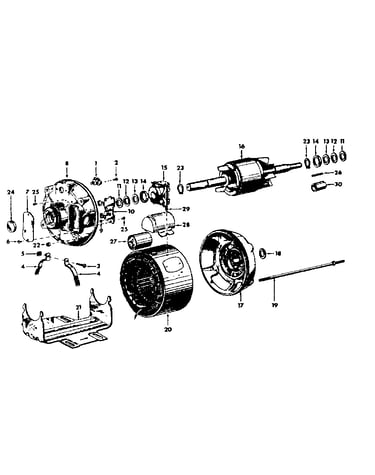

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Power Tool Washer 30767
#12

Unit diagram

Power tool washer

Part #30767

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 30783
#23

Unit diagram

Retaining ring

Part #30783

The manufacturer no longer makes this part, and there's no substitute part

Screw S-1412
#29

Unit diagram

Screw

Part #S-1412

The manufacturer no longer makes this part, and there's no substitute part

Stator Stud 37093
#19

Unit diagram

Stator stud

Part #37093

The manufacturer no longer makes this part, and there's no substitute part

Washer-rubr 30768
#13

Unit diagram

Washer-rubr

Part #30768

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut S-1274
#22

Unit diagram

Hex nut

Part #S-1274

The manufacturer no longer makes this part, and there's no substitute part

End Shield 37114
#8

Unit diagram

End shield

Part #37114

The manufacturer no longer makes this part, and there's no substitute part

Actuatr Assm 30770
#15

Unit diagram

Actuatr assm

Part #30770

The manufacturer no longer makes this part, and there's no substitute part

Protector 37075
#1

Unit diagram

Protector

Part #37075

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 37073
#27

Unit diagram

Capacitor

Part #37073

The manufacturer no longer makes this part, and there's no substitute part
