GE
Garbage Disposal

Model # GFB1050G02 Official GE garbage disposal

Here are the diagrams and repair parts for Official GE GFB1050G02 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Mounting Plate WC2X354
#14

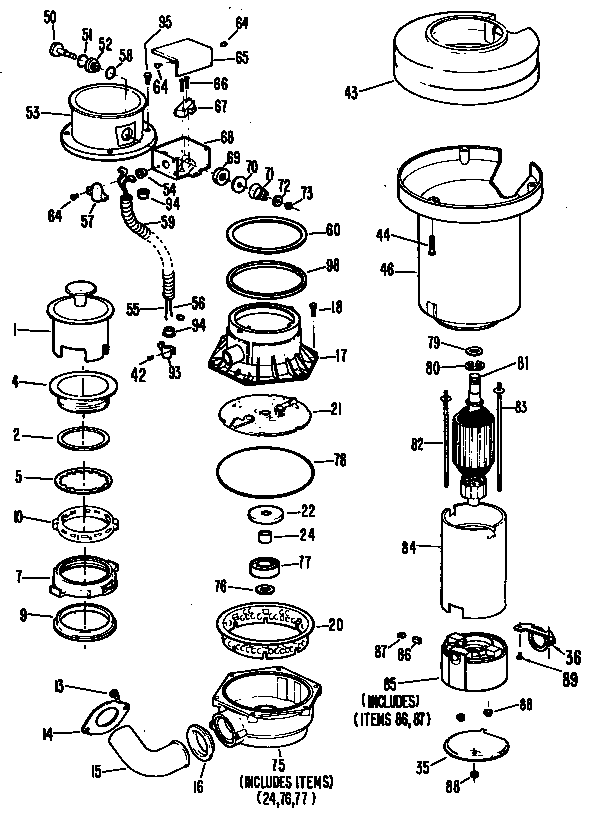

Disposer assembly diagram

Mounting plate

Part #WC2X354

This item is not returnable
$5.49
In Stock
Support Ring WC5X103
#10

Disposer assembly diagram

Support ring

Part #WC5X103

Replaced by #WC05X10002

?
Manufacturer substitution
This part replaces WC5X103. Substitute parts can look different from the original.
This item is not returnable
$11.37 |
15% OFF Phone Price : $13.37
In Stock
Mounting Ring WC5X104
#7

Disposer assembly diagram

Mounting ring

Part #WC5X104

Replaced by #WC15X20161

?
Manufacturer substitution
This part replaces WC5X104. Substitute parts can look different from the original.
$50.75 |
9% OFF Phone Price : $55.75
In Stock
Retaining Ring WC1X240
#80

Disposer assembly diagram

Retaining ring

Part #WC1X240

The manufacturer no longer makes this part, and there's no substitute part

Plate Ground WC2X364
#36

Disposer assembly diagram

Plate ground

Part #WC2X364

The manufacturer no longer makes this part, and there's no substitute part

Shell Motor Asm WC24X201
#84

Disposer assembly diagram

Shell motor asm

Part #WC24X201

The manufacturer no longer makes this part, and there's no substitute part

Brush Spring WC2X368
#87

Disposer assembly diagram

Brush spring

Part #WC2X368

The manufacturer no longer makes this part, and there's no substitute part

Stud Motor 8-32 X 5.6 WC1X263
#82

Disposer assembly diagram

Stud motor 8-32 x 5.6

Part #WC1X263

The manufacturer no longer makes this part, and there's no substitute part

Bell End Asm WC24X212
#85

Disposer assembly diagram

Bell end asm

Part #WC24X212

The manufacturer no longer makes this part, and there's no substitute part

Washer WC1X228
#72

Disposer assembly diagram

Washer

Part #WC1X228

The manufacturer no longer makes this part, and there's no substitute part
