Model # F8100-900 Official Hoover carpet cleaner

Here are the diagrams and repair parts for Official Hoover F8100-900 carpet cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 86 parts |

#19

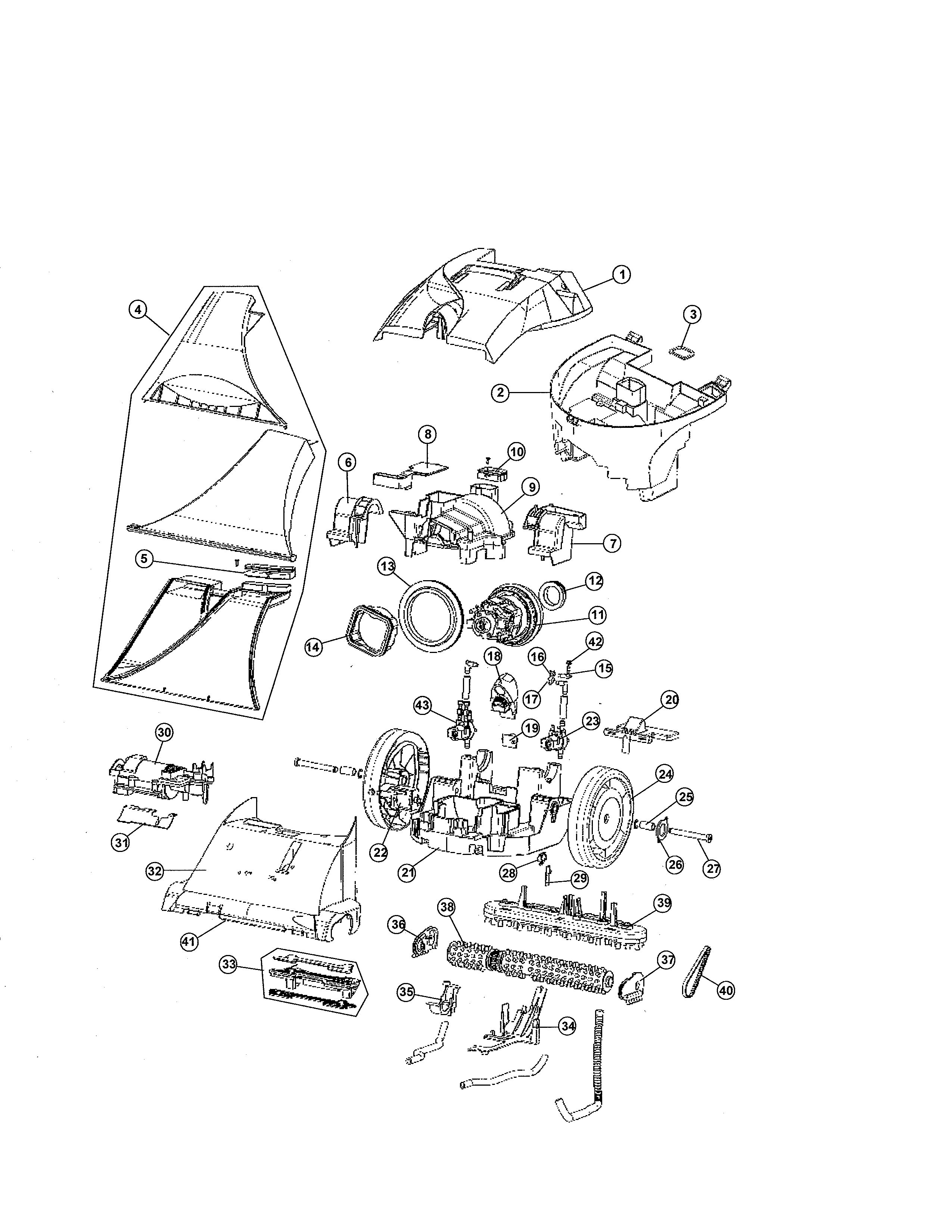

Nozzle/hood/motor diagram

Pcb thermistor

Part #280522001

The manufacturer no longer makes this part, and there's no substitute part

#28

Nozzle/hood/motor diagram

Micro-switch

Part #760758001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Hose Rack Assembly 517454001

#10

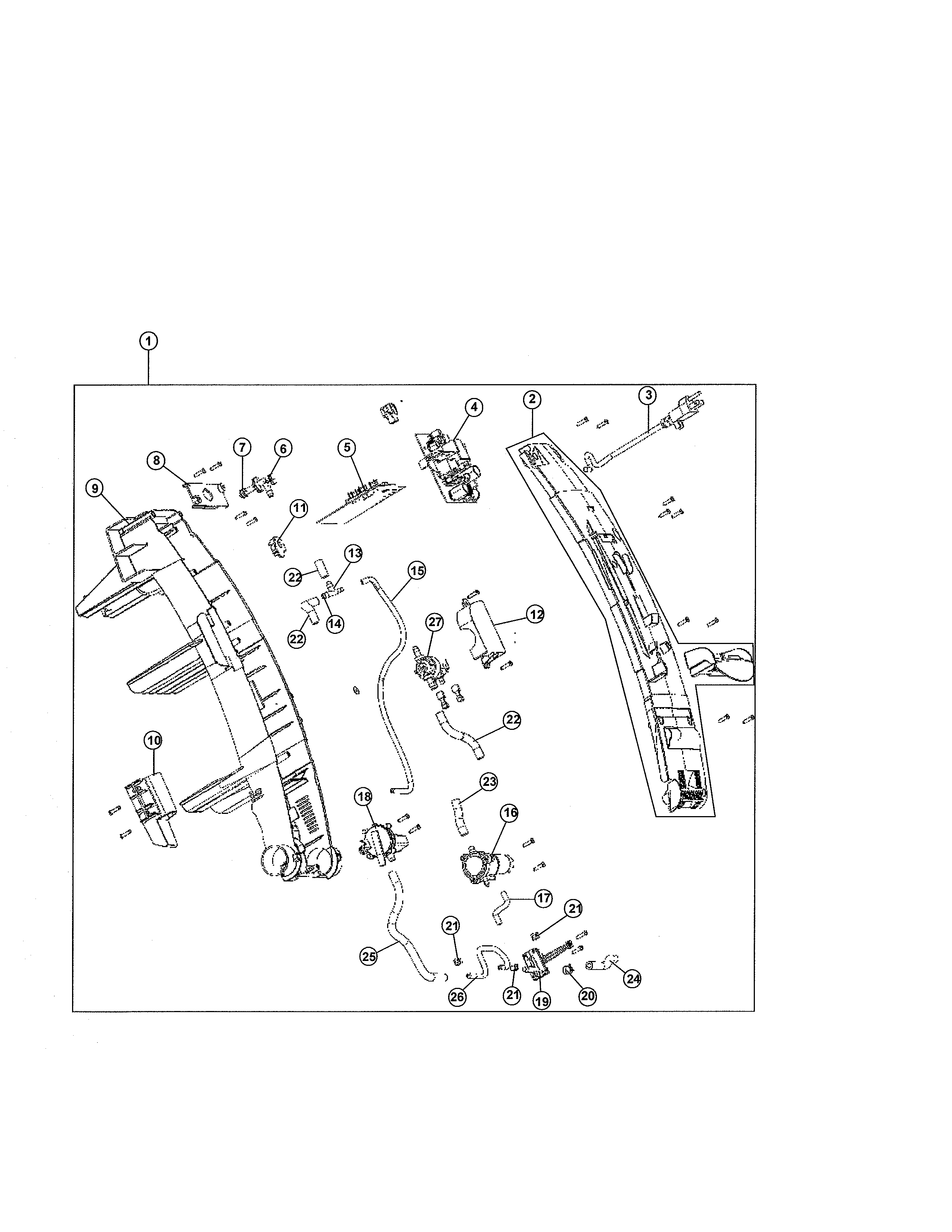

Lower handle diagram

Carpet cleaner hose rack assembly

Part #517454001

The manufacturer no longer makes this part, and there's no substitute part

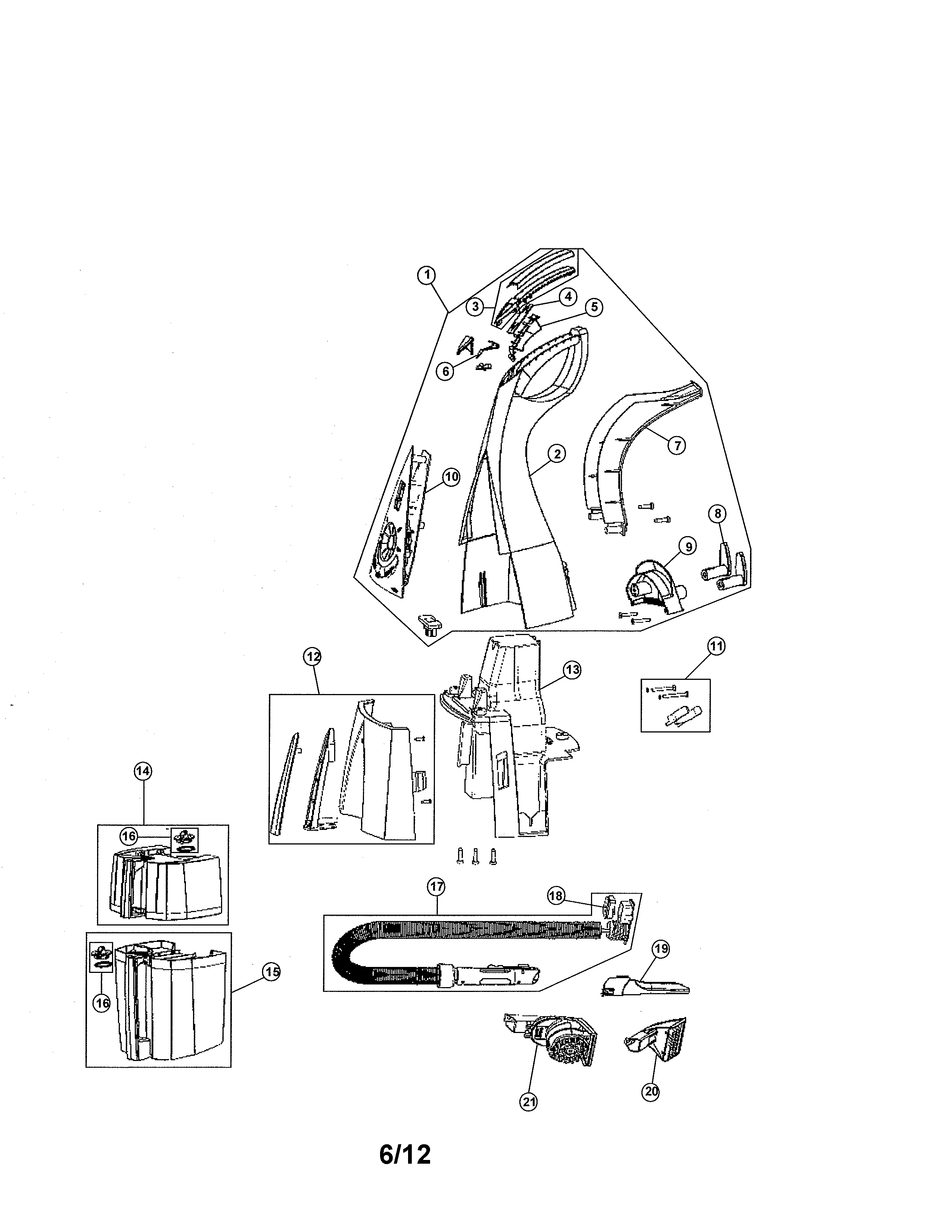

Handle/hose/water tank diagram

Vacuum cover

Part #517402001

The manufacturer no longer makes this part, and there's no substitute part

Handle/hose/water tank diagram

Cord wrap

Part #517538001

The manufacturer no longer makes this part, and there's no substitute part

Lower handle diagram

Carpet cleaner handle cover, front

Part #517442001

The manufacturer no longer makes this part, and there's no substitute part

Handle/hose/water tank diagram

Pcb-trgger

Part #280519001

The manufacturer no longer makes this part, and there's no substitute part

#32

Nozzle/hood/motor diagram

Hood nozzle

Part #517511001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Upholstery Nozzle Tool 302598001

#21

Handle/hose/water tank diagram

Carpet cleaner upholstery nozzle tool

Part #302598001

The manufacturer no longer makes this part, and there's no substitute part

#14

Nozzle/hood/motor diagram

Seal

Part #562119001

The manufacturer no longer makes this part, and there's no substitute part
