Craftsman
Lawn Edger

Model # 328796550 Official Craftsman edger

Here are the diagrams and repair parts for Official Craftsman 328796550 edger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |

Cotter Pin 1011
#2

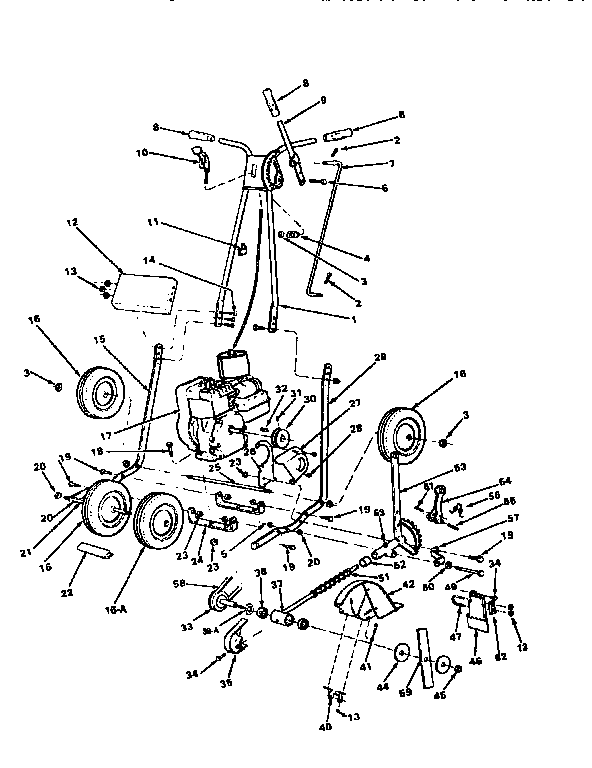

Lawn edger and trimmer diagram

Cotter pin

Part #1011

The manufacturer no longer makes this part, and there's no substitute part

Nut 1075
#23

Lawn edger and trimmer diagram

Nut

Part #1075

The manufacturer no longer makes this part, and there's no substitute part

Curb Wheel 2101

#NI

All parts diagram

Curb wheel

Part #2101

The manufacturer no longer makes this part, and there's no substitute part

8" Frame 2029-8
#29

Lawn edger and trimmer diagram

8" frame

Part #2029-8

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 2028
#28

Lawn edger and trimmer diagram

Lawn & garden equipment screw

Part #2028

The manufacturer no longer makes this part, and there's no substitute part

Plate 1014
#12

Lawn edger and trimmer diagram

Plate

Part #1014

The manufacturer no longer makes this part, and there's no substitute part

Edger Cutter Head Body 2053
#53

Lawn edger and trimmer diagram

Edger cutter head body

Part #2053

The manufacturer no longer makes this part, and there's no substitute part

Spring 2051
#51

Lawn edger and trimmer diagram

Spring

Part #2051

The manufacturer no longer makes this part, and there's no substitute part

Control 1013-E
#10

Lawn edger and trimmer diagram

Control

Part #1013-E

The manufacturer no longer makes this part, and there's no substitute part

Edger Quill Assembly 2037
#37

Lawn edger and trimmer diagram

Edger quill assembly

Part #2037

The manufacturer no longer makes this part, and there's no substitute part
