Wine & Beverage Cooler

Model # PCR06BATCSS Official GE beverage center

Here are the diagrams and repair parts for Official GE PCR06BATCSS beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Dryer Filter WR86X0096
#35

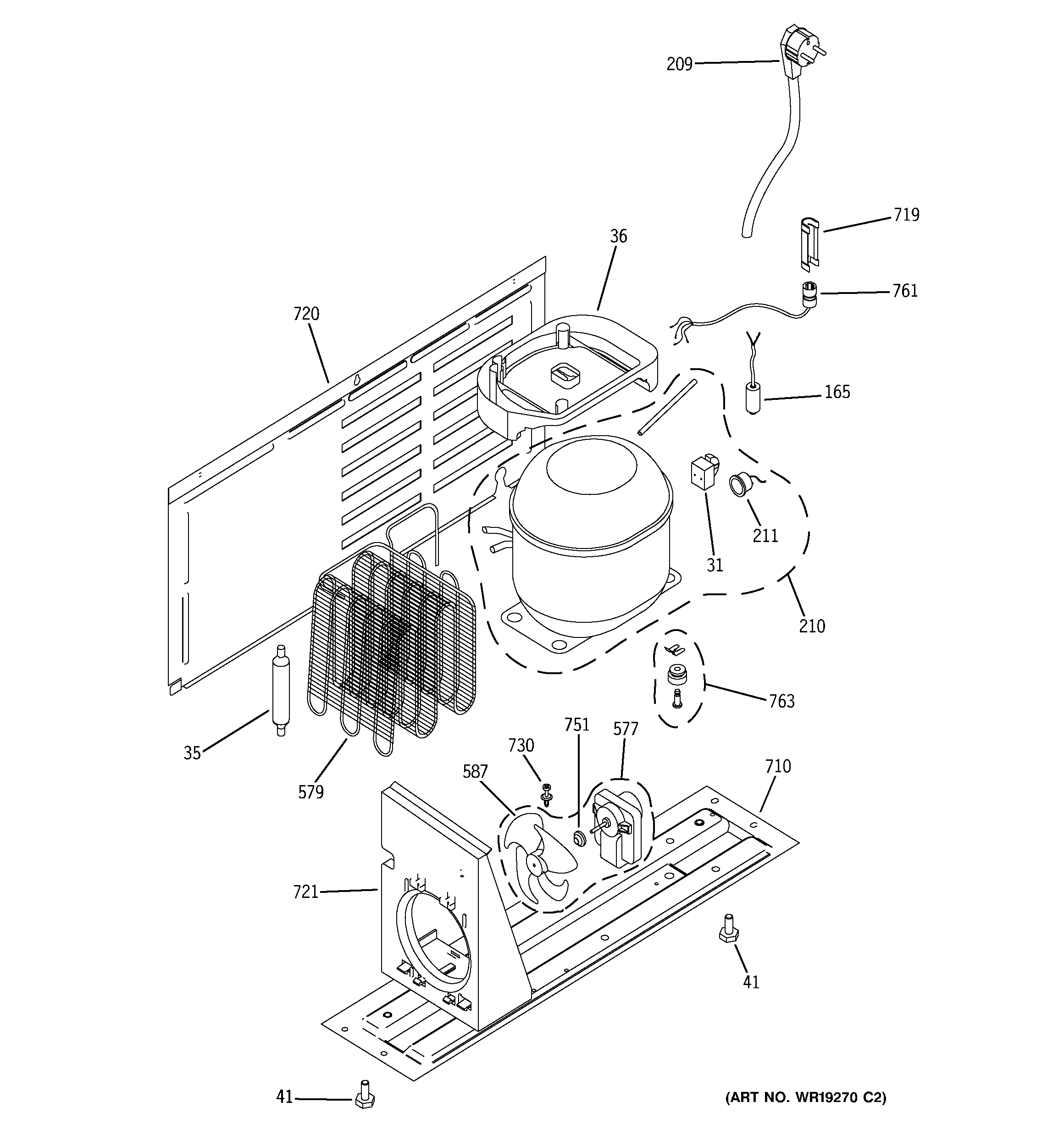

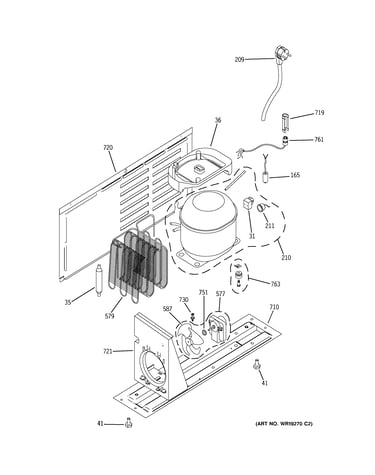

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
6% OFF Phone Price : $84.18
In Stock
Range Oven Door Switch (replaces 71001129, Wb24k10004, Wb24t10112, Wb24x25231, Wb24x5316) WB24T10147
#728

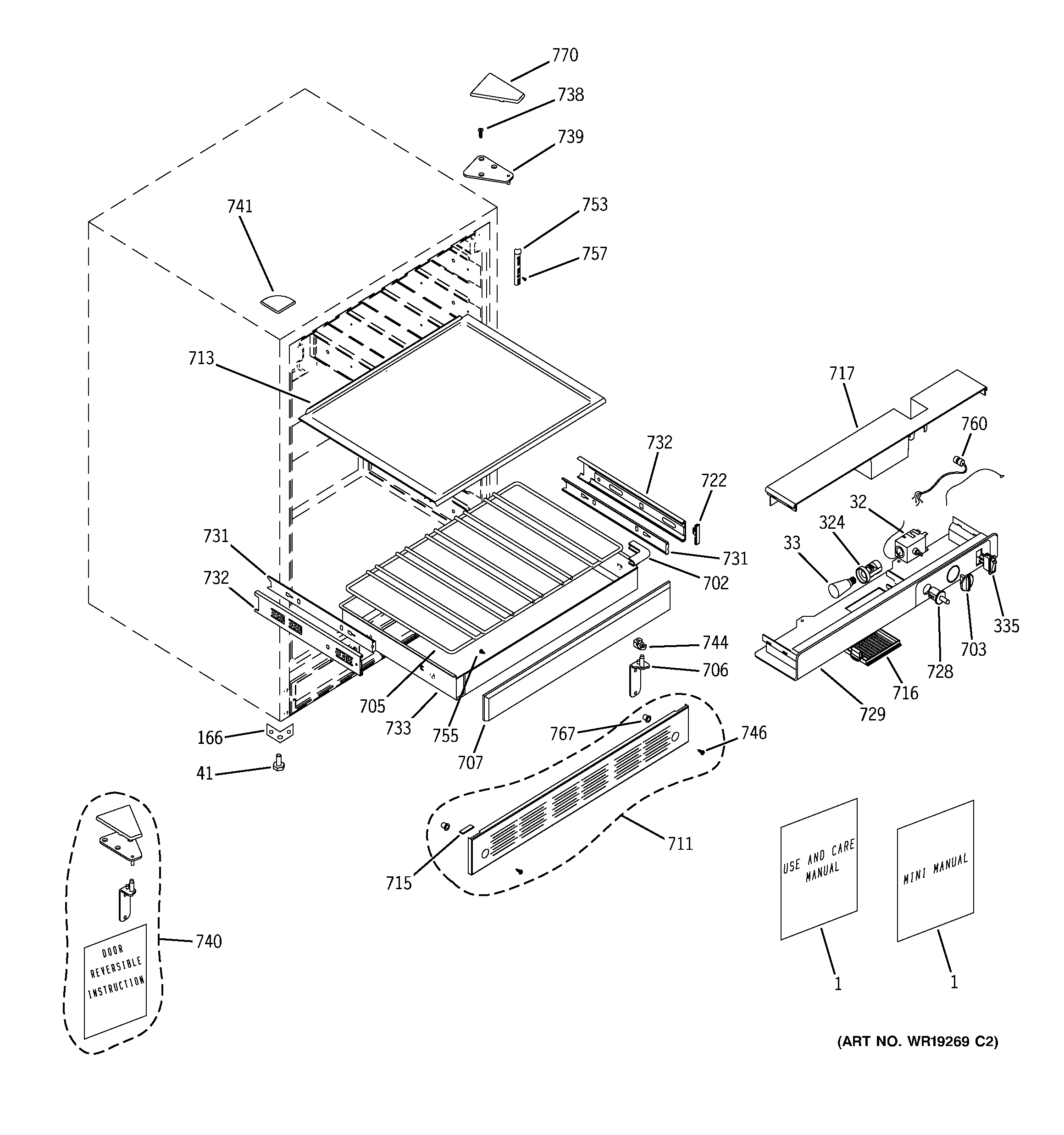

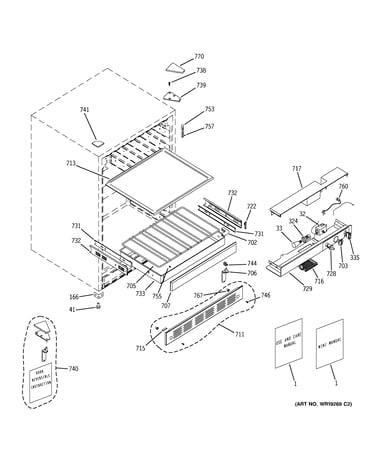

Cabinet & shelves diagram

Range oven door switch (replaces 71001129, wb24k10004, wb24t10112, wb24x25231, wb24x5316)

Part #WB24T10147

This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Beverage Cooler Glass Shelf WR71X10470
#713

Cabinet & shelves diagram

Beverage cooler glass shelf

Part #WR71X10470

$101.16 |
9% OFF Phone Price : $111.16
In Stock
Leveling Leg WR01X10384
Leveling leg

Part #WR01X10384

$26.60 |
16% OFF Phone Price : $31.60
In Stock
Wine Cooler Run Capacitor WR62X10033
#165

Unit parts diagram

Wine cooler run capacitor

Part #WR62X10033

$79.02 |
6% OFF Phone Price : $84.02
In Stock
Wine Cooler Door Reverse Hinge Kit (replaces Wr02x11780) WR13X10275
#740

Cabinet & shelves diagram

Wine cooler door reverse hinge kit (replaces wr02x11780)

Part #WR13X10275

$104.54 |
9% OFF Phone Price : $114.54
Back Order
Drip Tray WR17X11673
#36

Unit parts diagram

Drip tray

Part #WR17X11673

Replaced by #WR17X10374

?
Manufacturer substitution
This part replaces WR17X11673. Substitute parts can look different from the original.
$56.71
In Stock
Compressor WR87X10245
#210

Unit parts diagram

Compressor

Part #WR87X10245

Replaced by #WR87X10076

?
Manufacturer substitution
This part replaces WR87X10245. Substitute parts can look different from the original.
$571.61 |
$10.00 OFF Phone Price : $581.61
In Stock
Screw WR01X10356
#756

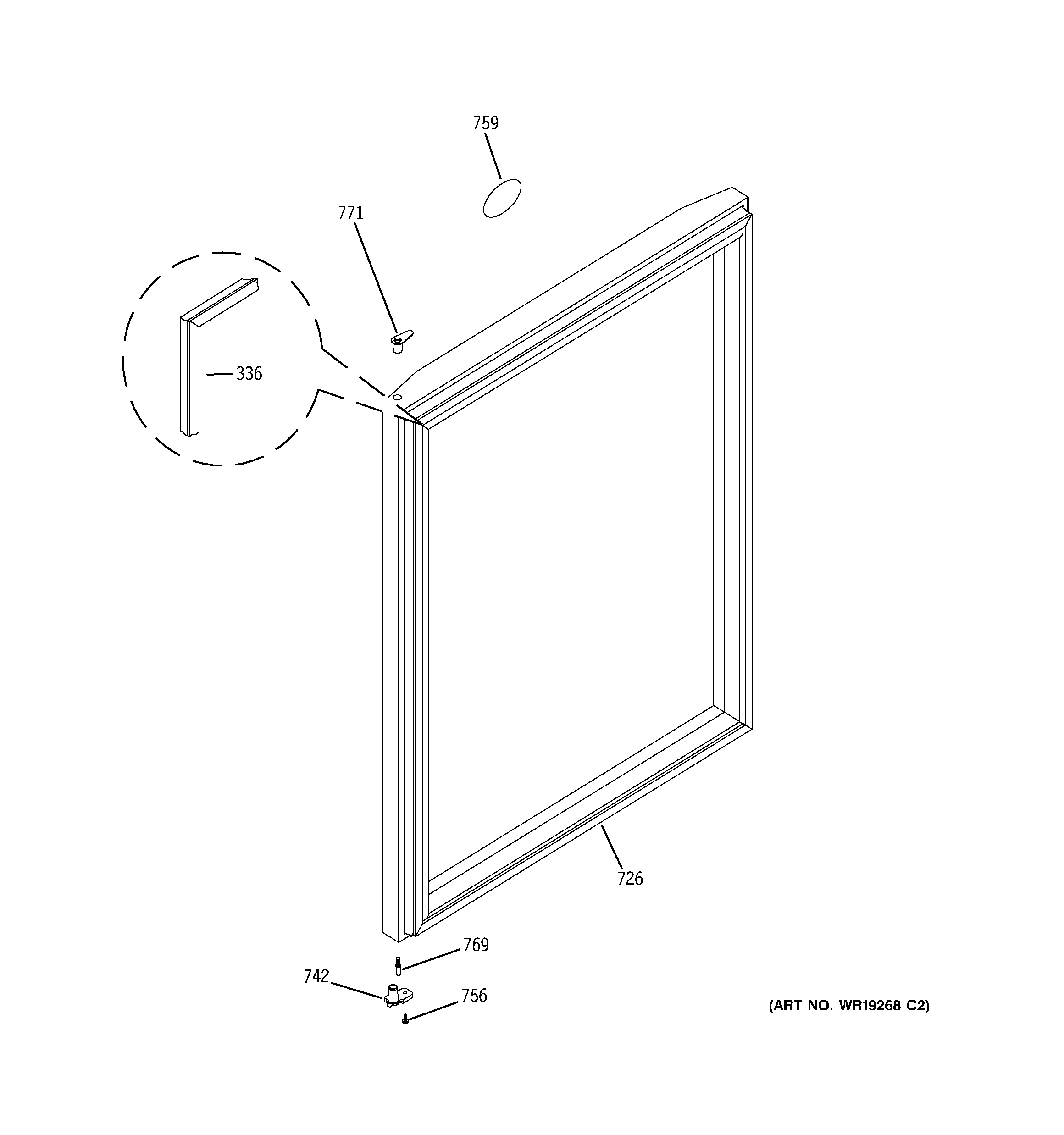

Door diagram

Screw

Part #WR01X10356

This item is not returnable
$6.85
In Stock
Connector Cl WR01X10352
#719

Unit parts diagram

Connector cl

Part #WR01X10352

$13.44
In Stock
