Model # 5370-1 TYPE A Official Milwaukee hammer drill

Here are the diagrams and repair parts for Official Milwaukee 5370-1-TYPE-A hammer drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

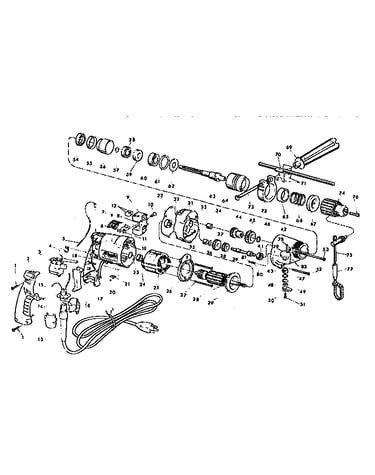

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Ring 34-60-0500
#11

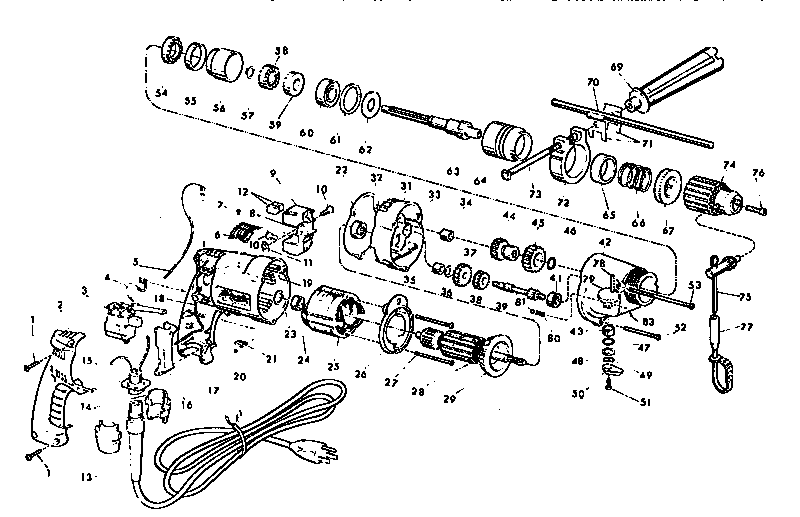

Hammer drill diagram

Ring

Part #34-60-0500

The manufacturer no longer makes this part, and there's no substitute part

5/16 - 18 X 3-1/2" Square Hd. Bolt 42-32-0160
#73

Hammer drill diagram

5/16 - 18 x 3-1/2" square hd. bolt

Part #42-32-0160

The manufacturer no longer makes this part, and there's no substitute part

O-ring 34-40-4020
O-ring

Part #34-40-4020

The manufacturer no longer makes this part, and there's no substitute part

Screw 06-95-0140
Screw

Part #06-95-0140

The manufacturer no longer makes this part, and there's no substitute part

Pinion 36-66-1330
#39

Hammer drill diagram

Pinion

Part #36-66-1330

The manufacturer no longer makes this part, and there's no substitute part

Groove Pin 06-65-0825
#33

Hammer drill diagram

Groove pin

Part #06-65-0825

The manufacturer no longer makes this part, and there's no substitute part

Gear Case 14-30-0380
#40

Hammer drill diagram

Gear case

Part #14-30-0380

The manufacturer no longer makes this part, and there's no substitute part

Screw 06-85-0200
#7

Hammer drill diagram

Screw

Part #06-85-0200

The manufacturer no longer makes this part, and there's no substitute part

Screw 06-95-0165
#53

Hammer drill diagram

Screw

Part #06-95-0165

The manufacturer no longer makes this part, and there's no substitute part

2 - 1/4" Lead Assembly 23-94-9625
#4

Hammer drill diagram

2 - 1/4" lead assembly

Part #23-94-9625

The manufacturer no longer makes this part, and there's no substitute part
