Model # URS511MB-P1330224M Official Amana commercial microwave

Here are the diagrams and repair parts for Official Amana URS511MB-P1330224M commercial microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

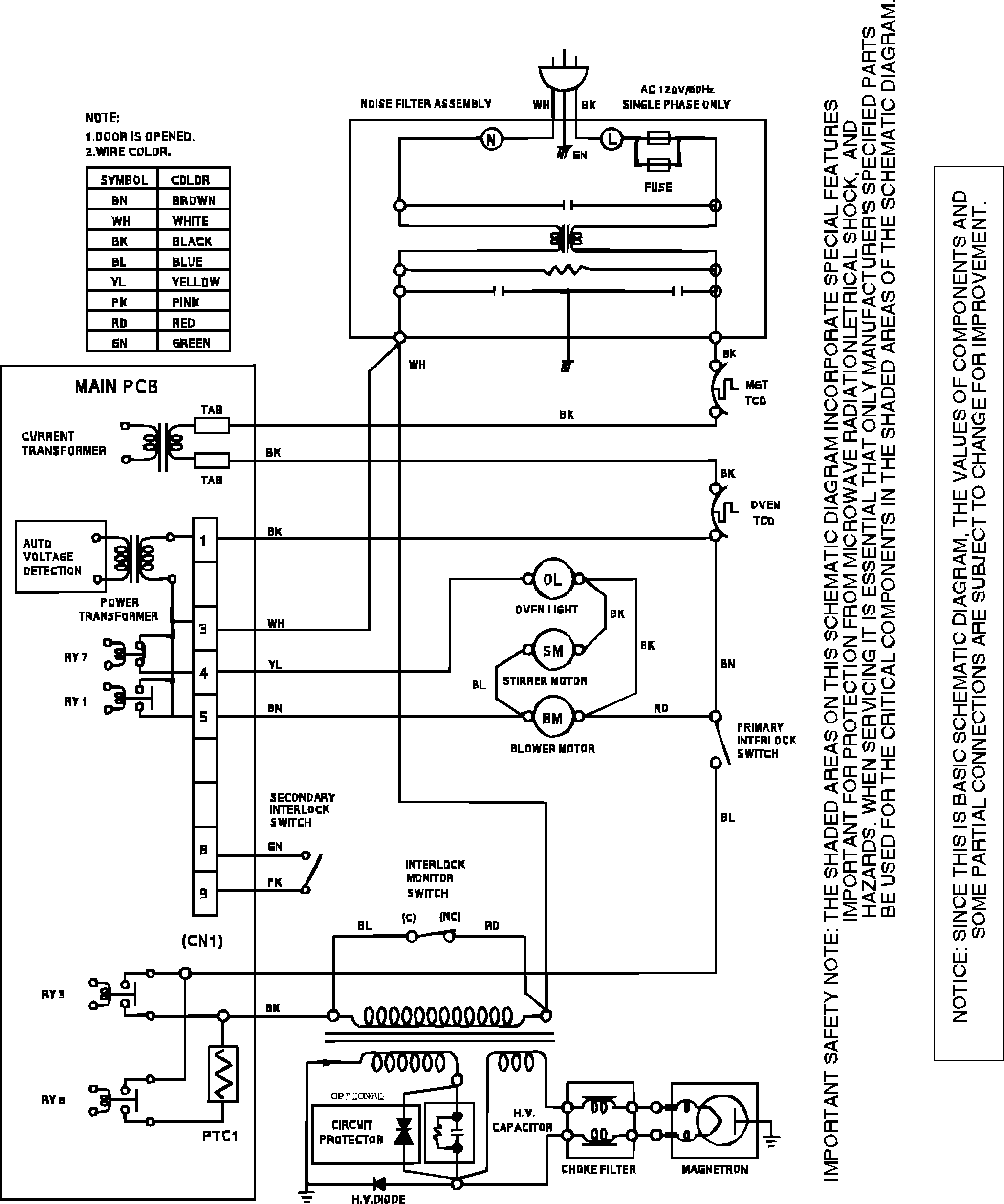

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Magnetron 53001581
#23

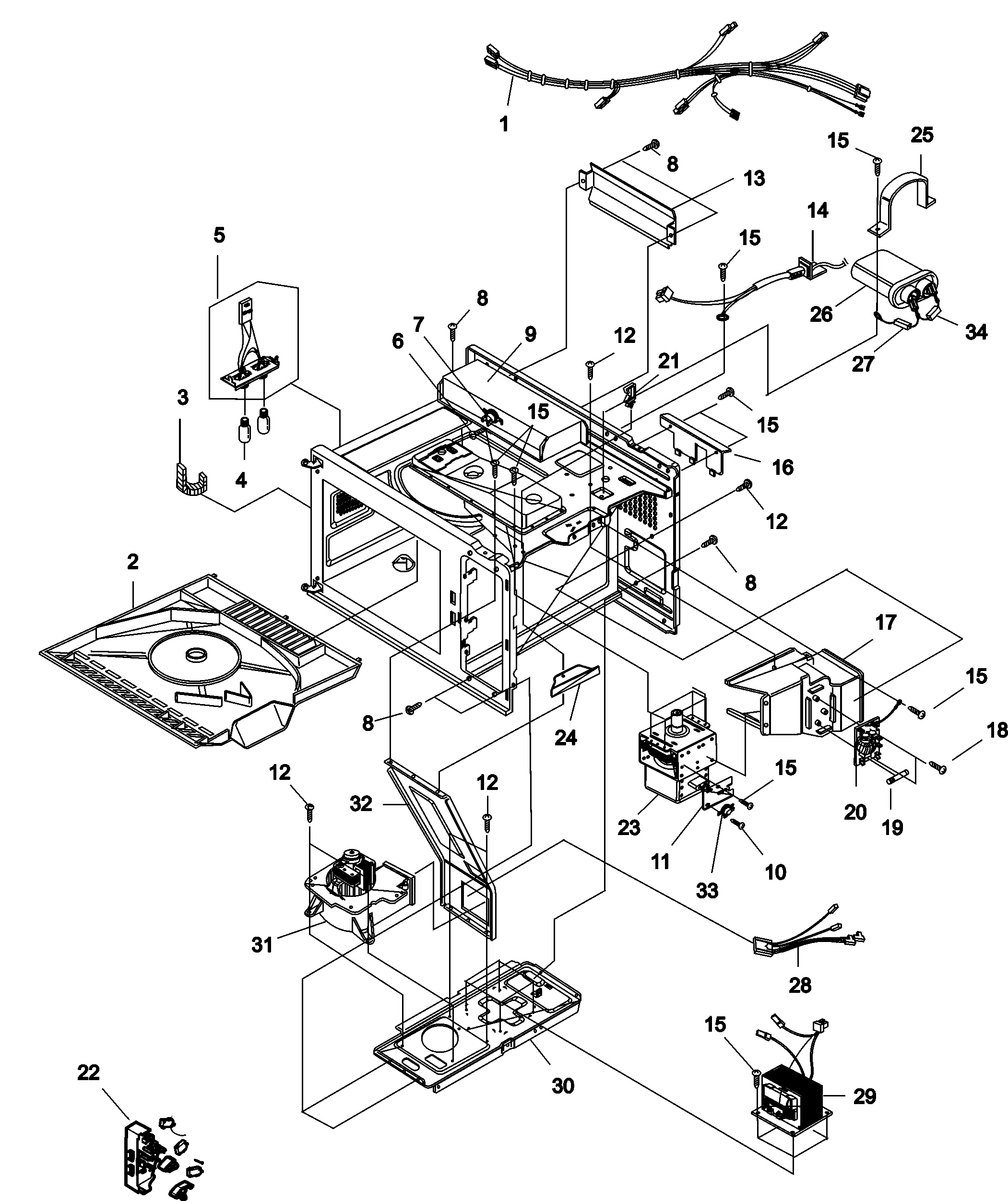

Electrical, grease shield, ducts, diagram

Magnetron

Part #53001581

The manufacturer no longer makes this part, and there's no substitute part

Tapping Screw R0131246
Tapping screw

Part #R0131246

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0131246. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Plate Screw R0654036
Plate screw

Part #R0654036

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0654036. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
"screw, Binin" R0654028
#15

Electrical, grease shield, ducts, diagram

"screw, binin"

Part #R0654028

Replaced by #4344826

?
Manufacturer substitution
This part replaces R0654028. Substitute parts can look different from the original.
$12.49
In Stock
Escutcheon 53001814
#4

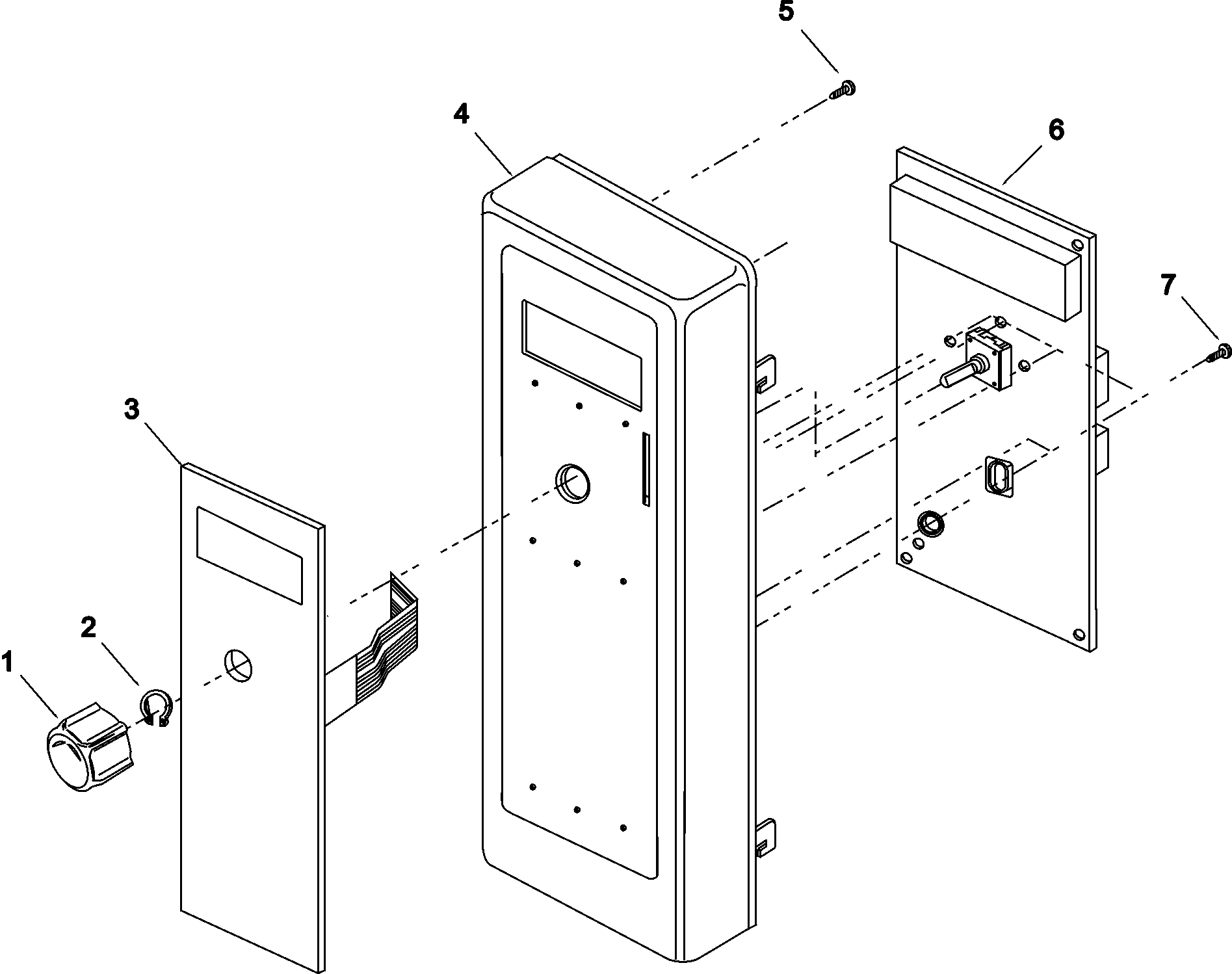

Timer and escutcheon diagram

Escutcheon

Part #53001814

The manufacturer no longer makes this part, and there's no substitute part

"cap, Choke C" 53001543
#1

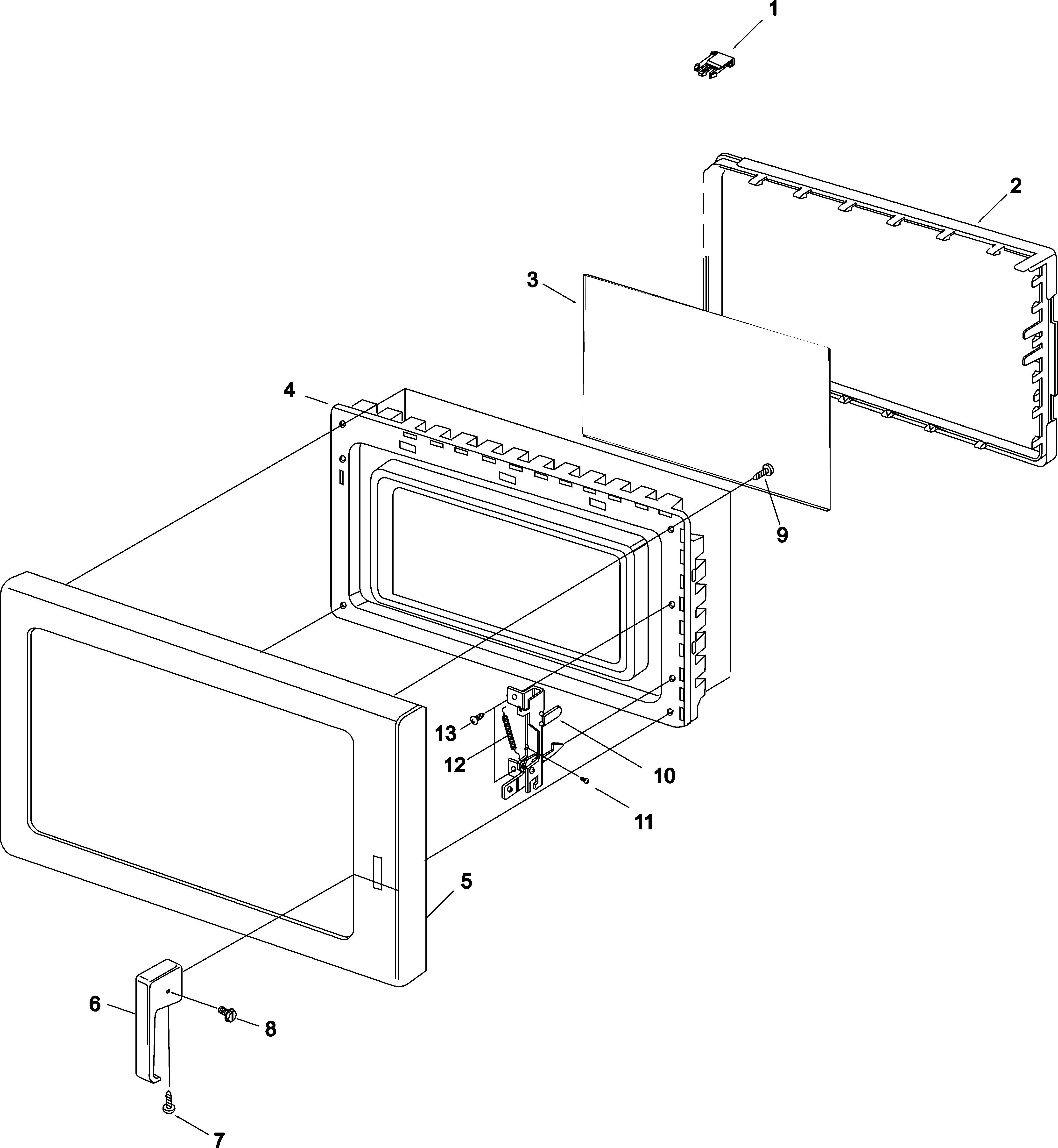

Door diagram

"cap, choke c"

Part #53001543

The manufacturer no longer makes this part, and there's no substitute part

Screw Tappin 53001609
#5

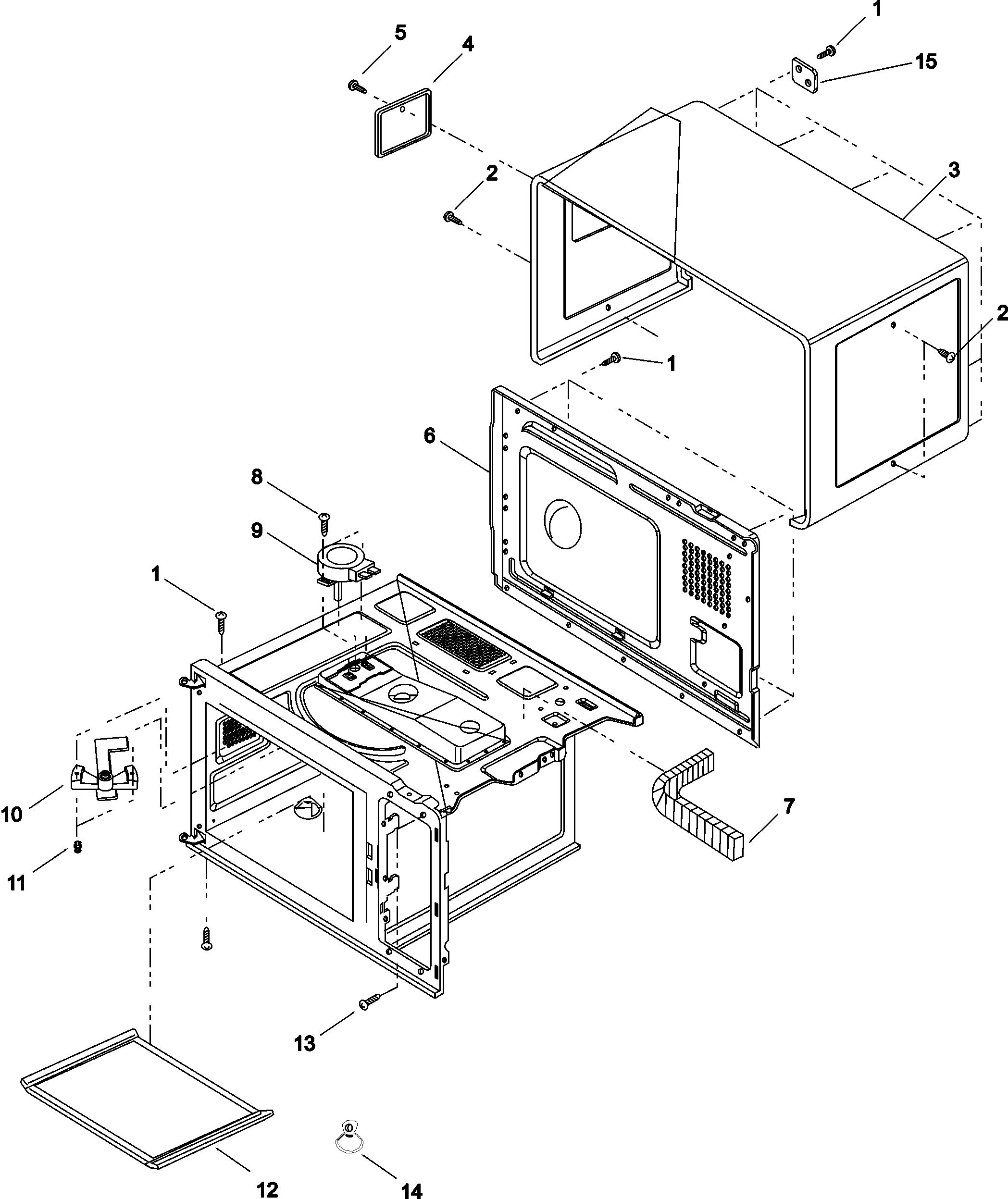

Antenna, tray, outer case, diagram

Screw tappin

Part #53001609

The manufacturer no longer makes this part, and there's no substitute part

Rivet 53001554
#11

Antenna, tray, outer case, diagram

Rivet

Part #53001554

The manufacturer no longer makes this part, and there's no substitute part

"screw, Drawi" 53001629
#8

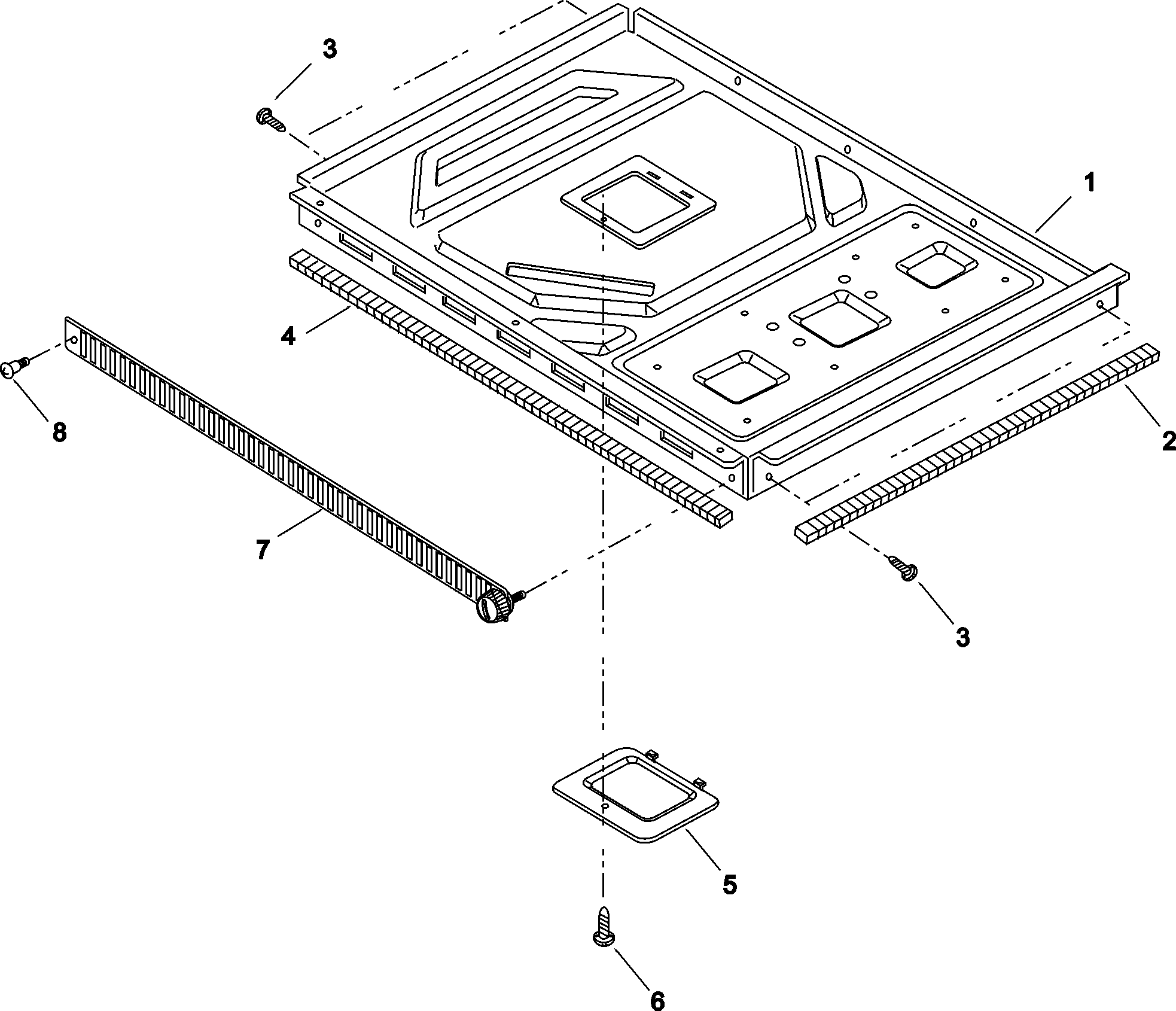

Base and filter diagram

"screw, drawi"

Part #53001629

The manufacturer no longer makes this part, and there's no substitute part

Bracket 53001622
#24

Electrical, grease shield, ducts, diagram

Bracket

Part #53001622

The manufacturer no longer makes this part, and there's no substitute part
