Model # 11652413200 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11652413200 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |

Yoke Bearing Seal 741423
#6

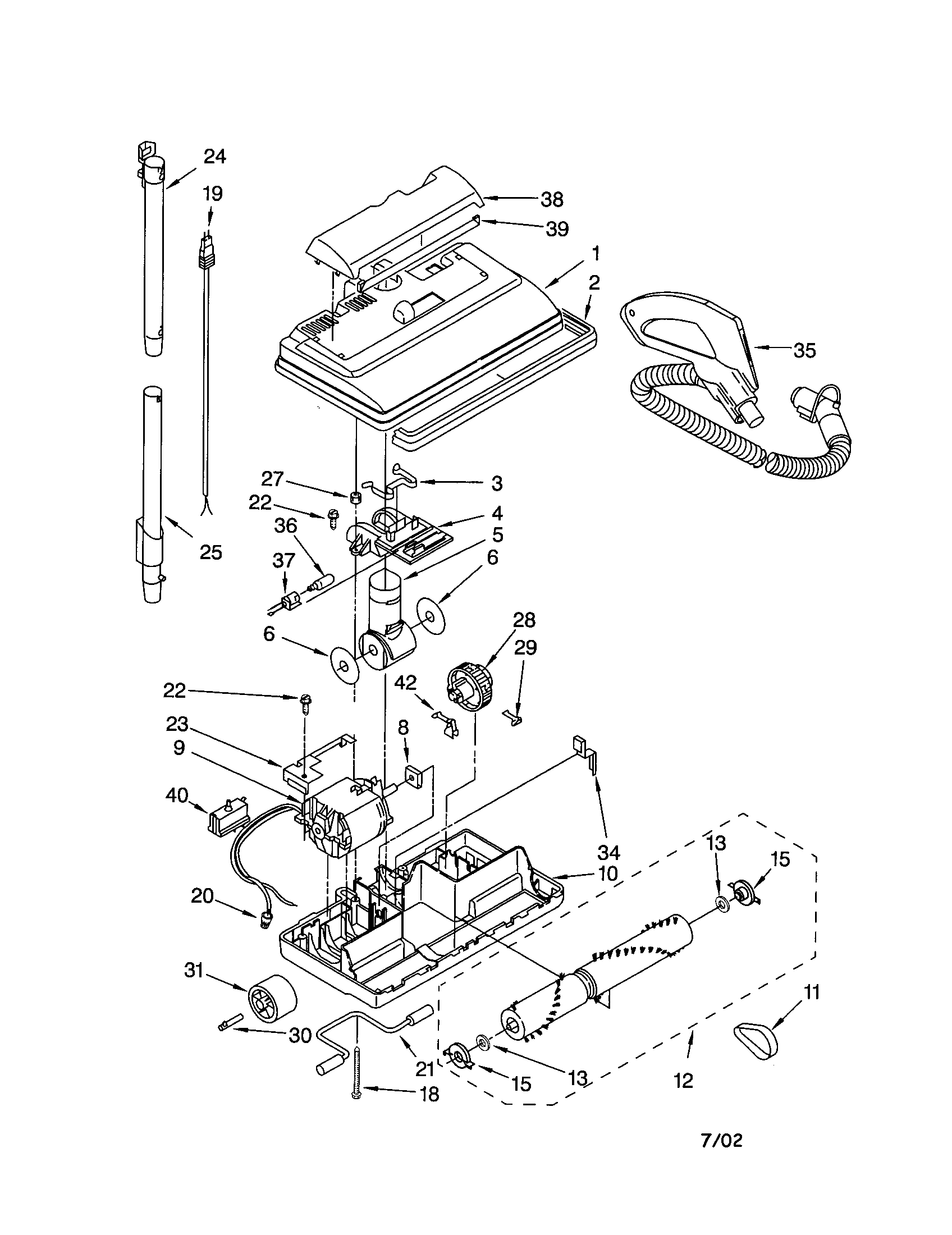

Power-mate diagram

Yoke bearing seal

Part #741423

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Furniture Guard 4370499
#2

Power-mate diagram

Vacuum furniture guard

Part #4370499

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 4368522
#20

Power-mate diagram

Twist-on wire connector

Part #4368522

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Overload Reset Switch 8175256
#40

Power-mate diagram

Vacuum overload reset switch

Part #8175256

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Nozzle 8192357
#1

Power-mate diagram

Vacuum nozzle

Part #8192357

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Axle Lifter 4370726
#42

Power-mate diagram

Vacuum axle lifter

Part #4370726

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 4369544
#31

Power-mate diagram

Vacuum wheel

Part #4369544

The manufacturer no longer makes this part, and there's no substitute part

Screw 681297
#22

Power-mate diagram

Screw

Part #681297

The manufacturer no longer makes this part, and there's no substitute part

Canister Base 8175158
#10

Power-mate diagram

Canister base

Part #8175158

The manufacturer no longer makes this part, and there's no substitute part

Axle 742939
#21

Power-mate diagram

Axle

Part #742939

The manufacturer no longer makes this part, and there's no substitute part
