Model # MR1352BB/XAA Official Samsung microwave

Here are the diagrams and repair parts for Official Samsung MR1352BB-XAA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$16.93
11% OFF Phone Price : $18.93
In Stock
Switch 3405-001042
#12

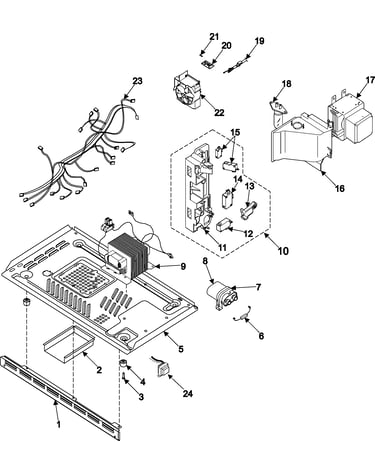

Internal control/latch asy/base diagram

Switch

Part #3405-001042

Replaced by #3405-001034

?
Manufacturer substitution
This part replaces 3405-001042. Substitute parts can look different from the original.
BEST SELLER
$16.93
11% OFF Phone Price : $18.93
In Stock
Microwave Fuse, 20-amp (replaces 3601-001142) 3601-001198
#21

Internal control/latch asy/base diagram

Microwave fuse, 20-amp (replaces 3601-001142)

Part #3601-001198

This item is not returnable
$12.96
13% OFF Phone Price : $14.96
In Stock
Incandescent Lamp 4713-001012
#18

Internal control/latch asy/base diagram

Incandescent lamp

Part #4713-001012

Replaced by #4713-001102

?
Manufacturer substitution
This part replaces 4713-001012. Substitute parts can look different from the original.
This item is not returnable
$13.62
13% OFF Phone Price : $15.62
In Stock
Push Button DE67-00093B
#4

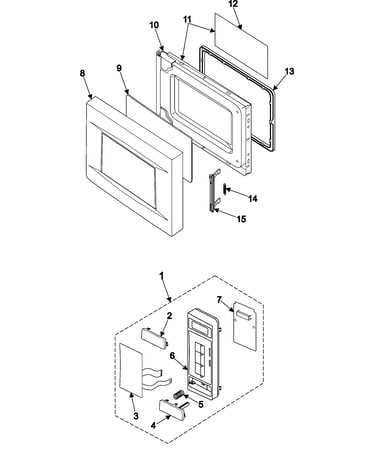

Control panel/door assembly diagram

Push button

Part #DE67-00093B

In Stock
Cushion DE63-90035I
#8

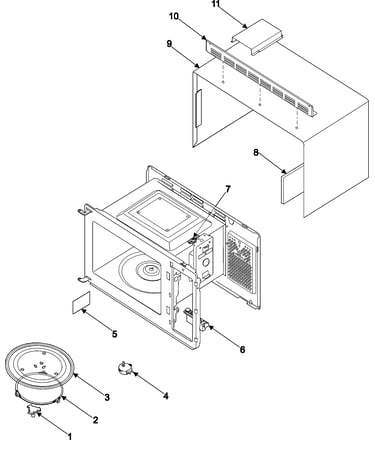

Body/cavity/elements diagram

Cushion

Part #DE63-90035I

In Stock
Air Duct DE72-50092B
#11

Body/cavity/elements diagram

Air duct

Part #DE72-50092B

In Stock
Body Assembly DE96-00005D
#10

Internal control/latch asy/base diagram

Body assembly

Part #DE96-00005D

In Stock
Pin Foot DE60-60025A
#3

Internal control/latch asy/base diagram

Pin foot

Part #DE60-60025A

This item is not returnable
In Stock
Cup Unit DE71-60458A
#16

Internal control/latch asy/base diagram

Cup unit

Part #DE71-60458A

In Stock
