Model # 15045HWD Official Pennco boiler

Here are the diagrams and repair parts for Official Pennco 15045HWD boiler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |

5 Sec Block 410-00-513
#NI

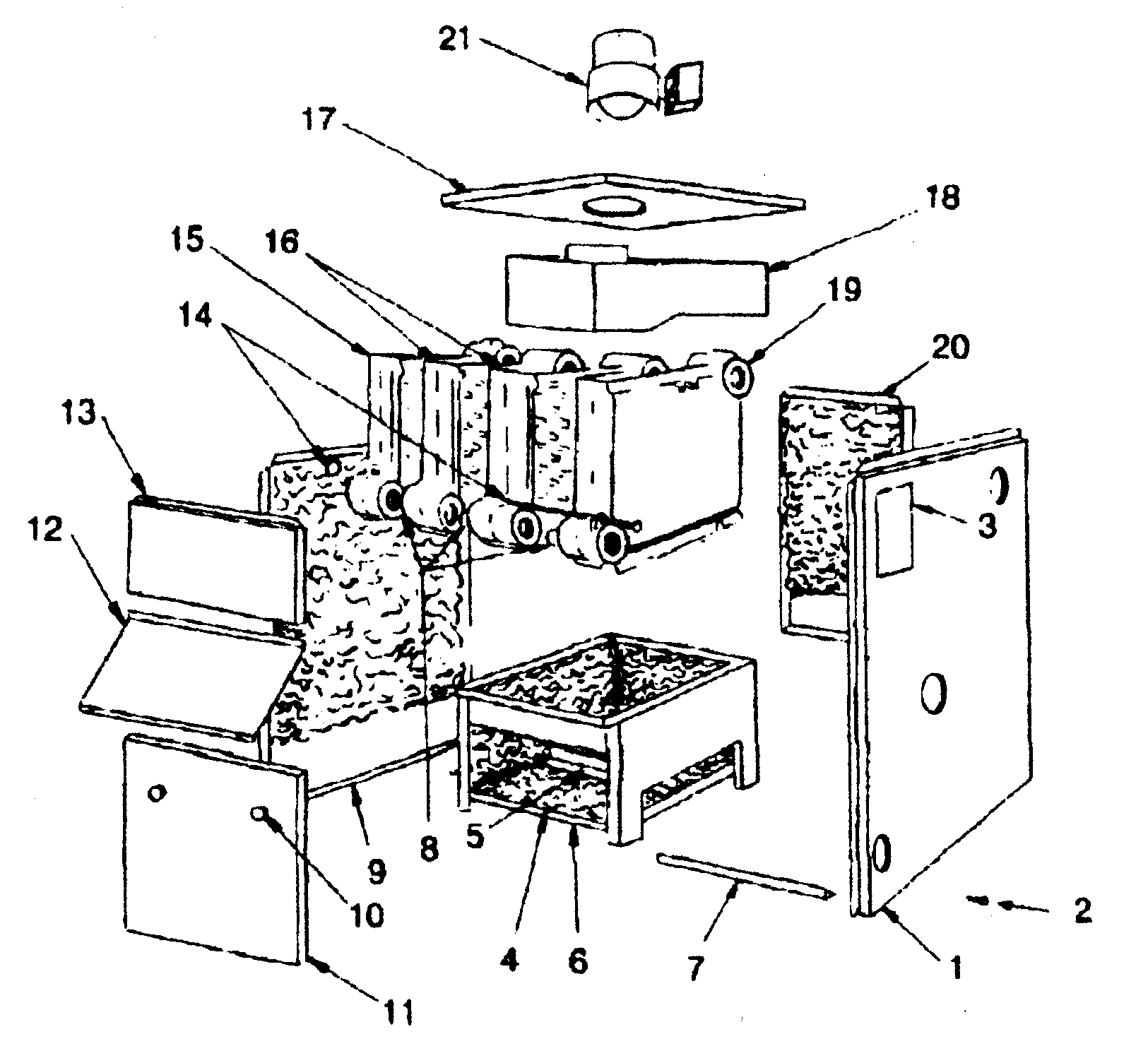

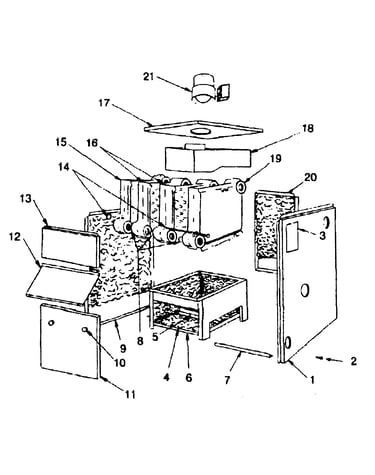

Cabinet parts diagram

5 sec block

Part #410-00-513

In Stock
Boiler Burner Roll-out Limit Switch (replaces 146-29-002-60) 146-29-002
#NI

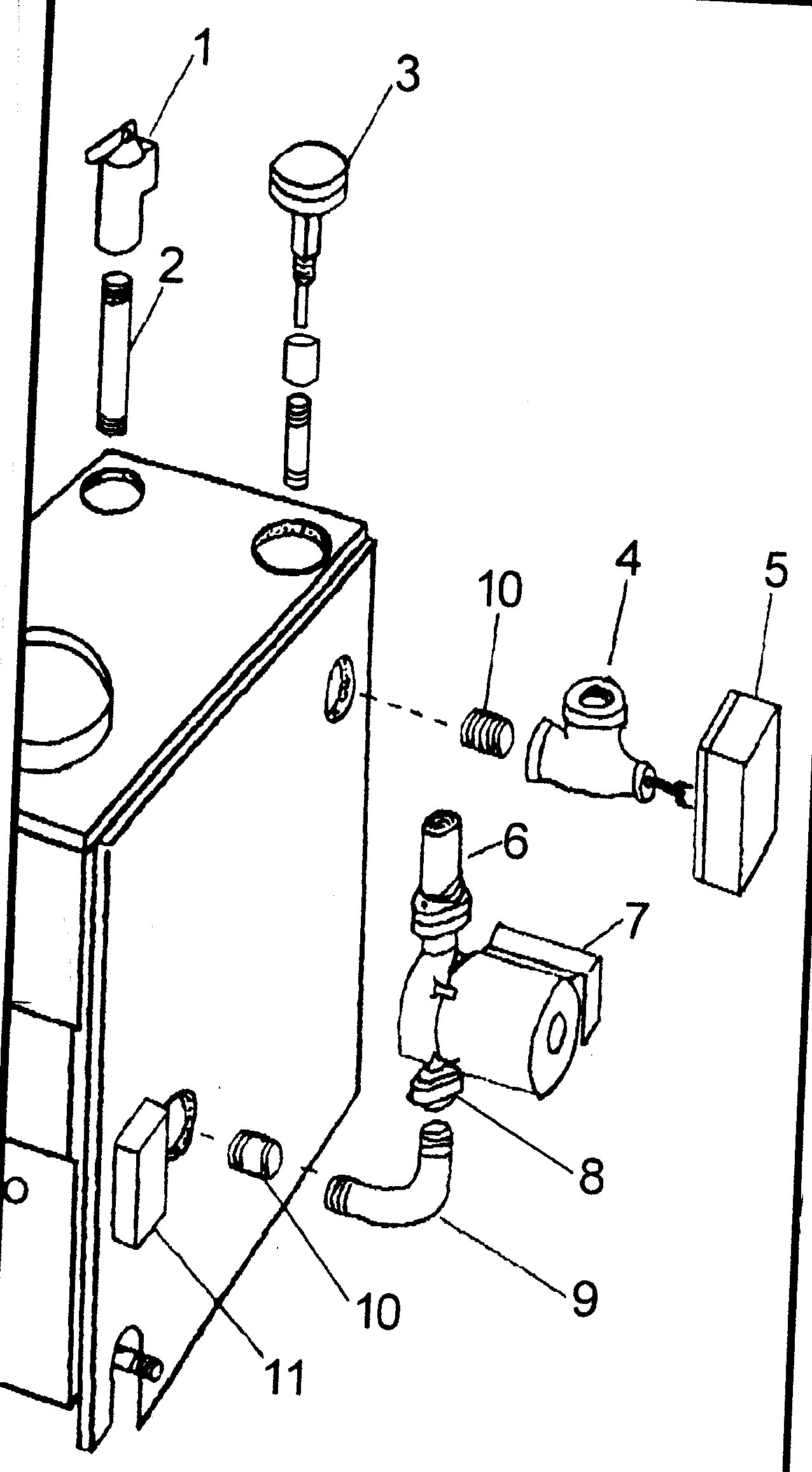

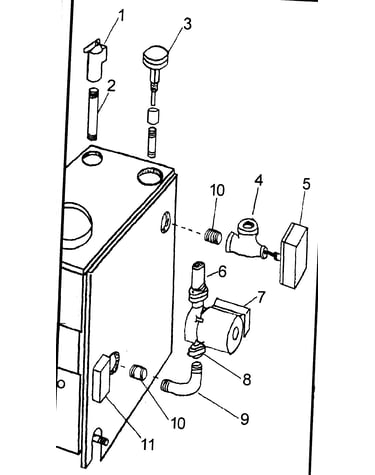

Pump assy diagram

Boiler burner roll-out limit switch (replaces 146-29-002-60)

Part #146-29-002

The manufacturer no longer makes this part, and there's no substitute part

Relief Valve 146-22-011
#1

Pump assy diagram

Relief valve

Part #146-22-011

Replaced by #10-408-05

?
Manufacturer substitution
This part replaces 146-22-011. Substitute parts can look different from the original.
$44.77
10% OFF Phone Price : $49.77
In Stock
Circulator 146-26-043
#NI

Cabinet parts diagram

Circulator

Part #146-26-043

Replaced by #103251

?
Manufacturer substitution
This part replaces 146-26-043. Substitute parts can look different from the original.
$224.79
$10.00 OFF Phone Price : $234.79
In Stock
Switch 146-23-007
#3

Pump assy diagram

Switch

Part #146-23-007

Replaced by #240005245

?
Manufacturer substitution
This part replaces 146-23-007. Substitute parts can look different from the original.
In Stock
Metal Screw 146-95-074
#2

Cabinet parts diagram

Metal screw

Part #146-95-074

The manufacturer no longer makes this part, and there's no substitute part

Tee 151-00-01
#4

Pump assy diagram

Tee

Part #151-00-01

The manufacturer no longer makes this part, and there's no substitute part

Bs Insltn Ft 146-14-115
#4A

Cabinet parts diagram

Bs insltn ft

Part #146-14-115

The manufacturer no longer makes this part, and there's no substitute part

Rollout Shld 425-00-935
#NI

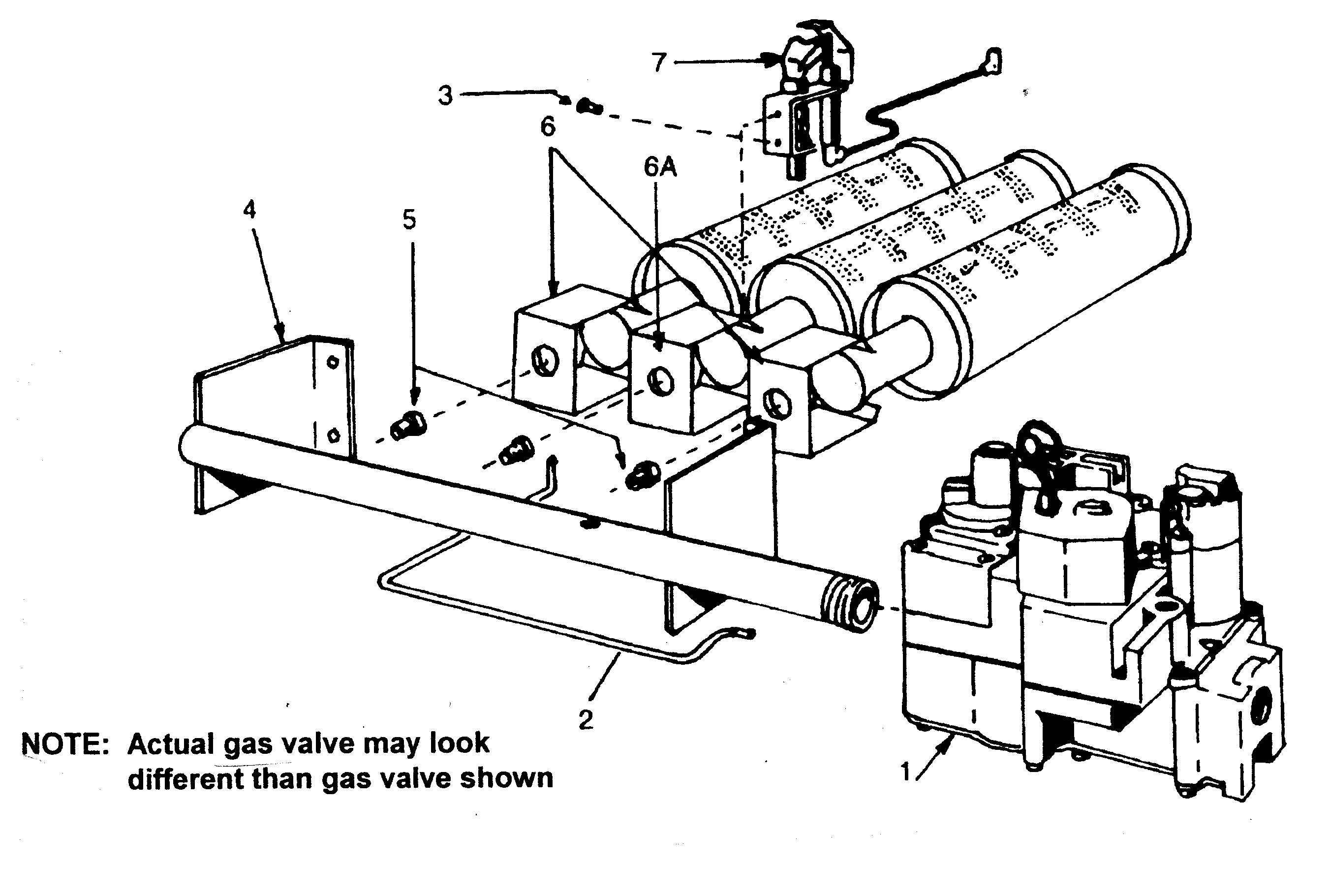

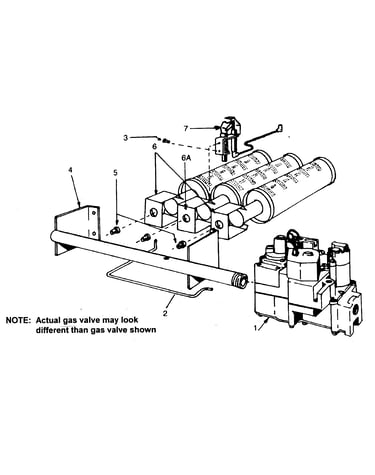

Gas value diagram

Rollout shld

Part #425-00-935

The manufacturer no longer makes this part, and there's no substitute part

Flange Set 146-26-049
#NI

Pump assy diagram

Flange set

Part #146-26-049

The manufacturer no longer makes this part, and there's no substitute part
