Model # MVAH018MV2AA Official Haier air handler indoor unit

Here are the diagrams and repair parts for Official Haier MVAH018MV2AA air handler indoor unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |

User Interfa WJ26X22614
#18

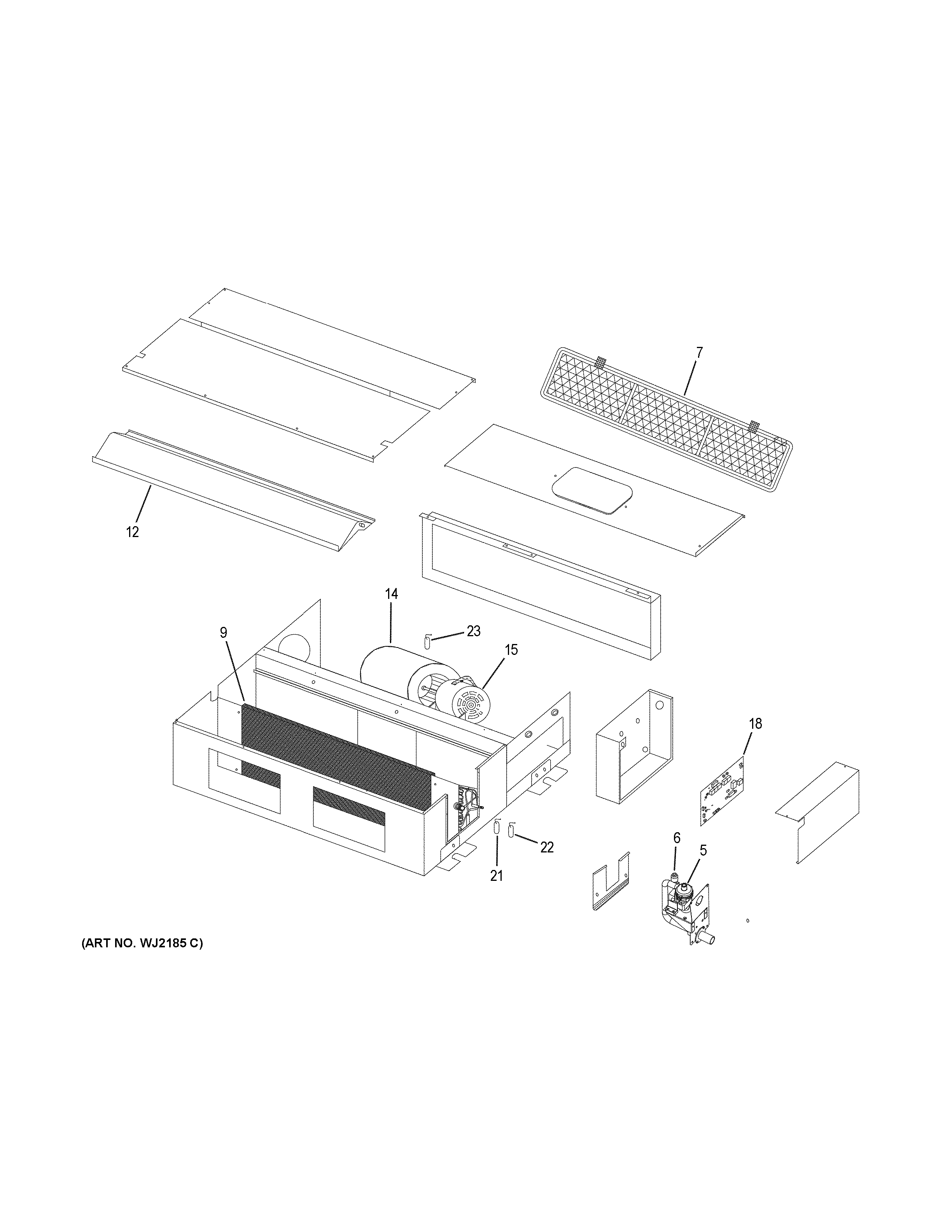

Room air conditioner diagram

User interfa

Part #WJ26X22614

In Stock
Fan WJ73X22803
#14

Room air conditioner diagram

Fan

Part #WJ73X22803

In Stock
Drain Pan WJ76X22801
#12

Room air conditioner diagram

Drain pan

Part #WJ76X22801

In Stock
Fan Motor WJ94X22804
#15

Room air conditioner diagram

Fan motor

Part #WJ94X22804

In Stock
Liquid Pipe WJ26X22533
#22

Room air conditioner diagram

Liquid pipe

Part #WJ26X22533

In Stock
Evaporator WJ87X22802
#9

Room air conditioner diagram

Evaporator

Part #WJ87X22802

In Stock
Water Pump WJ76X22806
#5

Room air conditioner diagram

Water pump

Part #WJ76X22806

In Stock
Float Switch WJ26X22805
#6

Room air conditioner diagram

Float switch

Part #WJ26X22805

In Stock
Air Filter WJ85X22800
#7

Room air conditioner diagram

Air filter

Part #WJ85X22800

In Stock
Ambient Temp WJ26X22520
#23

Room air conditioner diagram

Ambient temp

Part #WJ26X22520

In Stock
