Evaporative Cooler

Model # EW455C/RW45 Official Adobe Aire evaporative cooler

Here are the diagrams and repair parts for Official Adobe Aire EW455C-RW45 evaporative cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Pump A400113A
#4

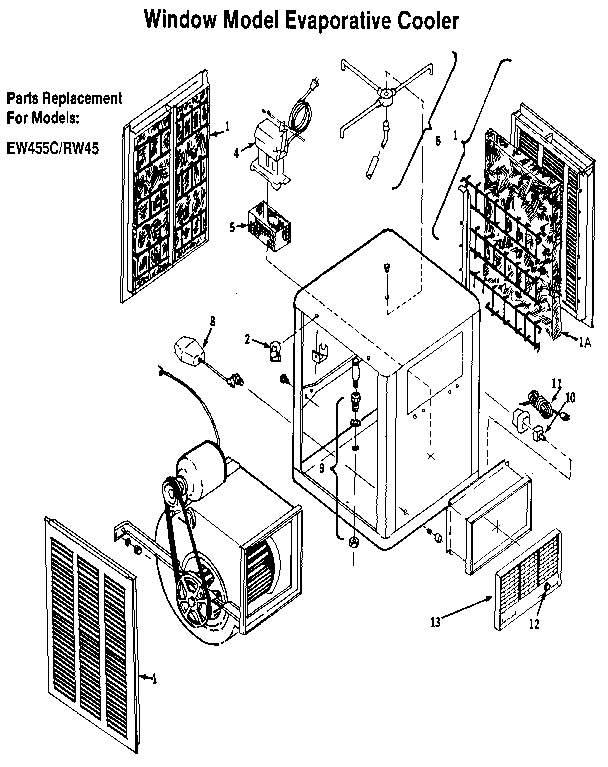

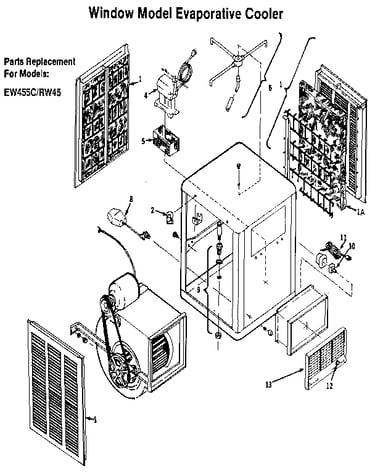

Window model evaporative cooler diagram

Pump

Part #A400113A

The manufacturer no longer makes this part, and there's no substitute part

V-belt P670058A
#15

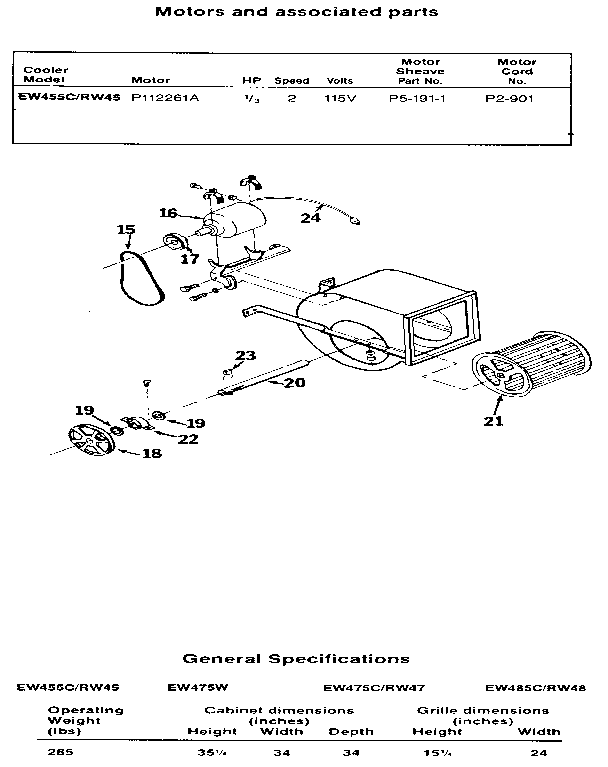

Motors and associated diagram

V-belt

Part #P670058A

The manufacturer no longer makes this part, and there's no substitute part

Pad Kit (brown) AP430A
#1A

Window model evaporative cooler diagram

Pad kit (brown)

Part #AP430A

The manufacturer no longer makes this part, and there's no substitute part

Cord Plug P202404A
#11

Window model evaporative cooler diagram

Cord plug

Part #P202404A

The manufacturer no longer makes this part, and there's no substitute part

Knb Sped Ctr A707401A
#12

Window model evaporative cooler diagram

Knb sped ctr

Part #A707401A

The manufacturer no longer makes this part, and there's no substitute part

Screen M400501A
#5

Window model evaporative cooler diagram

Screen

Part #M400501A

The manufacturer no longer makes this part, and there's no substitute part

Switch P2-3006-3
#10

Window model evaporative cooler diagram

Switch

Part #P2-3006-3

The manufacturer no longer makes this part, and there's no substitute part

Washer (pink) P5-402-4
#19

Motors and associated diagram

Washer (pink)

Part #P5-402-4

The manufacturer no longer makes this part, and there's no substitute part

Distributor A901305C
#6

Window model evaporative cooler diagram

Distributor

Part #A901305C

The manufacturer no longer makes this part, and there's no substitute part

Grille A601801A
#13

Window model evaporative cooler diagram

Grille

Part #A601801A

The manufacturer no longer makes this part, and there's no substitute part
