Amana PTH105A30AA/P1202283R air conditioner

Amana PTH105A30AA/P1202283R air conditioner Parts

Here are the diagrams and repair parts for Amana PTH105A30AA/P1202283R air conditioner, as well as links to manuals and error code tables, if available.

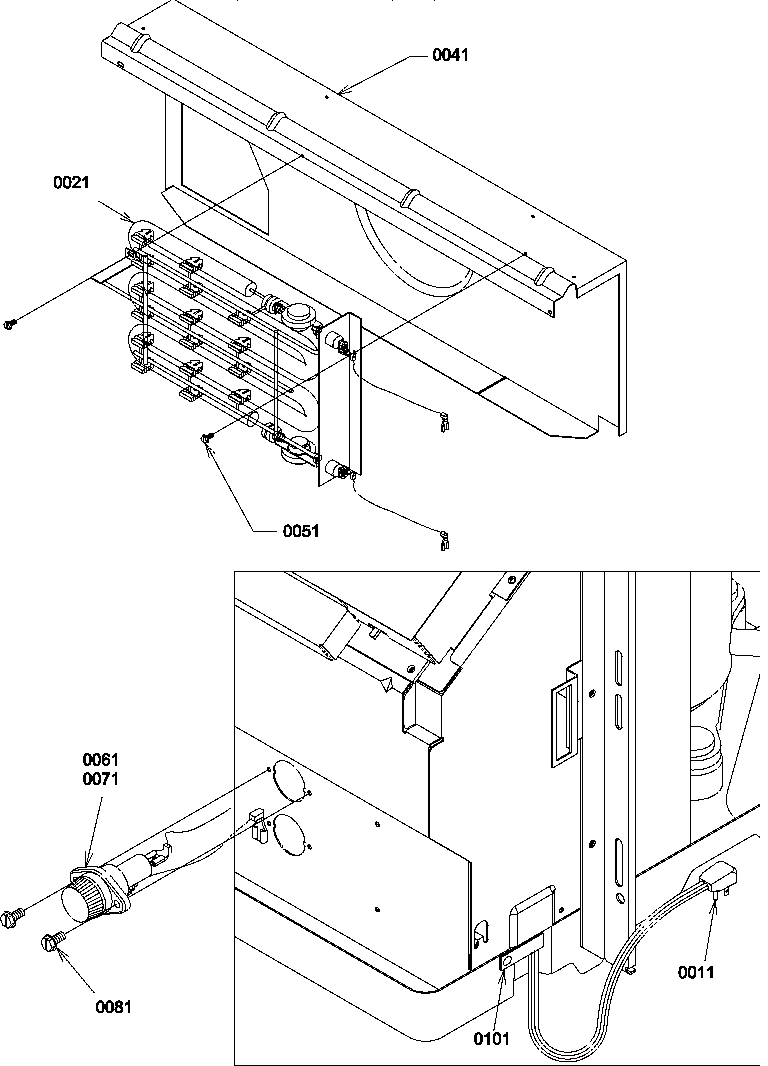

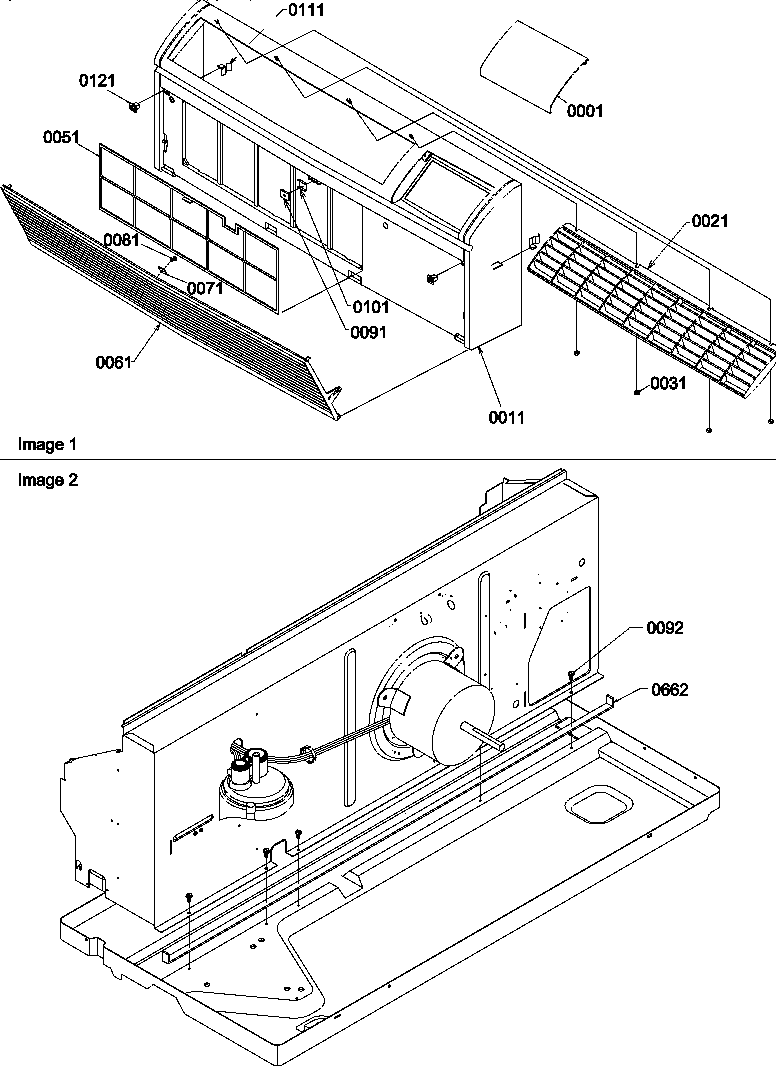

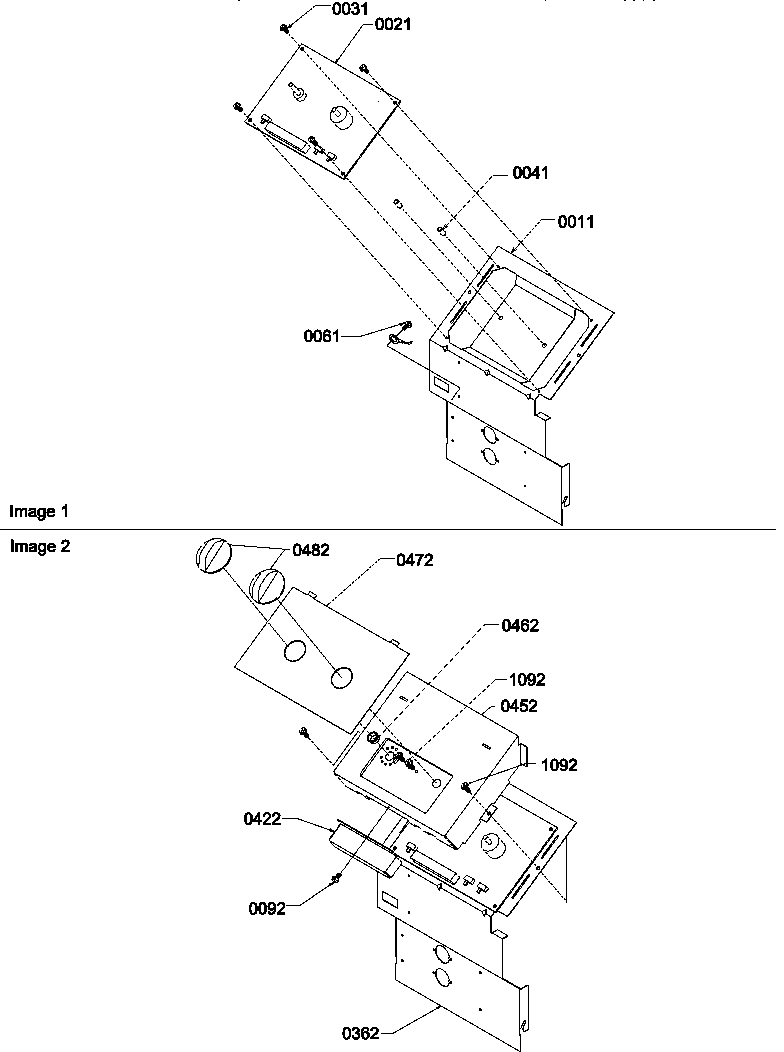

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for PTH105A30AA/P1202283R Air Conditioner

  • Foam Gasket for Amana PTH105A30AA/P1202283R - Part 10839808

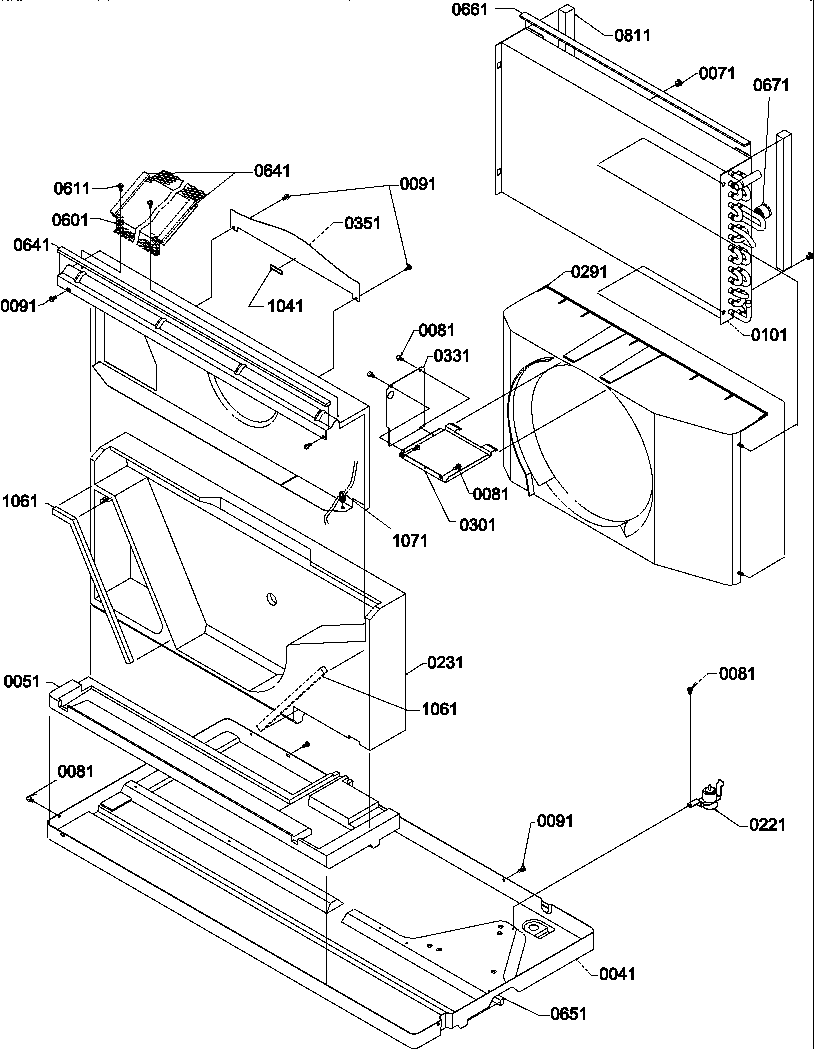

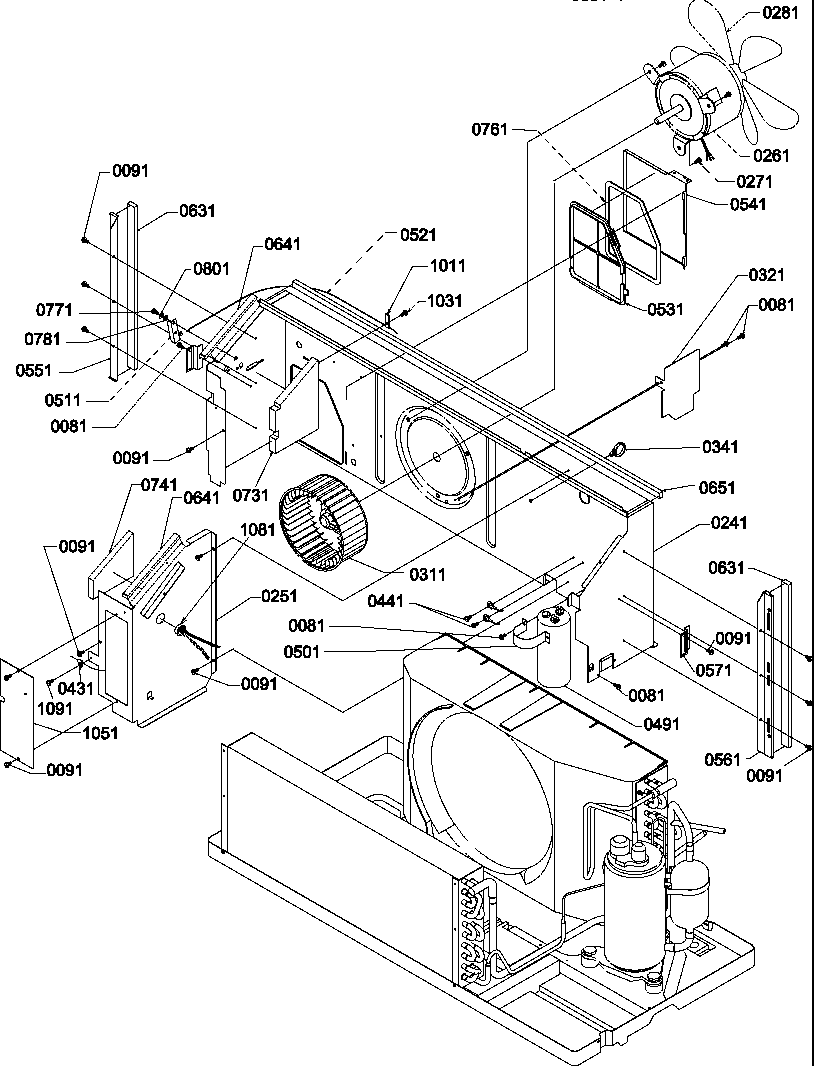

    Chassis diagram

    Foam Gasket

    Part #10839808

    Replaced by #10839808

    Info Icon
    Manufacturer substitution
    This part replaces 10839808. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.20
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Amana PTH105A30AA/P1202283R - Part WP90767

    Screw

    Part #M0211216

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0211216. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Lock Nut for Amana PTH105A30AA/P1202283R - Part WP776338

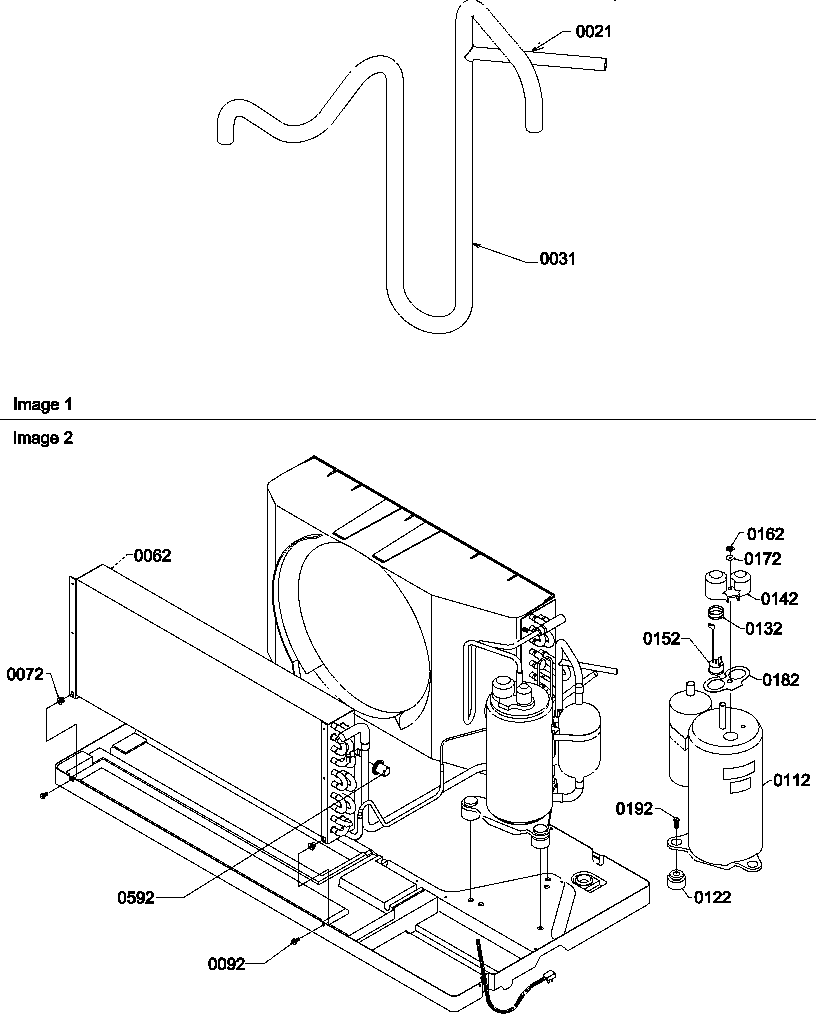

    Compressor/tubing diagram

    Terminal Nut

    Part #A3436601

    Replaced by #WP776338

    Info Icon
    Manufacturer substitution
    This part replaces A3436601. Substitute parts can look different from the original.
    In Stock
    $42.33
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Amana PTH105A30AA/P1202283R - Part WP90767

    Screw

    Part #M0216529

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0216529. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Assy, Cap We for Amana PTH105A30AA/P1202283R - Part 20284910

    Use 11195303

    Part #11195301

    Replaced by #20284910

    Info Icon
    Manufacturer substitution
    This part replaces 11195301. Substitute parts can look different from the original.
    In Stock
    $157.94
    Minus Item
    Qty
    Plus Item
  • Room Air Conditioner Foam Seal for Amana PTH105A30AA/P1202283R - Part WP854334

    Chassis diagram

    Foam Gasket

    Part #10839814

    Replaced by #WP854334

    Info Icon
    Manufacturer substitution
    This part replaces 10839814. Substitute parts can look different from the original.
    In Stock
    $11.17
    15% OFF Phone Price : $13.17Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Amana PTH105A30AA/P1202283R - Part WP90767

    Screw

    Part #M0216716

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0216716. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Amana PTH105A30AA/P1202283R - Part WP90767

    Chassis diagram

    Screw

    Part #M0211016

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0211016. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Amana PTH105A30AA/P1202283R - Part WP489427

    Chassis diagram

    Tap Screw

    Part #M0224956

    Replaced by #WP489427

    Info Icon
    Manufacturer substitution
    This part replaces M0224956. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.67
    12% OFF Phone Price : $8.67Info Icon
    Minus Item
    Qty
    Plus Item
  • Gasket for Amana PTH105A30AA/P1202283R - Part 10839712

    Chassis diagram

    Gasket

    Part #10839712

    Replaced by #10839712

    Info Icon
    Manufacturer substitution
    This part replaces 10839712. Substitute parts can look different from the original.
    In Stock
    $27.79
    Minus Item
    Qty
    Plus Item
