Model # JVM1642AB006 Official GE microwave

Here are the diagrams and repair parts for Official GE JVM1642AB006 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

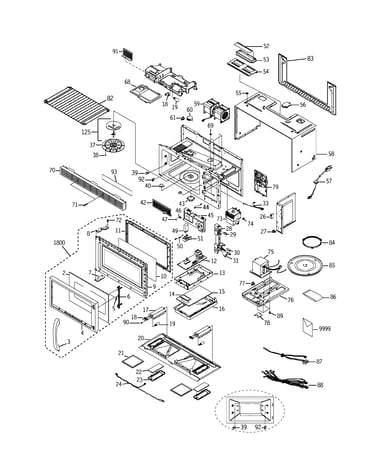

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |

Microwave Door Handle (replaces Wb15x10083) WB15X10022
#3

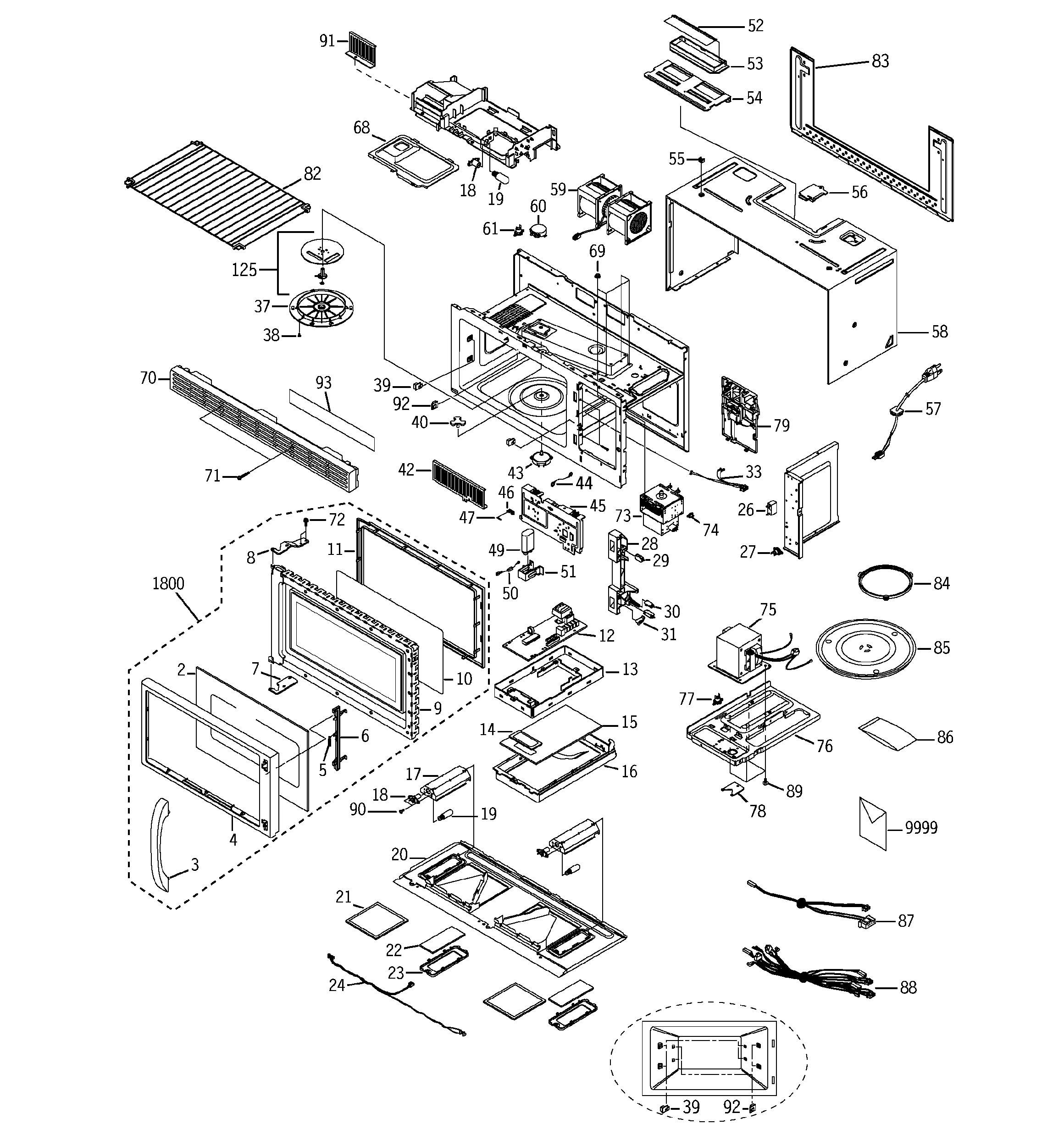

Microwave diagram

Microwave door handle (replaces wb15x10083)

Part #WB15X10022

BEST SELLER
$40.22
11% OFF Phone Price : $45.22
In Stock
Microwave Door Handle (replaces Wb15x10084) WB15X10023
#3

Microwave diagram

Microwave door handle (replaces wb15x10084)

Part #WB15X10023

BEST SELLER
This item is not returnable
$27.99
15% OFF Phone Price : $32.99
In Stock
Fuse Cartridge WB27X10474
#47

Microwave diagram

Fuse cartridge

Part #WB27X10474

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10474. Substitute parts can look different from the original.
BEST SELLER
$9.73
9% OFF Phone Price : $10.73
In Stock
Switch-micro WB24X0829
#29

Microwave diagram

Switch-micro

Part #WB24X0829

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0829. Substitute parts can look different from the original.
BEST SELLER
$33.20
13% OFF Phone Price : $38.20
In Stock
Microwave Stirrer Fan Motor WB26X10037
#60

Microwave diagram

Microwave stirrer fan motor

Part #WB26X10037

$43.99
10% OFF Phone Price : $48.99
In Stock
Cooking Tray WB49X10002
#85

Microwave diagram

Cooking tray

Part #WB49X10002

Replaced by #WB39X10003

?
Manufacturer substitution
This part replaces WB49X10002. Substitute parts can look different from the original.
$75.59
6% OFF Phone Price : $80.59
In Stock
Microwave Light Socket WB08X10016
#18

Microwave diagram

Microwave light socket

Part #WB08X10016

This item is not returnable
$21.30
19% OFF Phone Price : $26.30
In Stock
Air Filter WB06X10125
#21

Microwave diagram

Air filter

Part #WB06X10125

Replaced by #WB6X486

?
Manufacturer substitution
This part replaces WB06X10125. Substitute parts can look different from the original.
$59.99
8% OFF Phone Price : $64.99
In Stock
Damper Frame WB06X10133
#53

Microwave diagram

Damper frame

Part #WB06X10133

Replaced by #WB06X10436

?
Manufacturer substitution
This part replaces WB06X10133. Substitute parts can look different from the original.
$27.02
16% OFF Phone Price : $32.02
In Stock
Microwave Rack Holder (replaces Wb6x10223) WB06X10223
#39

Microwave diagram

Microwave rack holder (replaces wb6x10223)

Part #WB06X10223

$9.62
9% OFF Phone Price : $10.62
In Stock
