Model # DSC-HX100VB Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-HX100VB digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

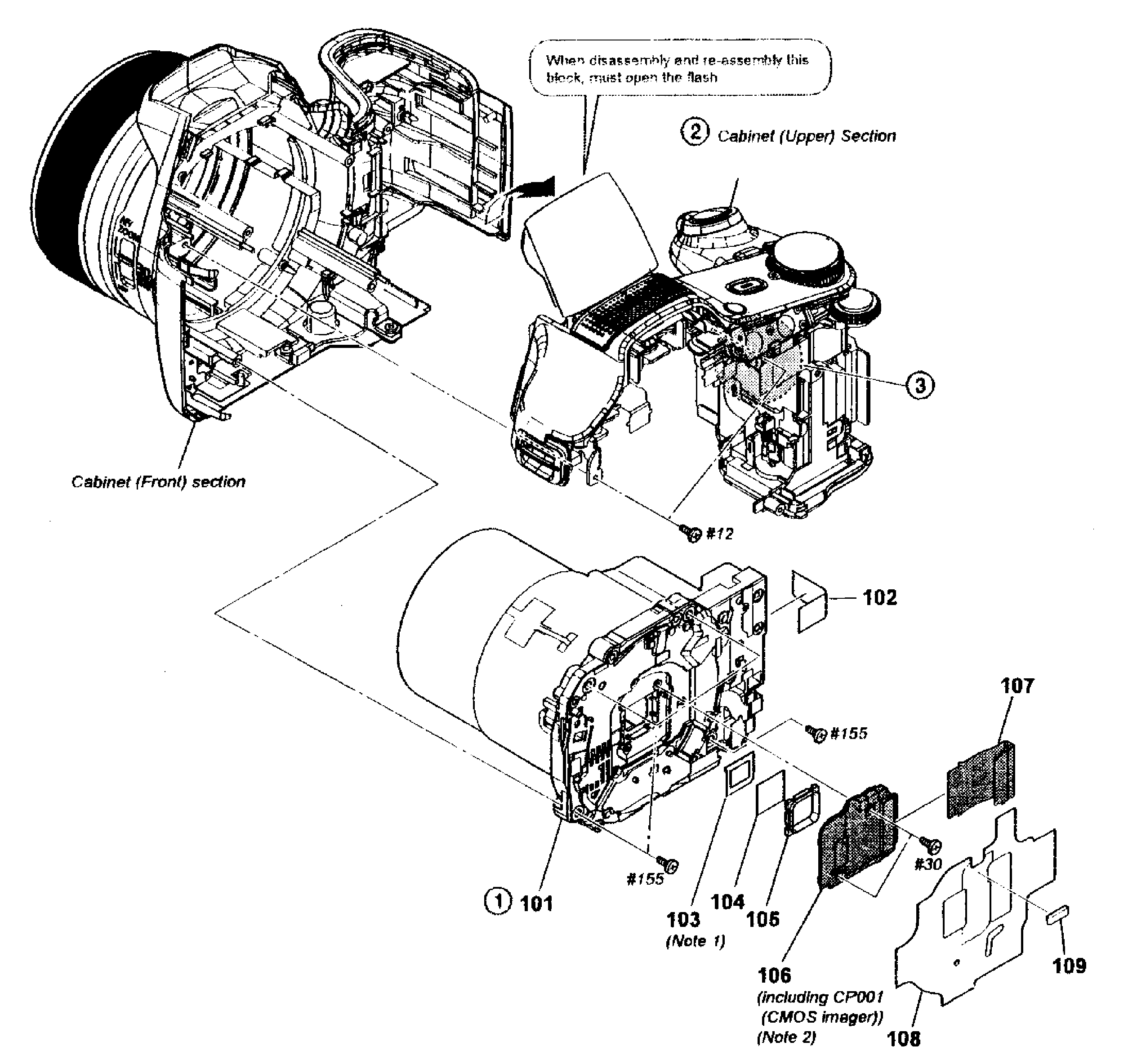

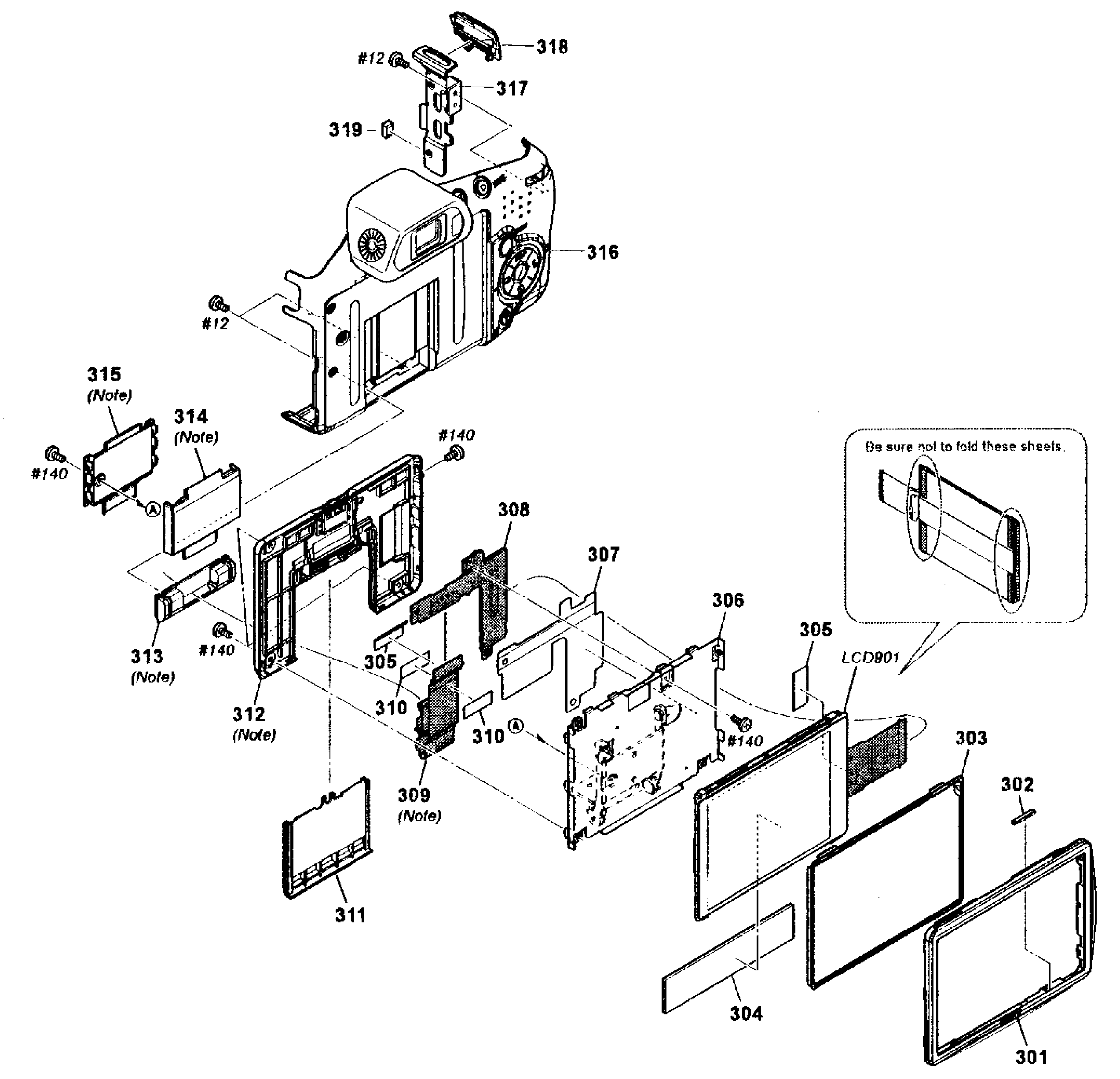

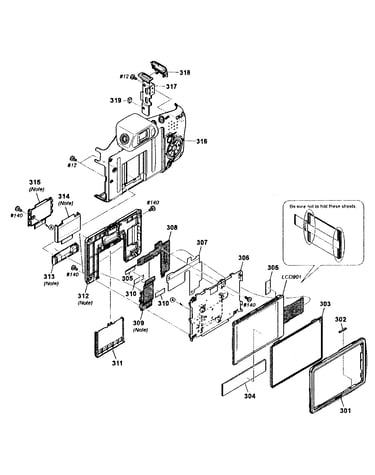

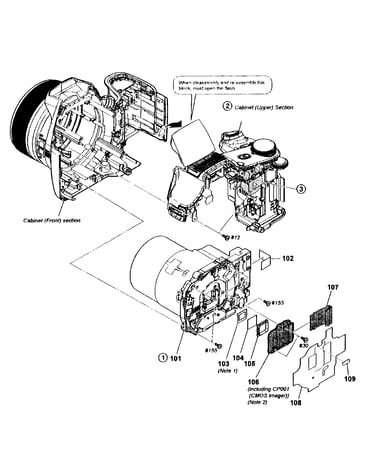

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Pcb St-261 A1821594A
#203

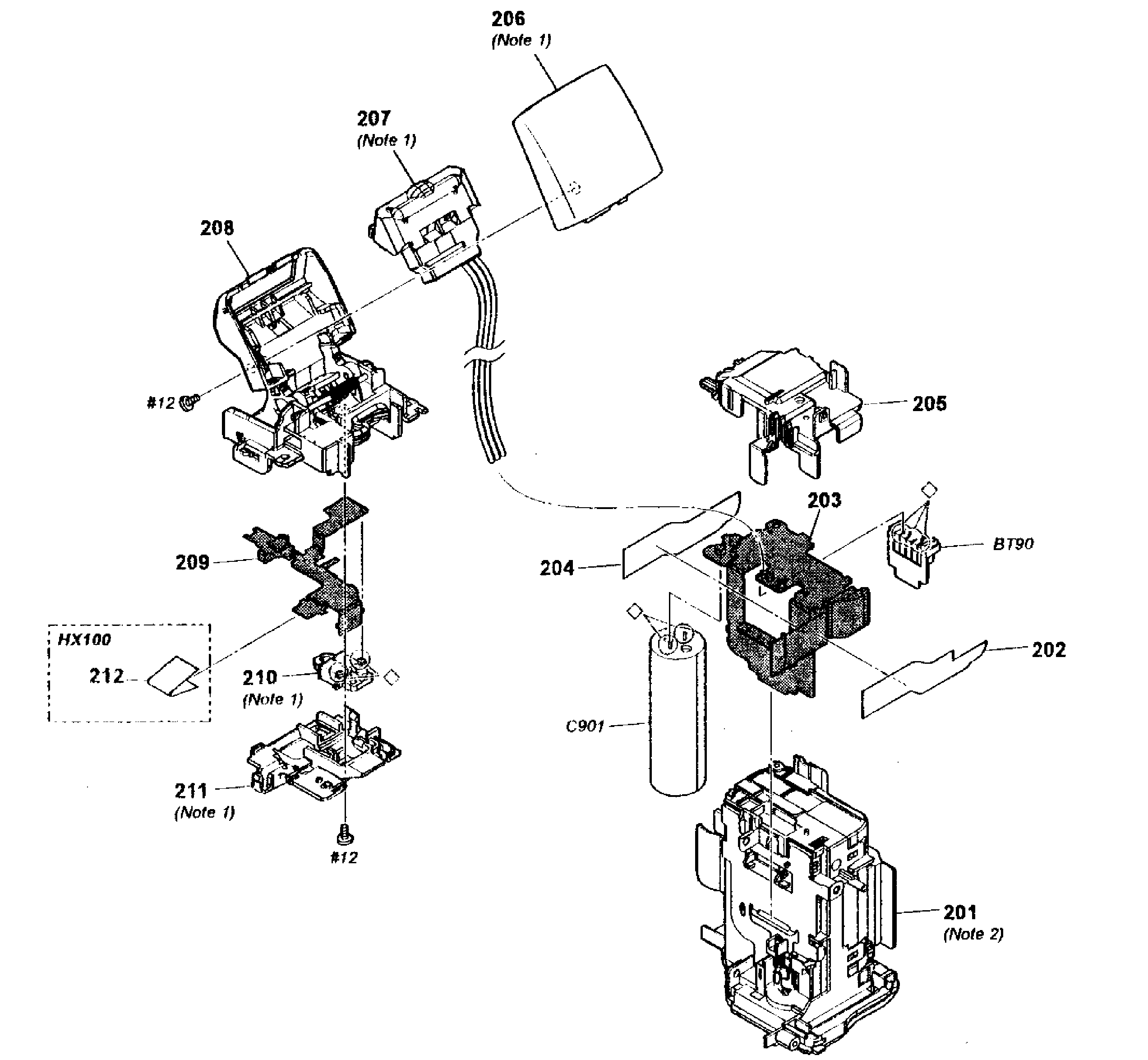

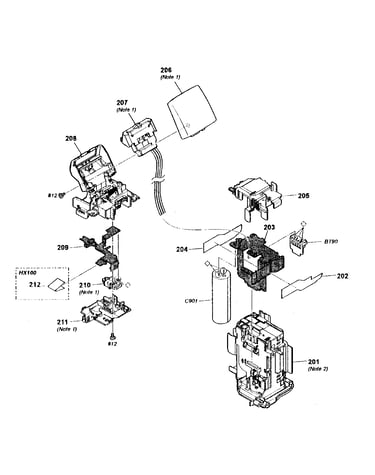

St assy diagram

Pcb st-261

Part #A1821594A

$97.79
In Stock
Dc Jack 184273411
#J901

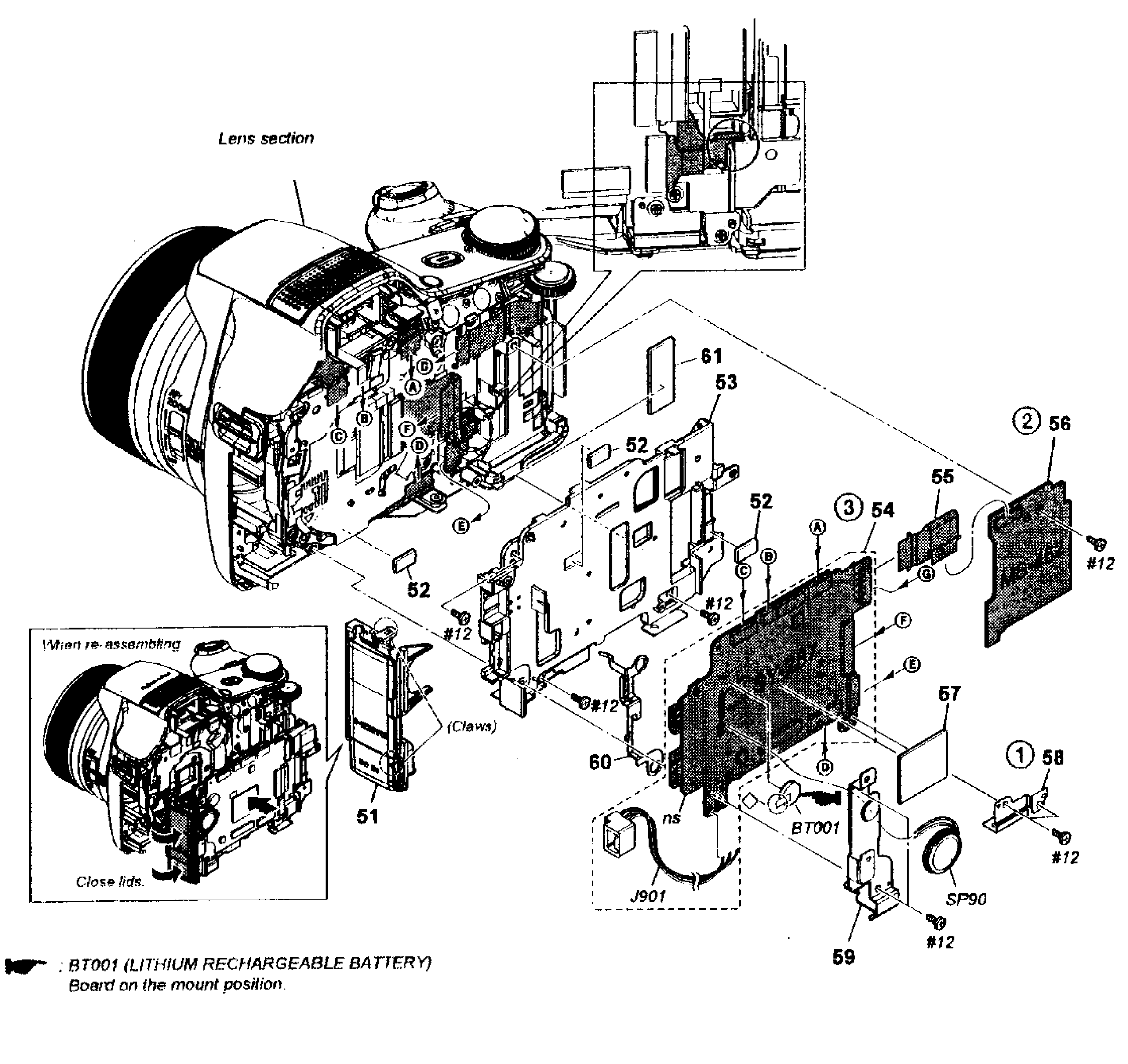

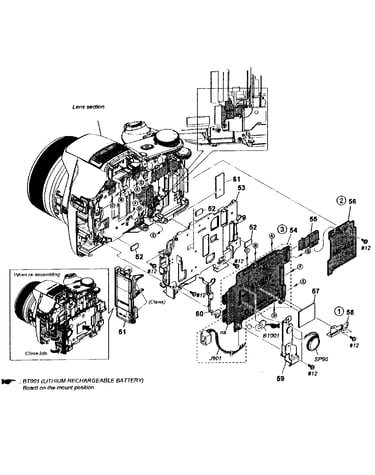

Pcb's assy diagram

Dc jack

Part #184273411

$12.74
In Stock
Cushion 427980602
#155

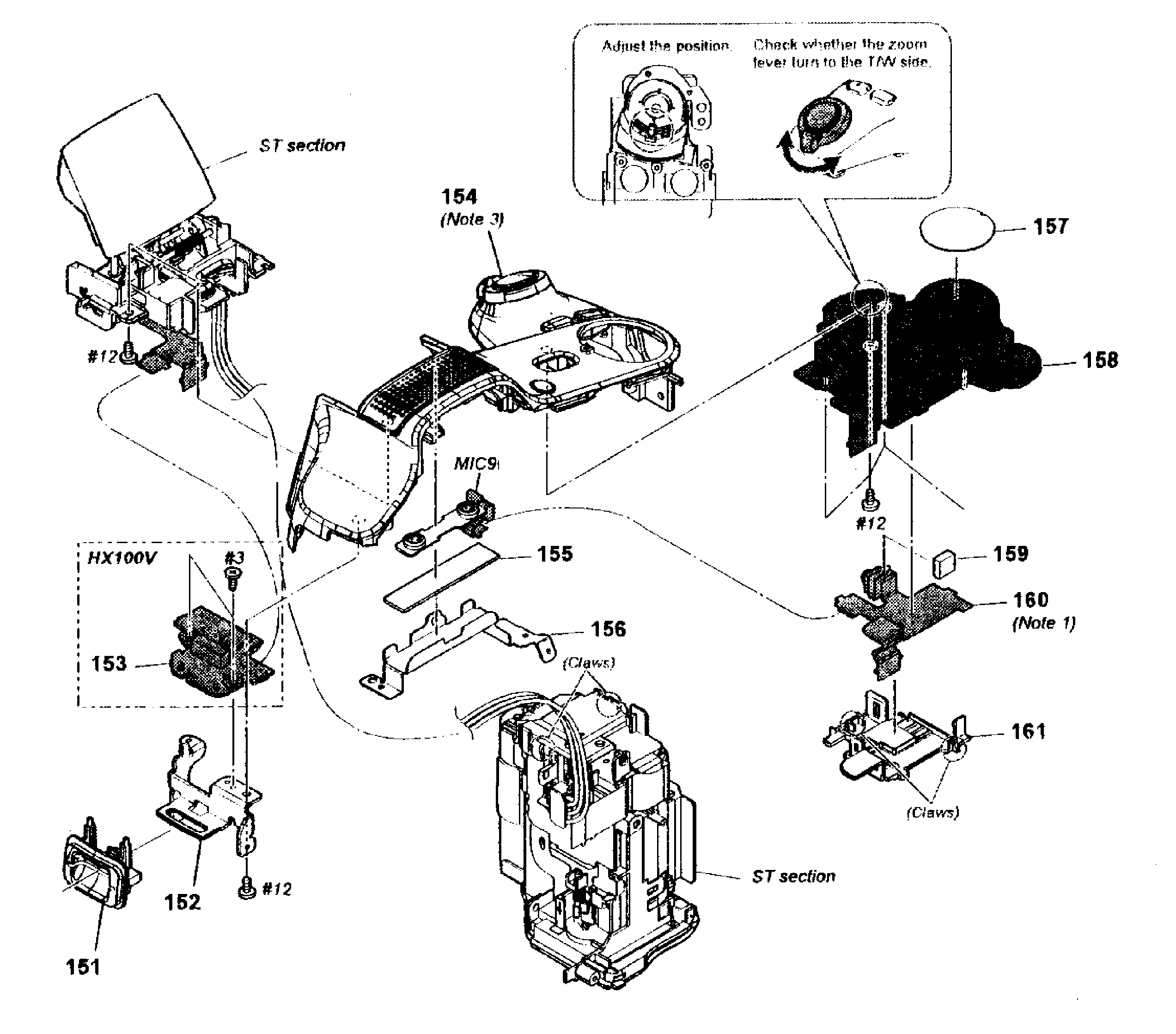

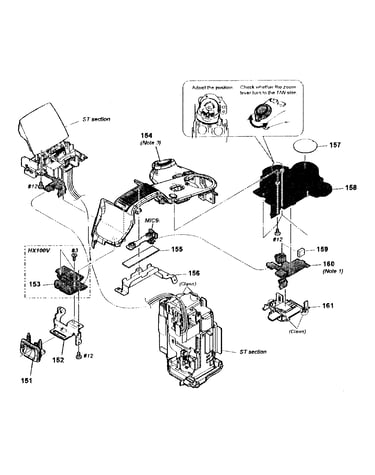

Upper assy diagram

Cushion

Part #427980602

$8.74
In Stock
Solenoid 145506111
#210

St assy diagram

Solenoid

Part #145506111

$18.61
In Stock
Sheet Radi 428655101
#4

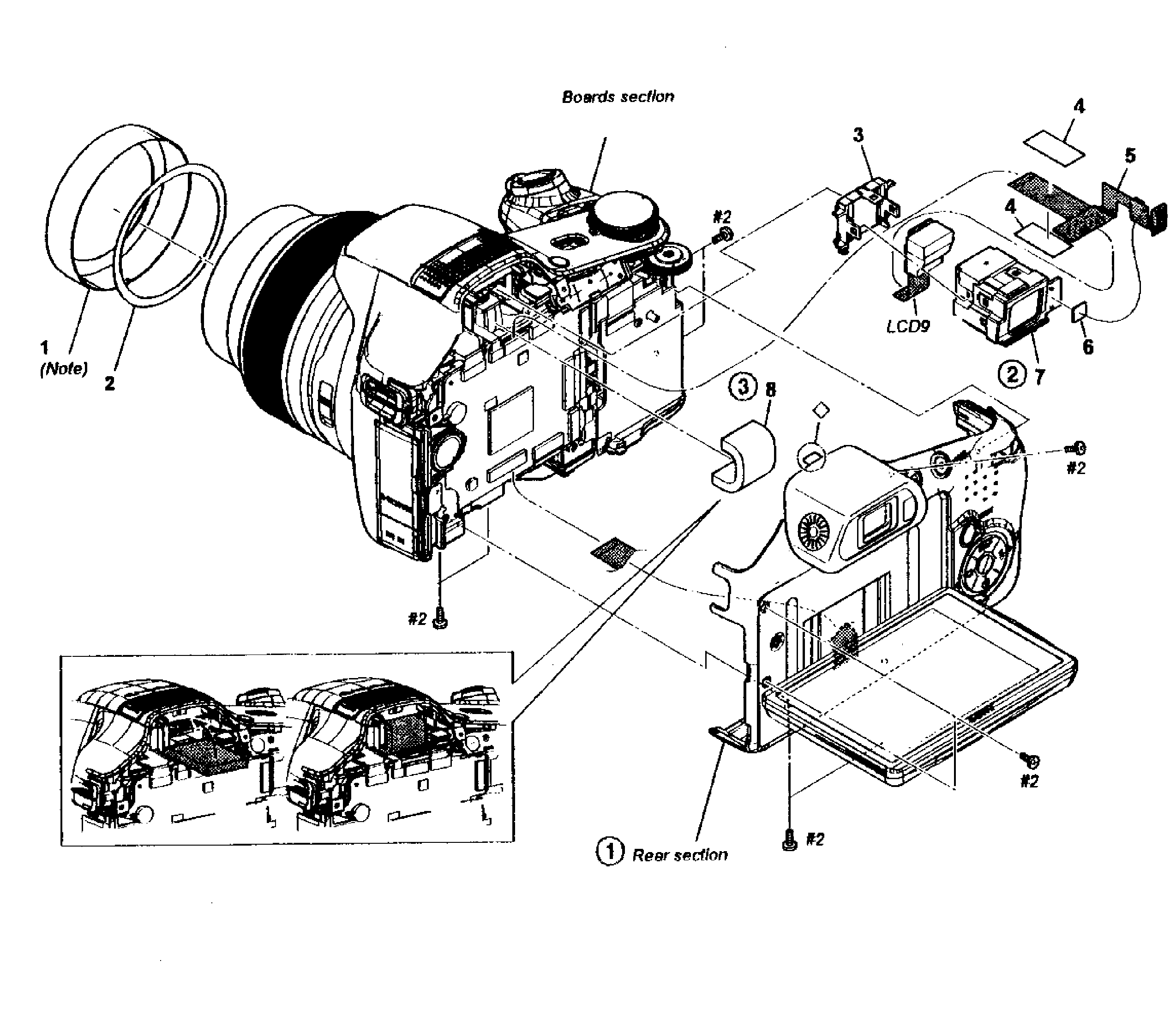

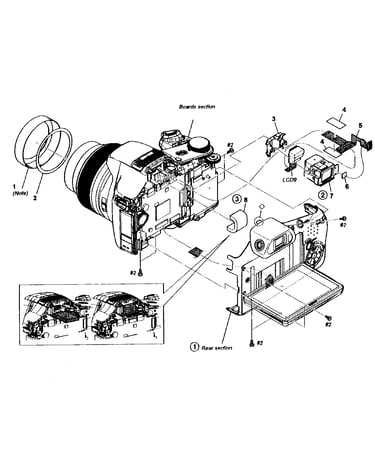

Cabinet parts diagram

Sheet radi

Part #428655101

This item is not returnable
$2.65
In Stock
Plate Grou 427979101
#255

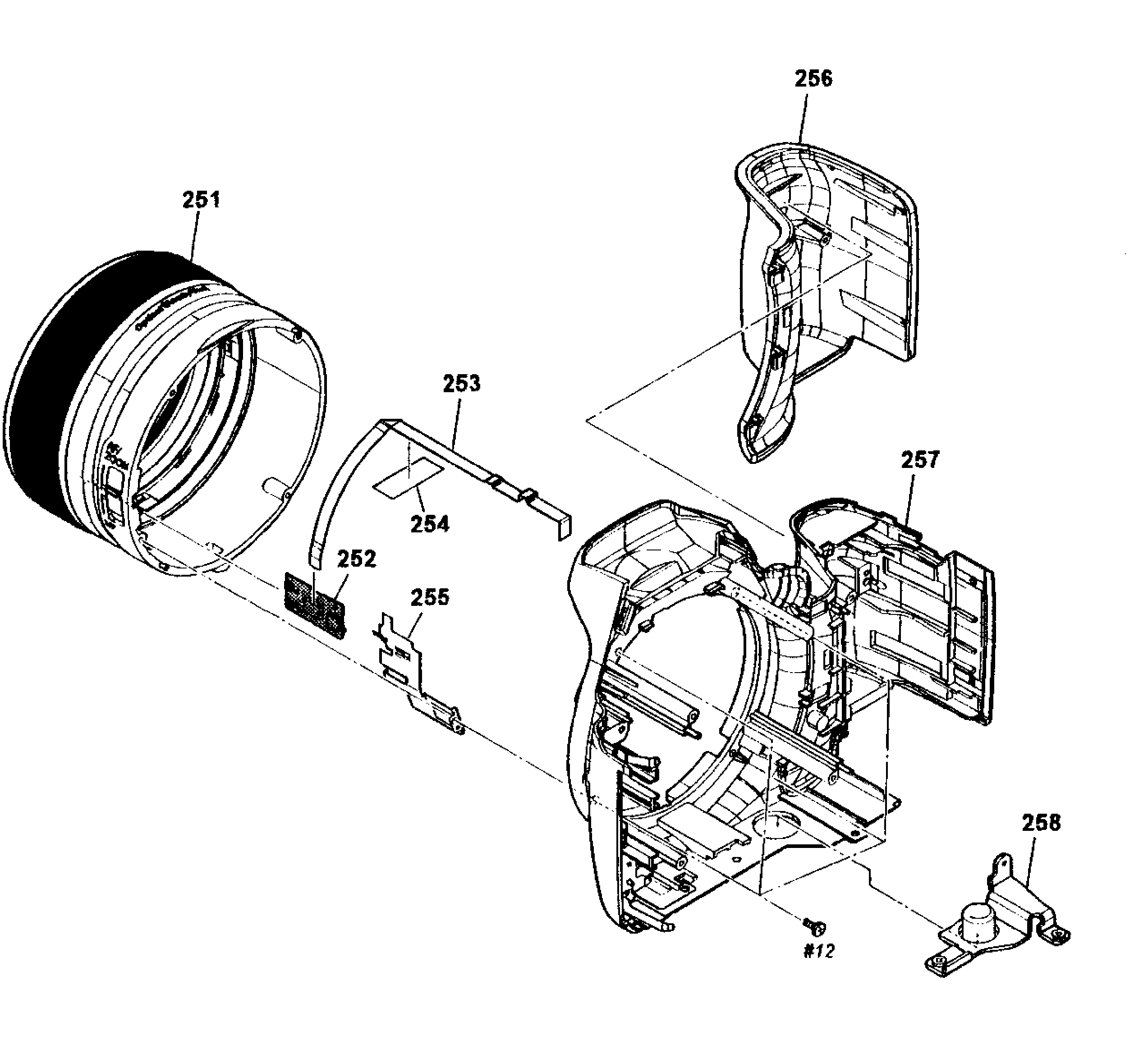

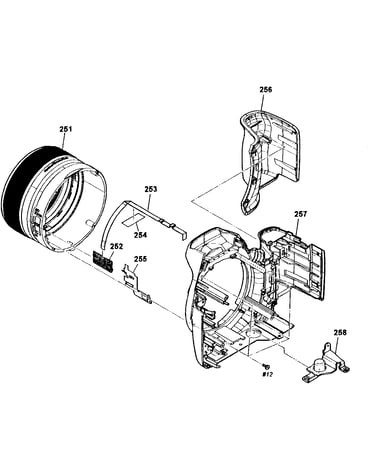

Front assy diagram

Plate grou

Part #427979101

This item is not returnable
$4.41
In Stock
Ring Capacitor 426036801
#1

Cabinet parts diagram

Ring capacitor

Part #426036801

$30.84
In Stock
Pcb Rl-110 A1821592A
#160

Upper assy diagram

Pcb rl-110

Part #A1821592A

$22.31
In Stock
Microphone 154286231
#MIC9

Upper assy diagram

Microphone

Part #154286231

$22.31
In Stock
Ring Assembly X25812501
#251

Front assy diagram

Ring assembly

Part #X25812501

$90.84
In Stock
