Model # 60LA7400UAAUSULJR Official LG television

Here are the diagrams and repair parts for Official LG 60LA7400UAAUSULJR television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |

Television Screw FAB30016122
#A10

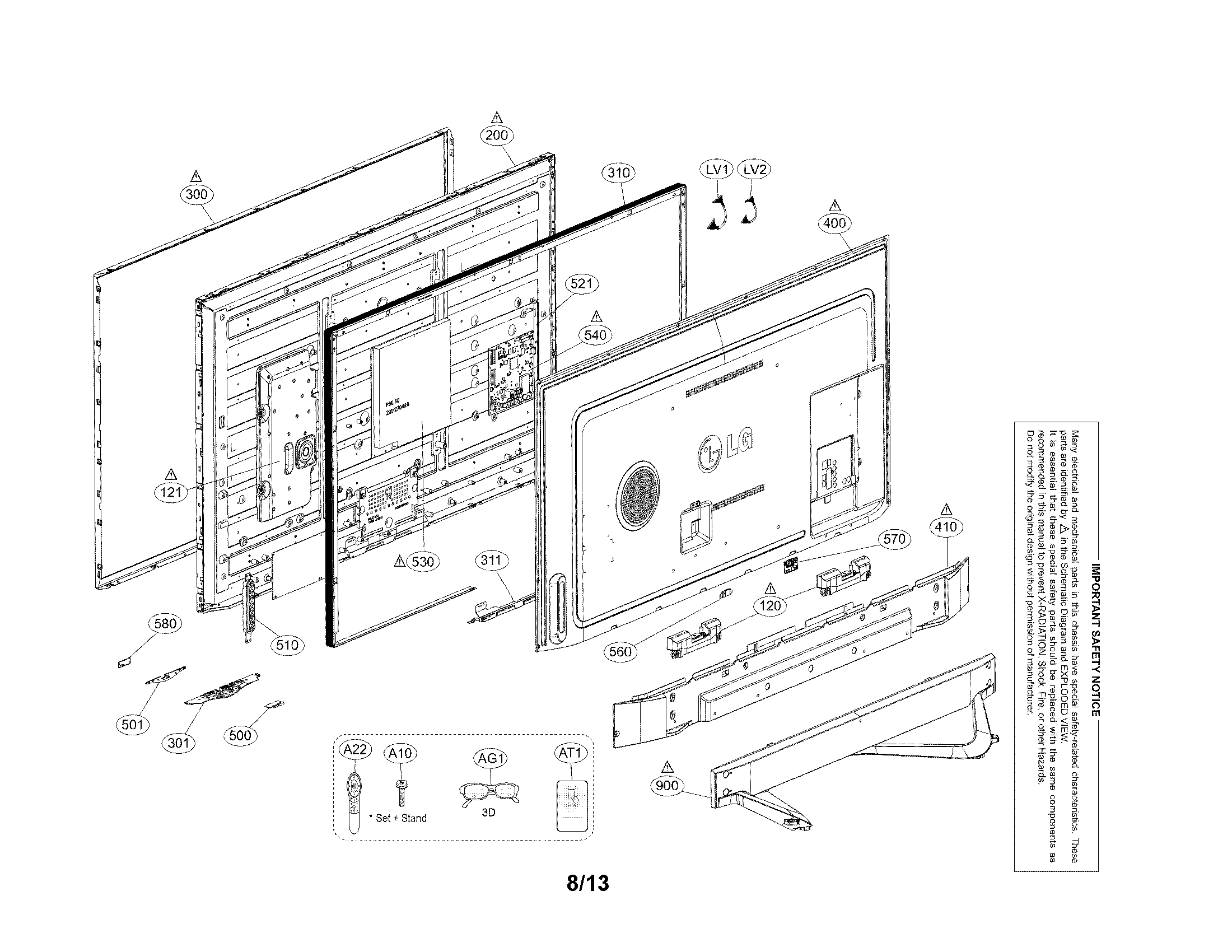

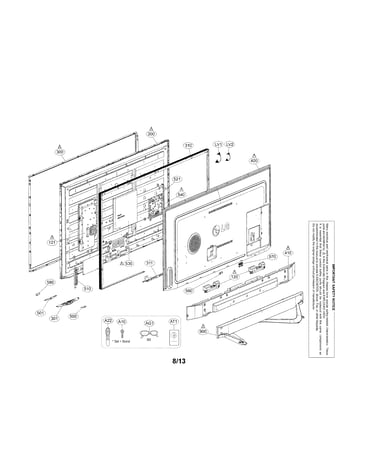

Exploded view parts diagram

Television screw

Part #FAB30016122

This item is not returnable
In Stock
Module Assembly EAT61813801
#570

Exploded view parts diagram

Module assembly

Part #EAT61813801

In Stock
Accessory EBX61668503
#AG1

Exploded view parts diagram

Accessory

Part #EBX61668503

In Stock
Plate MGJ63501105
#521

Exploded view parts diagram

Plate

Part #MGJ63501105

In Stock
Speaker,full EAB62829101
#120

Exploded view parts diagram

Speaker,full

Part #EAB62829101

In Stock
Flexible Flat Cable EAD62047001
#LV1

Exploded view parts diagram

Flexible flat cable

Part #EAD62047001

In Stock
Television Power Cord EAD62348802
Television power cord

Part #EAD62348802

In Stock
Sub Pcb Assembly EBR76405604
#500

Exploded view parts diagram

Sub pcb assembly

Part #EBR76405604

In Stock
Owner's Manual MFL67652612
Owner's manual

Part #MFL67652612

This item is not returnable
In Stock
Pcb Assembly EBR76363001
#560

Exploded view parts diagram

Pcb assembly

Part #EBR76363001

In Stock
