Model # 415156652 Official Kenmore lp gas grill
Here are the diagrams and repair parts for Official Kenmore 415156652 lp gas grill, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for415156652 Outdoor Grills
- #8

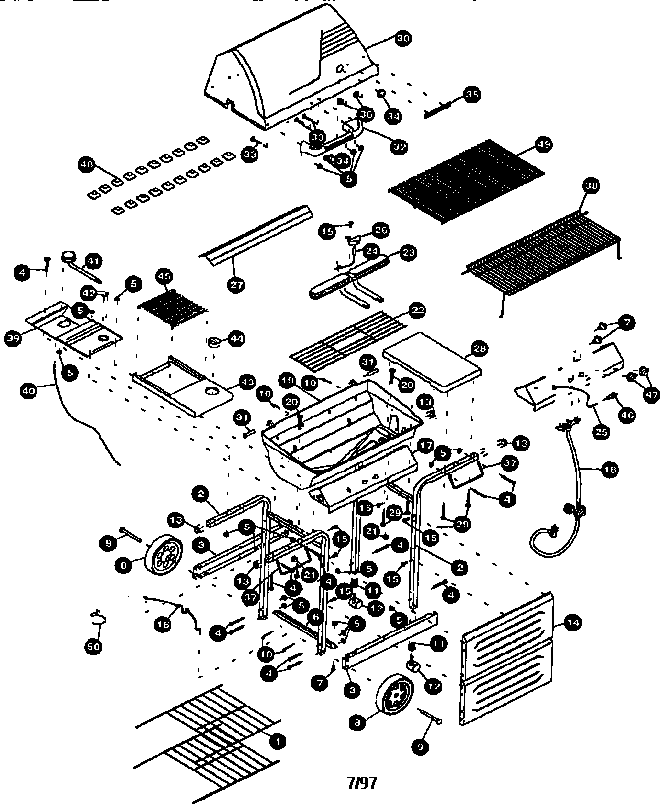

Replacement parts diagram
WheelPart #4156956
Replaced by #G206-0025-W1
?Manufacturer substitutionThis part replaces 4156956. Substitute parts can look different from the original.$6.69 |13% OFF Phone Price : $7.69In Stock - #9
Replacement parts diagram
Ken-ran gas grill axle boltPart #4080155
This item is not returnable$2.16In Stock - #27
Replacement parts diagram
Craftsman gas grill flame tamerPart #4156418
The manufacturer no longer makes this part, and there's no substitute part
- #25
Replacement parts diagram
WirePart #4153720
Replaced by #4153196
?Manufacturer substitutionThis part replaces 4153720. Substitute parts can look different from the original.This item is not returnable$6.64 |13% OFF Phone Price : $7.64In Stock - #50
Replacement parts diagram
Grease clipPart #4156894
Replaced by #80011874
?Manufacturer substitutionThis part replaces 4156894. Substitute parts can look different from the original.This item is not returnable$8.54In Stock #NI
All parts diagram
Owner's manualPart #4159109
The manufacturer no longer makes this part, and there's no substitute part
- #2
Replacement parts diagram
Leg assemblyPart #4302501
The manufacturer no longer makes this part, and there's no substitute part
- #31
Replacement parts diagram
Ken-ran gas grill lid hinge pinPart #4156513
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Owner's manualPart #4162885
The manufacturer no longer makes this part, and there's no substitute part
- #1
Replacement parts diagram
ShelfPart #4156102
The manufacturer no longer makes this part, and there's no substitute part
Symptoms for gas grills
Choose a symptom to see related gas grill repairs.
Main causes: empty fuel tank, tripped flow-limiting device on the pressure regulator, faulty manifold valves, burner tub…
Main causes: clogged burner tubes, cracked insulators on igniter electrodes, wiring failures, bad ignition module, manif…
Main causes: nearly empty fuel tank, faulty pressure regulator, burner tube clogs, bad burner tube alignment to gas valv…
Main causes: damaged or dirty flame tamers, corroded firebox, accumulated grease and debris in the grease pan…
Main cause: worn wheel…
Repair guides for gas grills
These step-by-step repair guides will help you safely fix what’s broken on your gas grill.
How to replace a gas grill burner
Replace a damaged burner on your gas grill in less than 15 minutes and with just pliers and a screwdriver for tools.…
Repair difficulty
Time required
15 minutes or less
How to replace a gas grill igniter electrode
Replace the igniter electrode on your gas grill if it won’t light the burner.…
Repair difficulty
Time required
15 minutes or less
How to replace a gas grill pressure regulator
You can install a new pressure regulator on your gas grill if the pressure regulator won’t let gas flow.…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your outdoor grills
Use the advice and tips in these articles and videos to get the most out of your gas grill.
From rotisserie kits to smoker boxes, we break down the best gas grill add-ons and how to use them. These tips and ideas…
Don’t let your grill go from hero to hazard. This checklist helps you clean it, check it, and fire it up with confidence…
Learn about the main parts of gas grills and get DIY tips for replacing gas grill parts.…
