JVC GR-D770US digital camcorder

JVC GR-D770US digital camcorder Parts

Here are the diagrams and repair parts for JVC GR-D770US digital camcorder, as well as links to manuals and error code tables, if available.

By Schematic

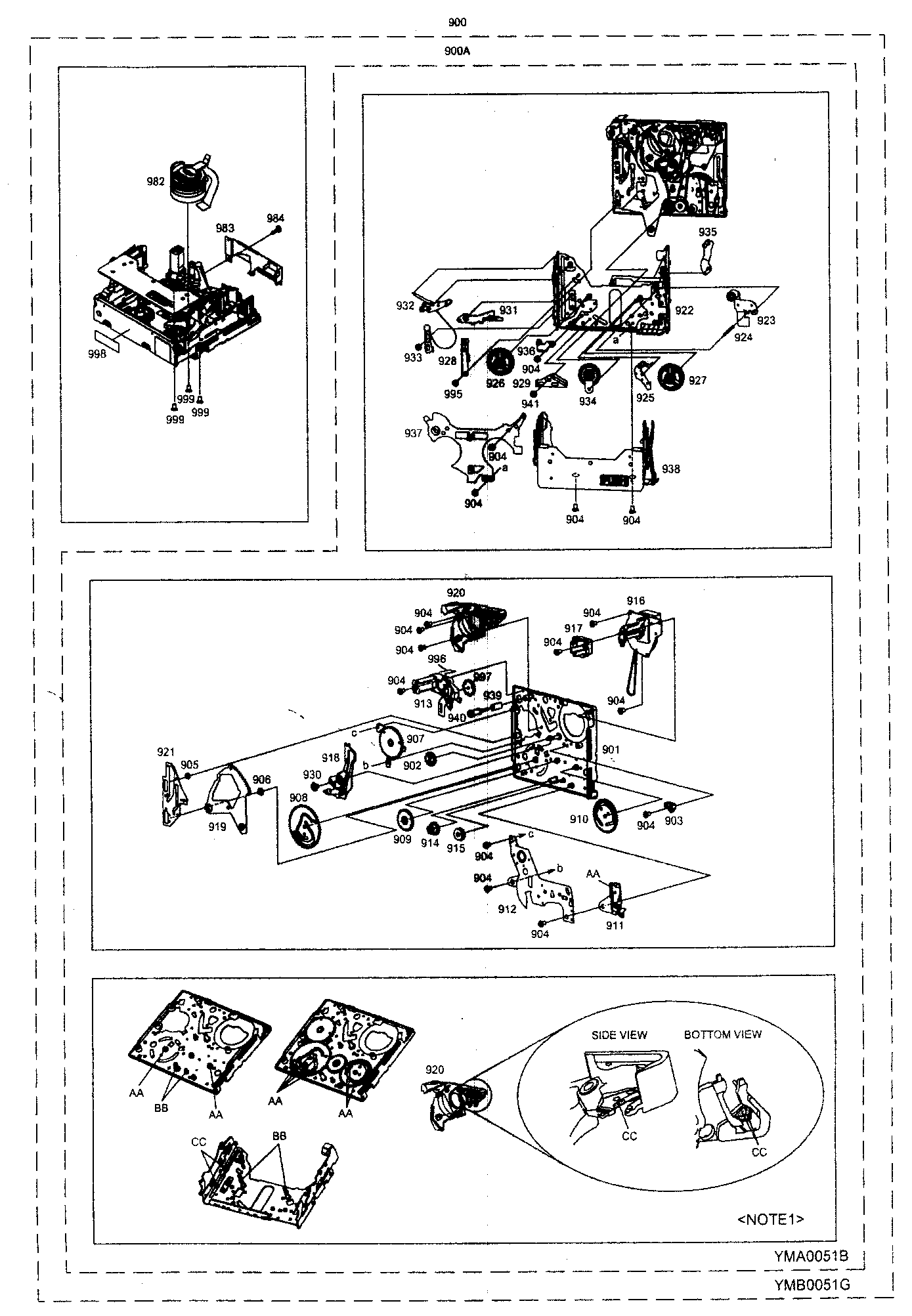

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GR-D770US Camcorders

  • Pcb Assembly for JVC GR-D770US - Part LYA20035-01E1

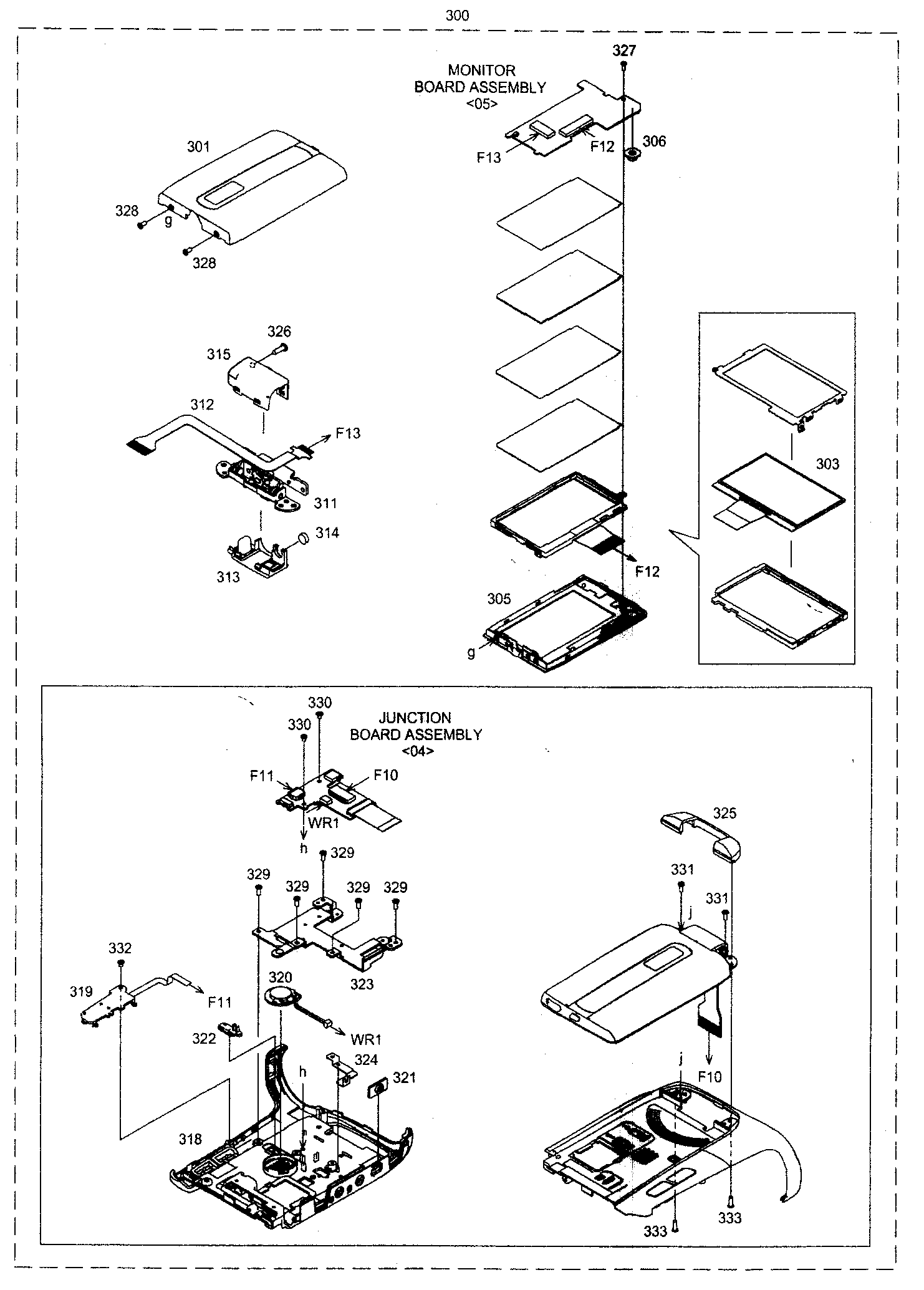

    Lcd assy diagram

    Pcb Assembly

    Part #LYA20035-01E1

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GR-D770US - Part FA7760F

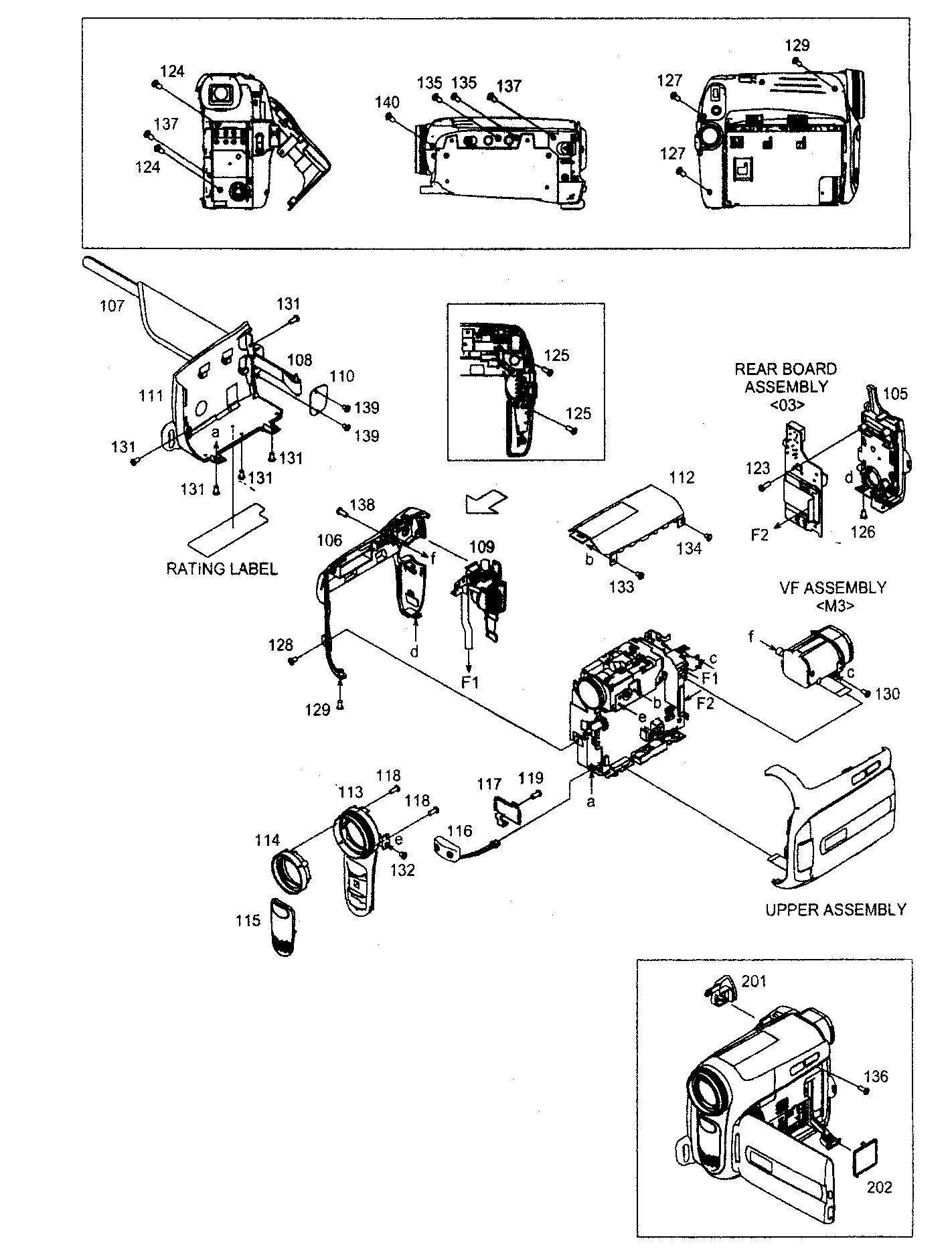

    Cabinet parts diagram

    Integrated Circuit

    Part #FA7760F

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GR-D770US - Part M95640-WDW6P-X

    Cabinet parts diagram

    Integrated Circuit

    Part #M95640-WDW6P-X

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GR-D770US - Part MRSS23E-X

    Cabinet parts diagram

    Integrated Circuit

    Part #MRSS23E-X

    The manufacturer no longer makes this part, and there's no substitute part

  • Power Unit for JVC GR-D770US - Part LY21539-001A

    Cabinet parts diagram

    Power Unit

    Part #LY21539-001A

    The manufacturer no longer makes this part, and there's no substitute part

  • Clik Plate for JVC GR-D770US - Part LY35447-001A

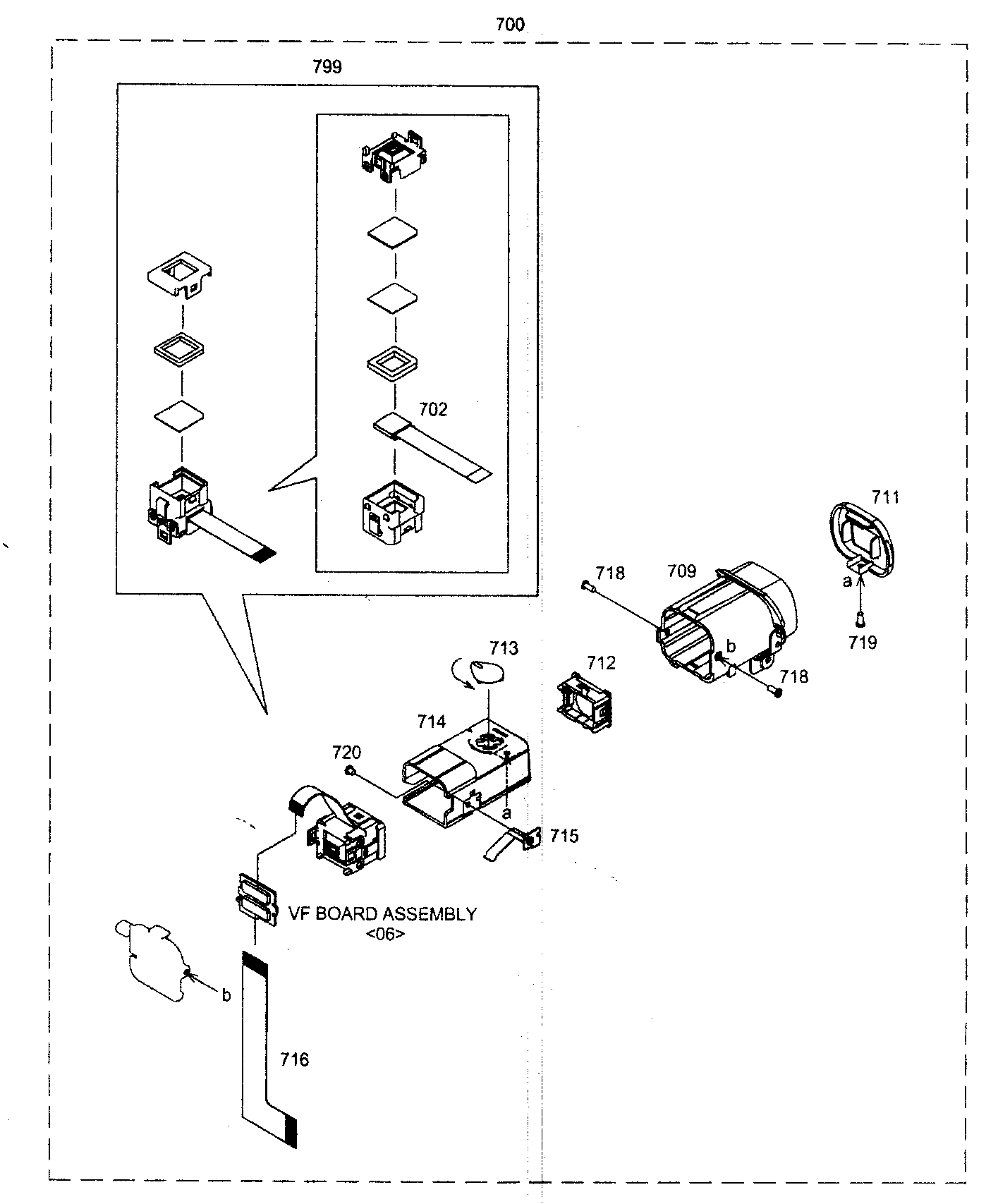

    Evf assy diagram

    Clik Plate

    Part #LY35447-001A

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GR-D770US - Part AK4666VQ

    Cabinet parts diagram

    Integrated Circuit

    Part #AK4666VQ

    The manufacturer no longer makes this part, and there's no substitute part

  • Fuse for JVC GR-D770US - Part NMFZ024-R50X-A

    Cabinet parts diagram

    Fuse

    Part #NMFZ024-R50X-A

    The manufacturer no longer makes this part, and there's no substitute part

  • Camcorder Speaker for JVC GR-D770US - Part QAS0494-001

    Lcd assy diagram

    Camcorder Speaker

    Part #QAS0494-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Focus Motor for JVC GR-D770US - Part PTY35161-102

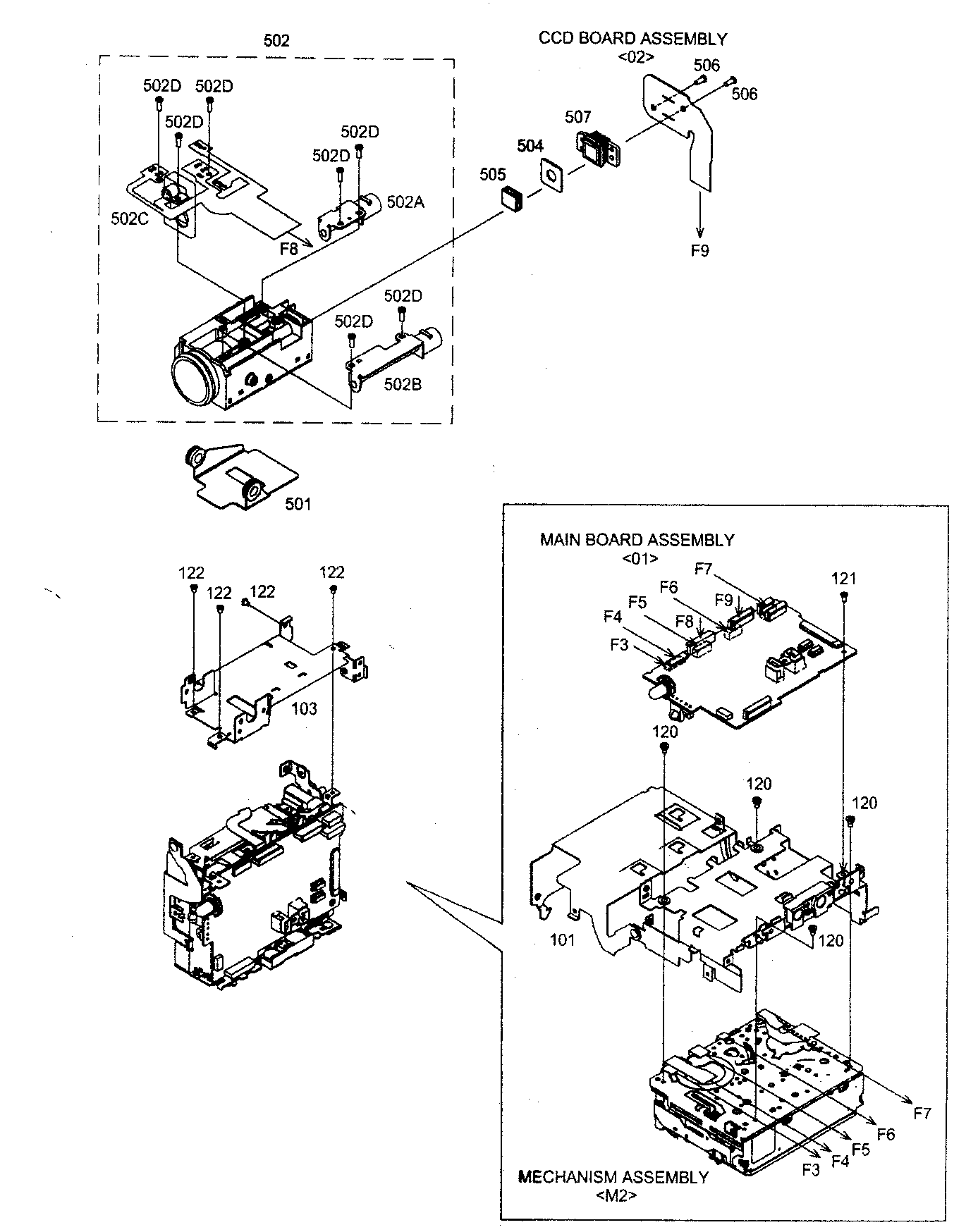

    Lens assy diagram

    Focus Motor

    Part #PTY35161-102

    The manufacturer no longer makes this part, and there's no substitute part
