8mm Camcorder

Model # CCD-TRV75 Official Sony 8mm camcorder

Here are the diagrams and repair parts for Official Sony CCD-TRV75 8mm camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

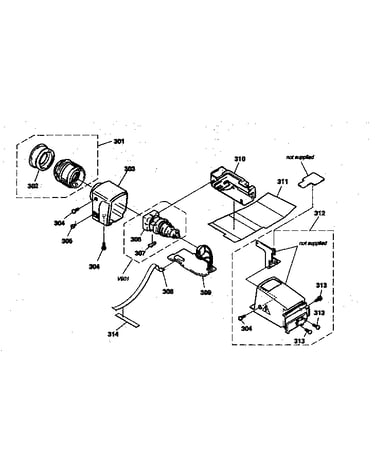

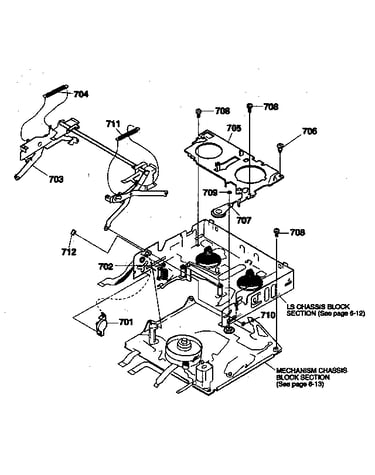

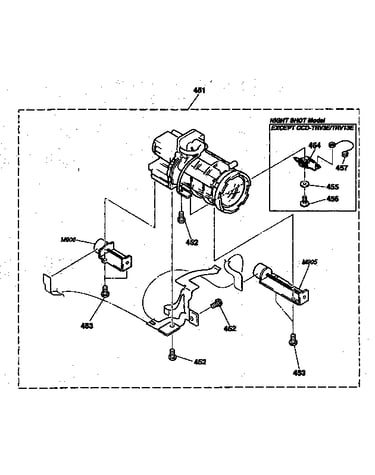

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |
Pcb Mnted A7093449A
#365

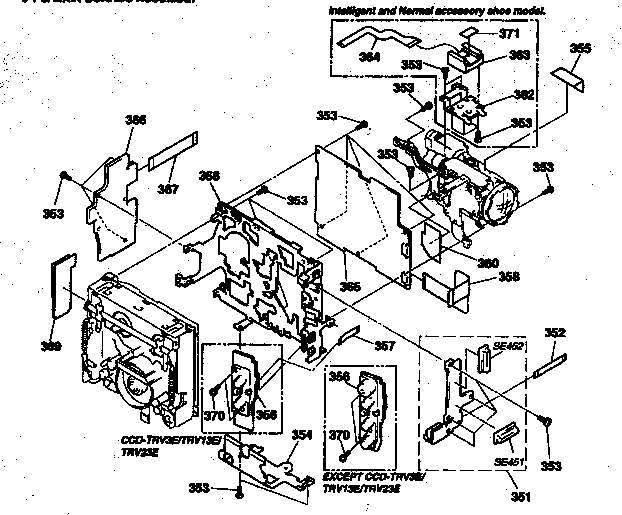

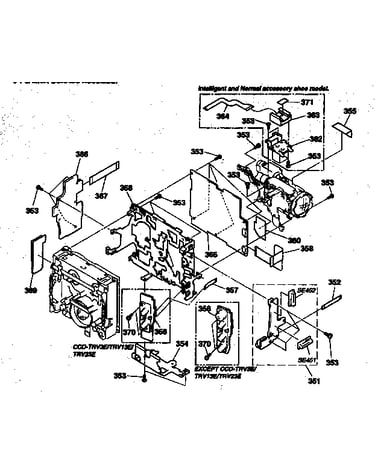

Main assy diagram

Pcb mnted

Part #A7093449A

$383.66
In Stock
Spring 397361901
#56

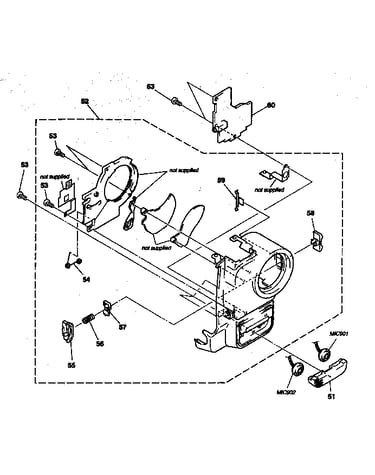

Front panel block assy diagram

Spring

Part #397361901

Replaced by #397361901

?
Manufacturer substitution
This part replaces 397361901. Substitute parts can look different from the original.
This item is not returnable
$2.30
In Stock
Integrated Circuit 875949230
#NI

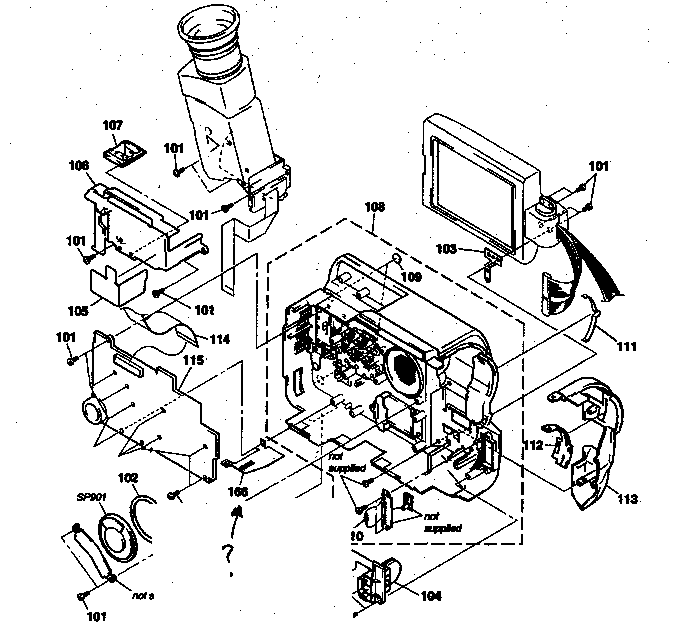

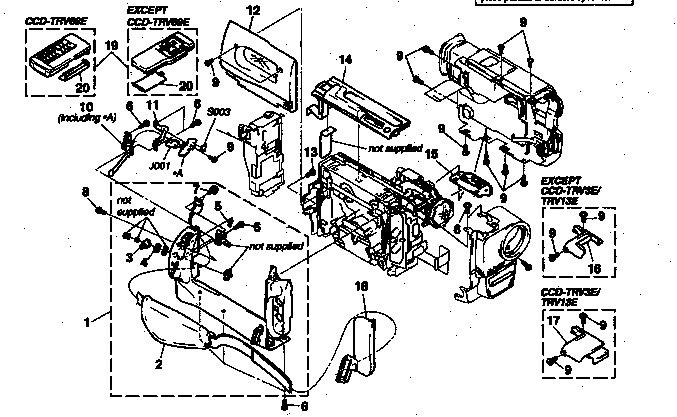

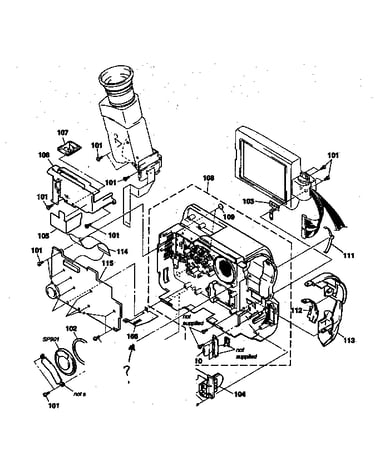

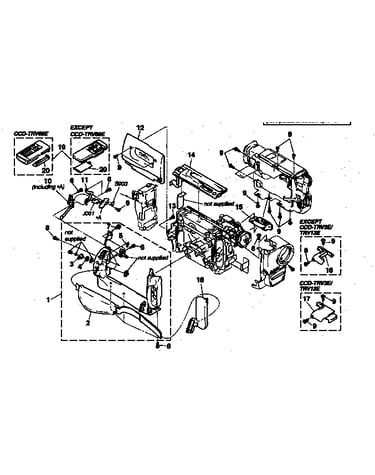

Cabinet parts l diagram

Integrated circuit

Part #875949230

Replaced by #875949230

?
Manufacturer substitution
This part replaces 875949230. Substitute parts can look different from the original.
$25.34
In Stock
Camcorder Receiver 875949852
#NI

Cabinet parts l diagram

Camcorder receiver

Part #875949852

Replaced by #875949852

?
Manufacturer substitution
This part replaces 875949852. Substitute parts can look different from the original.
$54.19
In Stock
Filter 175808421
#414

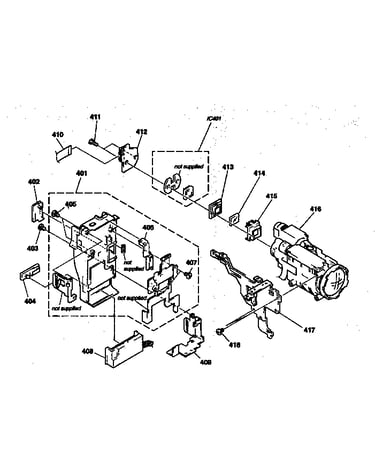

Battery assy diagram

Filter

Part #175808421

Replaced by #175808421

?
Manufacturer substitution
This part replaces 175808421. Substitute parts can look different from the original.
$25.34
In Stock
Pcb A7073408A
#366

Main assy diagram

Pcb

Part #A7073408A

The manufacturer no longer makes this part, and there's no substitute part

Light 151775911
#NI

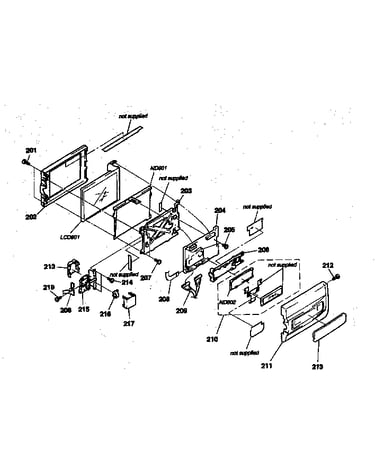

Lcd block assy diagram

Light

Part #151775911

Replaced by #151775911

?
Manufacturer substitution
This part replaces 151775911. Substitute parts can look different from the original.
$46.37
In Stock
Integrated Circuit 875905905
#NI

Cabinet parts l diagram

Integrated circuit

Part #875905905

Replaced by #875905905

?
Manufacturer substitution
This part replaces 875905905. Substitute parts can look different from the original.
$65.21
In Stock
Fuse 1.4a 153376021
#NI

Cabinet parts l diagram

Fuse 1.4a

Part #153376021

Replaced by #153376021

?
Manufacturer substitution
This part replaces 153376021. Substitute parts can look different from the original.
$17.26
In Stock
Integrated Circuit 875932761
#NI

Cabinet parts l diagram

Integrated circuit

Part #875932761

Replaced by #875932761

?
Manufacturer substitution
This part replaces 875932761. Substitute parts can look different from the original.
$25.89
In Stock
