Model # 867734302 Official Kenmore gas-fired wall furnace

Here are the diagrams and repair parts for Official Kenmore 867734302 gas-fired wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Transformer 608237
#36

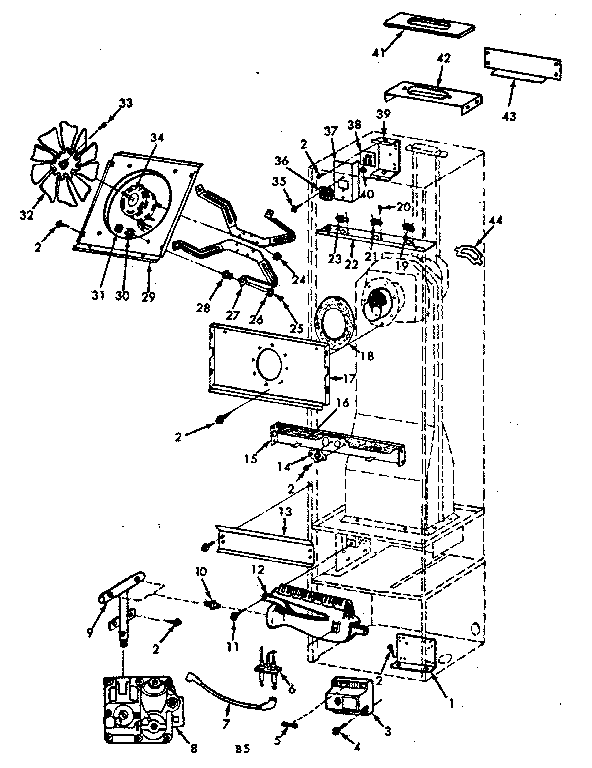

Functional replacement parts diagram

Transformer

Part #608237

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 90721

#NI

All parts diagram

Thermostat

Part #90721

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 508162
#8

Functional replacement parts diagram

Gas valve

Part #508162

The manufacturer no longer makes this part, and there's no substitute part

Washer 39670
#26

Functional replacement parts diagram

Washer

Part #39670

The manufacturer no longer makes this part, and there's no substitute part

Control 607421
Control

Part #607421

Replaced by #3L05-1

?
Manufacturer substitution
This part replaces 607421. Substitute parts can look different from the original.
$35.55 |
12% OFF Phone Price : $40.55
In Stock
Burner 507989
#12

Functional replacement parts diagram

Burner

Part #507989

The manufacturer no longer makes this part, and there's no substitute part

Bt Support 508074
#2

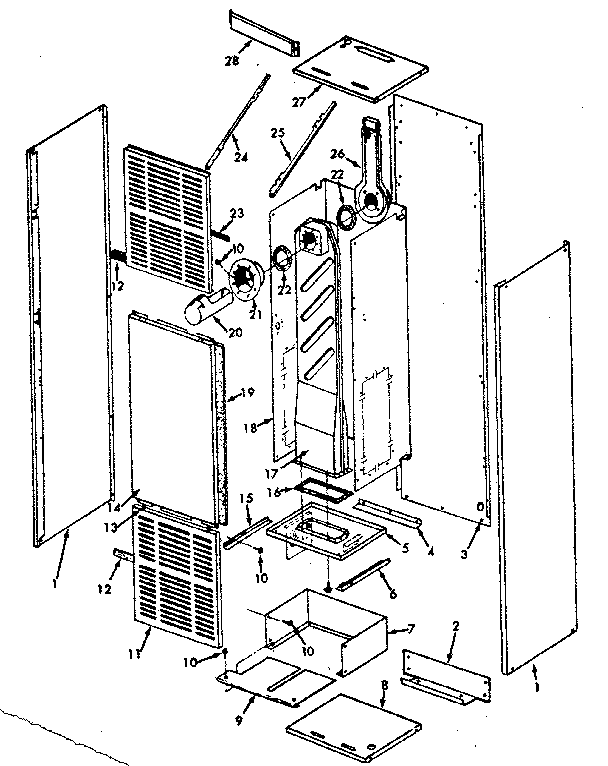

Furnace body diagram

Bt support

Part #508074

The manufacturer no longer makes this part, and there's no substitute part

Wire Label 508308

#NI

All parts diagram

Wire label

Part #508308

The manufacturer no longer makes this part, and there's no substitute part

Fan Switch 508469
#19B

Functional replacement parts diagram

Fan switch

Part #508469

The manufacturer no longer makes this part, and there's no substitute part

Wire 500370

#NI

All parts diagram

Wire

Part #500370

The manufacturer no longer makes this part, and there's no substitute part
