Model # 143176052 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143176052 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

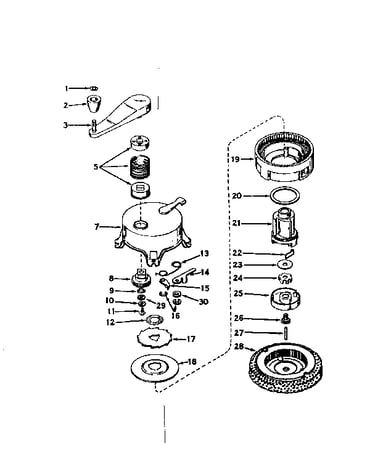

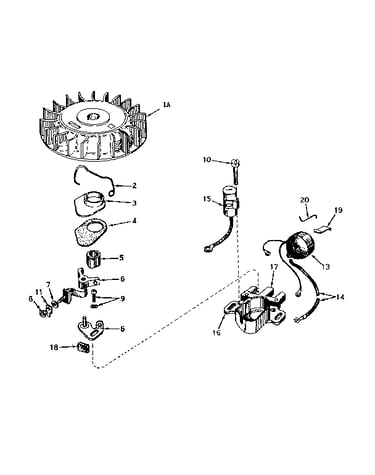

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |
O-ring 631028
#25

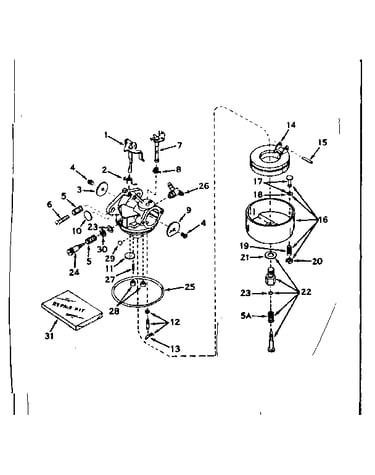

Carburetor no. 631128. diagram

O-ring

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Needl/seat 631021
#12

Carburetor no. 631128. diagram

Needl/seat

Part #631021

The manufacturer no longer makes this part, and there's no substitute part

/fuel Bowl 631025
#16

Carburetor no. 631128. diagram

/fuel bowl

Part #631025

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#88

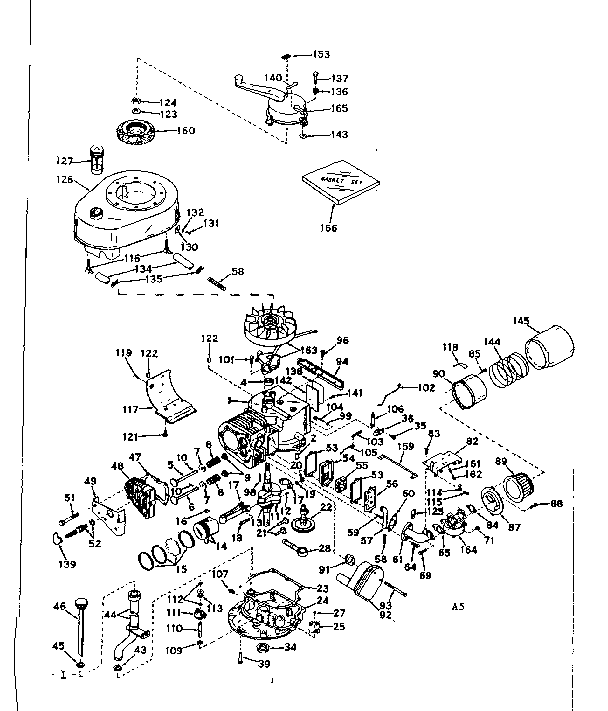

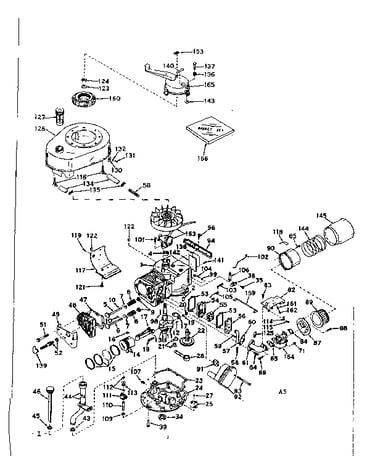

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Governor Gear Assembly 30591
#111

Basic engine diagram

Governor gear assembly

Part #30591

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#57

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Plug 631027
#11

Carburetor no. 631128. diagram

Plug

Part #631027

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27554
#18

Carburetor no. 631128. diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

Carburetor no. 631128. diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Spacer 28277
#99

Basic engine diagram

Spacer

Part #28277

The manufacturer no longer makes this part, and there's no substitute part
