Model # 143214062 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143214062 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |

Lawn Mower O-ring 631028
#16

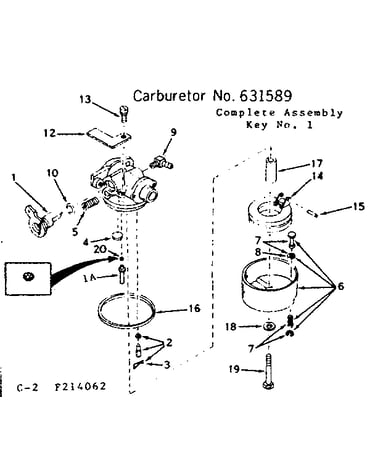

Carburetor diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Needle Seat 631021
#2

Carburetor diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.12
17% OFF Phone Price : $12.12
In Stock
Lawn & Garden Equipment Engine Fuel Line (replaces 14306, 34357) 29774
#105

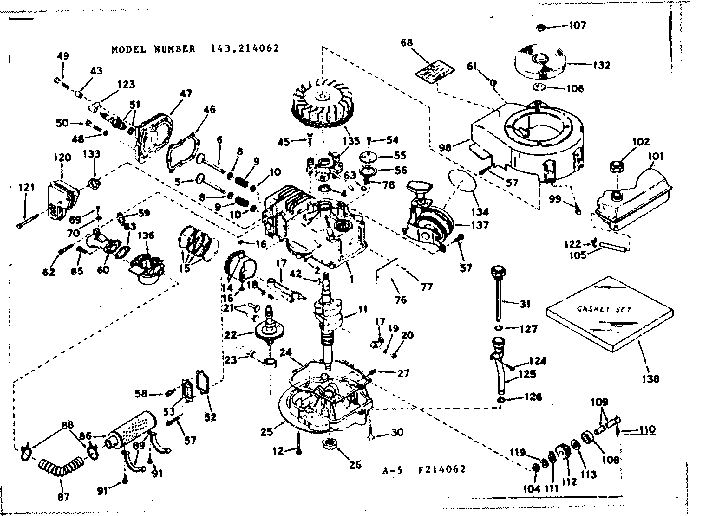

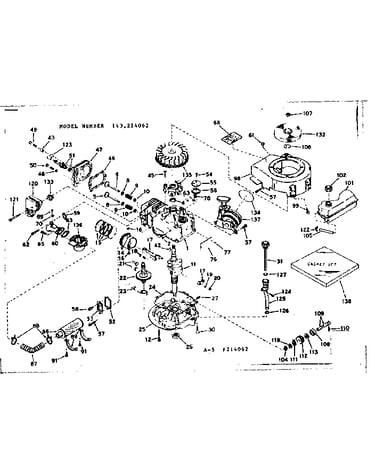

Basic engine diagram

Lawn & garden equipment engine fuel line (replaces 14306, 34357)

Part #29774

BEST SELLER
This item is not returnable
$5.99
14% OFF Phone Price : $6.99
In Stock
Lawn & Garden Equipment Engine Spark Plug Boot (replaces 27276, Tc-610118) 610118
#123

Basic engine diagram

Lawn & garden equipment engine spark plug boot (replaces 27276, tc-610118)

Part #610118

BEST SELLER
This item is not returnable
$4.49
33% OFF MSRP : $6.70
In Stock
Screw 30688
#57

Basic engine diagram

Screw

Part #30688

Replaced by #30063

?
Manufacturer substitution
This part replaces 30688. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Carburetor Float 631024
#15

Carburetor diagram

Carburetor float

Part #631024

This item is not returnable
In Stock
Handle Insert 590443
#15

Unit parts diagram

Handle insert

Part #590443

Replaced by #590701

?
Manufacturer substitution
This part replaces 590443. Substitute parts can look different from the original.
This item is not returnable
$7.80
11% OFF Phone Price : $8.80
In Stock
Handle Assembly 590442
#14

Unit parts diagram

Handle assembly

Part #590442

Replaced by #590701

?
Manufacturer substitution
This part replaces 590442. Substitute parts can look different from the original.
This item is not returnable
$7.80
11% OFF Phone Price : $8.80
In Stock
Lawn & Garden Equipment Engine Carburetor Bowl Drain Valve 27136A
#7

Carburetor diagram

Lawn & garden equipment engine carburetor bowl drain valve

Part #27136A

This item is not returnable
$8.09
11% OFF Phone Price : $9.09
In Stock
Lawn & Garden Equipment Engine Oil Pump Kit 29914
#23

Basic engine diagram

Lawn & garden equipment engine oil pump kit

Part #29914

This item is not returnable
$10.39
16% OFF Phone Price : $12.39
In Stock
