Sony
Digital Camcorder

Model #HDR-XR260V Official Sony camcorder

Here are the diagrams and repair parts for Sony HDR-XR260V camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 125 parts

    Camcorder Speaker Holder#553

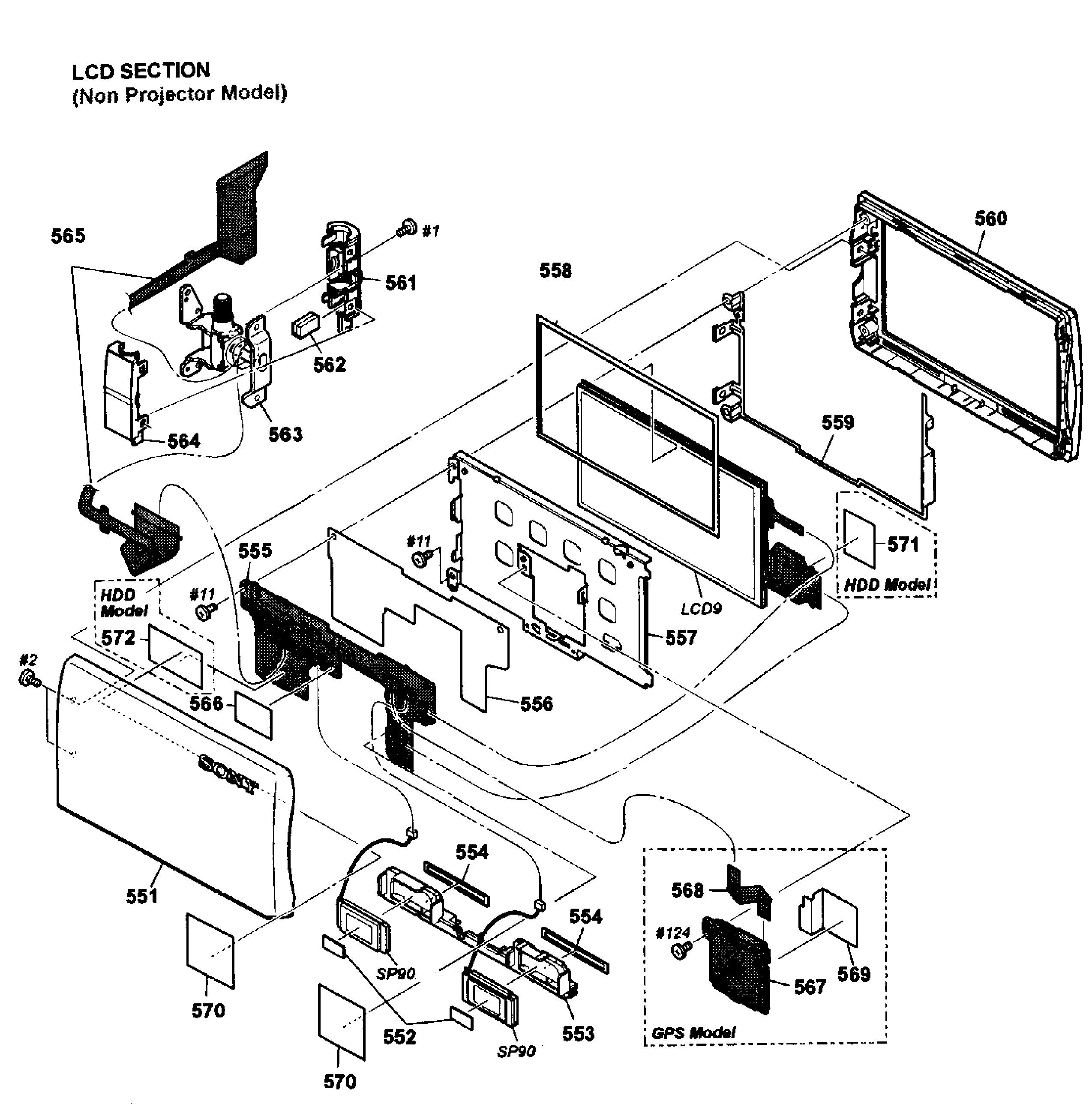

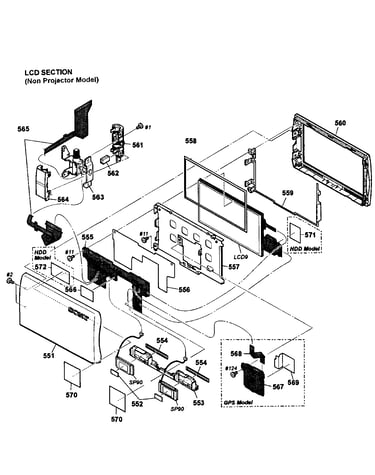

    Lcd assy Diagram

    In Stock
    $10.31
    RADIATION SHEET#571

    Lcd assy Diagram

    Radiation sheet

    Part #441505101
    This item is not returnable
    In Stock
    $4.23

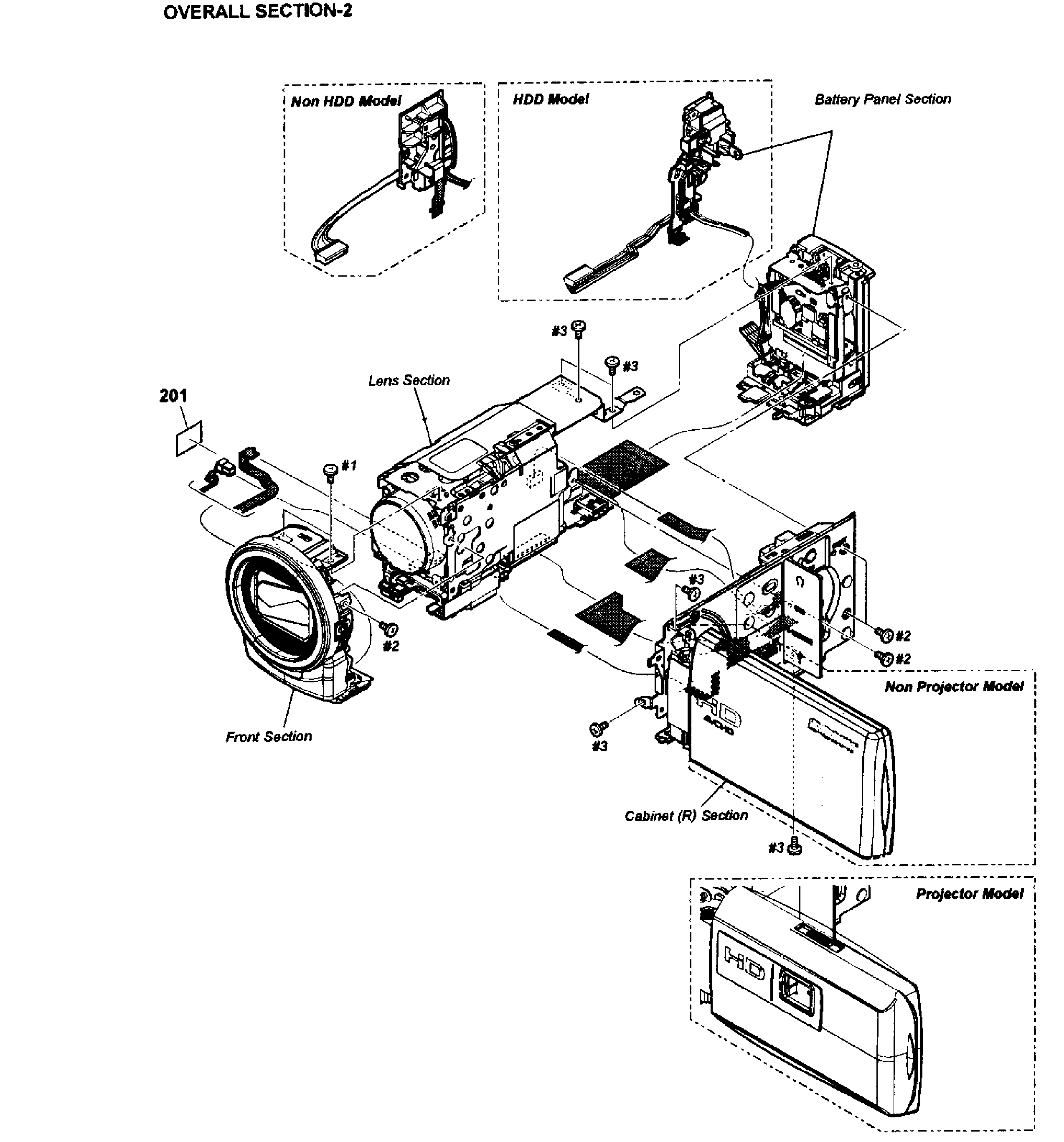

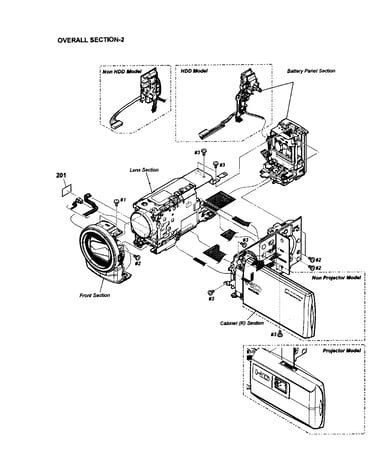

    Pcb Cm-123#253

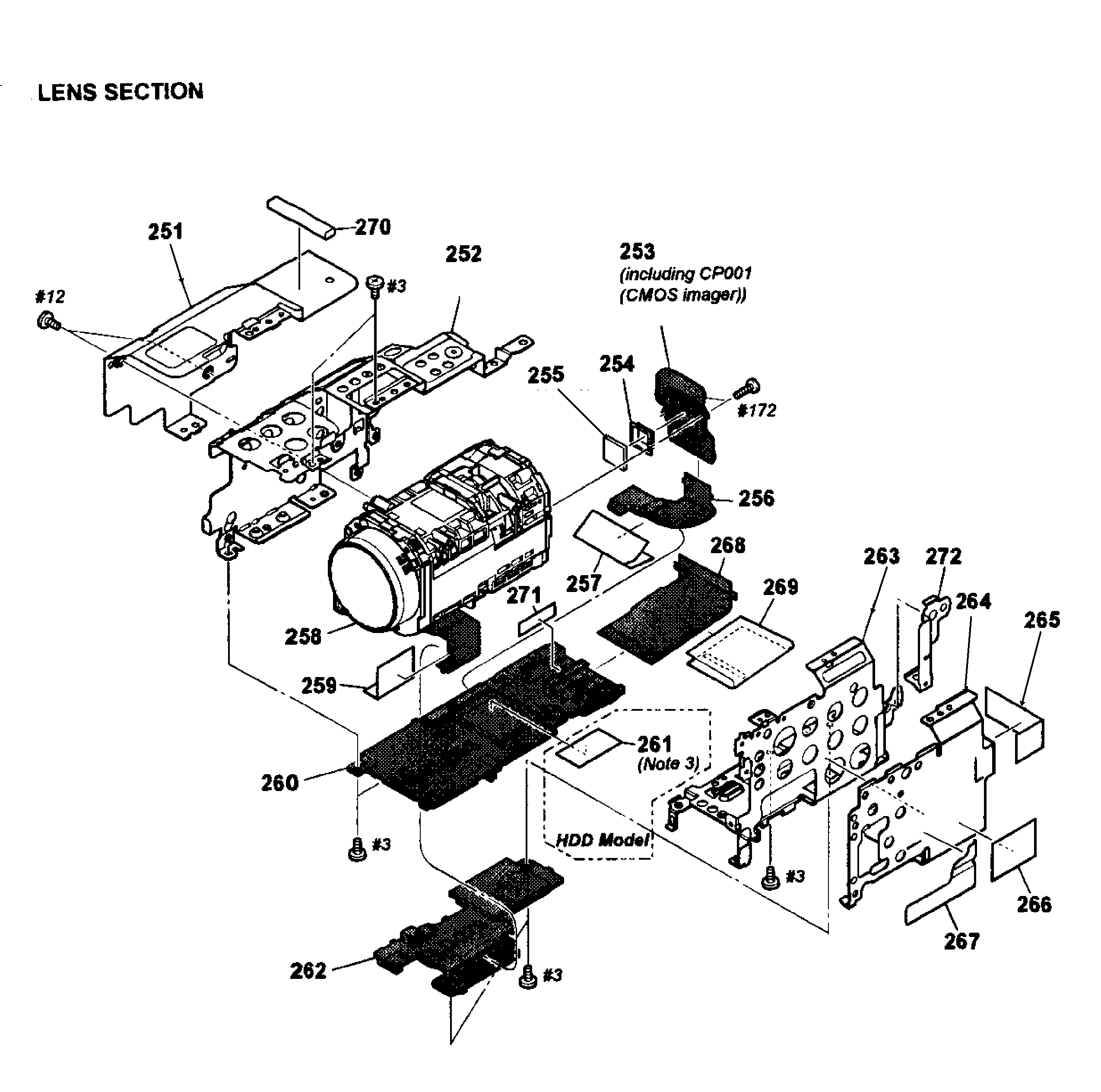

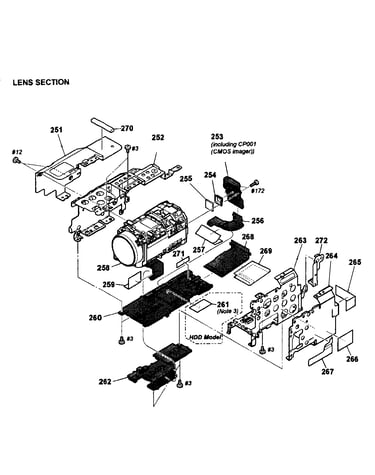

    Lens assy Diagram

    Pcb cm-123

    Part #A1851196A
    In Stock
    $202.56
    Ground Plate#272

    Lens assy Diagram

    Ground plate

    Part #427957501
    This item is not returnable
    In Stock
    $4.41
    Optical Fi#255

    Lens assy Diagram

    Optical fi

    Part #185616321
    In Stock
    $22.53
    Hinge Cover#564

    Lcd assy Diagram

    Hinge cover

    Part #427169011
    In Stock
    $14.61

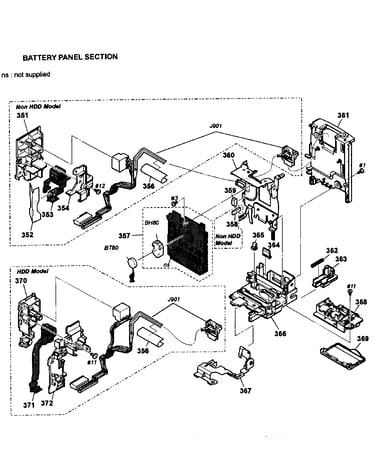

    Holder Jac#370

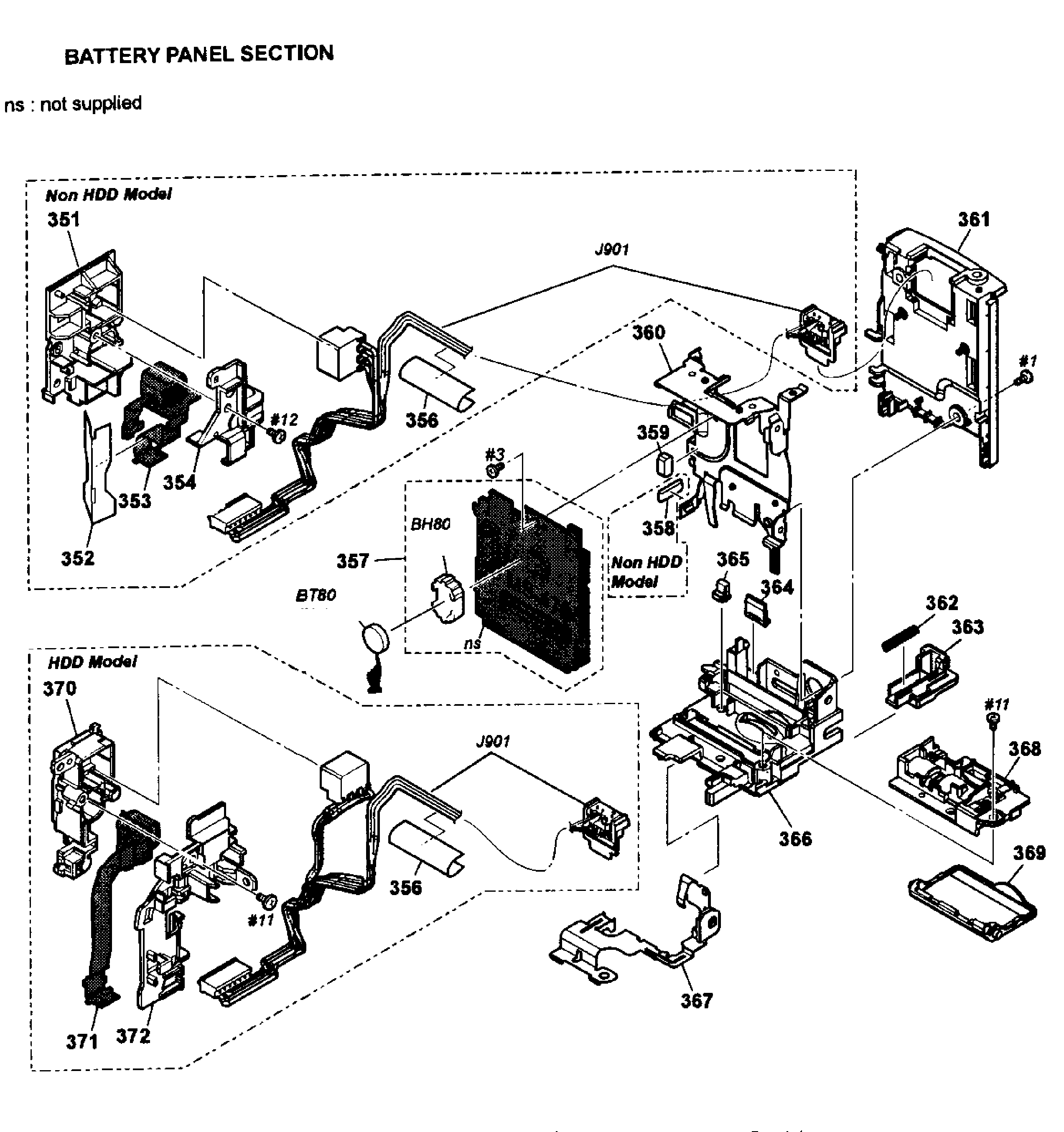

    Bp assy Diagram

    Holder jac

    Part #427195001
    This item is not returnable
    In Stock
    $3.15
    Ring Lens#301

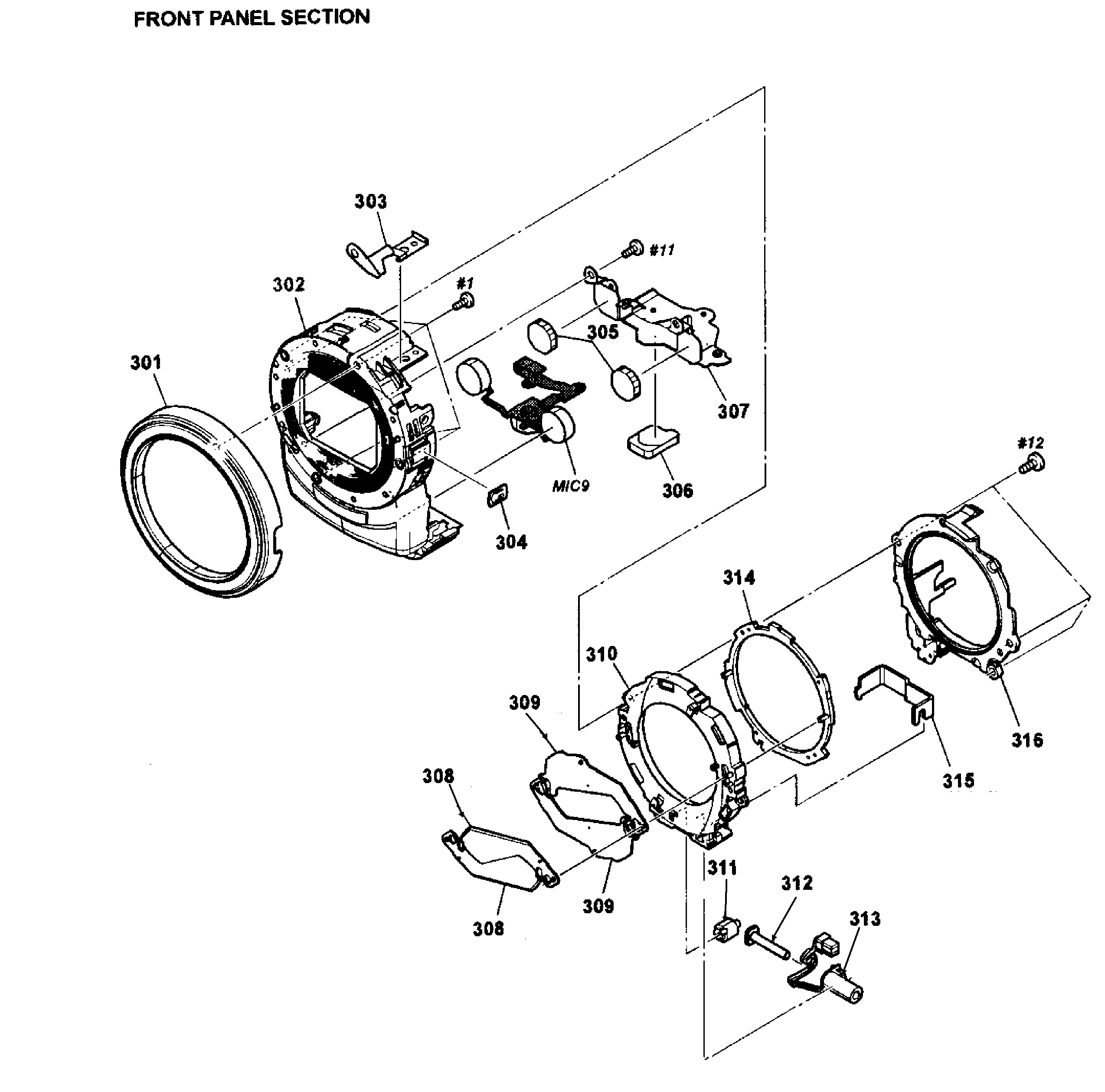

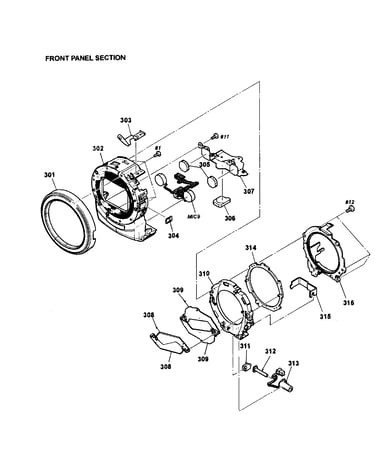

    Front assy Diagram

    Ring lens

    Part #427165601
    In Stock
    $38.40
    Flex Tape#407

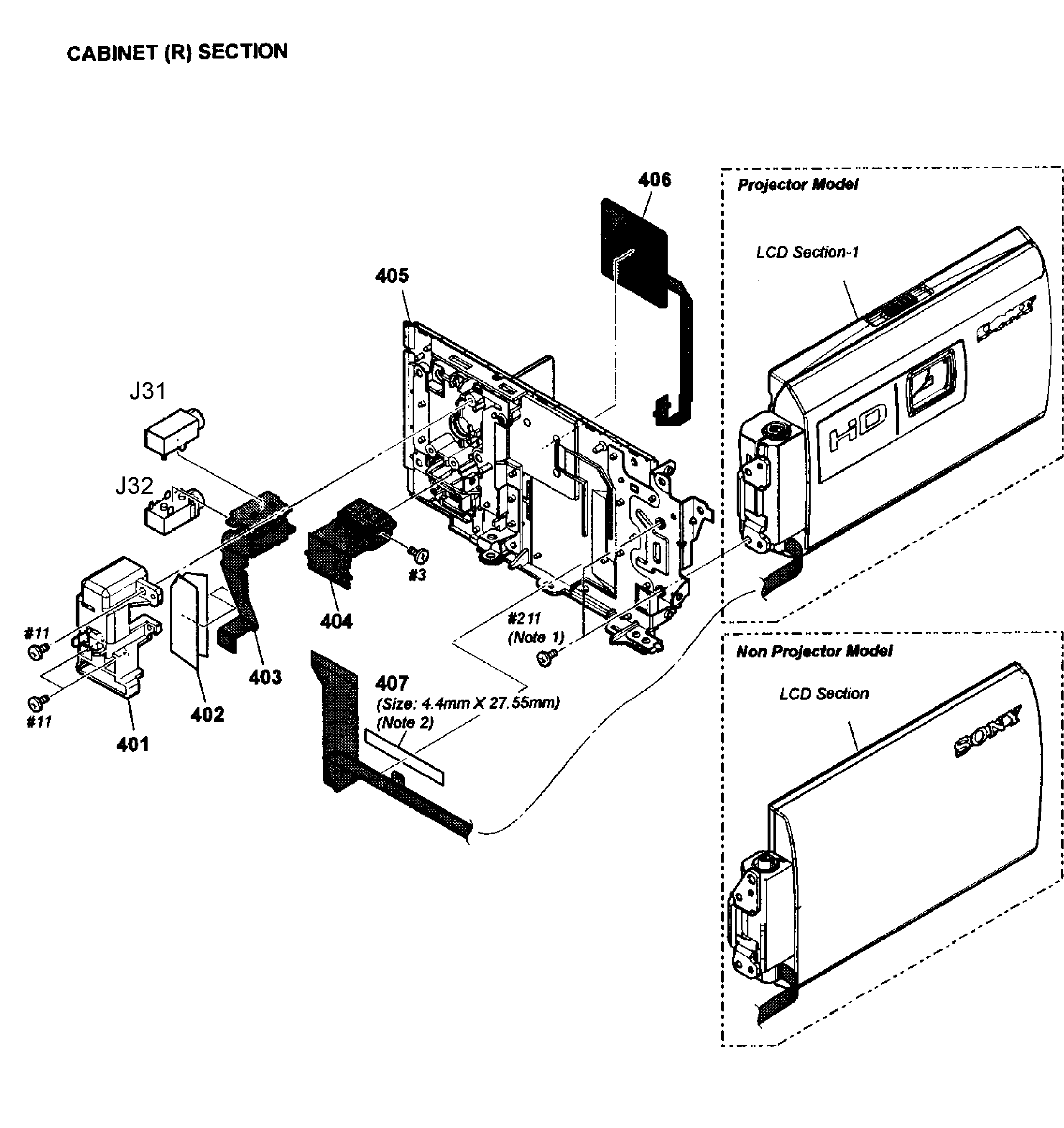

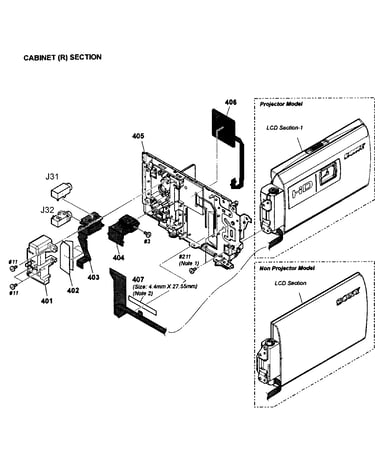

    Rear assy Diagram

    Flex tape

    Part #264930001
    In Stock
    $47.38

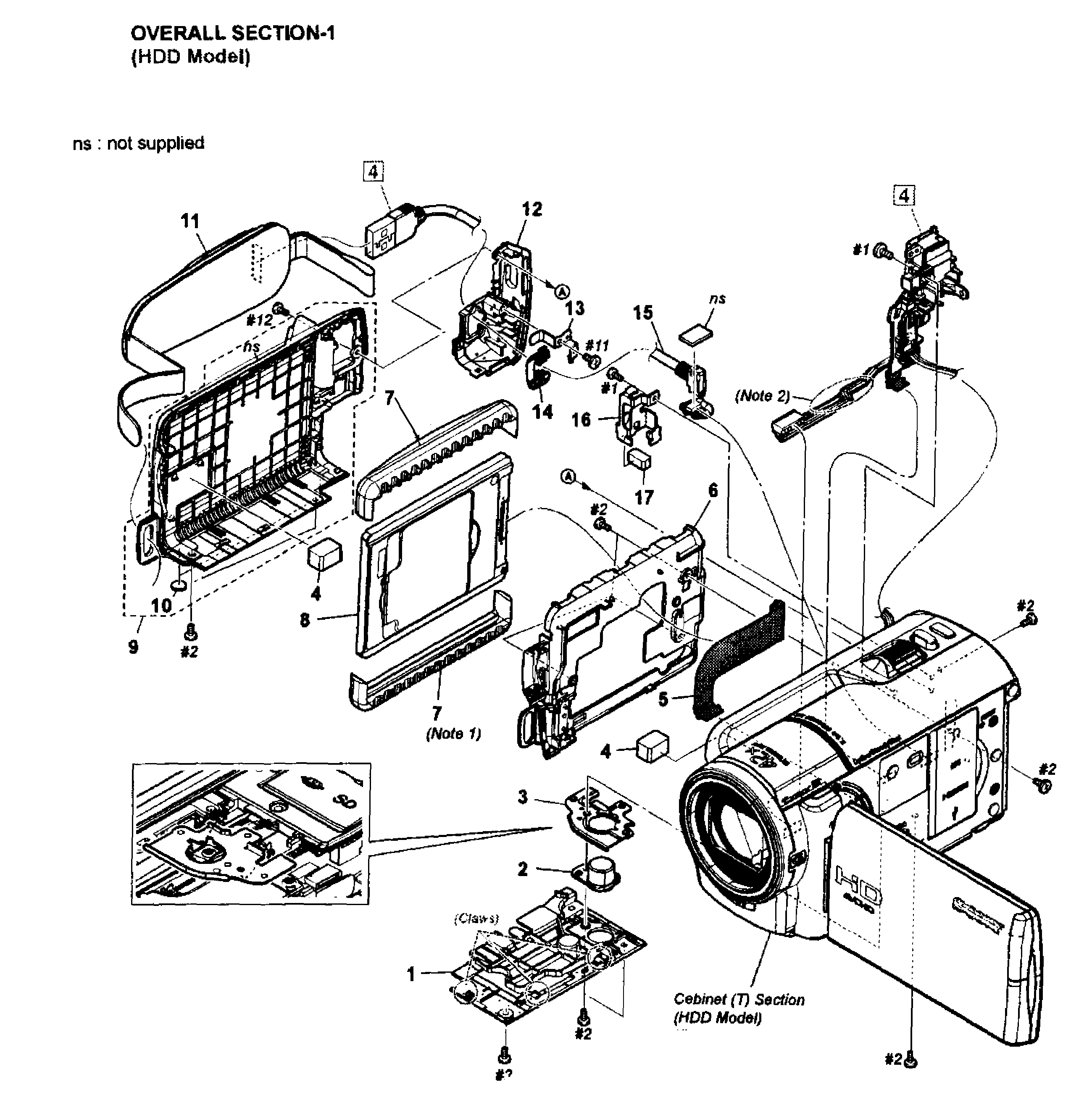

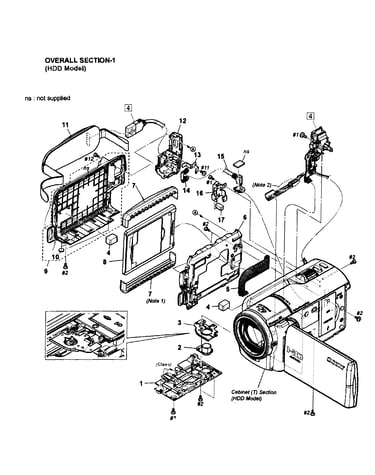

    Plate#102

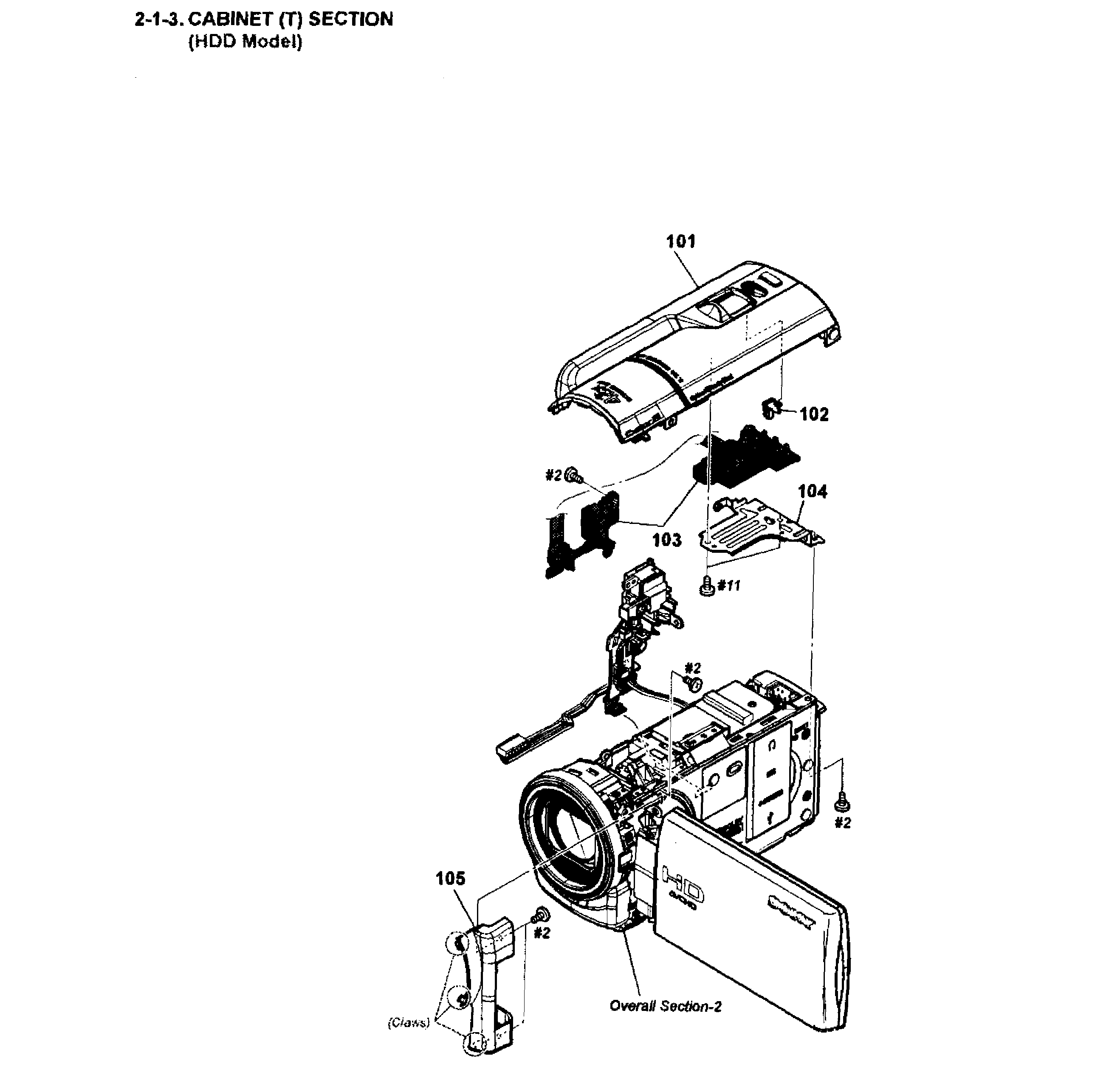

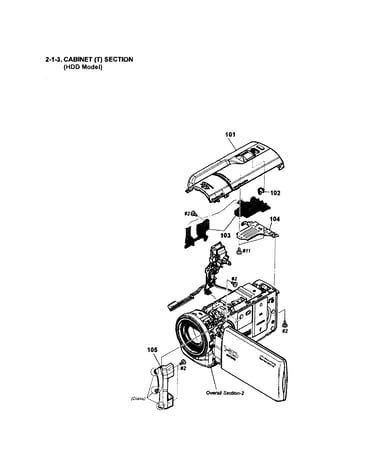

    Top cabinet Diagram

    Plate

    Part #427169201
    In Stock
    $10.31
