Model # 22422 Official Hunter ceiling fan

Here are the diagrams and repair parts for Official Hunter 22422 ceiling fan, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Blade 82993-01-121
#3C

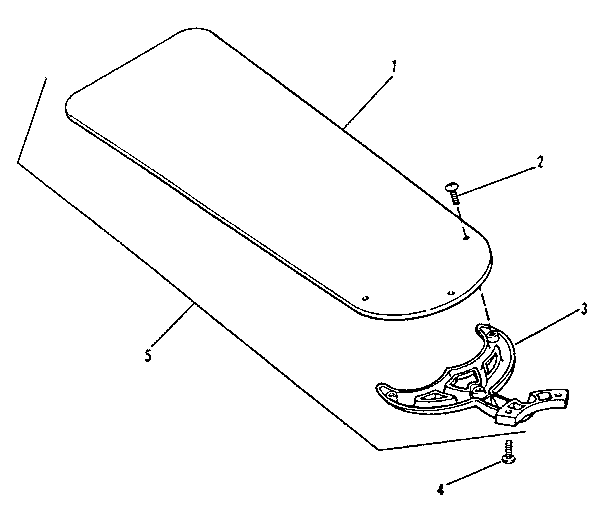

Fan blades diagram

Blade

Part #82993-01-121

The manufacturer no longer makes this part, and there's no substitute part

Blade White 73049-01-063
#1C

Fan blades diagram

Blade white

Part #73049-01-063

The manufacturer no longer makes this part, and there's no substitute part

Housing 83127-02-116
#18B

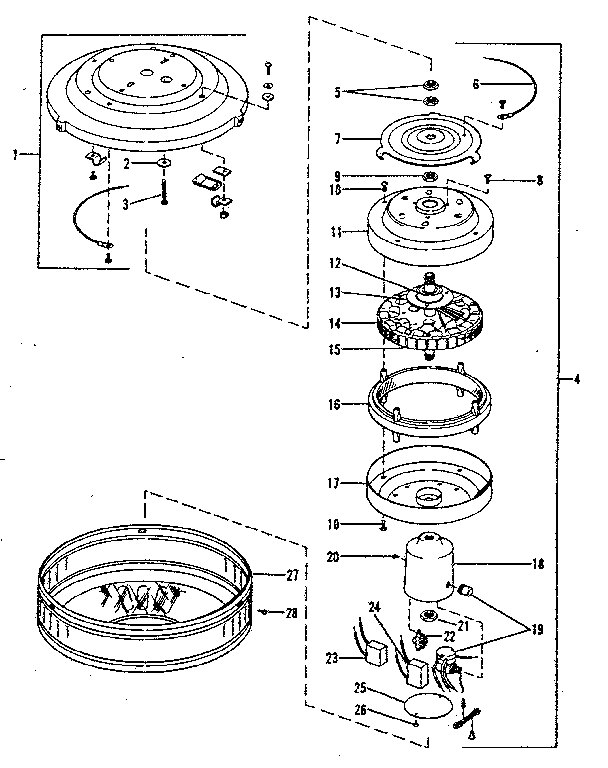

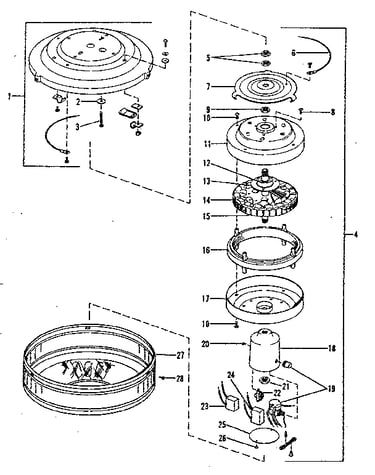

Replacement parts diagram

Housing

Part #83127-02-116

The manufacturer no longer makes this part, and there's no substitute part

Motor Cover 83188-01-121
#27C

Replacement parts diagram

Motor cover

Part #83188-01-121

The manufacturer no longer makes this part, and there's no substitute part

Plate Assembly 83189-01-116
#1B

Replacement parts diagram

Plate assembly

Part #83189-01-116

The manufacturer no longer makes this part, and there's no substitute part

Blade 82993-01-063
#3A

Fan blades diagram

Blade

Part #82993-01-063

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly (white) 83186-01-063
#4A

Replacement parts diagram

Motor assembly (white)

Part #83186-01-063

The manufacturer no longer makes this part, and there's no substitute part

Sack Parts 58580-01-000

#NI

All parts diagram

Sack parts

Part #58580-01-000

The manufacturer no longer makes this part, and there's no substitute part

Cover 63351-01-121
#25C

Replacement parts diagram

Cover

Part #63351-01-121

The manufacturer no longer makes this part, and there's no substitute part

Blade 58555-44-116
#5A

Fan blades diagram

Blade

Part #58555-44-116

The manufacturer no longer makes this part, and there's no substitute part
