Model # DVD-LS5PP Official Panasonic dvd/cd player

Here are the diagrams and repair parts for Official Panasonic DVD-LS5PP dvd/cd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Button Cover RGK1525-A
#23

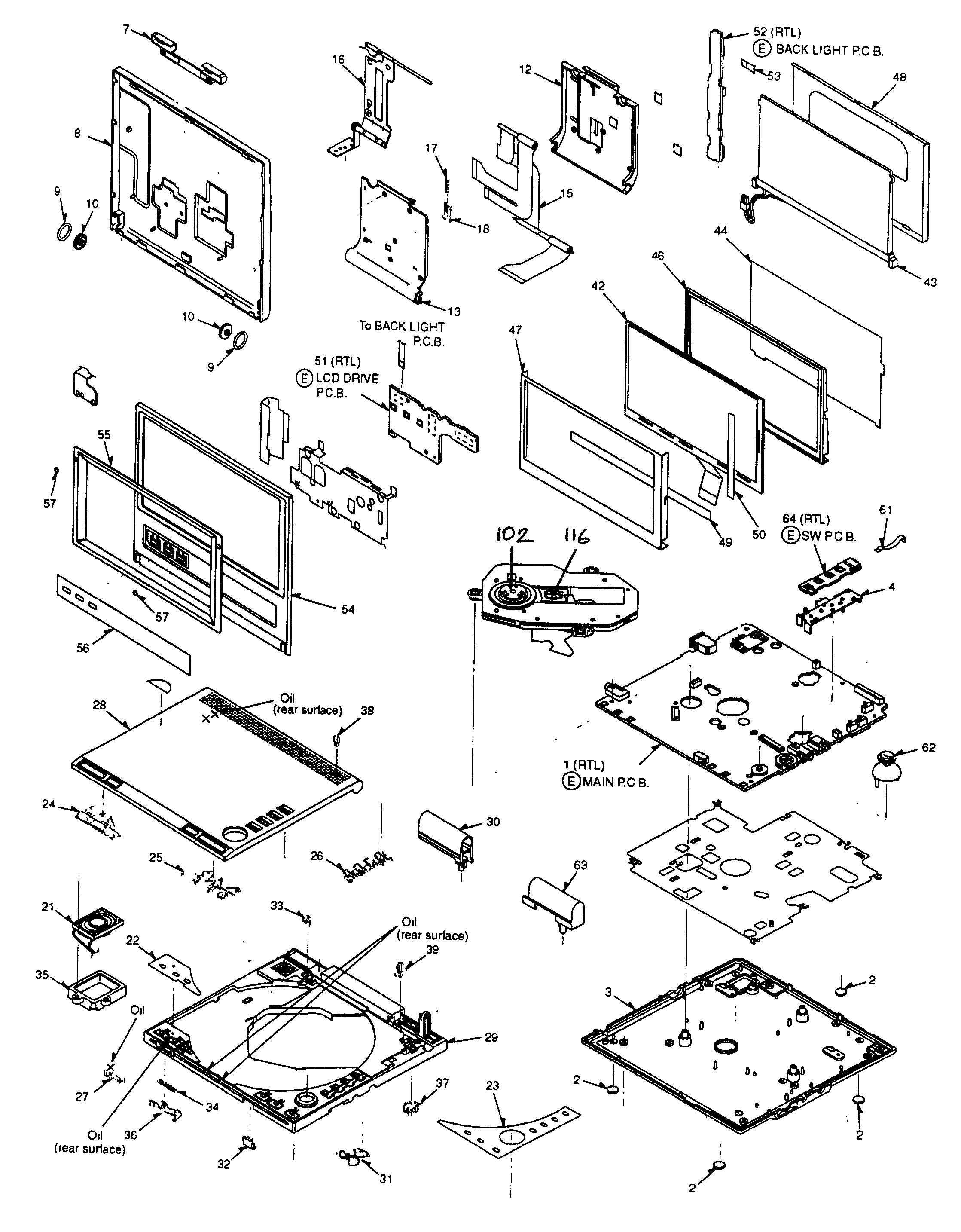

Cabinet parts diagram

Button cover

Part #RGK1525-A

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack CGR-H601A/1B
#A1A

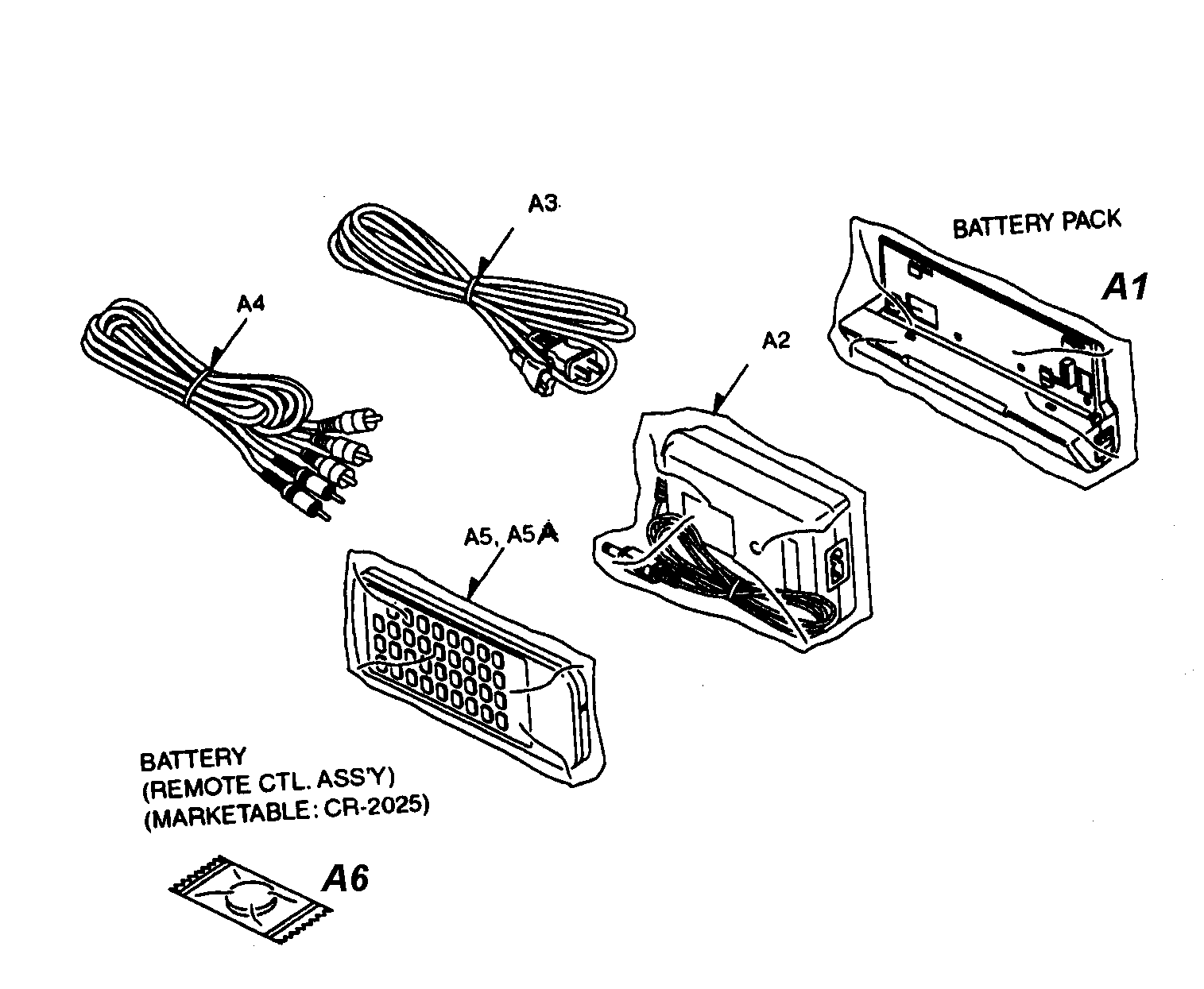

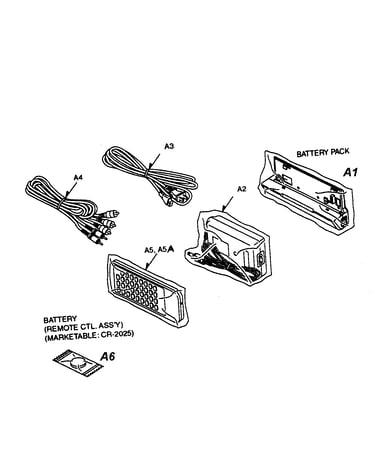

Accessorys diagram

Battery pack

Part #CGR-H601A/1B

The manufacturer no longer makes this part, and there's no substitute part

Button Cover RGK1524-A
#22

Cabinet parts diagram

Button cover

Part #RGK1524-A

The manufacturer no longer makes this part, and there's no substitute part

Window RKW0692-Q
#32

Cabinet parts diagram

Window

Part #RKW0692-Q

The manufacturer no longer makes this part, and there's no substitute part

Bottom Cab RKS0383D-S
#3

Cabinet parts diagram

Bottom cab

Part #RKS0383D-S

The manufacturer no longer makes this part, and there's no substitute part

Lcd Dr Pcb REP3590A-S
#51

Cabinet parts diagram

Lcd dr pcb

Part #REP3590A-S

The manufacturer no longer makes this part, and there's no substitute part

Holder RMQ1104
#36

Cabinet parts diagram

Holder

Part #RMQ1104

The manufacturer no longer makes this part, and there's no substitute part

Res,68,3w ERJ3EKF6800
#NI

Cabinet parts diagram

Res,68,3w

Part #ERJ3EKF6800

The manufacturer no longer makes this part, and there's no substitute part

Jack Cover RMQ1103
#4

Cabinet parts diagram

Jack cover

Part #RMQ1103

The manufacturer no longer makes this part, and there's no substitute part

Disc Motor BKL2E03KA
#102

Cabinet parts diagram

Disc motor

Part #BKL2E03KA

The manufacturer no longer makes this part, and there's no substitute part
