Sharp R-312AW microwave Parts

Here are the diagrams and repair parts for Sharp R-312AW microwave, as well as links to manuals and error code tables, if available.

Sharp R-312AW microwave

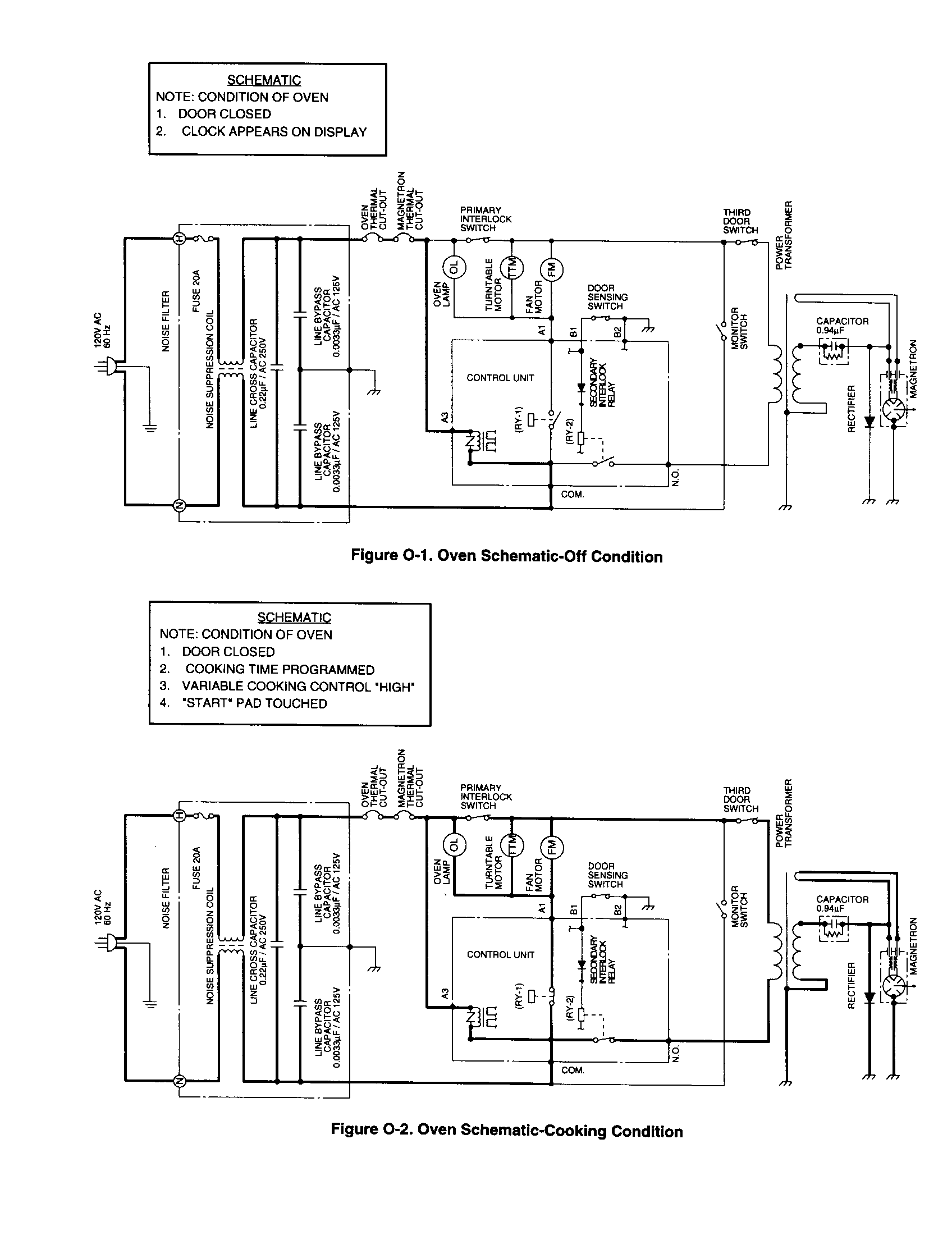

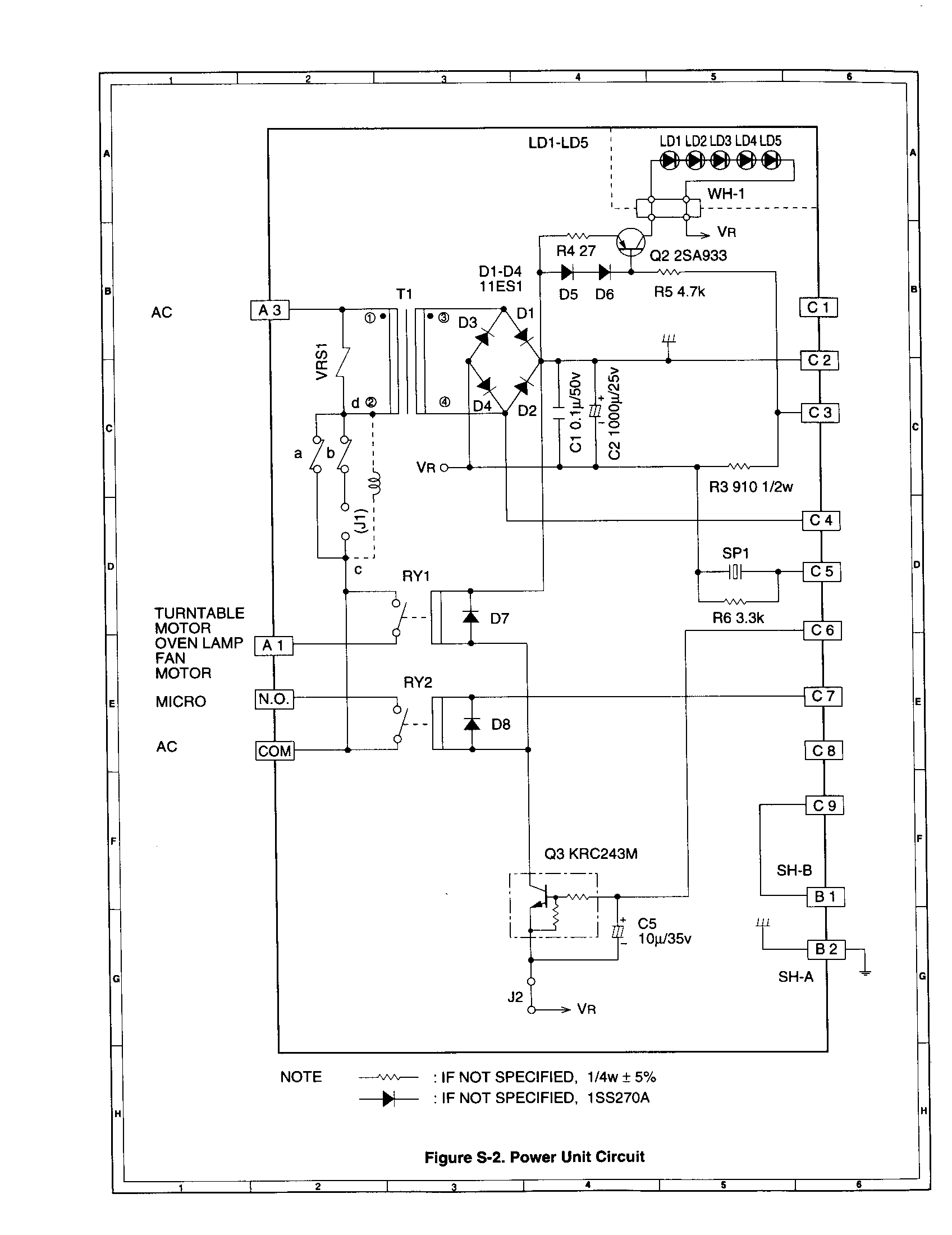

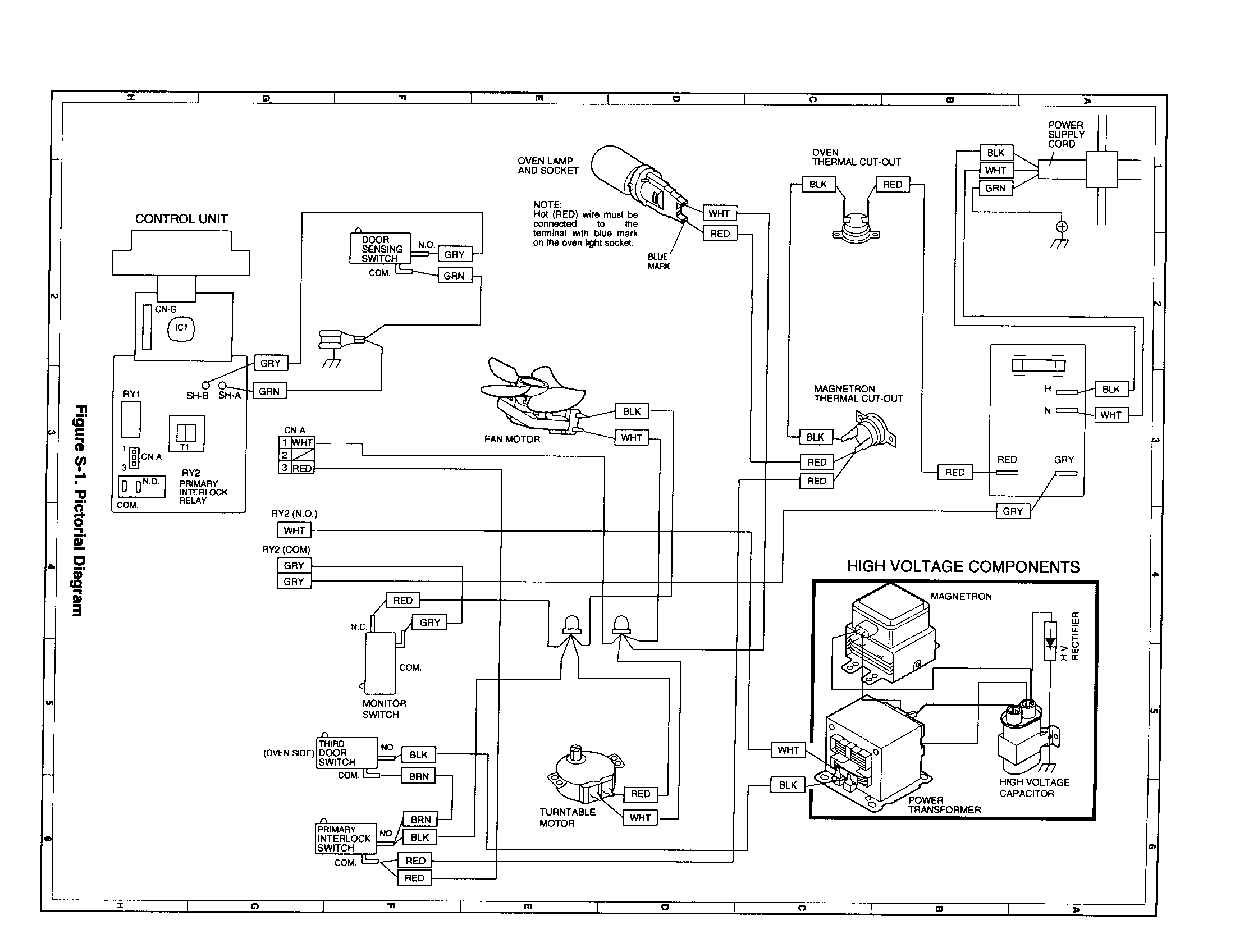

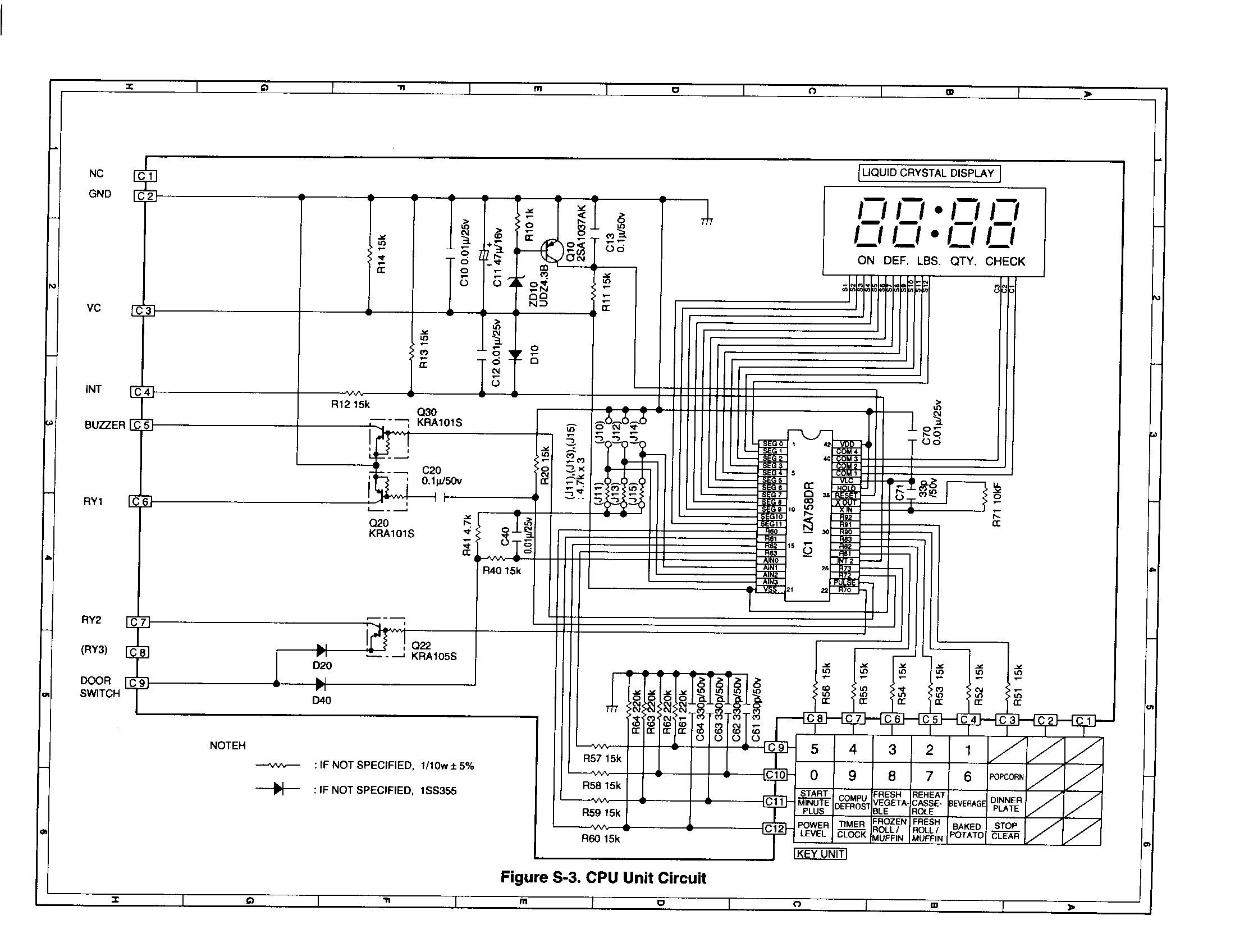

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for R-312AW Microwaves

  • (r31) Resistor 3.3k Ohm 1/4w for Sharp R-312AW - Part VRD-B12EF332J

    #NI

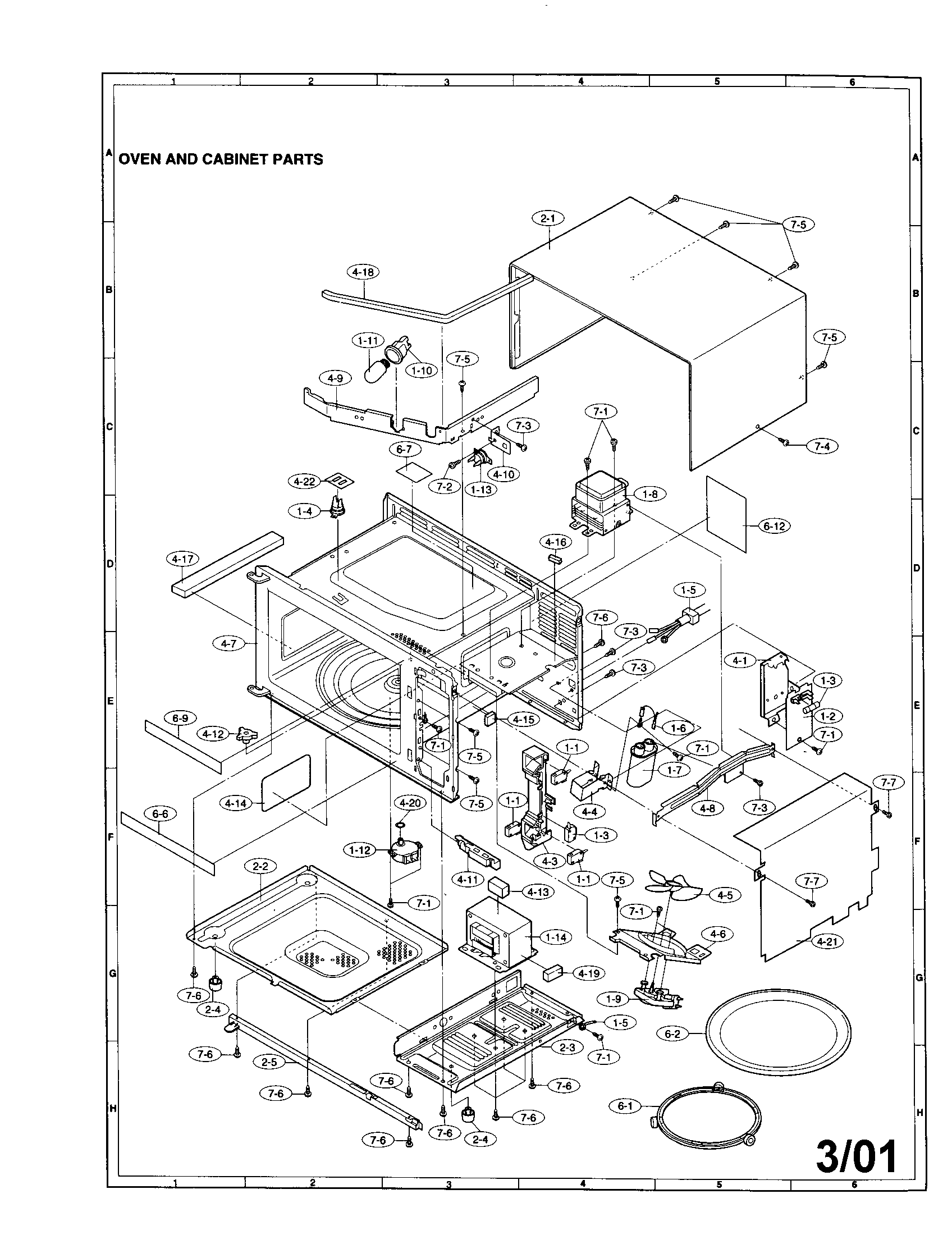

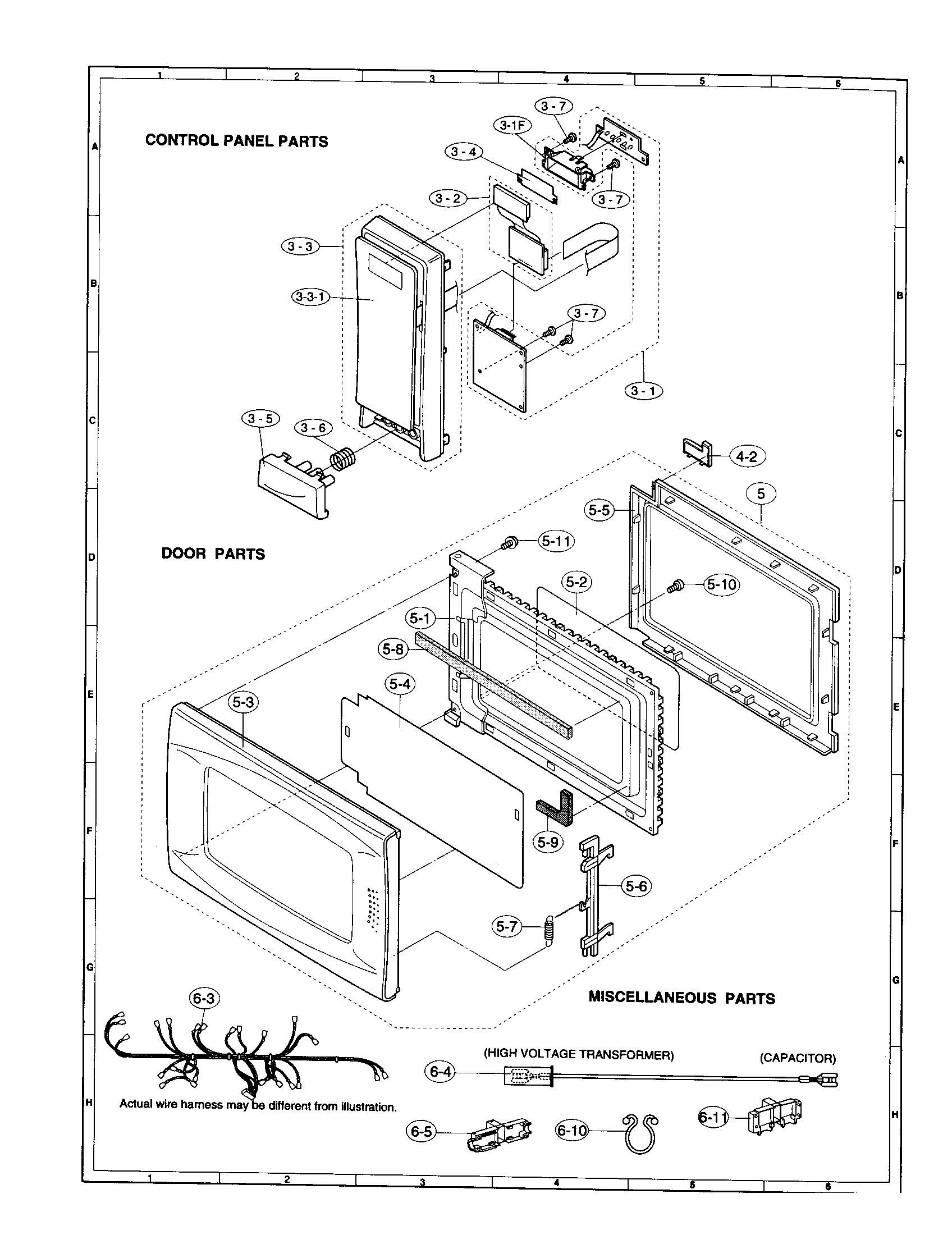

    All parts diagram

    (r31) Resistor 3.3k Ohm 1/4w

    Part #VRD-B12EF332J

    The manufacturer no longer makes this part, and there's no substitute part

  • Cushion for Sharp R-312AW - Part PCUSUA212WRP0

    #4-16

    All parts diagram

    Cushion

    Part #PCUSUA212WRP0

    The manufacturer no longer makes this part, and there's no substitute part

  • Service Caution for Sharp R-312AW - Part TCAUAA235WRR0

    #6-12

    All parts diagram

    Service Caution

    Part #TCAUAA235WRR0

    The manufacturer no longer makes this part, and there's no substitute part

  • Support for Sharp R-312AW - Part LANGFA180WRW0

    #4-08

    All parts diagram

    Support

    Part #LANGFA180WRW0

    The manufacturer no longer makes this part, and there's no substitute part

  • Magnetron for Sharp R-312AW - Part RV-MZA222WRE0

    #1-08A

    All parts diagram

    Magnetron

    Part #RV-MZA222WRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Sharp R-312AW - Part XEPSD30P08XS0

    #3-07

    All parts diagram

    Screw

    Part #XEPSD30P08XS0

    The manufacturer no longer makes this part, and there's no substitute part

  • Harness for Sharp R-312AW - Part FW-VZA195DRE0

    #3-01C

    All parts diagram

    Harness

    Part #FW-VZA195DRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Control Panel for Sharp R-312AW - Part FPNLCB281WRK0

    #3-03A

    All parts diagram

    Control Panel

    Part #FPNLCB281WRK0

    The manufacturer no longer makes this part, and there's no substitute part

  • Control Unit for Sharp R-312AW - Part FPWBFA293WRK0

    #1-02

    All parts diagram

    Control Unit

    Part #FPWBFA293WRK0

    The manufacturer no longer makes this part, and there's no substitute part

  • Coupling for Sharp R-312AW - Part NCPL-A045WRF0

    #4-12

    All parts diagram

    Coupling

    Part #NCPL-A045WRF0

    The manufacturer no longer makes this part, and there's no substitute part
