Model #ACQ068PR1 Whirlpool air conditioner

Here are the diagrams and repair parts for Whirlpool ACQ068PR1 air conditioner, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 57 parts

    Grille

    #6

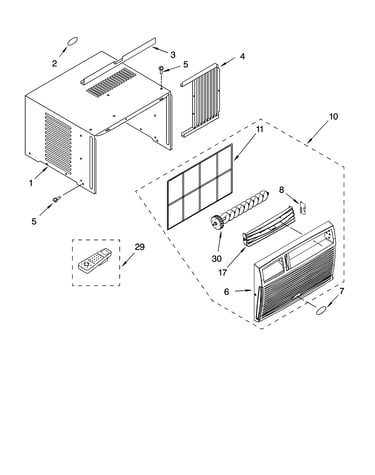

    Cabinet parts Diagram

    Grille

    Part #8209728
    $82.96

    In Stock

    Nameplate

    #2

    Cabinet parts Diagram

    Nameplate

    Part #8209738
    $32.02

    In Stock

    Energy Guide

    #1B

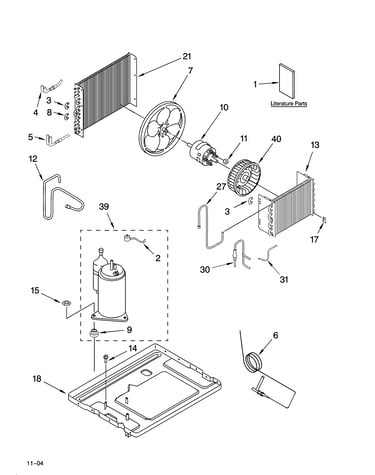

    Unit parts Diagram

    Energy guide

    Part #8209856
    This item is not returnable
    $4.55

    In Stock

    Control Board

    #36

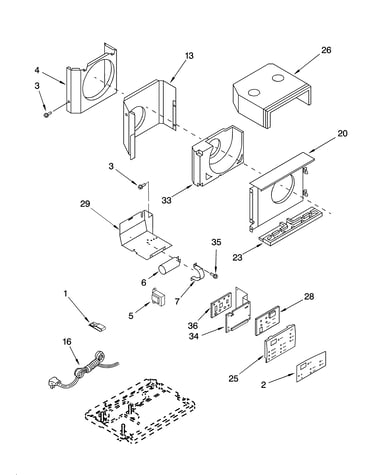

    Air flow and control parts Diagram

    Control board

    Part #8201725
    ?
    Manufacturer substitution
    This part replaces 8209790. Substitute parts can look different from the original.
    This part replaces 8209790
    $49.15

    In Stock

    Control Board

    #28

    Air flow and control parts Diagram

    Control board

    Part #8201725
    ?
    Manufacturer substitution
    This part replaces 8209792. Substitute parts can look different from the original.
    This part replaces 8209792
    $49.15

    In Stock

    Microwave Screw

    #3

    Air flow and control parts Diagram

    Microwave screw

    Part #8169474
    ?
    Manufacturer substitution
    This part replaces 8209674. Substitute parts can look different from the original.
    This part replaces 8209674
    This item is not returnable
    $3.58

    In Stock

    Refrigerator Screw

    #14

    Unit parts Diagram

    Refrigerator screw

    Part #W11245710
    ?
    Manufacturer substitution
    This part replaces 8209688. Substitute parts can look different from the original.
    This part replaces 8209688
    $7.79

    In Stock

    Nut

    #11

    Unit parts Diagram

    Nut

    Part #8209660

    The manufacturer no longer makes this part, and there's no substitute part

    Air Conditioner Blower Wheel

    #40

    Unit parts Diagram

    Air conditioner blower wheel

    Part #8209673

    The manufacturer no longer makes this part, and there's no substitute part

    Front

    #10

    Cabinet parts Diagram

    Front

    Part #8209690

    The manufacturer no longer makes this part, and there's no substitute part
