Model # HREX04980 Official HealthRider rc150 exercise cycle

Here are the diagrams and repair parts for Official HealthRider HREX04980 rc150 exercise cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |

Right Pedal 153335
#37

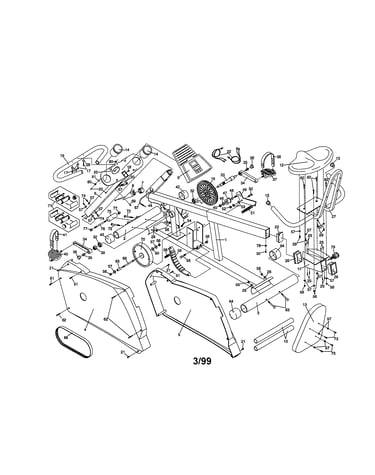

Unit parts diagram

Right pedal

Part #153335

In Stock
Round Endcap 128422
#42

Unit parts diagram

Round endcap

Part #128422

Replaced by #130656

?
Manufacturer substitution
This part replaces 128422. Substitute parts can look different from the original.
This item is not returnable
In Stock
Elliptical Drive Belt 153283
#68

Unit parts diagram

Elliptical drive belt

Part #153283

In Stock
Rear Stabilizer End Cap 139418
#64

Unit parts diagram

Rear stabilizer end cap

Part #139418

This item is not returnable
In Stock
Arm,crank,lt 152975
#34A

Unit parts diagram

Arm,crank,lt

Part #152975

Replaced by #296602

?
Manufacturer substitution
This part replaces 152975. Substitute parts can look different from the original.
$90.99
5% OFF Phone Price : $95.99
In Stock
Carriage Bolt 013043
#82

Unit parts diagram

Carriage bolt

Part #013043

This item is not returnable
In Stock
Exercise Equipment Screw 153770
#17

Unit parts diagram

Exercise equipment screw

Part #153770

This item is not returnable
In Stock
Exercise Equipment Star Washer 014088
#80

Unit parts diagram

Exercise equipment star washer

Part #014088

This item is not returnable
In Stock
Screw,abhwhs 013450
#21

Unit parts diagram

Screw,abhwhs

Part #013450

This item is not returnable
In Stock
Wshr,flat,zp 014017
#60

Unit parts diagram

Wshr,flat,zp

Part #014017

This item is not returnable
In Stock
