Model # 143592022 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143592022 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |
Lawn & Garden Equipment Engine Carburetor Bowl Drain Valve 27136A
#16

Carburetor diagram

Lawn & garden equipment engine carburetor bowl drain valve

Part #27136A

This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Tube 27627
#100

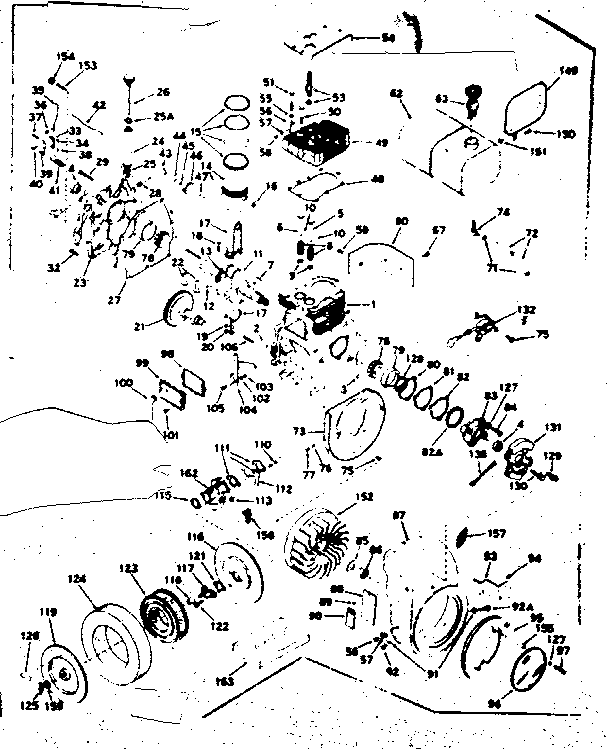

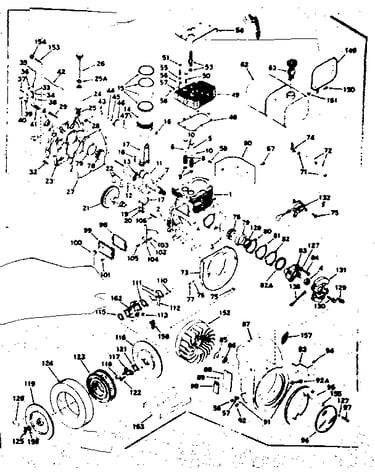

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Carburetor Float 27105
#14

Carburetor diagram

Lawn & garden equipment engine carburetor float

Part #27105

$24.67
In Stock
Lawn & Garden Equipment Engine Gasket 27554
#25

Carburetor diagram

Lawn & garden equipment engine gasket

Part #27554

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Camshaft Assembly 32116
#21

Basic engine diagram

Camshaft assembly

Part #32116

The manufacturer no longer makes this part, and there's no substitute part

Gasket Set 31993A
#163

Basic engine diagram

Gasket set

Part #31993A

The manufacturer no longer makes this part, and there's no substitute part

Spring 31503
#9

Carburetor diagram

Spring

Part #31503

This item is not returnable
$2.16
In Stock
Spring 32096
#27

Carburetor diagram

Spring

Part #32096

This item is not returnable
$4.17
In Stock
Shaft 27106
#15

Carburetor diagram

Shaft

Part #27106

This item is not returnable
$3.26
In Stock
Lawn & Garden Equipment Engine Carburetor Adjustment Screw Spring 27114
#8

Carburetor diagram

Lawn & garden equipment engine carburetor adjustment screw spring

Part #27114

This item is not returnable
$4.17
In Stock
