Whirlpool WMH1163XVQ5 1.6 cubic foot microwave Parts

Here are the diagrams and repair parts for Whirlpool WMH1163XVQ5 1.6 cubic foot microwave, as well as links to manuals and error code tables, if available.

Whirlpool WMH1163XVQ5 1.6 cubic foot microwave
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WMH1163XVQ5 1.6 Cubic Foot Microwave

  • Microwave Vent Louver Motor Cam Plate for Whirlpool WMH1163XVQ5 - Part W10562613

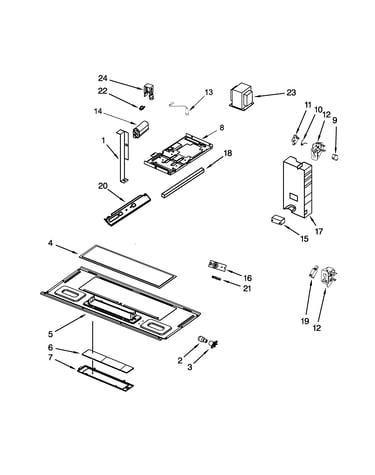

    Interior and ventilation parts diagram

    Cam Plate

    Part #W10156811

    Replaced by #W10562613

    Info Icon
    Manufacturer substitution
    This part replaces W10156811. Substitute parts can look different from the original.
    In Stock
    $12.85
    13% OFF Phone Price : $14.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Magnetron for Whirlpool WMH1163XVQ5 - Part W10754299

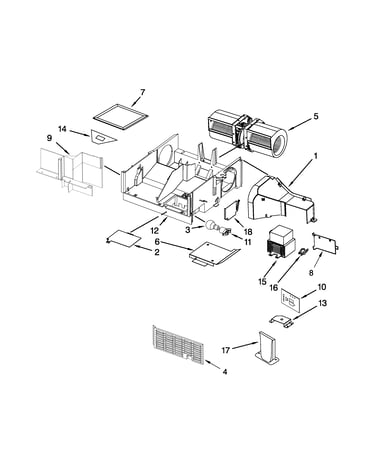

    Air flow parts diagram

    Microwave Magnetron

    Part #W10216360

    Replaced by #W10754299

    Info Icon
    Manufacturer substitution
    This part replaces W10216360. Substitute parts can look different from the original.
    In Stock
    $197.62
    6% OFF Phone Price : $209.62Info Icon
    Minus Item
    Qty
    Plus Item
  • Waterproof P for Whirlpool WMH1163XVQ5 - Part W11381953

    Air flow parts diagram

    Plate

    Part #W10269467

    Replaced by #W11381953

    Info Icon
    Manufacturer substitution
    This part replaces W10269467. Substitute parts can look different from the original.
    In Stock
    $39.88
    13% OFF Phone Price : $45.88Info Icon
    Minus Item
    Qty
    Plus Item
  • R Ceramic Fu for Whirlpool WMH1163XVQ5 - Part W11707984

    Interior and ventilation parts diagram

    Microwave Fuse

    Part #W10138793

    Replaced by #W11707984

    Info Icon
    Manufacturer substitution
    This part replaces W10138793. Substitute parts can look different from the original.
    In Stock
    $73.63
    8% OFF Phone Price : $79.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Screw for Whirlpool WMH1163XVQ5 - Part WP8169704

    Cabinet and installation parts diagram

    Microwave Screw

    Part #8169704

    Replaced by #WP8169704

    Info Icon
    Manufacturer substitution
    This part replaces 8169704. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.08
    14% OFF Phone Price : $7.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Charcoal Filter for Whirlpool WMH1163XVQ5 - Part 8206230A

    Air flow parts diagram

    Filter

    Part #8206230

    Replaced by #8206230A

    Info Icon
    Manufacturer substitution
    This part replaces 8206230. Substitute parts can look different from the original.
    In Stock
    $12.76
    14% OFF Phone Price : $14.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Waveguide Cover Rivet for Whirlpool WMH1163XVQ5 - Part W11319886

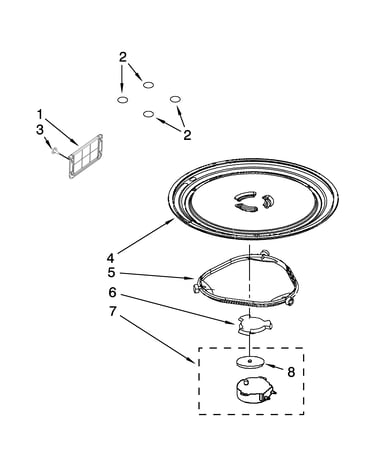

    Turntable parts diagram

    Microwave Waveguide Cover Rivet

    Part #W10138801

    Replaced by #W11319886

    Info Icon
    Manufacturer substitution
    This part replaces W10138801. Substitute parts can look different from the original.
    In Stock
    $20.94
    22% OFF Phone Price : $26.94Info Icon
    Minus Item
    Qty
    Plus Item
  • Cabinet for Whirlpool WMH1163XVQ5 - Part WPW10462003

    Cabinet and installation parts diagram

    Wrapper Cabinet

    Part #W10462003

    Replaced by #WPW10462003

    Info Icon
    Manufacturer substitution
    This part replaces W10462003. Substitute parts can look different from the original.
    In Stock
    $211.05
    Minus Item
    Qty
    Plus Item
  • Microwave Door Handle (white) for Whirlpool WMH1163XVQ5 - Part W10445124

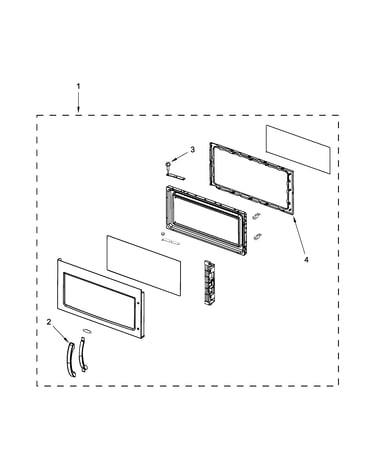

    Door parts diagram

    Door Handle

    Part #W10211466

    Replaced by #W10445124

    Info Icon
    Manufacturer substitution
    This part replaces W10211466. Substitute parts can look different from the original.
    In Stock
    $137.17
    Minus Item
    Qty
    Plus Item
  • Microwave Cabinet for Whirlpool WMH1163XVQ5 - Part WPW10462001

    Cabinet and installation parts diagram

    Microwave Cabinet

    Part #W10462001

    Replaced by #WPW10462001

    Info Icon
    Manufacturer substitution
    This part replaces W10462001. Substitute parts can look different from the original.
    In Stock
    $213.98
    Minus Item
    Qty
    Plus Item
