KitchenAid
Food Processor

Model # 5KFC0516AOB0 Official KitchenAid food processor

Here are the diagrams and repair parts for Official KitchenAid 5KFC0516AOB0 food processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 6 of 6 parts  |
Bowl Assembly W11310453
#4

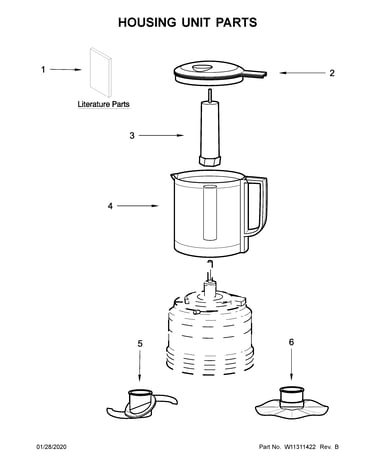

Housing unit parts diagram

Bowl assembly

Part #W11310453

Replaced by #W11311697

?
Manufacturer substitution
This part replaces W11310453. Substitute parts can look different from the original.
$53.39 |
9% OFF Phone Price : $58.39
In Stock
Drive Adapter W11310462
#3

Housing unit parts diagram

Drive adapter

Part #W11310462

$35.39 |
12% OFF Phone Price : $40.39
In Stock
Blade, Whisking W11310460
#6

Housing unit parts diagram

Blade, whisking

Part #W11310460

Replaced by #W11311699

?
Manufacturer substitution
This part replaces W11310460. Substitute parts can look different from the original.
$25.19 |
17% OFF Phone Price : $30.19
In Stock
Lid Assembly W11310452
#2

Housing unit parts diagram

Lid assembly

Part #W11310452

Replaced by #W11311696

?
Manufacturer substitution
This part replaces W11310452. Substitute parts can look different from the original.
$39.19 |
11% OFF Phone Price : $44.19
In Stock
Blade, Multipurpose W11310454
#5

Housing unit parts diagram

Blade, multipurpose

Part #W11310454

Replaced by #W11311698

?
Manufacturer substitution
This part replaces W11310454. Substitute parts can look different from the original.
$35.89 |
12% OFF Phone Price : $40.89
In Stock
Use And Care Guide W11250099
#1

Housing unit parts diagram

Use and care guide

Part #W11250099

The manufacturer no longer makes this part, and there's no substitute part
