Amana
Electric Cooktop

Model # AKO2000E-P1142512NE Official Amana cooktop

Here are the diagrams and repair parts for Official Amana AKO2000E-P1142512NE cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Screw M0216703

#NI

All parts diagram

Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Name Plate, Gas Cooktop 315516B
#31

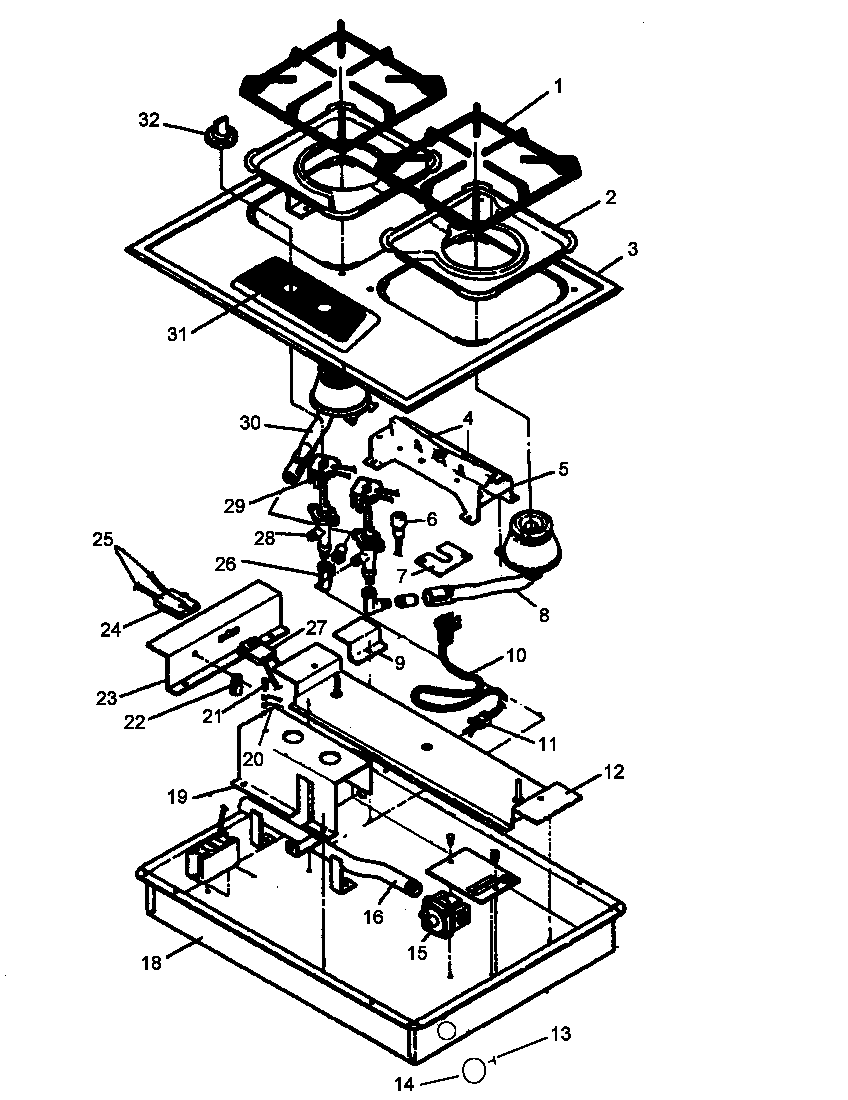

Maintop diagram

Name plate, gas cooktop

Part #315516B

The manufacturer no longer makes this part, and there's no substitute part

Module Cover 0040764
#23

Maintop diagram

Module cover

Part #0040764

The manufacturer no longer makes this part, and there's no substitute part

Name Plate, Gas Cooktop 315516W
#31

Maintop diagram

Name plate, gas cooktop

Part #315516W

The manufacturer no longer makes this part, and there's no substitute part

Spacer, Burner 0047068
#12

Maintop diagram

Spacer, burner

Part #0047068

The manufacturer no longer makes this part, and there's no substitute part

Tapg Screw 0041793

#NI

All parts diagram

Tapg screw

Part #0041793

The manufacturer no longer makes this part, and there's no substitute part

Burner Box 040465B
#18

Maintop diagram

Burner box

Part #040465B

The manufacturer no longer makes this part, and there's no substitute part

Base, Flash Tube 0040913
#5

Maintop diagram

Base, flash tube

Part #0040913

The manufacturer no longer makes this part, and there's no substitute part

Orifice Hood #69, Lp 0308972
#26

Maintop diagram

Orifice hood #69, lp

Part #0308972

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 0052687
#27

Maintop diagram

Wire harness

Part #0052687

The manufacturer no longer makes this part, and there's no substitute part
