Maytag
Wall Oven/Microwave Combo

Model # MMW9730FZ06 Official Maytag electric oven w/microwave

Here are the diagrams and repair parts for Official Maytag MMW9730FZ06 electric oven w/microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

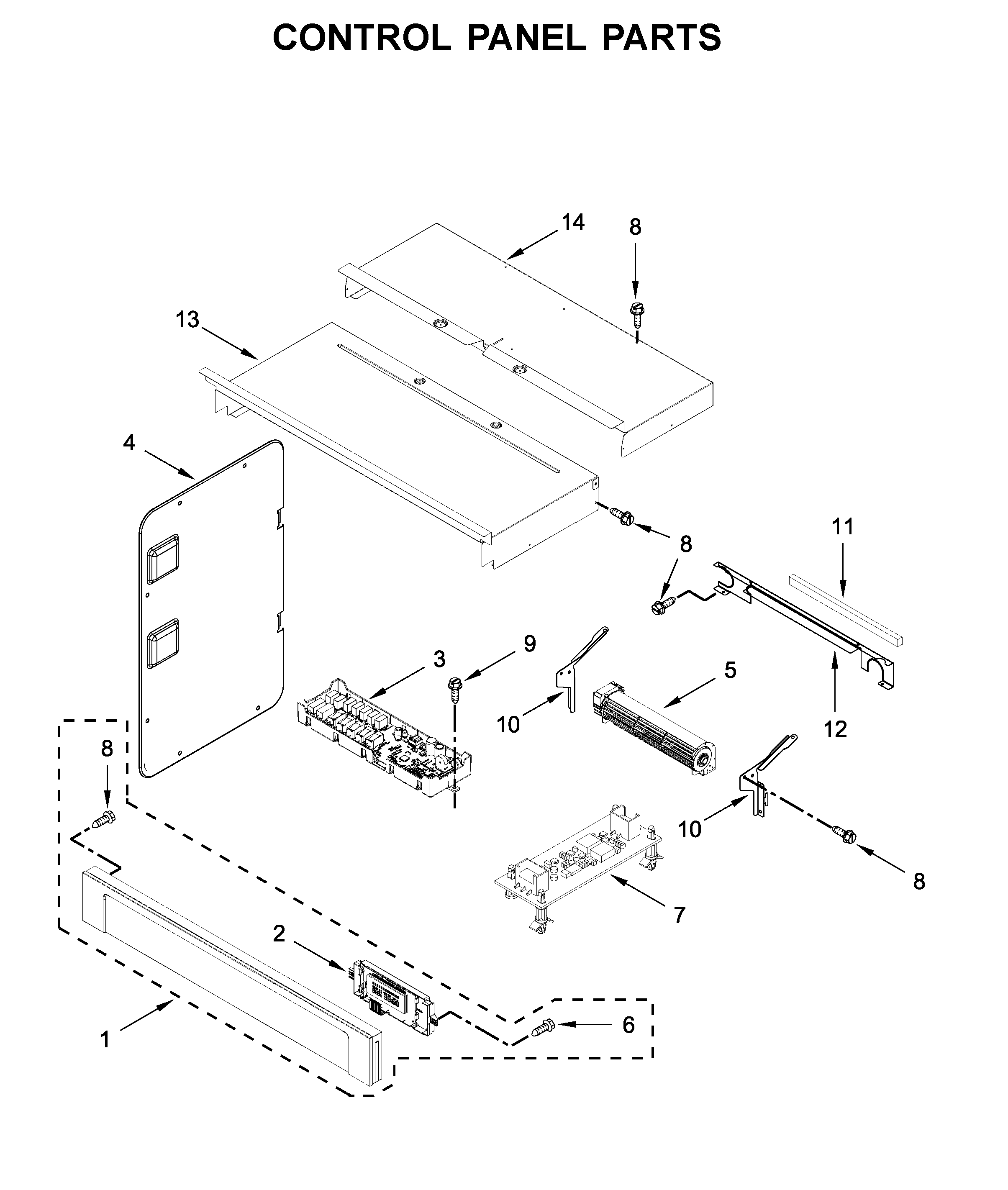

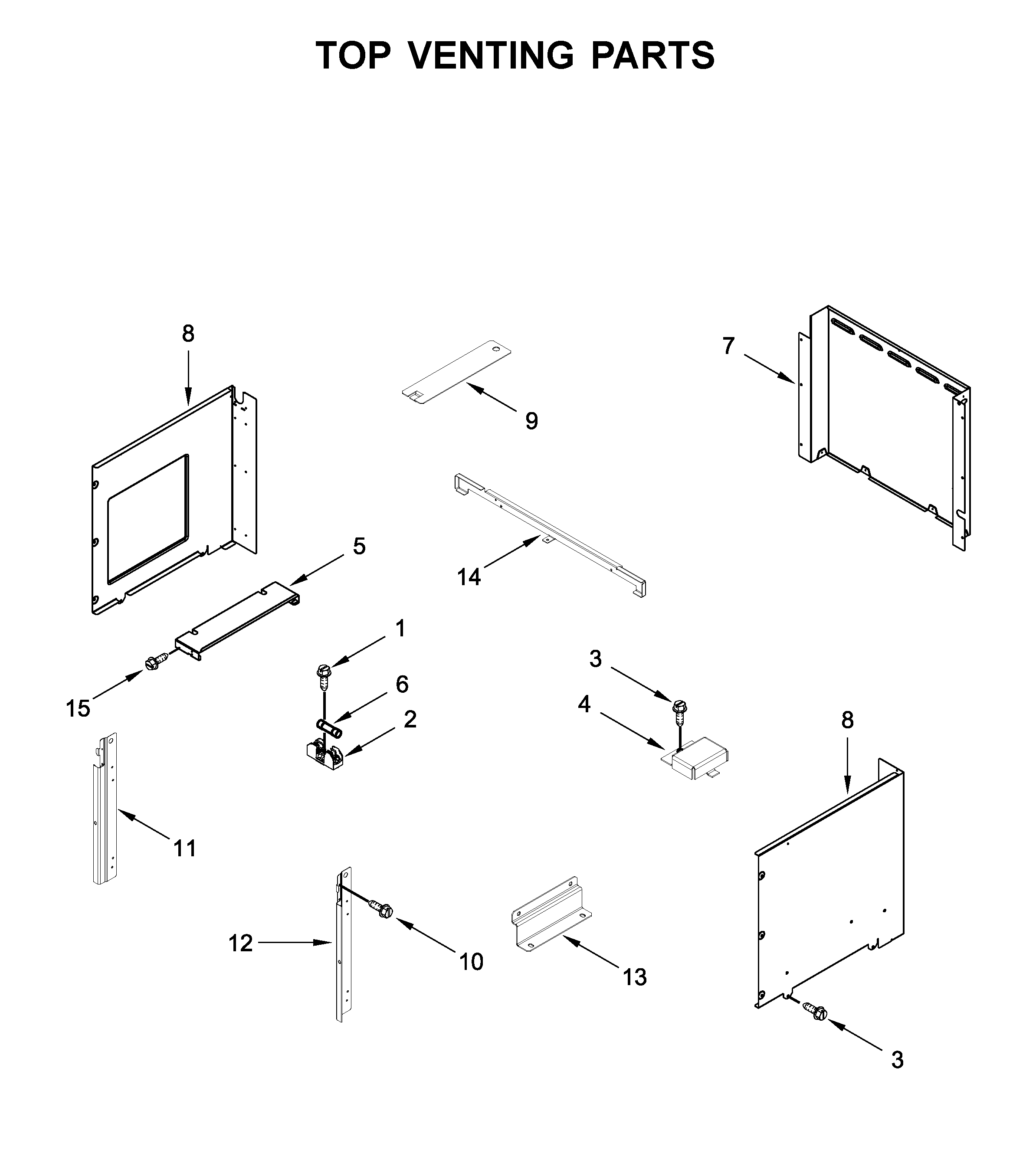

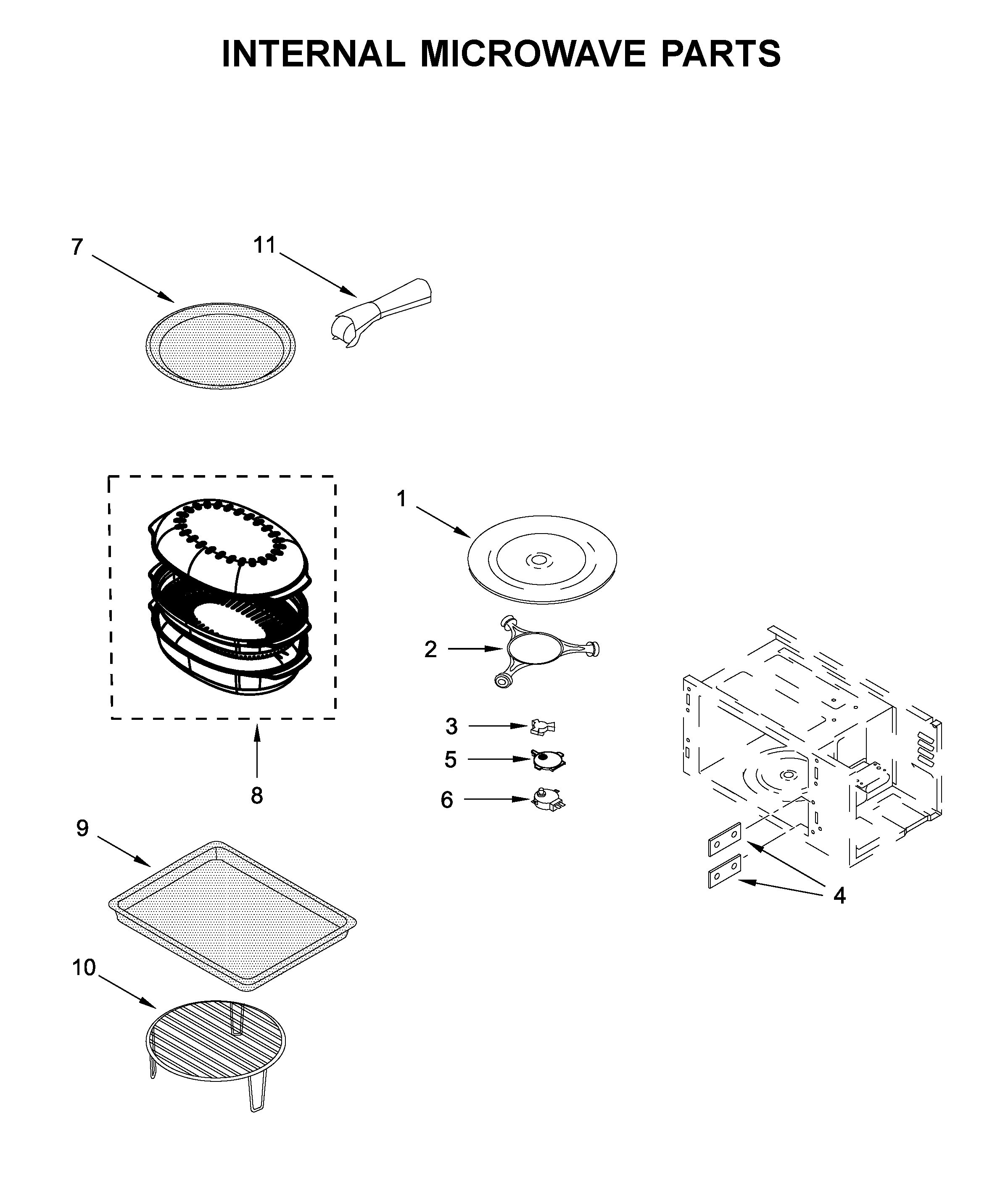

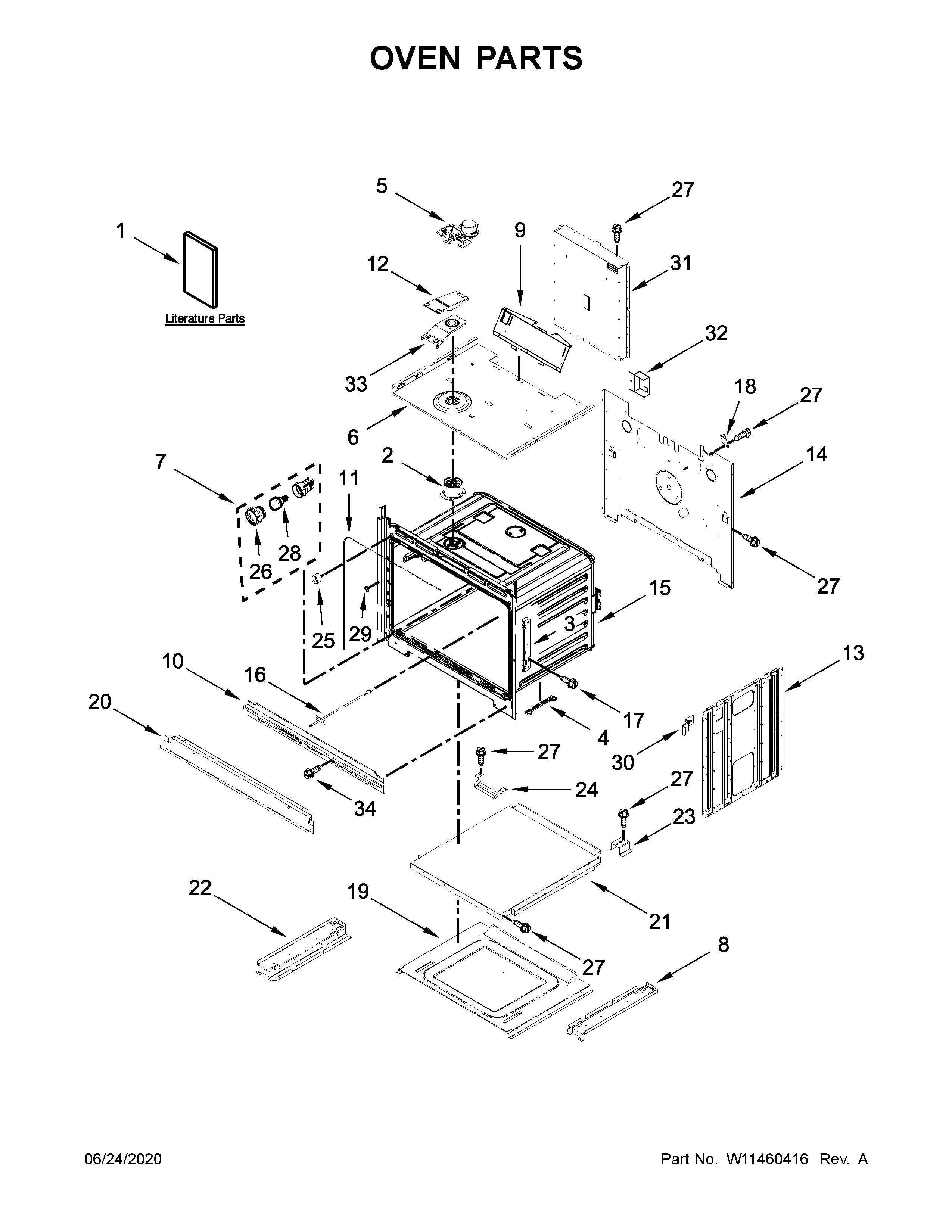

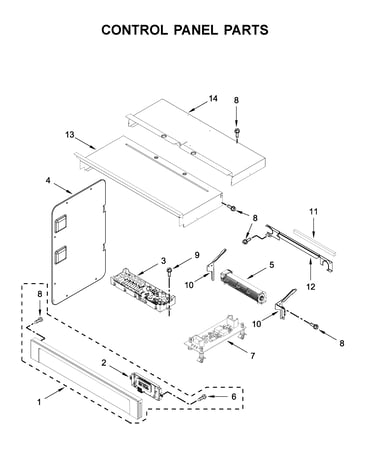

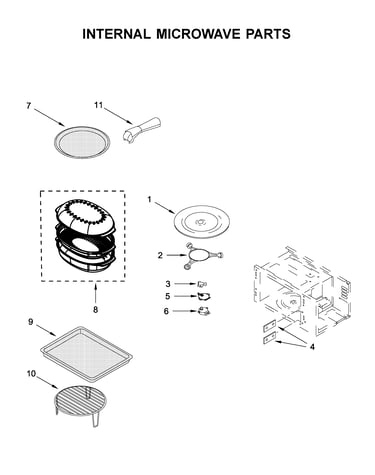

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |

Appliance Touch-up Paint 72017
#NI

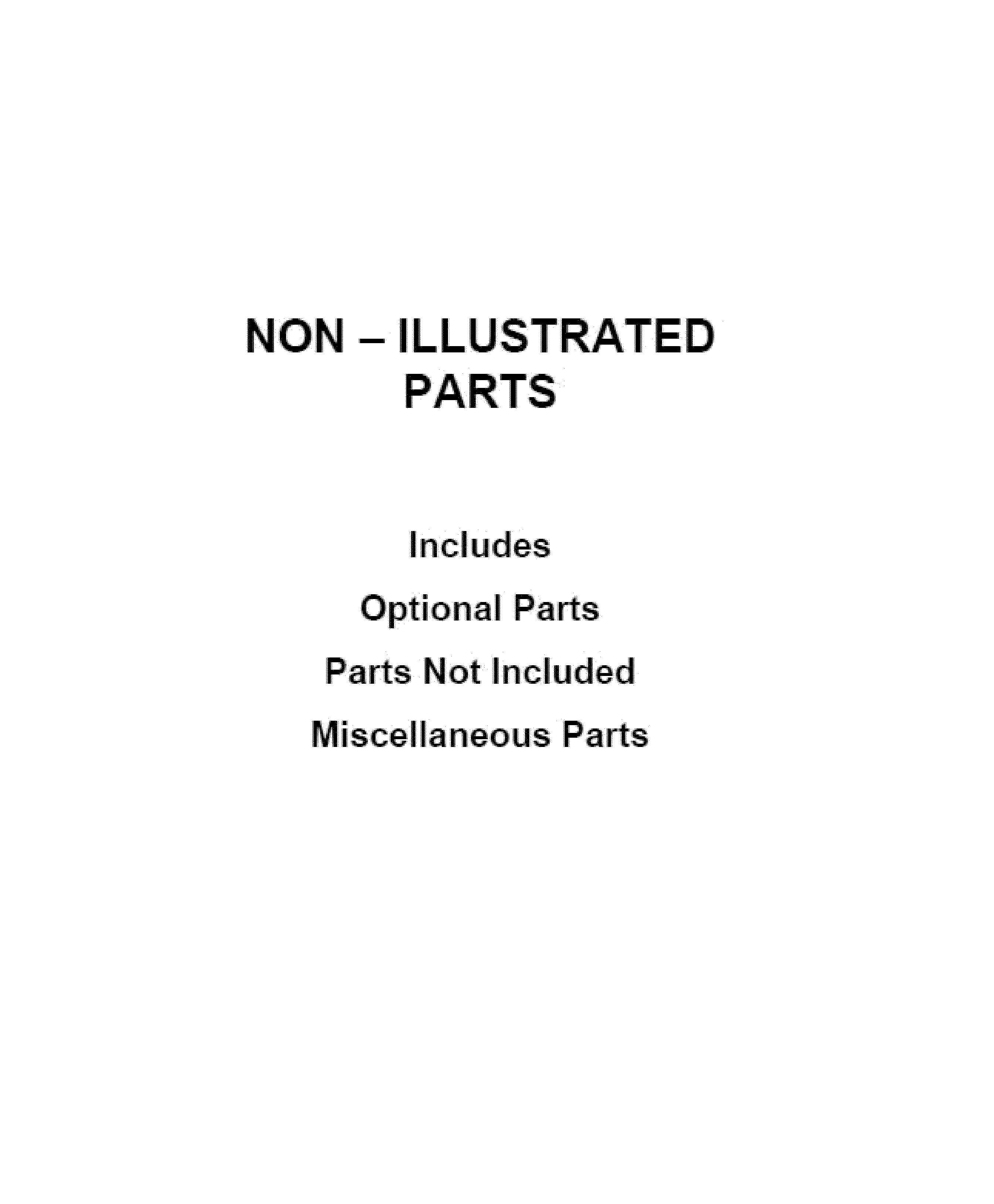

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Range Broil Element W10260252
#1

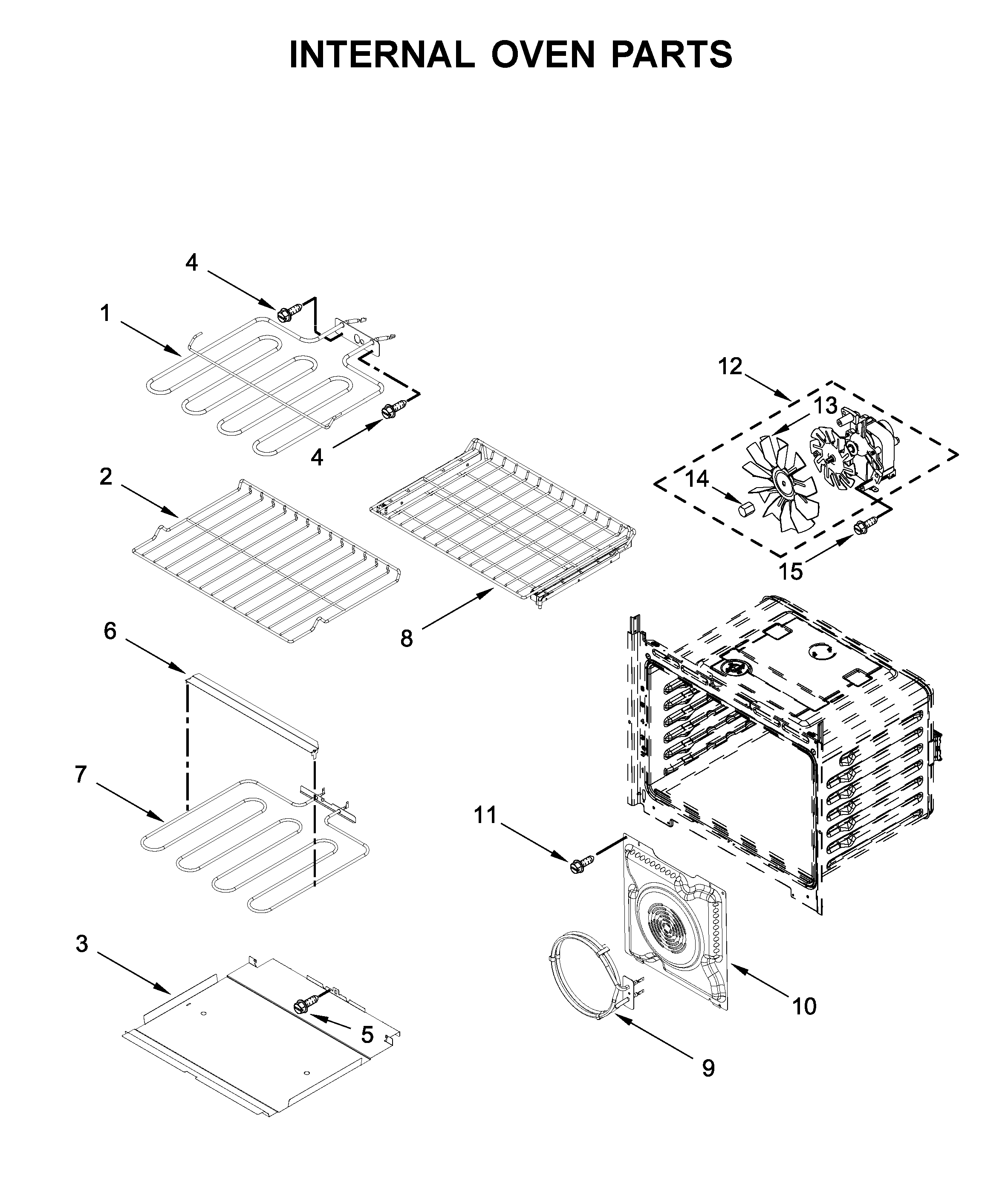

Internal oven parts diagram

Range broil element

Part #W10260252

Replaced by #WPW10260252

?
Manufacturer substitution
This part replaces W10260252. Substitute parts can look different from the original.
BEST SELLER
$79.55
6% OFF Phone Price : $84.55
In Stock
Switch 461967848881
#15

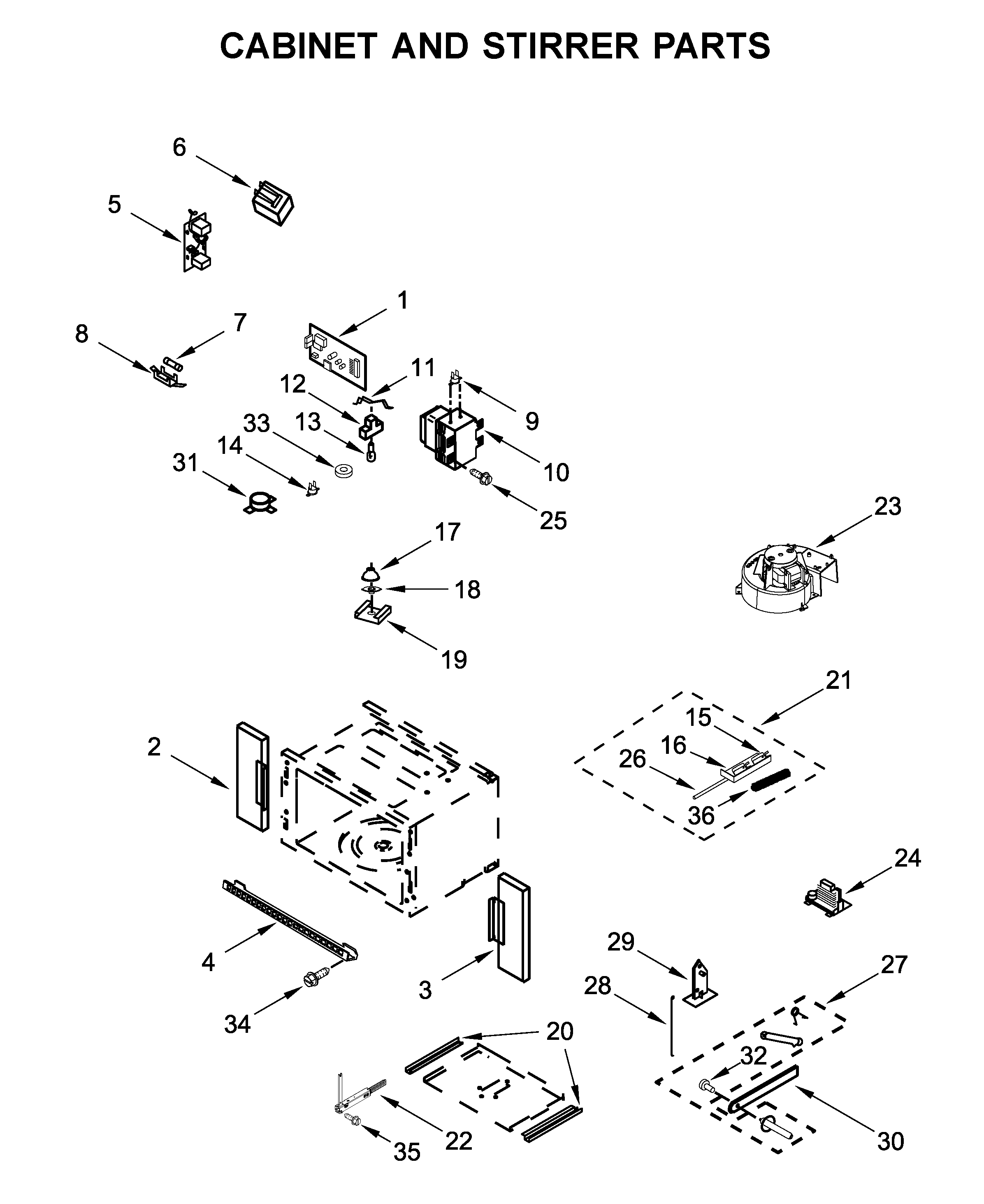

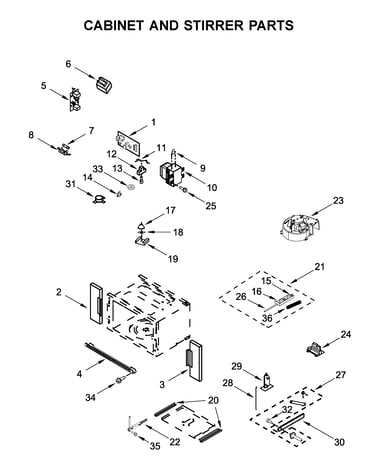

Cabinet and stirrer parts diagram

Switch

Part #461967848881

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 461967848881. Substitute parts can look different from the original.
BEST SELLER
$25.98
53% OFF MSRP : $55.00
In Stock
Touch-up Paint 4392899
#NI

Optional parts (not included) diagram

Touch-up paint

Part #4392899

Replaced by #4392899

?
Manufacturer substitution
This part replaces 4392899. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.38
12% OFF Phone Price : $17.38
In Stock
Range Oven Rack W10282973
#8

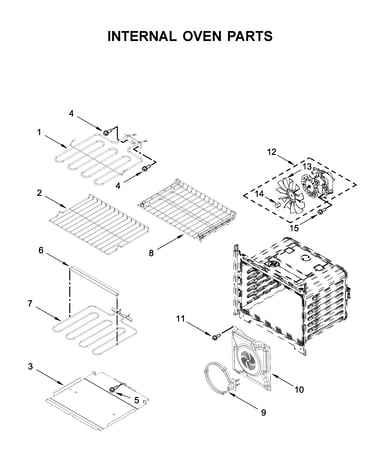

Internal oven parts diagram

Range oven rack

Part #W10282973

Replaced by #W10554531

?
Manufacturer substitution
This part replaces W10282973. Substitute parts can look different from the original.
$106.32
9% OFF Phone Price : $116.32
In Stock
Screw 7101P633-60
Screw

Part #7101P633-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P633-60. Substitute parts can look different from the original.
This item is not returnable
$4.59
58% OFF MSRP : $11.00
In Stock
Lamp G4 Halo W10795595
#13

Cabinet and stirrer parts diagram

Lamp g4 halo

Part #W10795595

Replaced by #W10886919

?
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
This item is not returnable
$22.89
18% OFF Phone Price : $27.89
In Stock
8-32 X .860 W10480830
#11

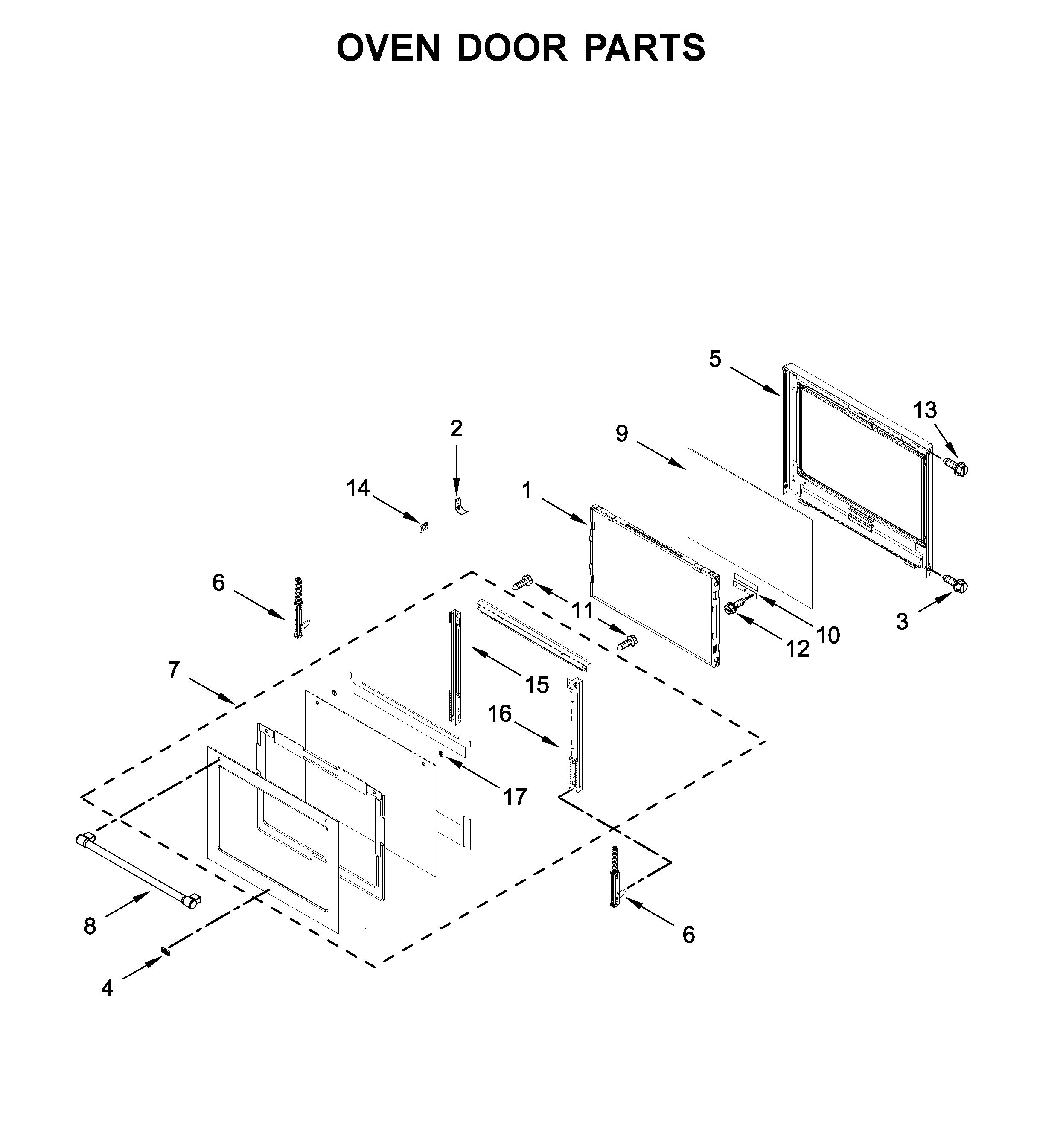

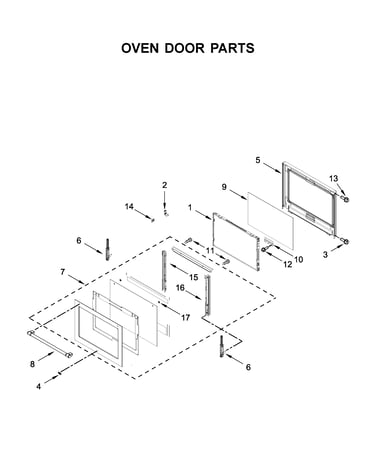

Oven door parts diagram

8-32 x .860

Part #W10480830

Replaced by #W10831019

?
Manufacturer substitution
This part replaces W10480830. Substitute parts can look different from the original.
This item is not returnable
$4.76
17% OFF Phone Price : $5.76
In Stock
Interlock W10358241
#21

Cabinet and stirrer parts diagram

Interlock

Part #W10358241

Replaced by #W11033422

?
Manufacturer substitution
This part replaces W10358241. Substitute parts can look different from the original.
$96.87
25% OFF MSRP : $130.00
In Stock
Screw 7101P338-60
#4

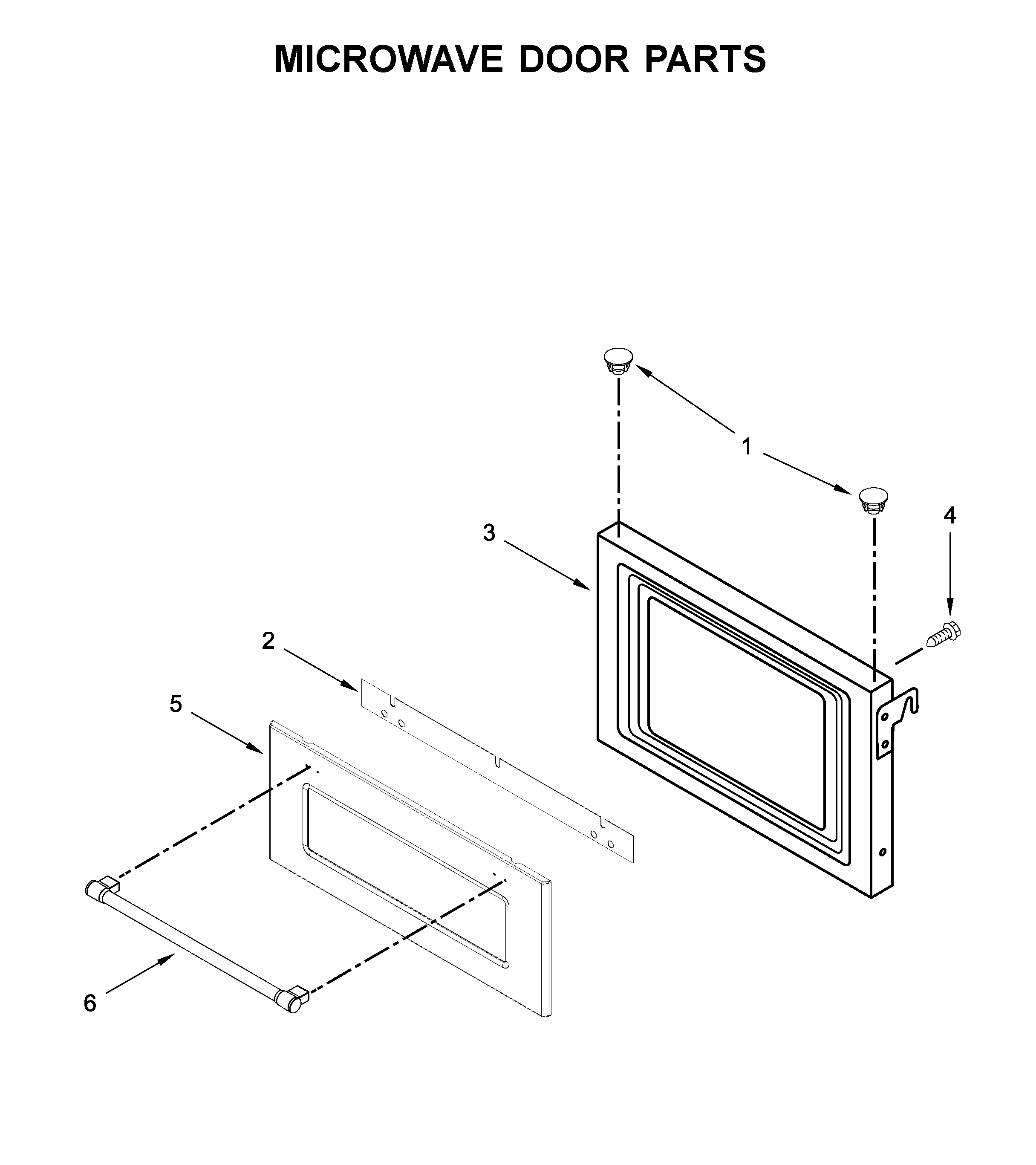

Microwave door parts diagram

Screw

Part #7101P338-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock
