Model # PVM2070DM1CC Official GE microwave
Here are the diagrams and repair parts for Official GE PVM2070DM1CC microwave, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
PVM2070DM1CC Microwave
#95

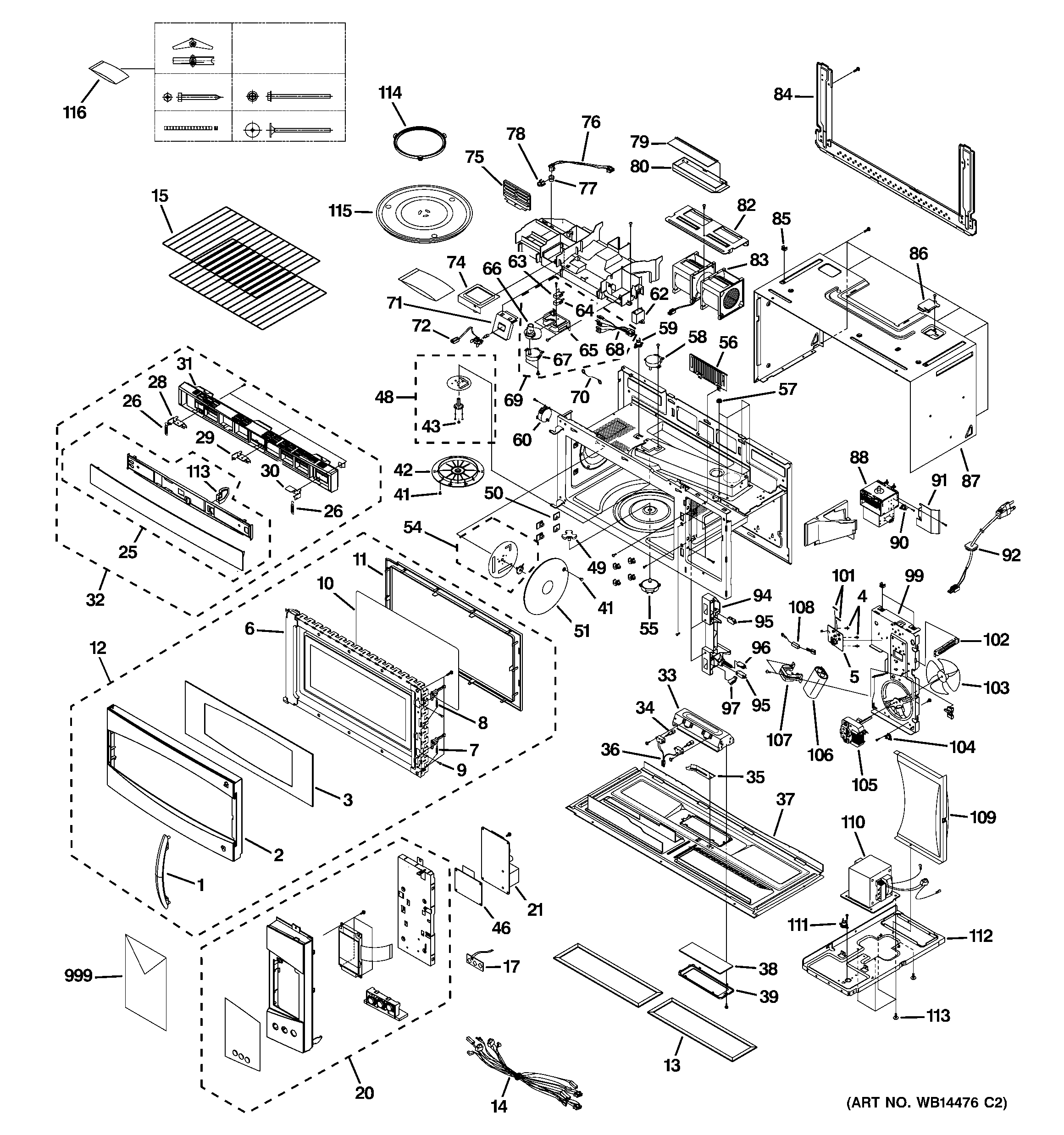

Microwave diagram
Switch-micro
Part #WB24X10038
Replaced by #WB24X829
?
Manufacturer substitution
This part replaces WB24X10038. Substitute parts can look different from the original.
$33.20 |
15% OFF Phone Price : $39.20
In Stock
#101
Microwave diagram
Fuse cartridge
Part #WB27X10474
Replaced by #WB27X10928
?
Manufacturer substitution
This part replaces WB27X10474. Substitute parts can look different from the original.
$10.70 |
16% OFF Phone Price : $12.70
In Stock
#106
Microwave diagram
Microwave high-voltage capacitor (replaces wb27x585)
Part #WB27X10011
$50.42 |
11% OFF Phone Price : $56.42
In Stock
#96
Microwave diagram
Micro-switch
Part #WB24X10075
Replaced by #WB24X830
?
Manufacturer substitution
This part replaces WB24X10075. Substitute parts can look different from the original.
$29.53 |
17% OFF Phone Price : $35.53
In Stock
#108
Microwave diagram
H.v. diode
Part #WB27X10817
Replaced by #WB27X10597
?
Manufacturer substitution
This part replaces WB27X10817. Substitute parts can look different from the original.
$45.38 |
12% OFF Phone Price : $51.38
In Stock
#94
Microwave diagram
Microwave latch body
Part #WB06X10676
$58.66 |
9% OFF Phone Price : $64.66
In Stock
#77
Microwave diagram
Gas sensor
Part #WB24X0799
Replaced by #WB24X799
?
Manufacturer substitution
This part replaces WB24X0799. Substitute parts can look different from the original.
$151.05 |
7% OFF Phone Price : $163.05
In Stock
#97
Microwave diagram
Microwave door interlock switch lever (replaces wb6x10128)
Part #WB06X10128
$9.44 |
10% OFF Phone Price : $10.44
Back Order
#110
Microwave diagram
Microwave high-voltage transformer (replaces wb20x10044)
Part #WB27X10910
$238.79 |
5% OFF Phone Price : $250.79
In Stock
#34
Microwave diagram
Microwave halogen light bulb
Part #WB36X10213
$15.21 |
12% OFF Phone Price : $17.21
In Stock
