Model # CC27-P1133350N Official Amana cooktop

Here are the diagrams and repair parts for Official Amana CC27-P1133350N cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |
Machine Screw 0041768
#9999

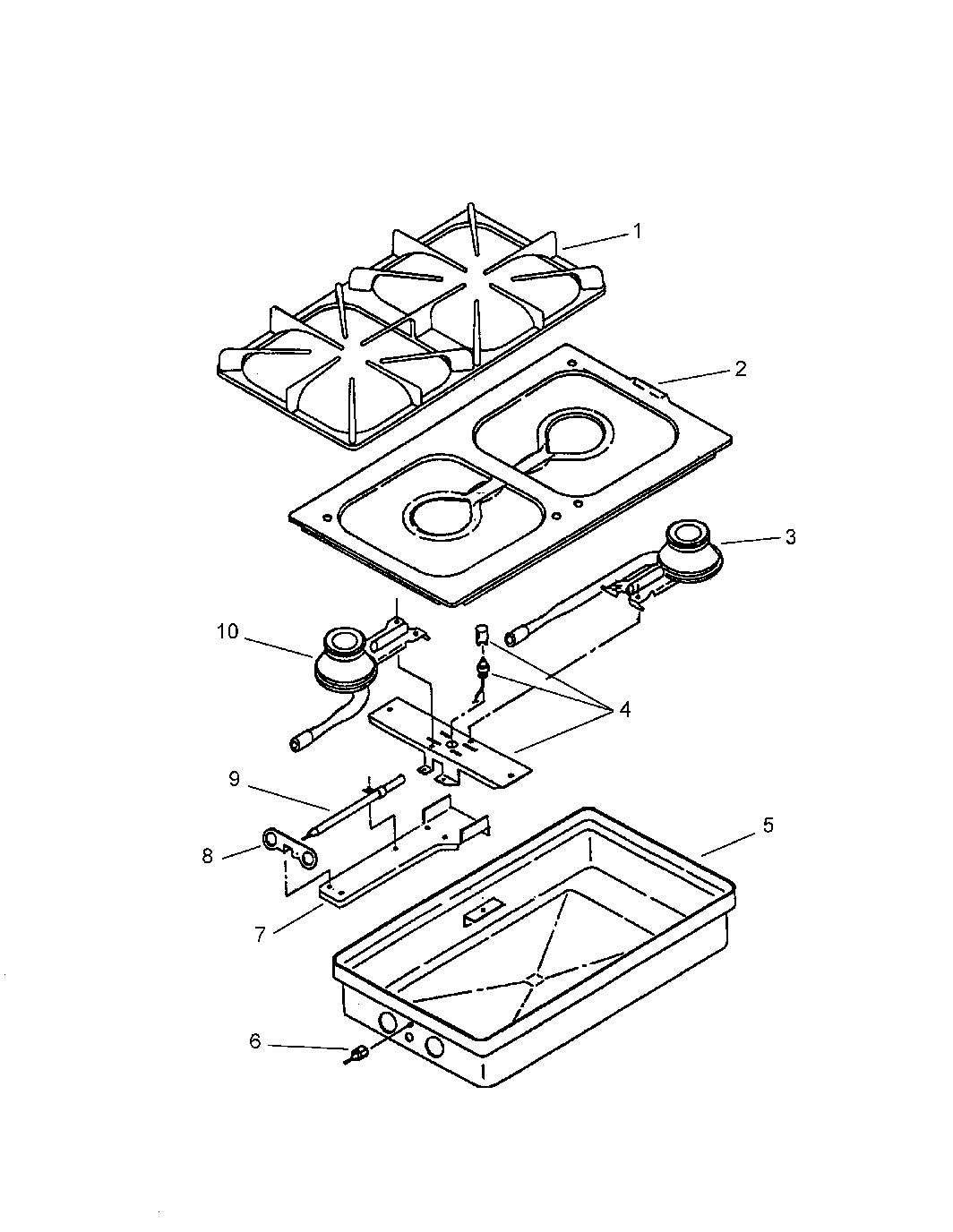

Top burner assembly - cc25, and cc27 diagram

Machine screw

Part #0041768

Replaced by #WP3400882

?
Manufacturer substitution
This part replaces 0041768. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Rear Burner 0300180
#3

Top burner assembly - cc25, and cc27 diagram

Rear burner

Part #0300180

The manufacturer no longer makes this part, and there's no substitute part

Rivet 0041915
#9999

Top burner assembly - cc25, and cc27 diagram

Rivet

Part #0041915

The manufacturer no longer makes this part, and there's no substitute part

Dbl Grate Bl 306788B
#1

Top burner assembly - cc25, and cc27 diagram

Dbl grate bl

Part #306788B

The manufacturer no longer makes this part, and there's no substitute part

Rear Burner 0300181
#10

Top burner assembly - cc25, and cc27 diagram

Rear burner

Part #0300181

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 0041947
#9999

Top burner assembly - cc25, and cc27 diagram

Lock washer

Part #0041947

The manufacturer no longer makes this part, and there's no substitute part

Module Pan 300756CG
#5

Top burner assembly - cc25, and cc27 diagram

Module pan

Part #300756CG

The manufacturer no longer makes this part, and there's no substitute part

Screw 0309016
#9999

Top burner assembly - cc25, and cc27 diagram

Screw

Part #0309016

The manufacturer no longer makes this part, and there's no substitute part

Module Clip 0041897
#9999

Top burner assembly - cc25, and cc27 diagram

Module clip

Part #0041897

The manufacturer no longer makes this part, and there's no substitute part

Igniter 0041500
#4

Top burner assembly - cc25, and cc27 diagram

Igniter

Part #0041500

The manufacturer no longer makes this part, and there's no substitute part
