Part Information

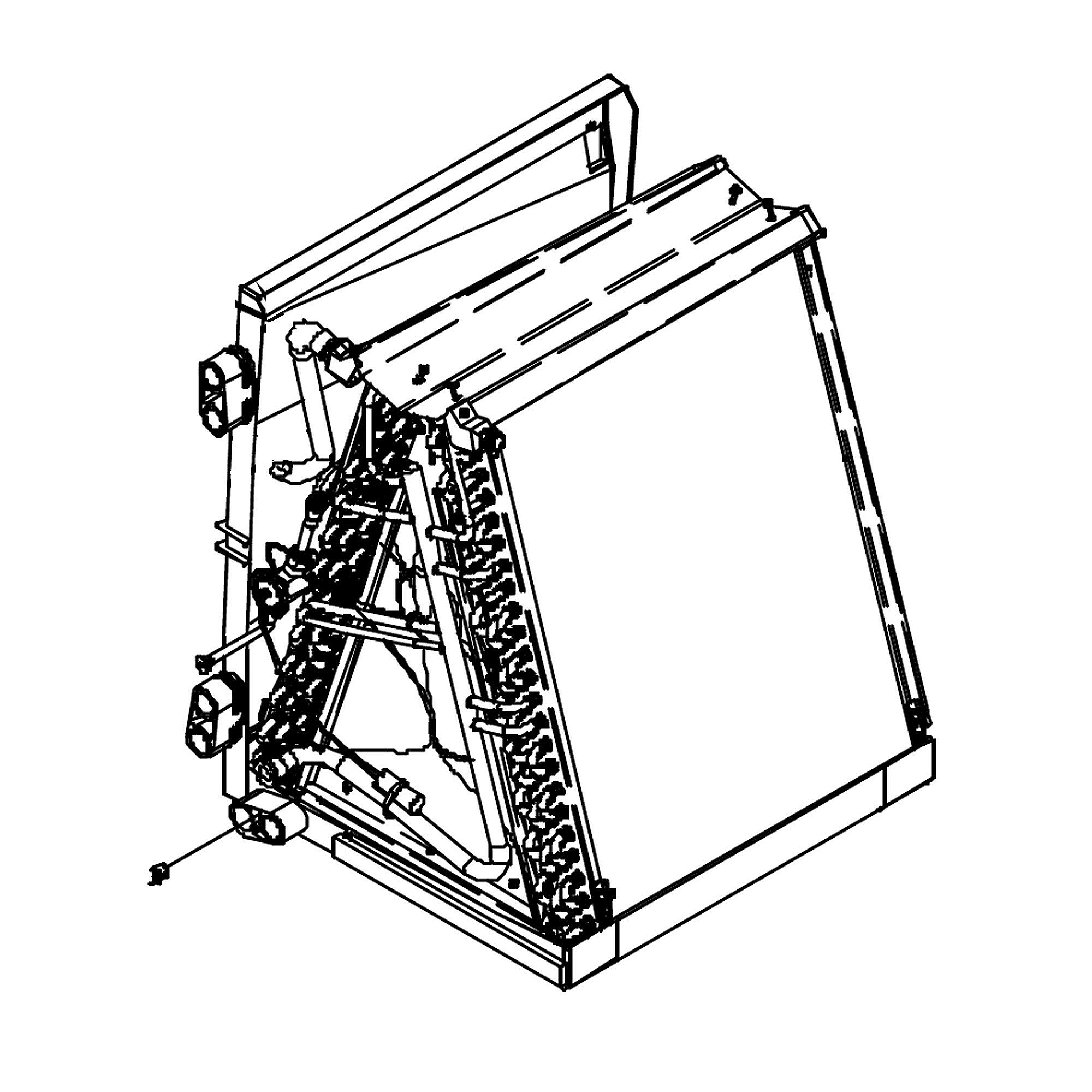

This evaporator coil assembly (part number 316224-757) is for central air conditioners.
Evaporator coil assembly 316224-757 is a heat exchanger that cools the air in a central air conditioning system.
A service technician should do this repair because it involves recovering and recharging refrigerant in the sealed refrigerant system.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #FX4ANF018000 Carrier furnace | FX4ANF018000 | Outside cabinet |
| Model #PF1MNB042000 Payne air handler | PF1MNB042000 | Coil assy |
| Model #FX4BNF018000AAAA Carrier air handler | FX4BNF018000AAAA | Coil assy |
| Model #FC4CNF024000 Carrier air handler | FC4CNF024000 | Cabinet assy 1 |
| Model #FB4BNF024000 Carrier air handler | FB4BNF024000 | Coil assy |
| Model #FC4CNF024000AAAA Carrier air handler | FC4CNF024000AAAA | Cabinet assy 1 |
| Model #PF1MNB024000 Payne air handler | PF1MNB024000 | Casing assy |
| Model #PF1MNB018000AAAA Payne air handler | PF1MNB018000AAAA | Cabinet assy 1 |
| Model #FB4BNF018000AAAA Carrier air handler | FB4BNF018000AAAA | Cabinet assy 1 |
| Model #FA4BNF024000AAAA Carrier air handler | FA4BNF024000AAAA | Coil assy |
